Technical Specifications for 2711P-RN10C
|
Manufacturer
|
Automation
|
|
Condition
|
100% New Original
|
|
Brand
|
|
Storage temperature
|
-25 to 70 degrees
|
|
Part Number/Catalog No.
|
2711P-RN10C
|
Relative humidity
|
5 to 95%
|
|
Module Type
|
DNet Communication Module
|
Input Voltage range
|
85…260V AC
|
|
Manufacture Year
|
2021
|
Peak altitude
|
2000 meters
|
|
Product Package
|
Original Package
|
UPC
|
10662468332615
|
About 2711P-RN10C
|

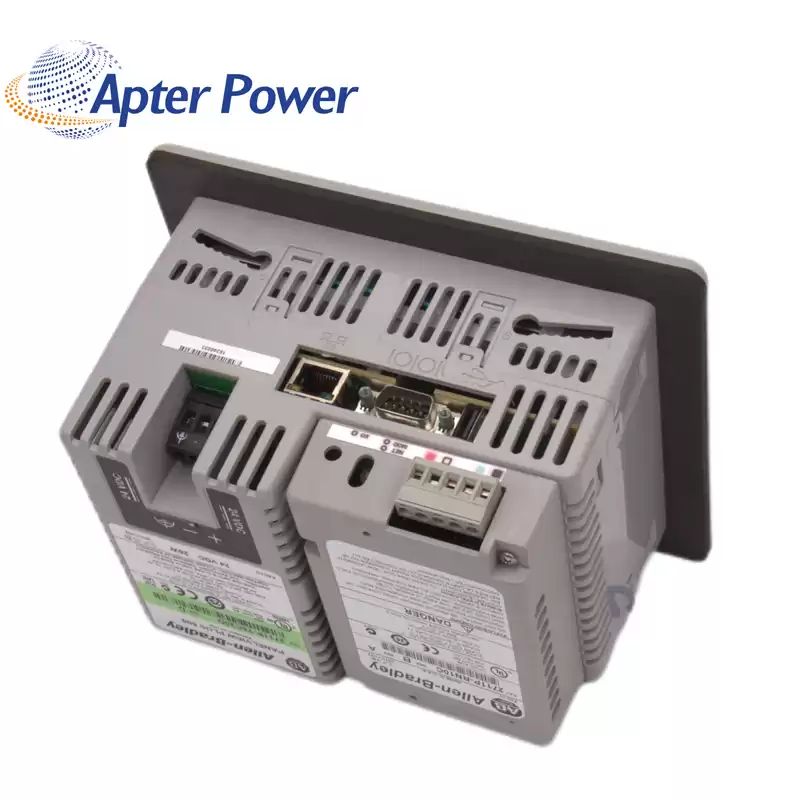

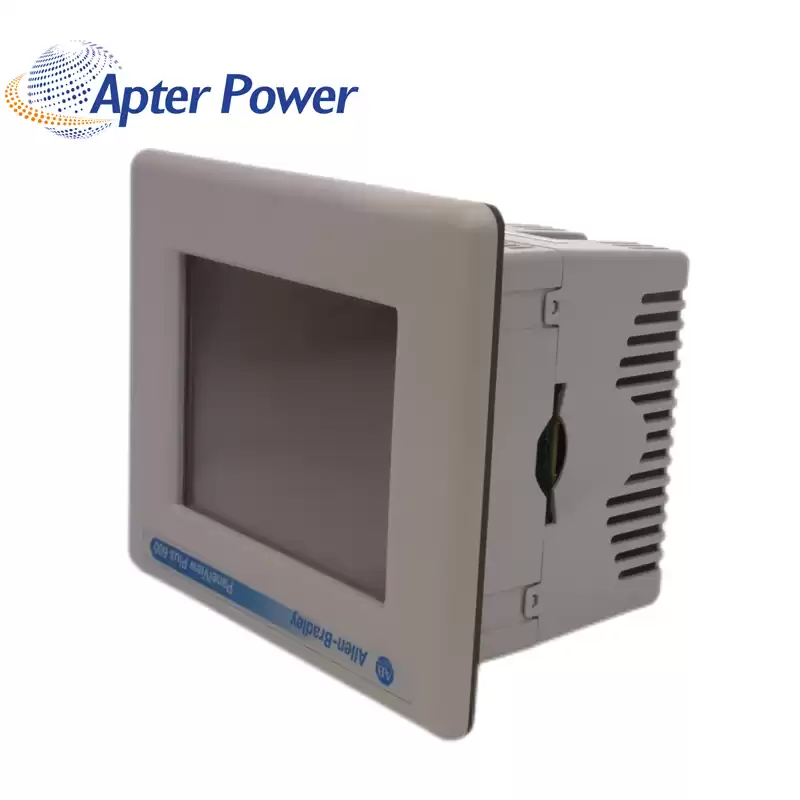

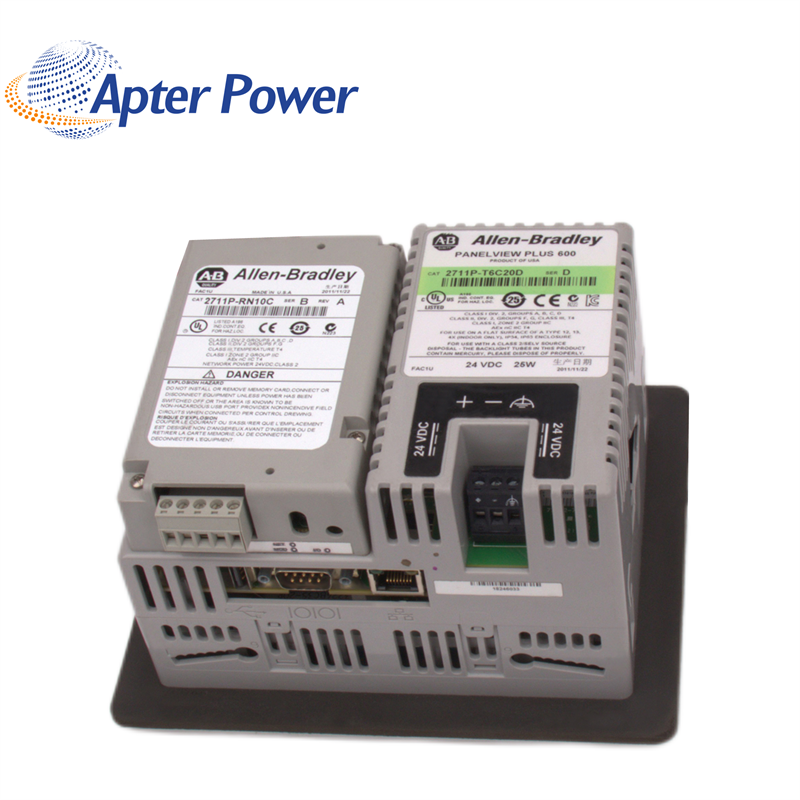

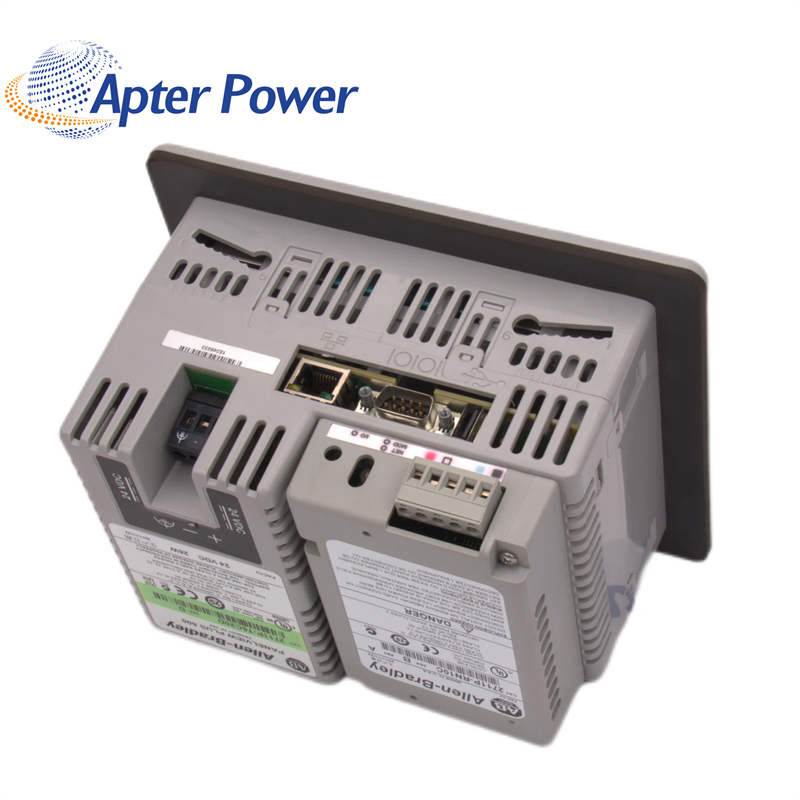

The 2711P-RN10C module should be installed at altitudes that do not exceed 2000 meters. A complete PanelView terminal is comprised of three components: a display module, a logic module, and an optional communication module such as the 2711P-RN10C module. The display module can also be used for operator input if it supports touch control.
The 2711P-RN10C communication module is a DeviceNet communication module that is made for the PanelView Plus 400 and 600 series terminals. All the PanelView Plus and the PanelView Plus CE terminals with DeviceNet communication modules support DeviceNet scheduled I/O communications. PanelView Plus and PanelView Plus CE terminals operate as scanner or slave devices on the DeviceNet network.
Any communication cable that is used should not be connected to or disconnected from the 2711P-RN10C module or any network device while the power is applied. Failure to follow this precaution can lead to an electrical arc which could cause an explosion.
|
Warranty : We offer one year warranty for all original new product.
Delivery : We will choose the DHL/FEDEX/TNT/UPS
Payment : 100% advance payment bank wire transfer
Returns : If the product has quality problems within one year from the date of receiving the product, you can send it back to replace.
