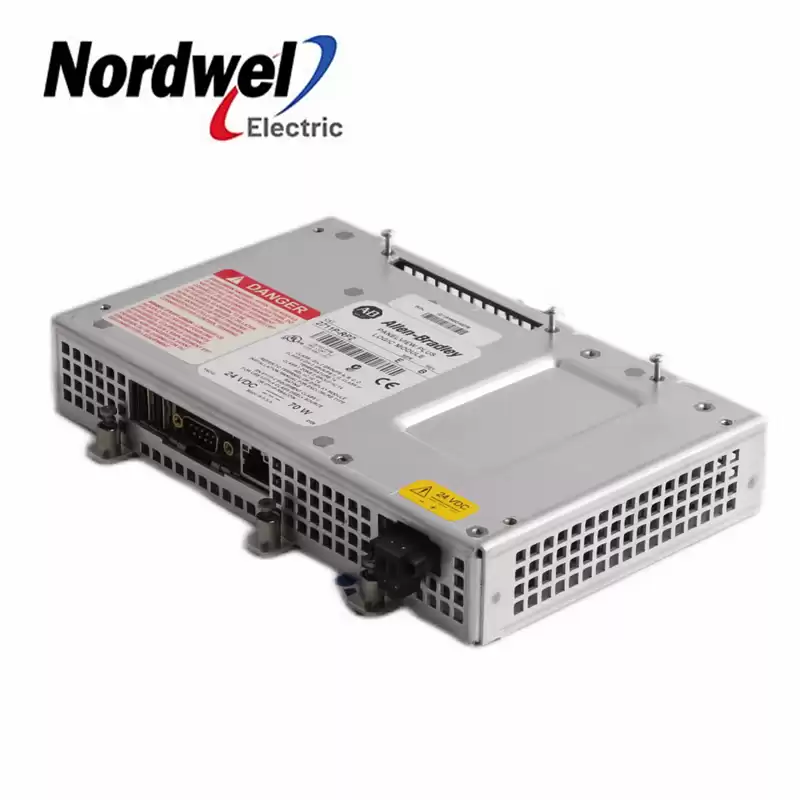

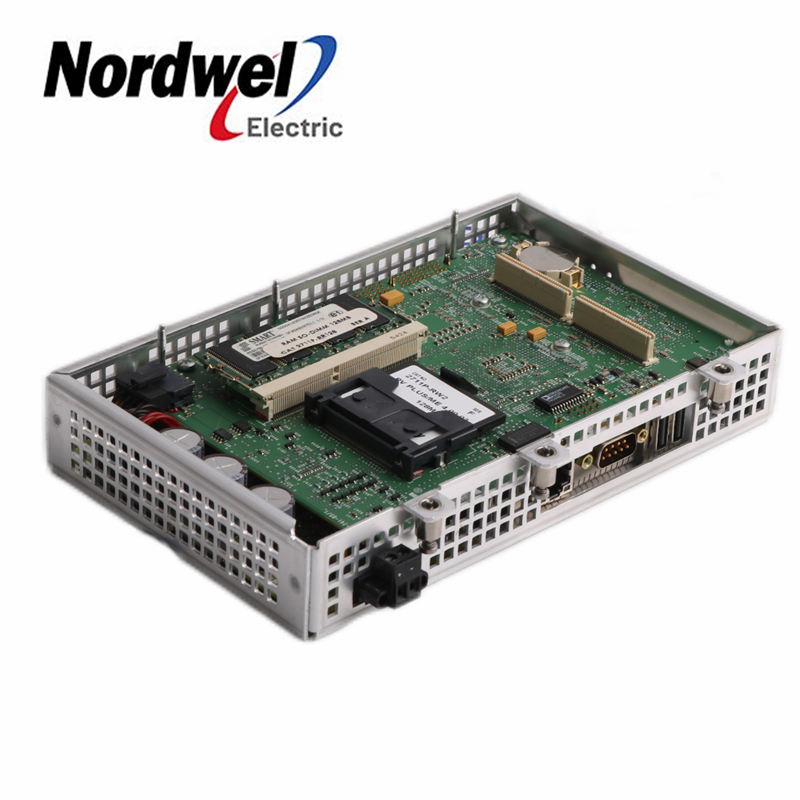

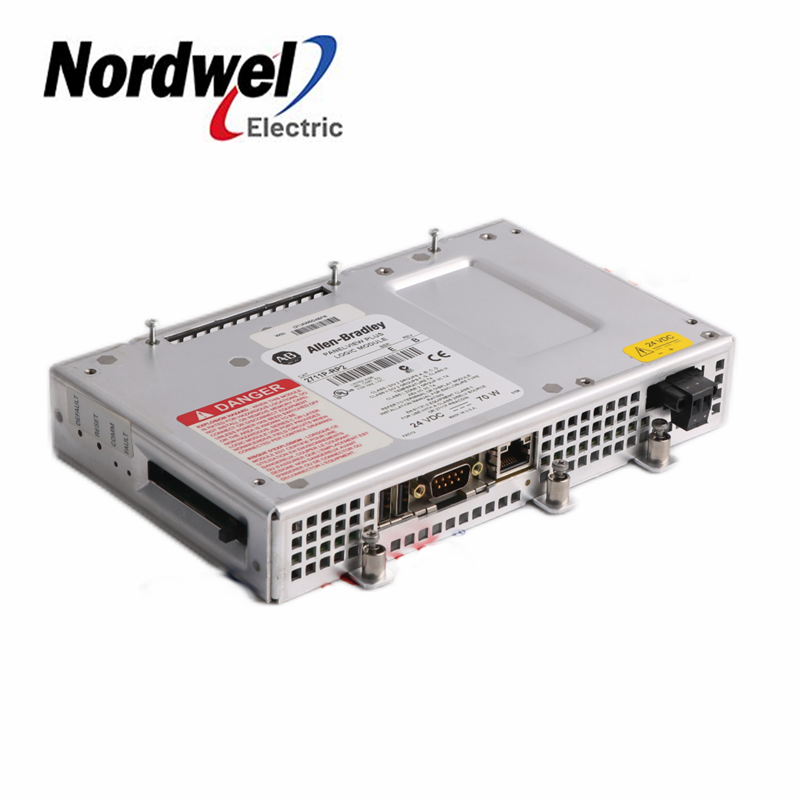

The 2711P-RP2 is a Logic module that is compatible with PanelView Plus operator terminals.
This logic module is compatible for PanelView Plus 700-1500 operator terminals. It has a Random Access
Memory (RAM) amounting to 128 MB and Flash memory amounting to 128 MB. This logic module has One
(1) serial, Two (2) USB and One (1) Ethernet interface ports.
Technical Specifications for 2711P-RP2
Communication One (1) RS232; One (1) Ethernet; Two (2) USB
Product Type Logic Module
Brand
Manufacturer: Automation
Product Family: PanelView Plus Operator Terminals
Memory: 128 MB Flash/ 128 RAM
Compatible Hardware: PanelView Plus 700-1500
Available versions: Series A-G
Status indicators: Red and Green LED
Interfaces: Ethernet port, serial port, two USB ports, CompactFlash card slot
FactoryTalk View ME compatibility: FactoryTalk View ME 3.0-5.1
Support for RAM replacement / upgrade: Yes
Operating Temperature: 0-55 Degree Celsius
Power input: 24VDC
Power Dissipation: 70 Watt
Part Number/Catalog No. 2711P-RP2
Series PanelView Plus 700 to 1500 Logic Modules
Flash Memory 128 MB
RAM Memory 128 MB
Input DC
Features Ethernet, Serial, 2 USB ports, and CompactFlash Card Slot
Compatibility Not Compatible with the PanelView Plus 6 Terminals
Mounting DIN rail
