Display Size
|
7 inches
|
|
Product Family:
|
PanelView 800 Graphic Terminals
|
|
Operator Input:
|
Touch
|
|
Display Type:
|
Color transmissive TFT active matrix LCD, widescreen format
|
|
Backlight:
|
40,000 hours
|
|
Display Area:
|
153.6 x 86.6 mm (6.05 x 3.41 in.)
|
|
Resolution:
|
800 x 480
|
|
Touchscreen:
|
Analog Resistive, 1 million presses
|
|
Integrated ports:
|
Ethernet, RS-232, RS422 / Rs485, USB
|
|
Integrated Memory:
|
256 MB Flash Memory; 256 MB DDR RAM
|
|
Input Voltage range:
|
18-32VDC
|
|
Part Number/Catalog No.
|
2711R-T7T
|
|
Product Line
|
Panelview 800
|
|
Product Type
|
Human-Module Interface
|
|
Display Color
|
Color TFT
|
|
Input Type
|
Touchscreen
|
|
Communication
|
Serial and Ethernet
|
|
Input Power
|
24 Volts DC
|
|
Memory
|
256 MB
|
|
Shipping Weight
|
8 pounds
|
|
Shipping Dimensions
|
14 x 11 x 8 inches
|
|
Series
|
A
|
The 2711R-T7T is a graphic operator terminal designed for industrial automation applications. It is part of the visualization hardware series that is highly compatible with various controllers. This operator terminal supports multiple communication protocols, including Serial, DF1, DH485, MODBUS, MODBUS ASCII, MODBUS Unicode, CIP, and Ethernet I/P.

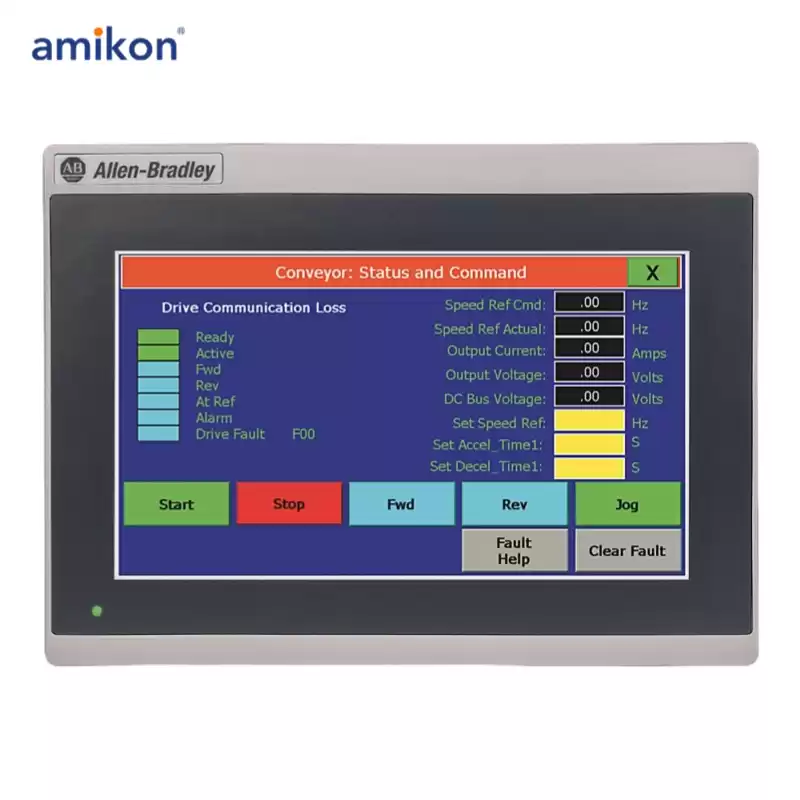

The 2711R-T7T features a 7-inch colored display screen that supports vertical or horizontal orientation in widescreen format. It has a resolution of 800 x 480 with an effective viewing area of 153.6 x 86.6 mm (6.05 x 3.41 in.). The terminal has an analog resistive touchscreen interface designed for a long operational life, with up to 1 million actuations.
It comes with an integral memory amounting to 256 MB Flash Memory and 256 MB DDR RAM. Additionally, it supports external storage via industrial-grade micro-SD cards, with compatibility for SDSC and Class 6 & Class 10 SDHC micro-SD cards, and FAT32/16 formats, up to 32 GB in size.

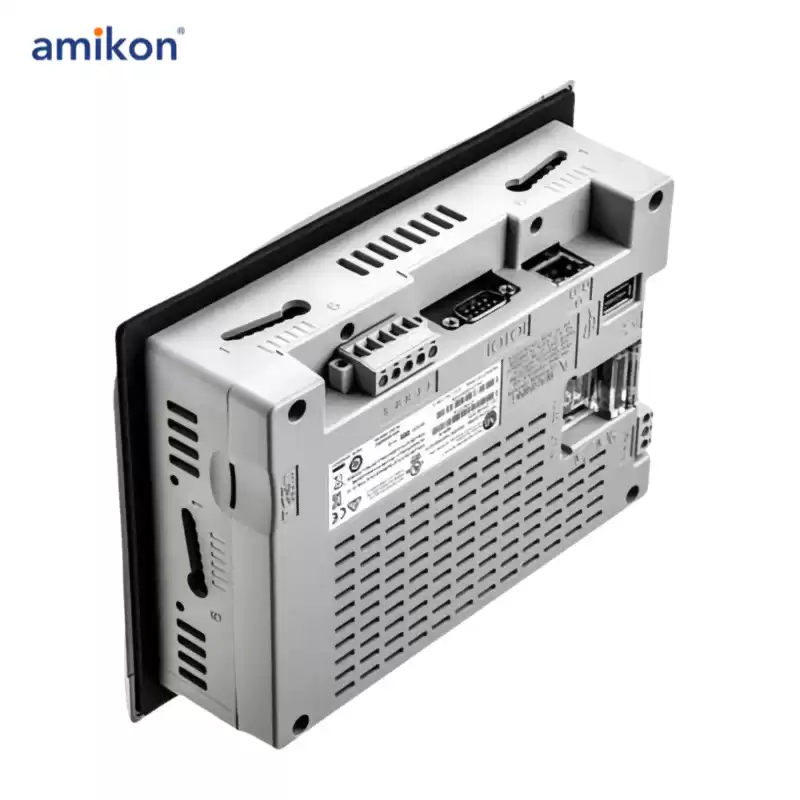

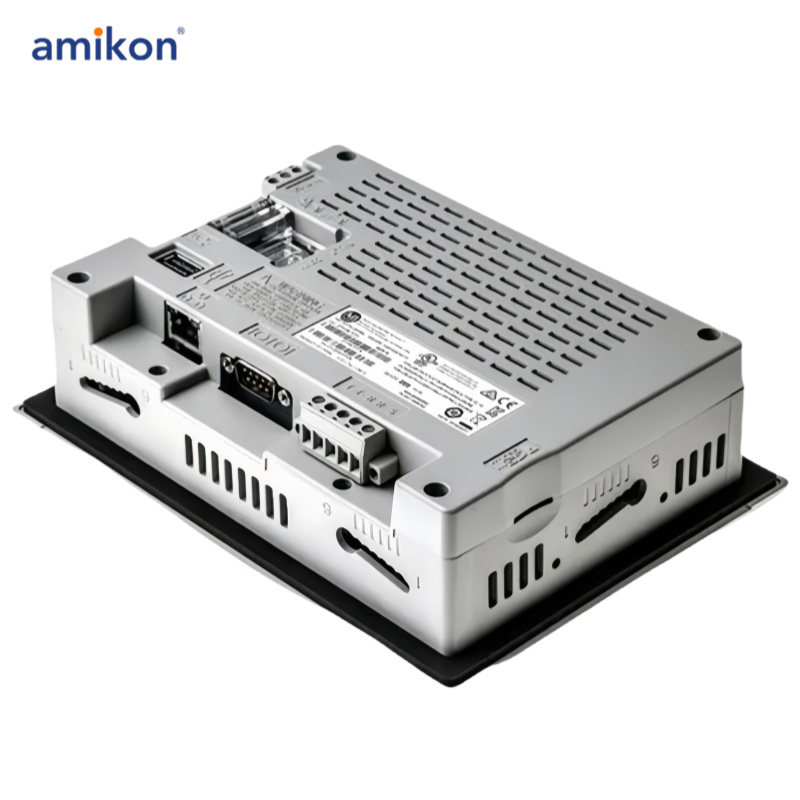

The 2711R-T7T offers several interfaces, including Ethernet, RS232 / RS422 / RS485 communication ports, and a USB peripheral port for connecting external input devices like a mouse and keyboard.
