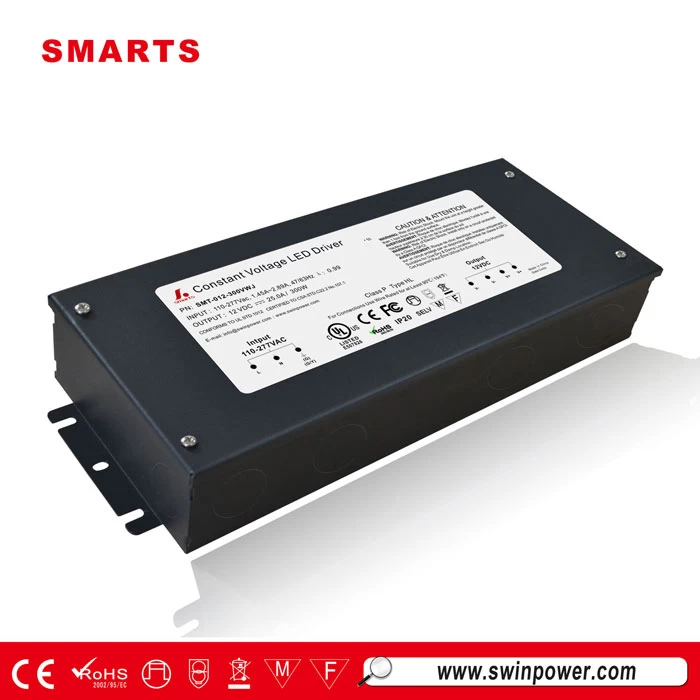

277 volt 300 watt constant voltage led driver 12v dc manufacturers
As a professional UL listed led driver manufacturer, SMARTS provide wattage from 30w to max 300w led driver 12vdc 24vdc. this 300 watt led driver has 2 output wires with each Max. 150w load limited, using in input voltage 110vac, 220vac and 277vac, suitable for using in almost all the countries in the world.
Specification
|
Model
|
SMT-012-300VWJ
|
SMT-024-300VWJ
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
Voltage Tolerance
|
±0.5V
|
|
Voltage Regulation
|
±0.5%
|
|
Voltage Tolerance
|
±0.5V
|
|
Load Regulation
|
±2%
±1%
|
±1%
|
|
Rated current
|
25.0A
|
12.5A
|
|
Rated power
|
300W
|
|
Input
|
Voltage Range
|
100-277VAC
|
|
Frequency Range
|
47～63HZ
|
|
Power Factor（Typ.）@ full load
|
0.99@120V ;0.98@230V ;0.98@277V
|
0.99@120V ; 0.98@230V ;0.98@277V
|
|
THD（Typ.）@ full load
|
<10% @120V <20%@230V <20% @277V
|
|
Inrush Current （Typ.）
|
20A,50% ,1.9ms@120V ;60A,50% 130us@230V ; 35A,50%
|
|
Full Load
Efficiency（Typ.）
|
>88%
|
>88%
|
|
AC Current（Typ.）
|
3.4A@110VAC / 3.7A@277VAC
|
|
Leakage current
|
<0.50mA
|
|
Protection
|
Short Circuit
|
shut down o/p voltage, re-power on to recover after fault condition is removed
|
|
Over load
|
≤120% constant current limiting, auto-recovery
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
Over Current
|
≤1.4*I out
|
|
Environment
|
Working TEMP.
|
-40～+60℃
|
|
Working Humidity
|
20～90%RH,non-condensing
|
|
Storage TEM.,Humidity
|
-40～+80℃，10～95%RH
|
|
TEMP.coefficient
|
±0.03%/℃（0～50℃）
|
|
Vibration
|
10～500Hz 2G 10min./1 cycle，period for 60min.each along X,
Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
UL8750
|
|
Withstand voltage
|
I/P-O/P: 3.50KVAC
|
|
Isolation resistance
|
I/P-O/P：100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
Compliance to EN55015,EN61000-3-2 (≥50%load) / FCC Part 15 B
|
|
EMC IMMUNITY
|
EN61000-4-2,3,4,5,6,11（Surge 4KV）
|
|
Others
|
Weight
|
1.9Kg
|
|
Size
|
278*108*46mm (L*W*H)
|
|
packaging
|
10PCS/CTN
385*335*200mm 20PCS/CTN
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 110V & 277VAC input , rated
load and 25℃of ambient temperature.
2..Tolerance:includes set us tolerance,line regulation and load regulation.
|

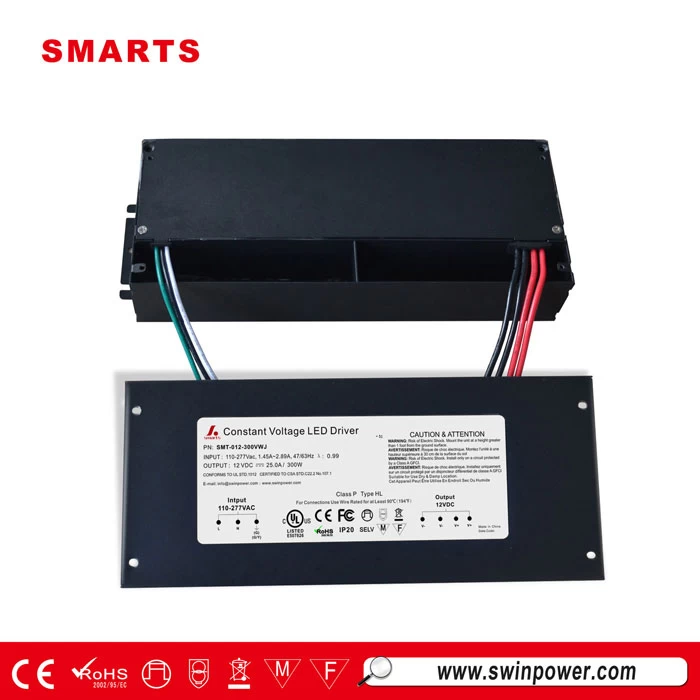

Label
|
|
FAQ: can use one output wires for this 12v 300w led drivers?
There are 2 output wires for our standard 12v 300w led drivers, if one output wire is necessary, there are 2 solutions we can provide:
1) . Change the AWG of dc cords from 18AWG to be 14AWG.
2). Still using standard 2 output wires drivers, but connect the polarity of “+” with “+” and “-” with “-” of this 2 wires as one output wires.
Any questions, contact us for more evaluation.

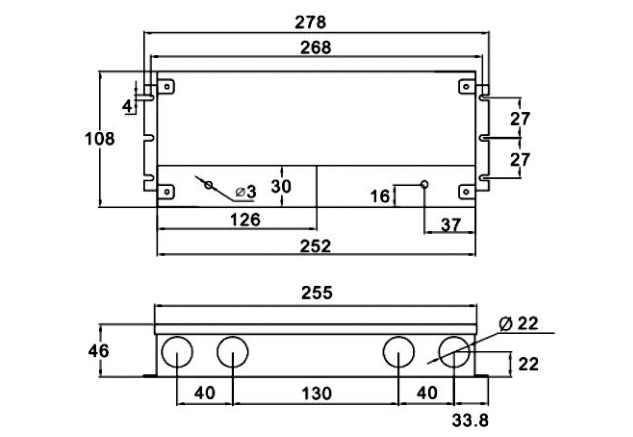

Dimension

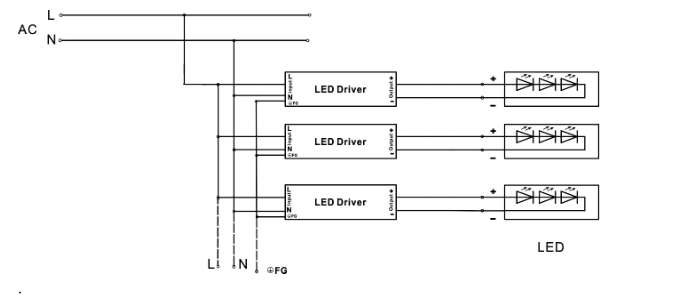

Simple connecting diagram
