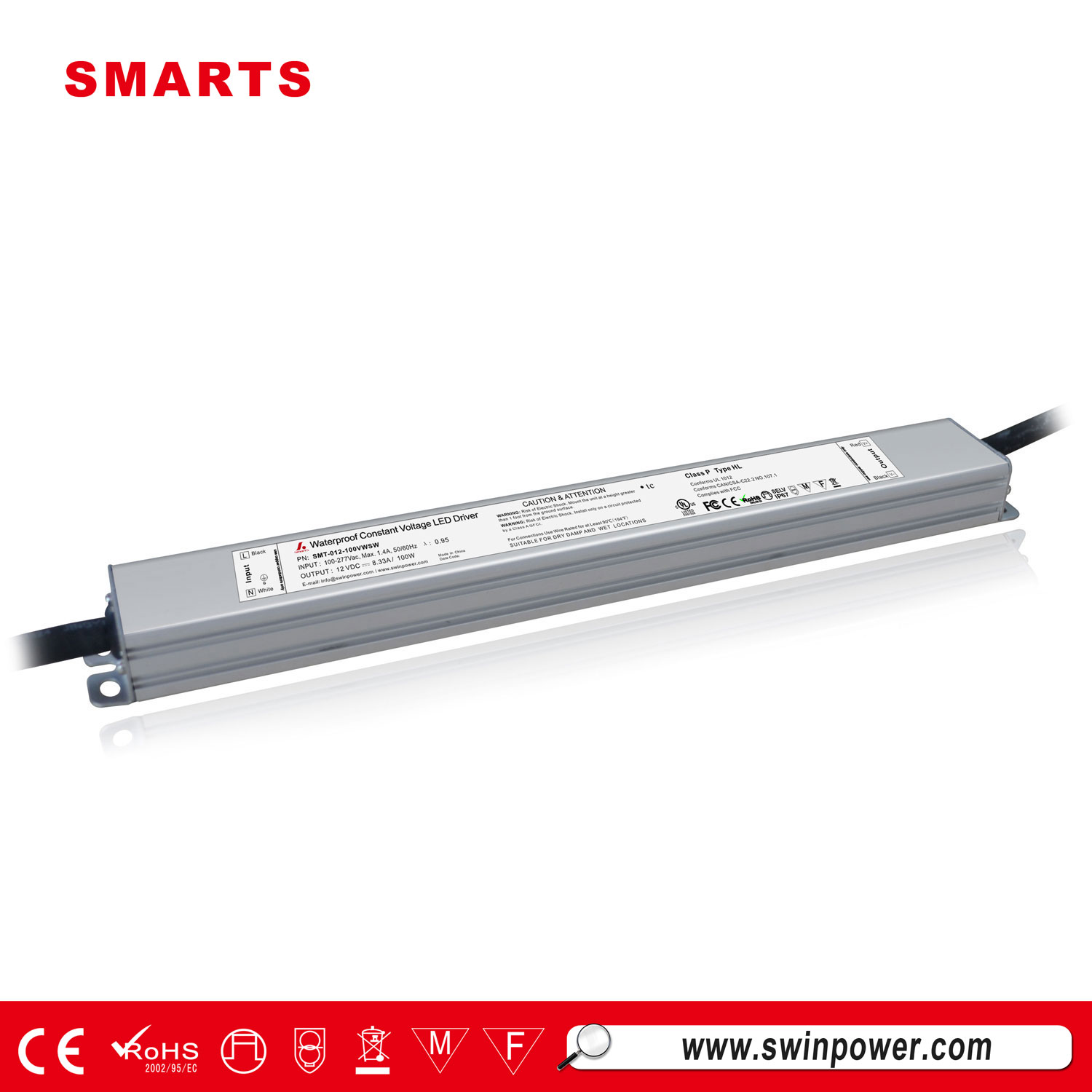

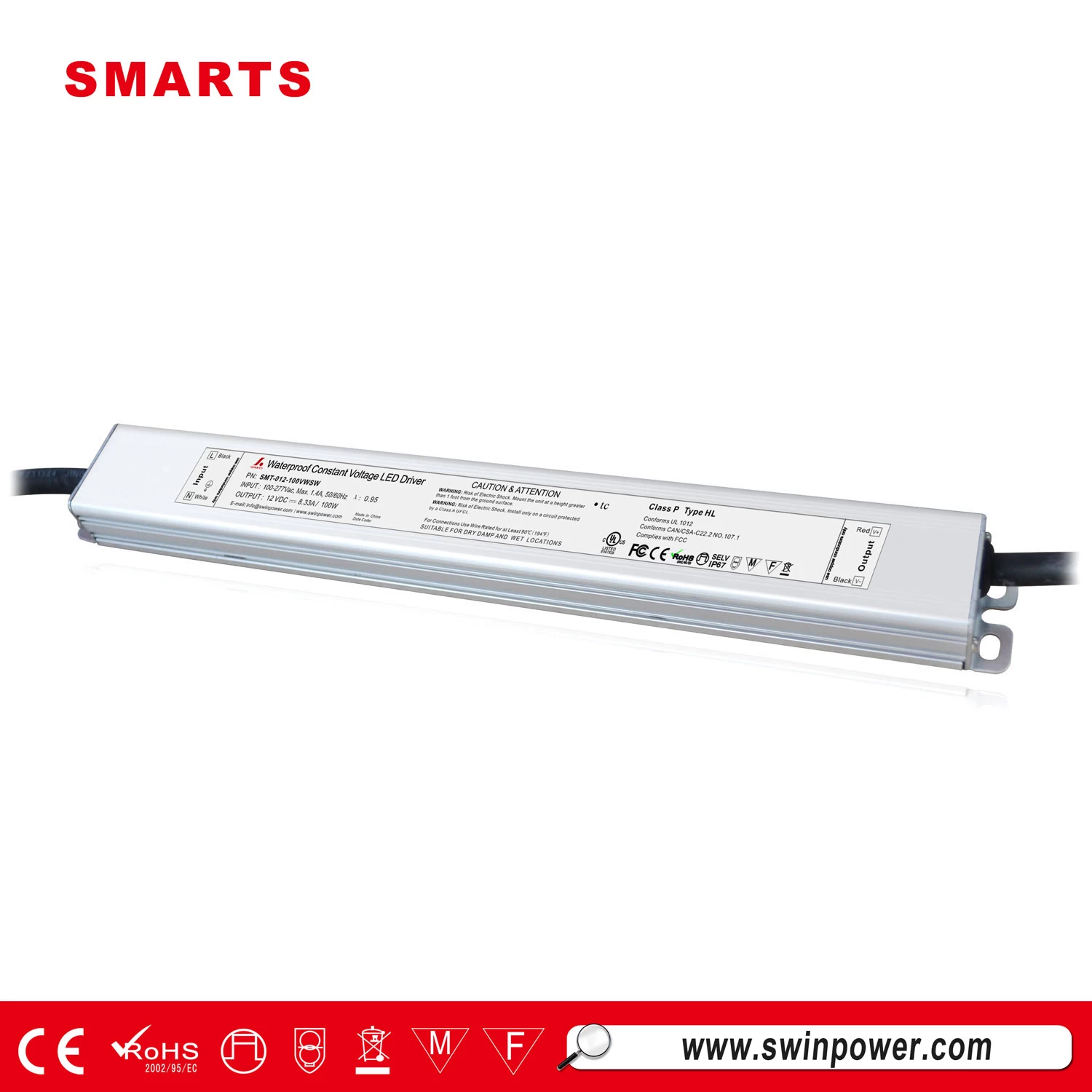

277 volt ac dc 12v 100 watt waterproof mini electronic led driver ul approved
110-277V input voltage, efficiency > 84% / PF> 0.99, PWM output, does not change the color index, work with Forward phase, Reverse phase, Triac, MLV, ELV Dimmers. dimension 330*32*23mm (L*W*H) suitable for LED lighting and moving sign applications.
Specification
|
model
|
SMT-012-100VWSW
|
SMT-024-096VWSW
|
|
Output
|
DC Voltage
|
12VDC
|
24VDC
|
|
|
Voltage Accuracy
|
±5%
|
±5%
|
|
|
Rated current
|
8.33Amp
|
4Amp
|
|
|
Rated power
|
100W
|
96W (class 2)
|
|
|
Voltage Tolerance
|
±0.5V
|
|
|
Voltage Regulation
|
±0.5%
|
|
|
Load Regulation
|
±1%
±1%
|
|
Input
|
Voltage Range
|
100-277 VAC
|
|
|
Frequency Range
|
47～63HZ
|
|
|
Power Factor ( Typ.）
|
0.99@120VAC; 0.98@230VAC; 0.95@277VAC
|
|
|
THD(Typ.)@ full load
|
<15%@120VAC <20%@230VAC <20%@277VAC
|
|
|
Full Load Efficiency（Typ.）
|
83%@120VAC; 85%@230VAC; 85%@ 277VAC
|
|
|
AC Current（Typ.）
|
1.4A/100VAC / 0.82A/230VAC / 0.43A/277VAC
|
|
|
Inrush Current（Typ.）
|
7A, 50%, 420us @120VAC ; 30A,50% 90us@230VAC; 12A,50%480us@277VAC
|
|
|
Leakage current
|
<0.50mA
|
|
Protection
|
Short Circuit
|
Hiccup mode, recovers automatically after fault condition
is removed.
|
|
|
Over Loading
|
≤120% shut down o/p voltage, re-power on to recover
|
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
Environment
|
Working TEMP.
|
-40～+60℃
|
|
|
Working Humidity
|
20～90%RH,non-condensing
|
|
|
Storage TEM.,Humidity
|
-40～+80℃，10～95%RH
|
|
|
TEMP.coefficient
|
±0.03%/℃（0～50℃）
|
|
|
Vibration
|
10～500Hz，2G 10min./1 cycle，period for 60min.
each along X,Y,Z axes
|

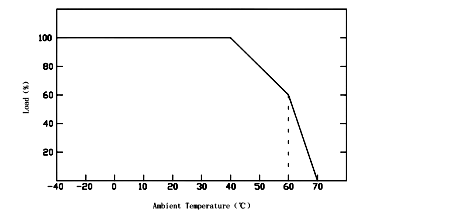

Derating Curve

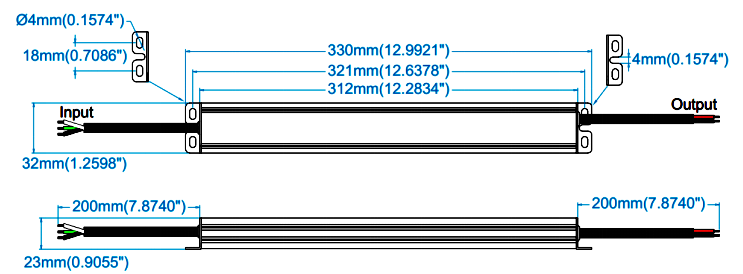

Mechanical Specification
Input:18AWG Black and White to be connected to AC L and N ,Green wire go ground,
※Output: Red is（Possitive +）,Black is（Negative -）
What is the definition of Type HL driver power supply?
LED drive power for hazardous (grading) locations (power supply must be fully gummed)
LED drivers with "Type HL" markings can be used directly for installation of l terminal lamps in hazardous (graded)
locations without further evaluation
The Type HL of the actuator is defined in the UL8750, which, in a nutshell, can be installed in a Class I Division 2
Class of Hazardous Location lamps
