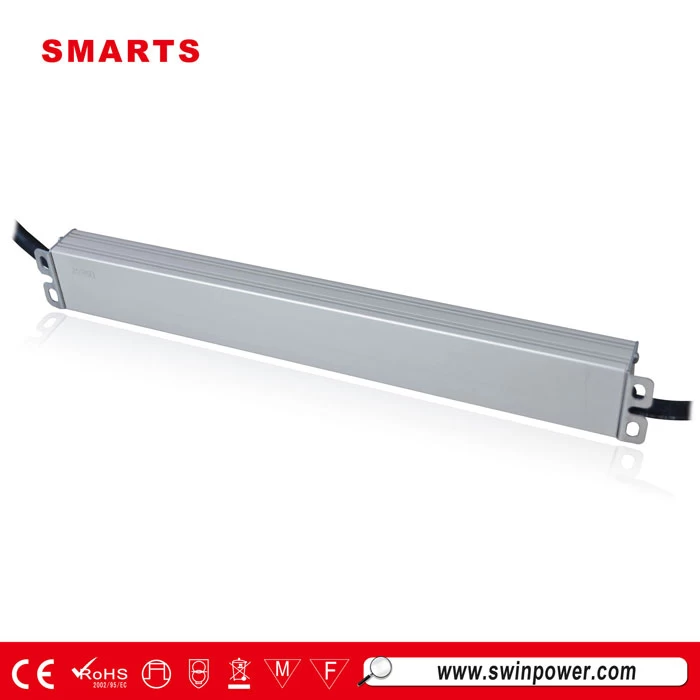

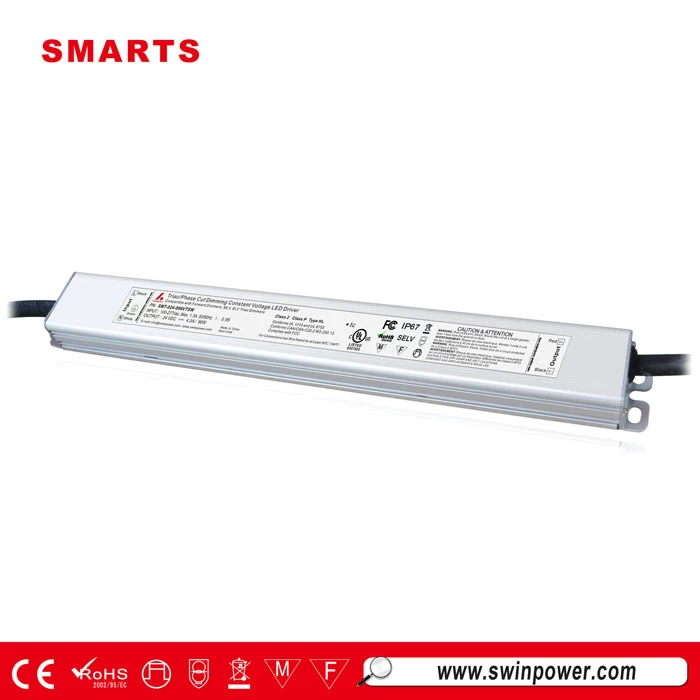

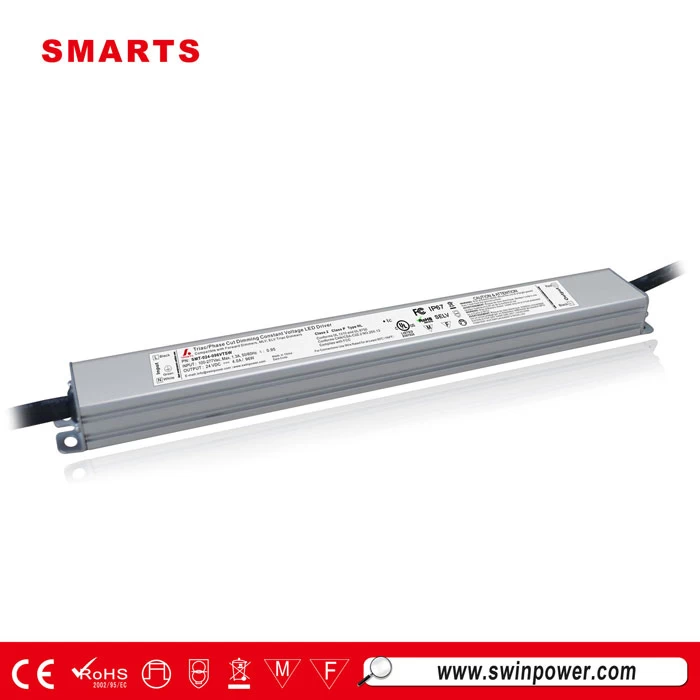

277v power supply ip67 waterproof 24v dimmable led bulb power supply 96w

The 277VAC of input voltage is 24v dimmable led driver which waterproof level is ip67 for indoor or outdoor environment. It is led bulb power supply with UL, cUL listed, Class 2, Class P, CE, ROHS approval.


  • Dimming modeTriac dimmable
  • Working ModeConstant Voltage
  • Output Current4A
  • CertificationUL
  • Size330*32*23mm
  • Output Voltage24V
  • Input Voltage100-277VAC

277v power supply ip67 waterproof 24v dimmable led bulb power supply 96w


The 277VAC of input voltage is 24v dimmable led driver which waterproof level is ip67 for indoor or outdoor environment. It is led bulb power supply with UL, cUL listed, Class 2, Class P, CE, ROHS approval. AC CurrentTyp.,) 1.10A for 100VAC and 0.43A for 277VAC.


model

SMT-012-100VTSW

SMT-024-096VTSW

Output

DC Voltage

12VDC

24VDC

Voltage Accuracy

±5%

±5%

Rated current

8.33Amp

4Amp

Rated power

100W

96W (class 2)

Voltage Regulation

±0.5%

Load Regulation

±1%

±1%

Input

Voltage Range

100-277 VAC

Frequency Range

4763HZ

Power Factor ( Typ.

PF≧0.99/110V ;  PF≧0.98/277V

Full Load EfficiencyTyp.

>83%

>84%

AC CurrentTyp.

1.10A/100VAC  /  0.43A/277VAC

Inrush CurrentTyp.

9.2A, 50%, 1ms@120VAC / 26.4A, 50%, 780us@2770VAC

Leakage current

<0.50mA/110VAC; 0.13mA/277VAC

Protection

Short Circuit

Hiccup mode, recovers automatically after fault condition

is removed.

Over Loading

≤120% shut down o/p voltage, re-power on to recover

Over temperature

100℃±10℃ shut down o/p voltage, automatically recover after cooling.



Environment

Working TEMP.

-40+60℃

Working Humidity

2090%RH,non-condensing

Storage TEM.,Humidity

-40+80℃1095%RH

TEMP.coefficient

±0.03%/℃050℃

Vibration

10500Hz2G 10min./1 cycleperiod for 60min.

each along X,Y,Z  axes

Safety&EMC

Safety standards

UL8750+UL1310

Withstand voltage

I/P-O/P: 2KVAC

Isolation resistance

I/P-O/P100MΩ/500VDC/25℃/70%RH

EMC EMISSION

FCC Part 15 B

EMC IMMUNITY

Compliance to EN61000-4-2,3,4,5,6,,11, ,

Alight industry level

Others

Weight

0.55Kg

Size

330*32*23mm (L*W*H)

packing

50PCS/CTN



Notes

1. All parameters NOT specially mentioned are measured at 110VAC, 277VAC input ,

Rated load and 25℃of ambient temperature.

2. Tolerance:includes set us tolerance,line regulation and load regulation .



Triac dimmable led driver
dali led power supply
0-10v led driver
slim size led driver




  Dimming Operation

※Output constant current level can be adjusted through input terminal of the AC phase line(L) by connection a triac dimmer.

※Compatible with Leading edge or trailing edge triac dimmers, but trailing edge dimmers work better..

※Please try to use dimmers with power at least 1.5 times as the output power of the driver.


  Derating Curve

led output power 96w

  Certifications

led output power 96w
