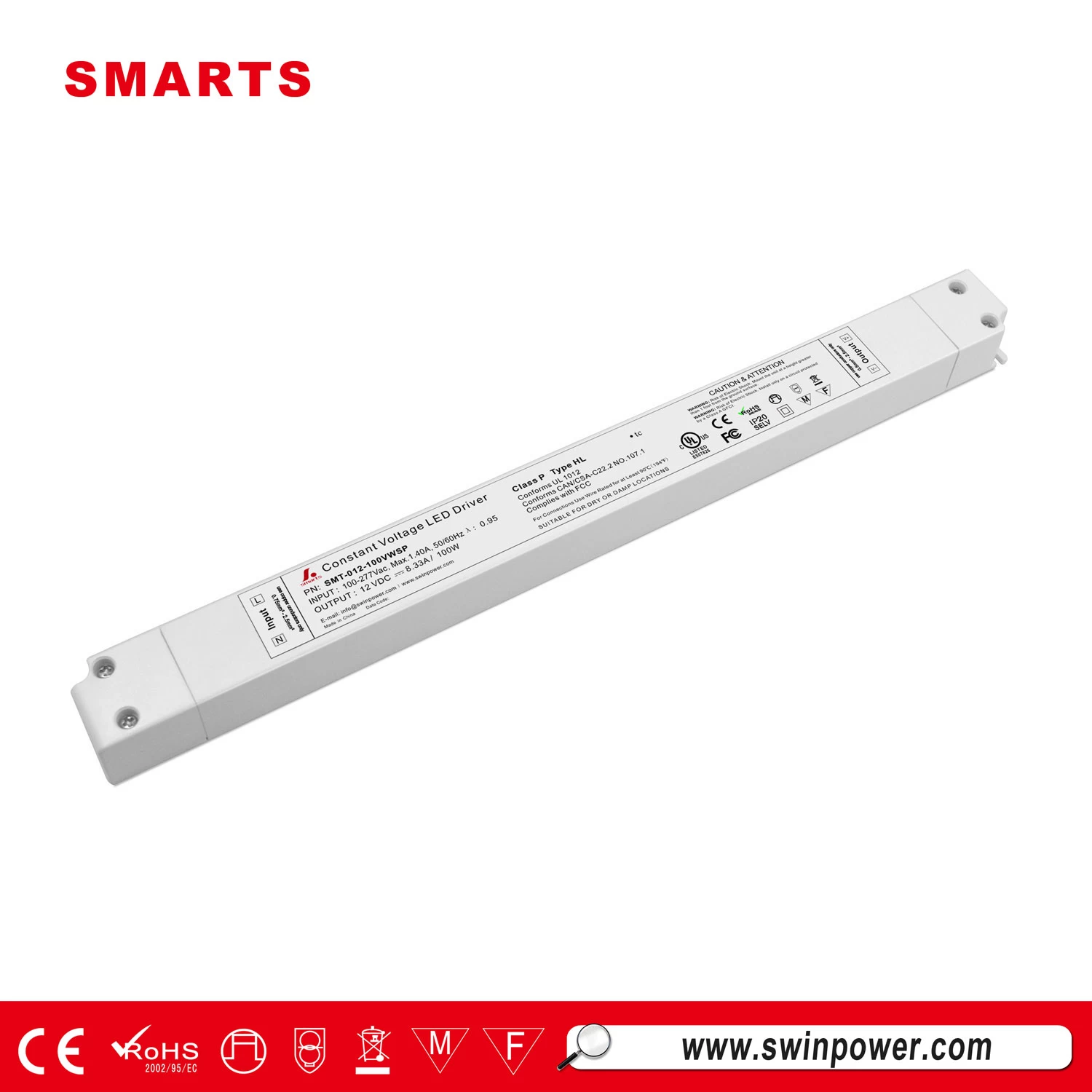

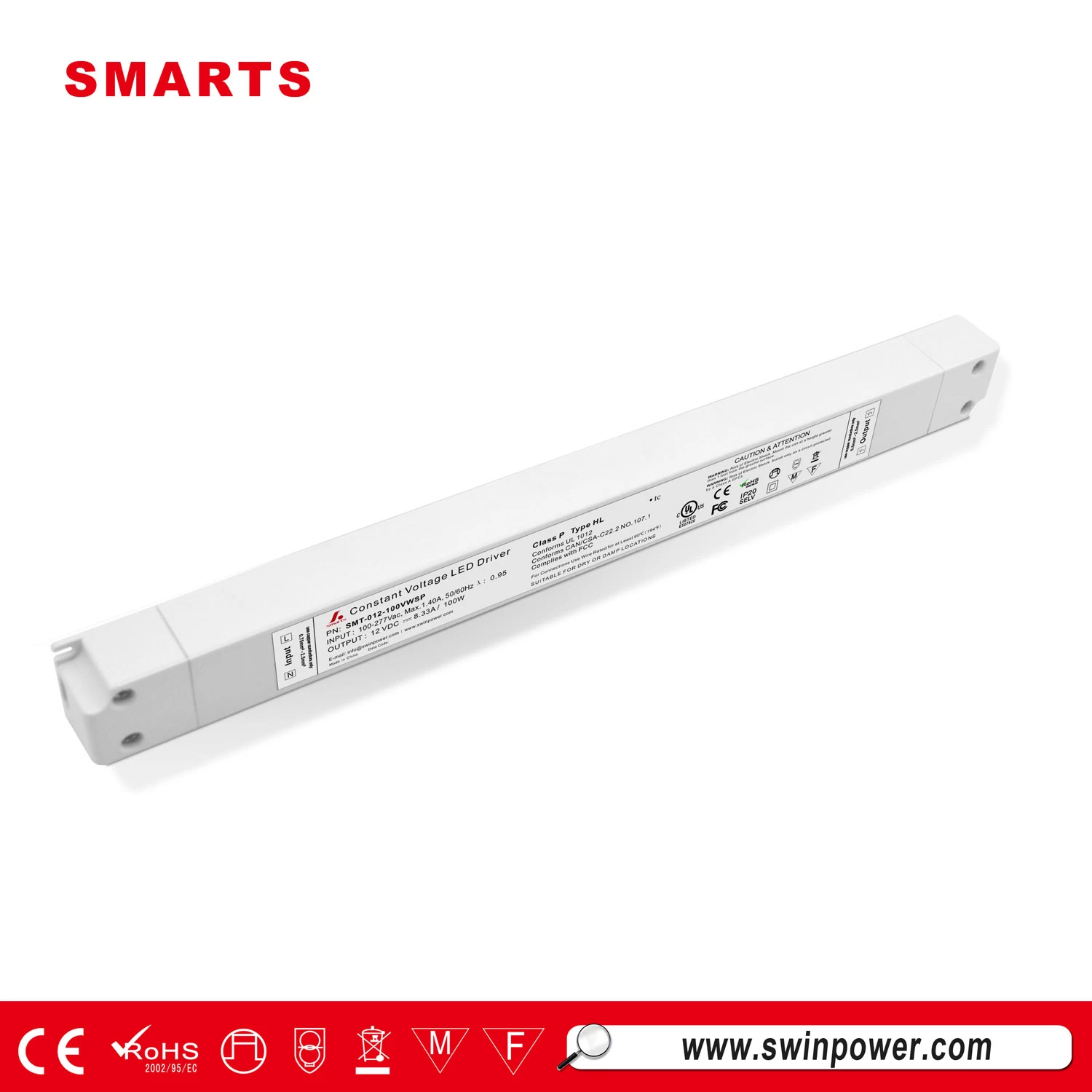

277v Power Supply LED Driver Transformer 100 watt 12 volt
SMT-012-100VWSP Series is an IP20 rated 100W plasticl cased 277v power supply transformer, with built-in active two-stage PFC function. The series posesses up to 92% of high efficiency and can be cooled by free air convection from -40°C to +70°C ambient temperature. Including a range of protections including short circuit, overload, over voltage and over temperature the HVG-100-D series also complies with UL/CUL/FCC/CB/CE global certifications.
Features :
·Output constant voltage
·Input voltage range 100-277VAC
·CE listed, Class 2, Class P, CE, ROHS approval
·Built-in PFC function / E fficiency > 84% / PF> 0.99
·Protections:short circuit/over voltage/over heat
·IP67 design for indoor dry environment installations
·Cooling by free air convection
·IP20 type for dry location
·Suitable for LED lighting and moving sign applications
·Compliance to worldwide safety regulations for lighting
·7 years warranty
|
model
|
SMT-012-100VWSP
|
SMT-024-096VWSP
|
|
Output
|
DC Voltage
|
12VDC
|
24VDC
|
|
Voltage Accuracy
|
±5%
|
±5%
|
|
Rated current
|
8.33Amp
|
4Amp
|
|
Rated power
|
100W
|
96W (class 2)
|
|
Voltage Tolerance
|
±0.5V
|
|
Voltage Regulation
|
±0.5%
|
|
Load Regulation
|
±1%
±1%
|
|
Input
|
Voltage Range
|
100-277 VAC
|
|
Frequency Range
|
47~63HZ
|
|
Power Factor ( Typ.)
|
0.99@120VAC; 0.98@230VAC; 0.95@277VAC
|
|
THD(Typ.)@ full load
|
<15%@120VAC <20%@230VAC <20%@277VAC
|
|
Full Load Efficiency(Typ.)
|
83%@120VAC; 85%@230VAC; 85%@ 277VAC
|
|
AC Current(Typ.)
|
1.4A/100VAC / 0.82A/230VAC / 0.43A/277VAC
|
|
Inrush Current(Typ.)
|
7A, 50%, 420us @120VAC ; 30A,50% 90us@230VAC; 12A,50%480us@277VAC
|
|
Leakage current
|
<0.50mA
|
|
Protection
|
Short Circuit
|
Hiccup mode, recovers automatically after fault condition
is removed.
|
|
Over Loading
|
≤120% shut down o/p voltage, re-power on to recover
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
Environment
|
Working TEMP.
|
-40~+60℃
|
|
Working Humidity
|
20~90%RH,non-condensing
|
|
Storage TEM.,Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP.coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz,2G 10min./1 cycle,period for 60min.
each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
EN61347-1 EN61347-2-13
|
|
Withstand voltage
|
I/P-O/P: 3.75KVAC
|
|
Isolation resistance
|
I/P-O/P:100M Ohms/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
Compliance to EN55015,EN61000-3-2 (≥60%load)
|
|
EMC IMMUNITY
|
Compliance to EN61000-4-2,3,4,5,6,11, EN61547, light industry
|
|
Others
|
Weight
|
0.40Kg
|
|
Size
|
330*30*22mm (L*W*H)
|
|
packing
|
50PCS/CTN
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 110VAC, 220VAC, 277VAC input ,
Rated load and 25℃of ambient temperature.
2. Tolerance:includes set us tolerance,line regulation and load regulation .
3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation,the final equipment manufactures must be-qualify EMC Directive on the complete installation again.
|
If we found any defective products within warranty ,what Smarts should us do for the defective product ?
We give 3 years warranty for 220v dimmer. If clients use properly, hardly any of feedback from our clients about the led drivers can not work or damaged during warranty time..
We do not make up for new replacement if we find damage cames from inappropriate use of clients, But if confirm that damage cames from 220v dimmer itself, pls collect and keep all defective 220v dimmer. We promised to replace a new one.
Mechanical Specification for 100 watt led driver:
² Input:18AWG Black and White to be connected to AC L and N ,Green wire go ground,
² Output: Red is(Possitive +),Black is(Negative -)
Derating Curve for LED transformer 12V:
Load carried in accordance with the load derating curve, according to the ambient temperature derating, in order to extend the service life
Connecting Diagram for LED transformer 100W:
