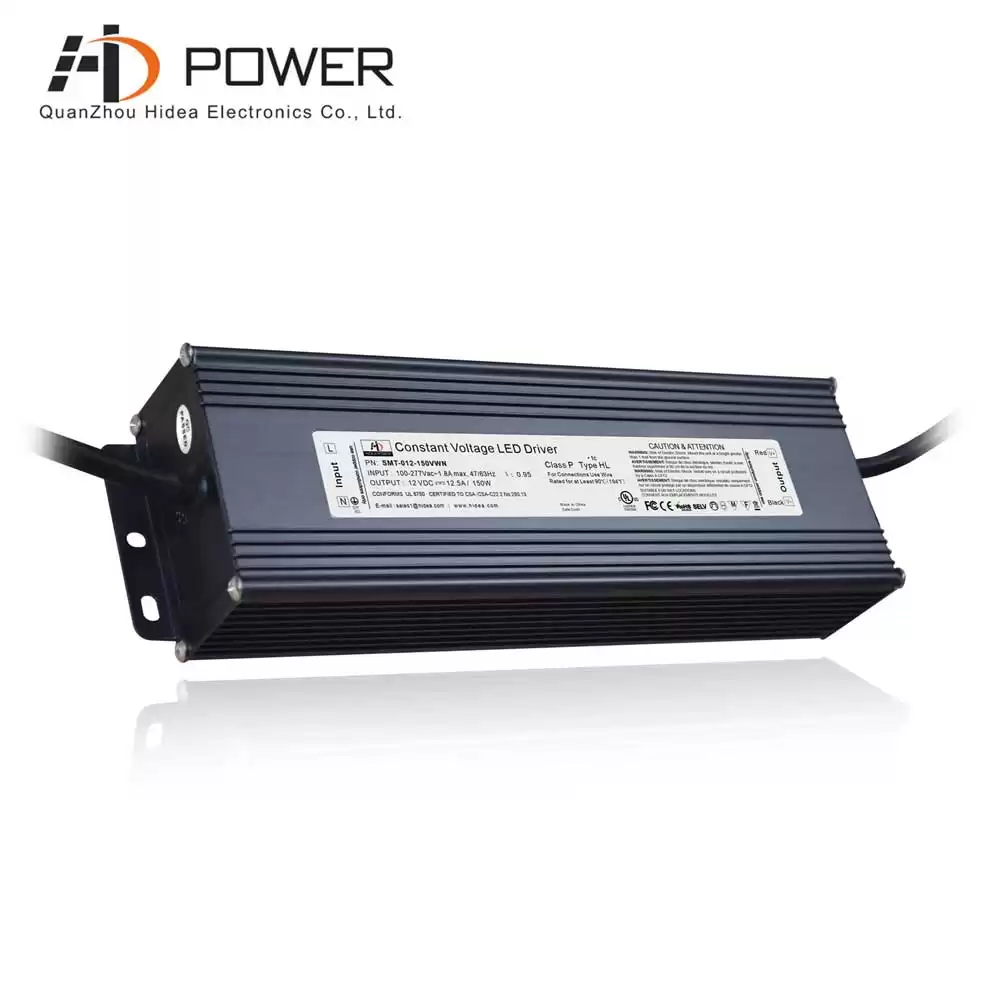

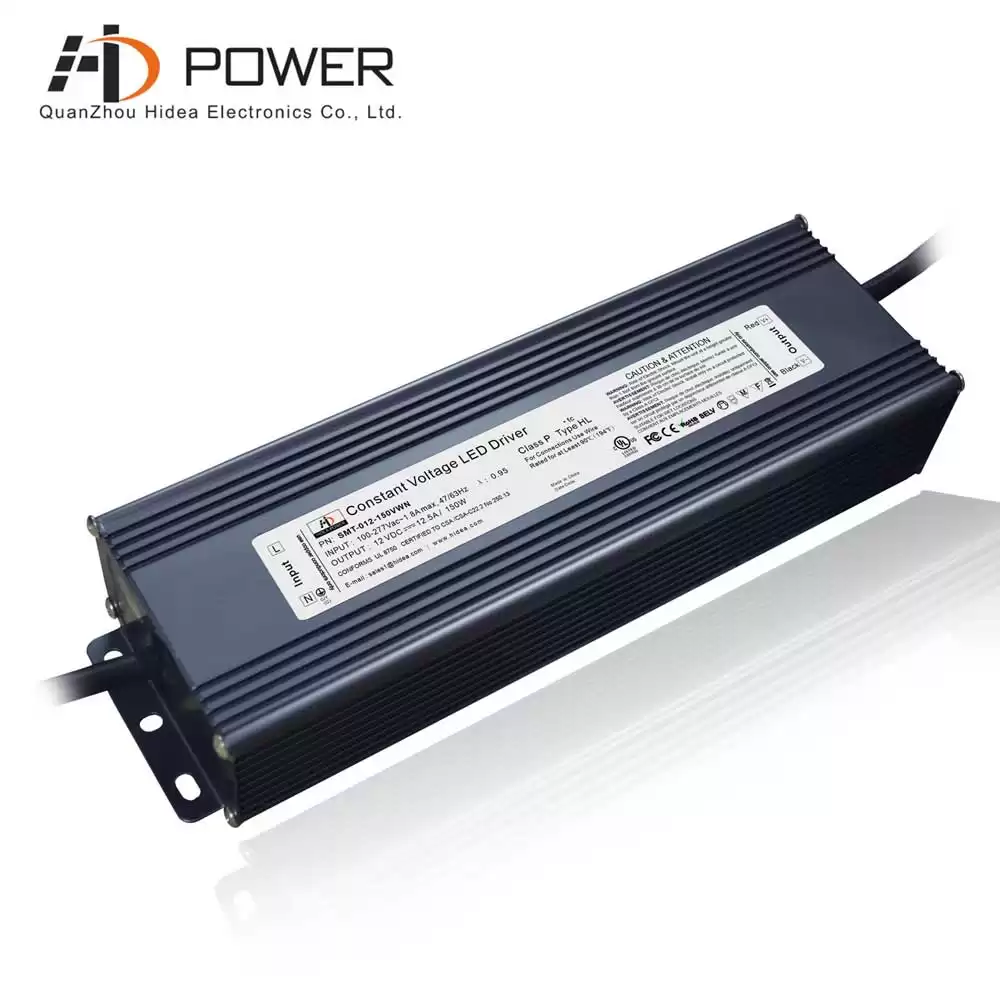

SMT-012-150VWN is electronic 12v 150w led driver, non dimmable led driver for dry,damp & wet
location, able to work with Led Montreal Led strip ip65 for infoor and outdoor project.
Specification
|
model
|
SMT-012-150VWN
|
SMT-024-150VWN
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
Rated Current
|
12.5A
|
6.25A
|
|
Rated Power
|
150W
|
|
Voltage Tolerance
|
±0.5V
|
|
Voltage Regulation
|
±0.5%
|
|
Load Regulation
|
±2%
|
±1%
|
|
Input
|
Voltage Range
|
110-277VAC
|
|
Frequency Range
|
47-63Hz
|
|
Power Factor(Typ.)@ full load
|
0.99@120VAC ;0.97@230VAC; 0.95@277VAC
|
0.99@120VAC; 0.96@230VAC; 0.94@277VAC
|
|
THD(Typ.)@ full load
|
<10%@120VAC <20%@230VAC <20%@277VAC
|
|
Efficiency(Typ.)@ full load
|
85%@120VAC; 89%@230VAC ;88%@2 77VAC
|
86%@120VAC; 89%@230VAC; 88%@277VAC
|
|
AC Current(Max.)
|
1.8A@110VAC
|
1.8A@110VAC
|
|
Inrush Current (Typ.)
|
15A, 50%, 1.55ms@120VAC;55A,50%,220us@230VAC;30A,50%,1.6Ams@277VAC
|
|
Leakage current
|
<0.50mA
|
|
Protection
|
Short Circuit
|
shut down o/p voltage, re-power on to recover after fault condition is removed
|
|
Over Loading
|
≤120% constant current limiting, auto-recovery
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
Environment
|
Working TEMP.
|
-40~+60℃ (see below derating curve)
|
|
Working Humidity
|
20~90% RH, non-condensing
|
|
Storage TEMP. Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP .coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
UL8750
|
|
Withstand voltage
|
I/P-O/P:1.88KVAC
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
FCC Part 15 B
|
|
Others
|
Net Weight
|
1.5Kg
|
|
Size
|
256*78*47mm (L*W*H)
|
|
packing
|
329*279*176mm , 10PCS/ctn
|
|
Notes
|
1. All parameters if NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature.
|
|
2. To extend the driver's using life ,please reduce the loading at lower input voltage.
|
Compatible Light Type
Smarts SMT-012-150VWN is 12v 150w led driver, it's aluminum case, UL, cUL,FCC listed, which connect with Led Montreal Led strip 2700k in a good cooling function.
Related Products
|

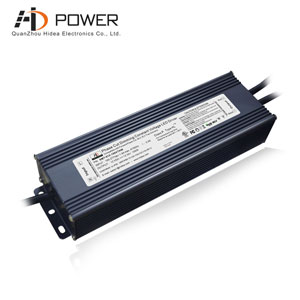

 277vac 12v 150w non-flicking dimming led driver, UL/cUL,FCC,CLASS P, type HL, CE, ROHS certificated,
