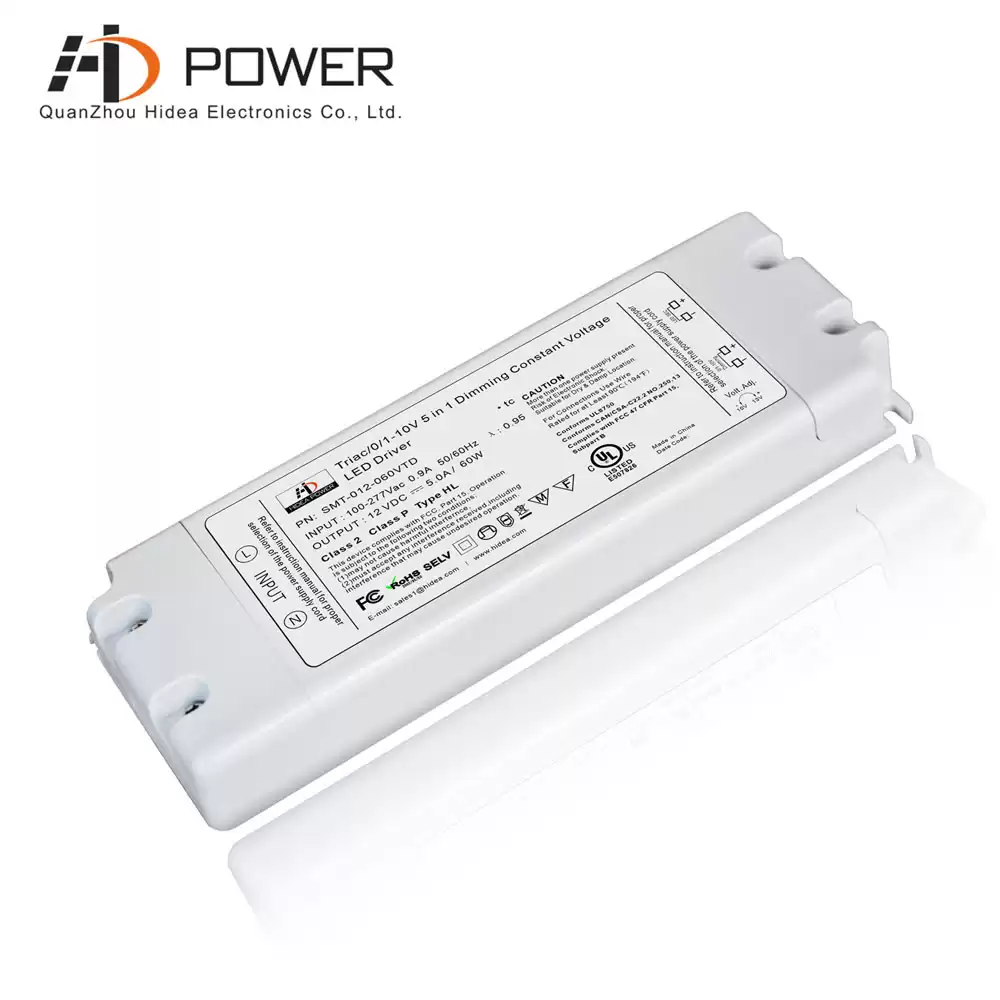

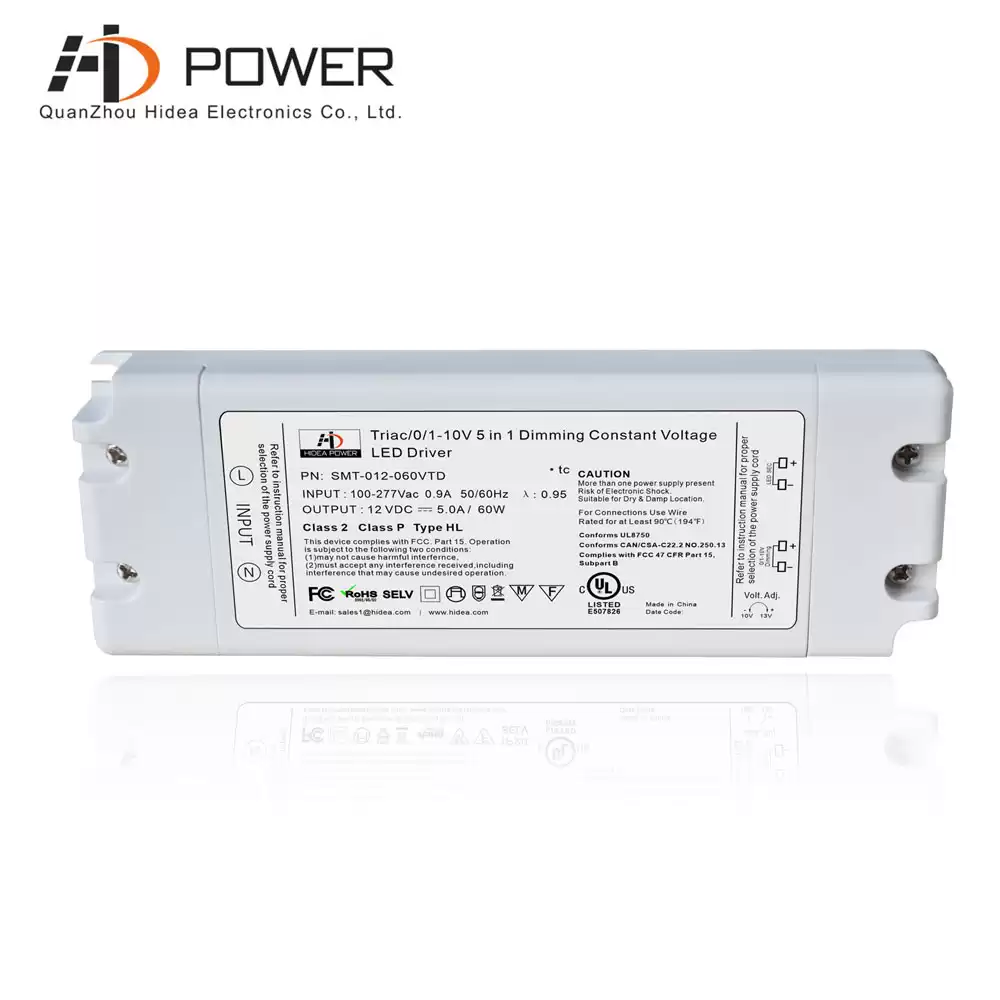

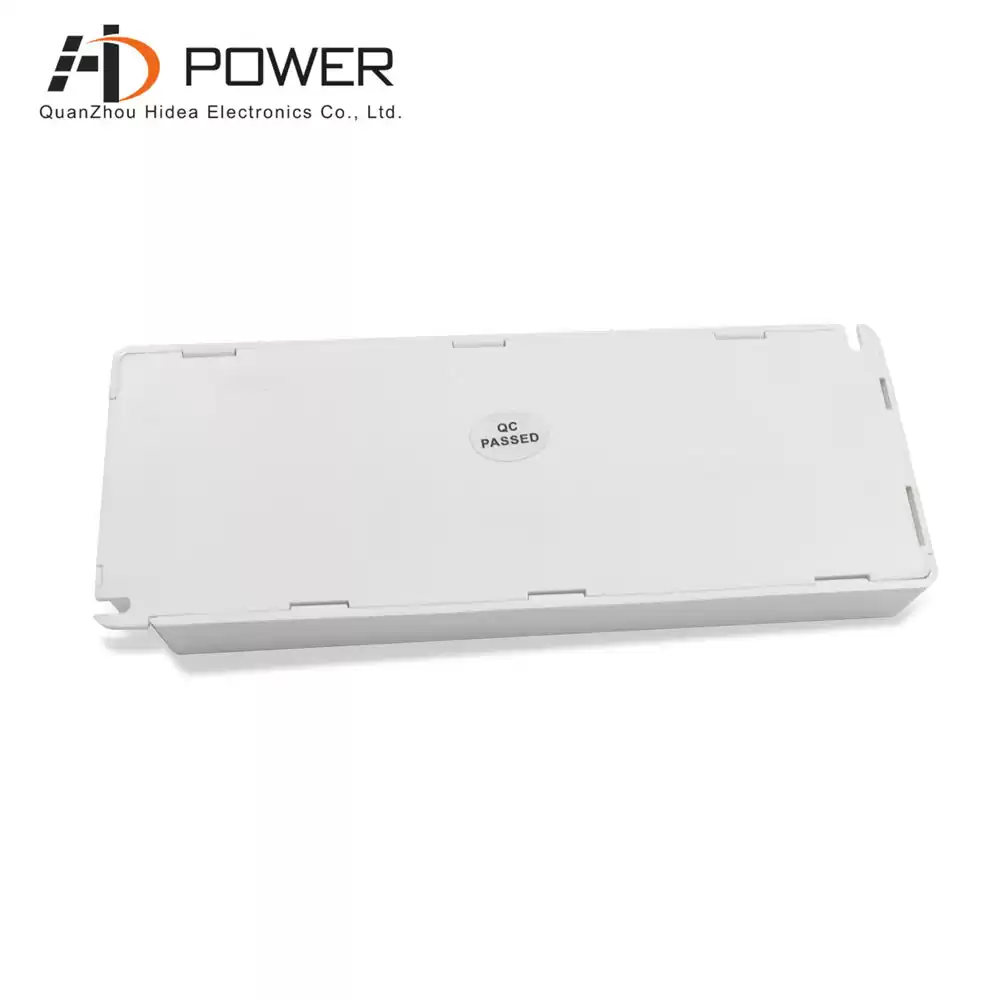

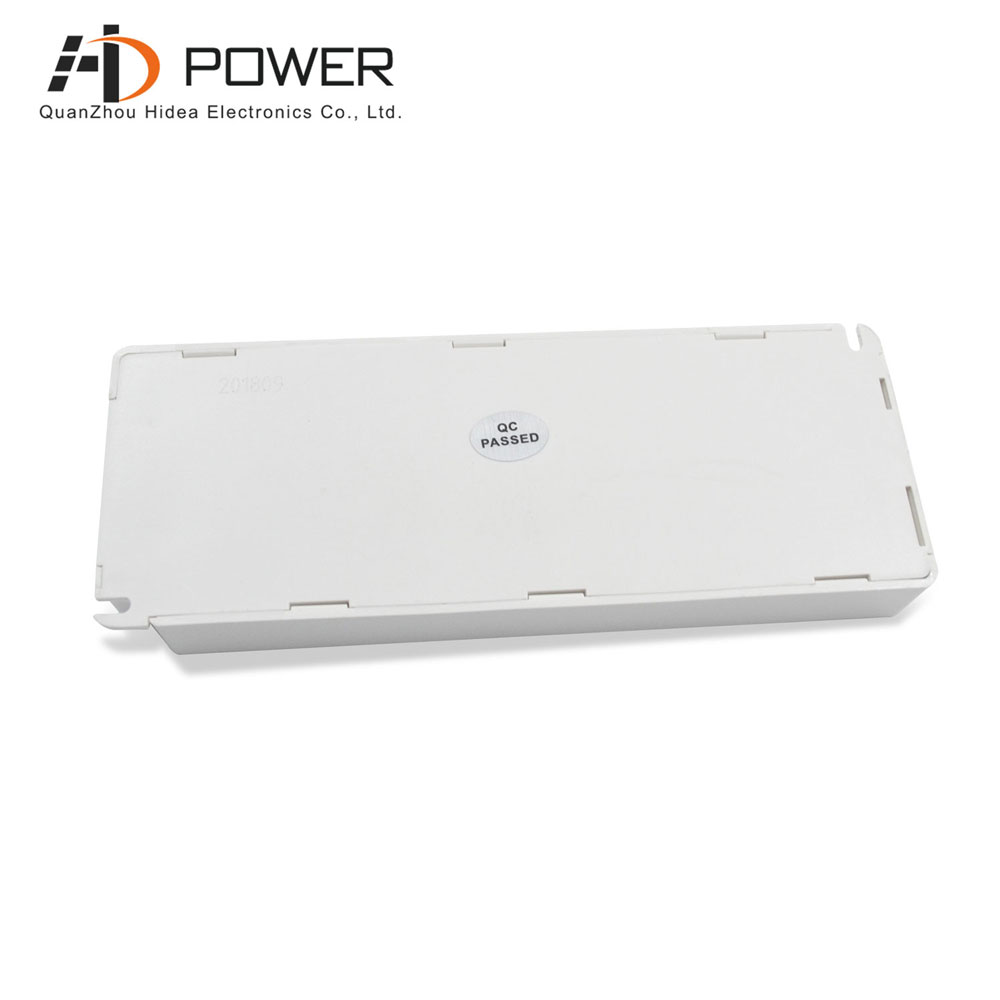

277VAC 12v 60w constant voltage triac & 0-10v (5 in 1) dimmable module led driver IP20
Built-in PFC function, PFC>0.97, efficiency >80% triac / 0-10v dimming led power supply 12v 60w, comply with Jenco T24 California standard strip lights.
Specification
|
model
|
SMT-012-060VTD
|
SMT-024-060VTD
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
Voltage Tolerance
|
±0.5V
|
±0.5V
|
|
Voltage Regulation
|
±0.5%
|
|
Rated current
|
5.00A
|
2.50A
|
|
Load Regulation
|
±1%
|
|
Rated power
|
60W
|
60W
|
|
Input
|
Voltage Range
|
100-277V AC
|
|
Frequency Range
|
47~63HZ
|
|
THD(Typ. ) @ full load
|
<20%@120VAC &277VAC
|
|
Power Factor ( Typ.)
|
0.98@120VAC 0.95@277VAC
|
0.98@120VAC 0.95@277VAC
|
|
Full Load Efficiency(Typ.)
|
83%@120VAC 85%@277VAC
|
83%@120VAC 84%@277VAC
|
|
AC Current(Typ.)
|
0.9A
|
|
Inrush Current (Typ.)
|
14A, 50%, 780us @120VAC; 15A, 50% , 660us @277VAC
|
|
Leakage current
|
<0.50mA
|
|
Protection
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
Short Circuit
|
shut down o/p voltage, re-power on to recover after fault condition removed
|
|
Over Loading
|
≤120% Hiccup mode,recovers automatically after fault condition is removed
|
|
Environment
|
Working TEMP.
|
-40~+60℃
|
|
Working Humidity
|
20~90%RH,non-condensing
|
|
Storage TEM.,Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP.coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz,2G 10min./1 cycle,period for 60min.each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
UL8750+UL1310 , CAN/CSA-C22.2 No.250.13
|
|
Withstand voltage
|
I/P-O/P:1.88KVac
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
FCC 47 CFR Part 15 ,Subpart B
|
|
Others
|
Weight
|
About 0.35Kg
|
|
Size
|
178*61*24mm(L*W*H)
|
|
packing
|
Carton size: 290*215*140mm , 20PCS/CTN (L*W*H)
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature.
|
|
2. Tolerance: includes set up tolerance, line regulation and load regulation .
|
|
3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.
|
Compatible Light Type
Jesco 12v led lights strip works with unique designed dimmer, long press dimmer to adjust light brightness with dimmable led driver 60w, short press to turn on or off, and the smart led strip lights is also with memory function, which can restore to its last time color brightness to save your time effectively.
Related Products
|

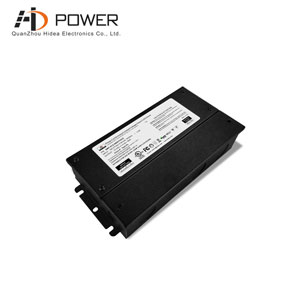

 12V low voltage phase cut dimmable led driver 60w, compatible with forward phase /leading edge ,MLV and Reverse phase /trailing edge ,ELV dimmers.
Mode：SMT-012-060VTHV2
Dimming Mode : Triac Dimming
Output Power : 60W
intput voltage：100-277V AC
Size：188*94.5*40MM （L*W*H）
|
