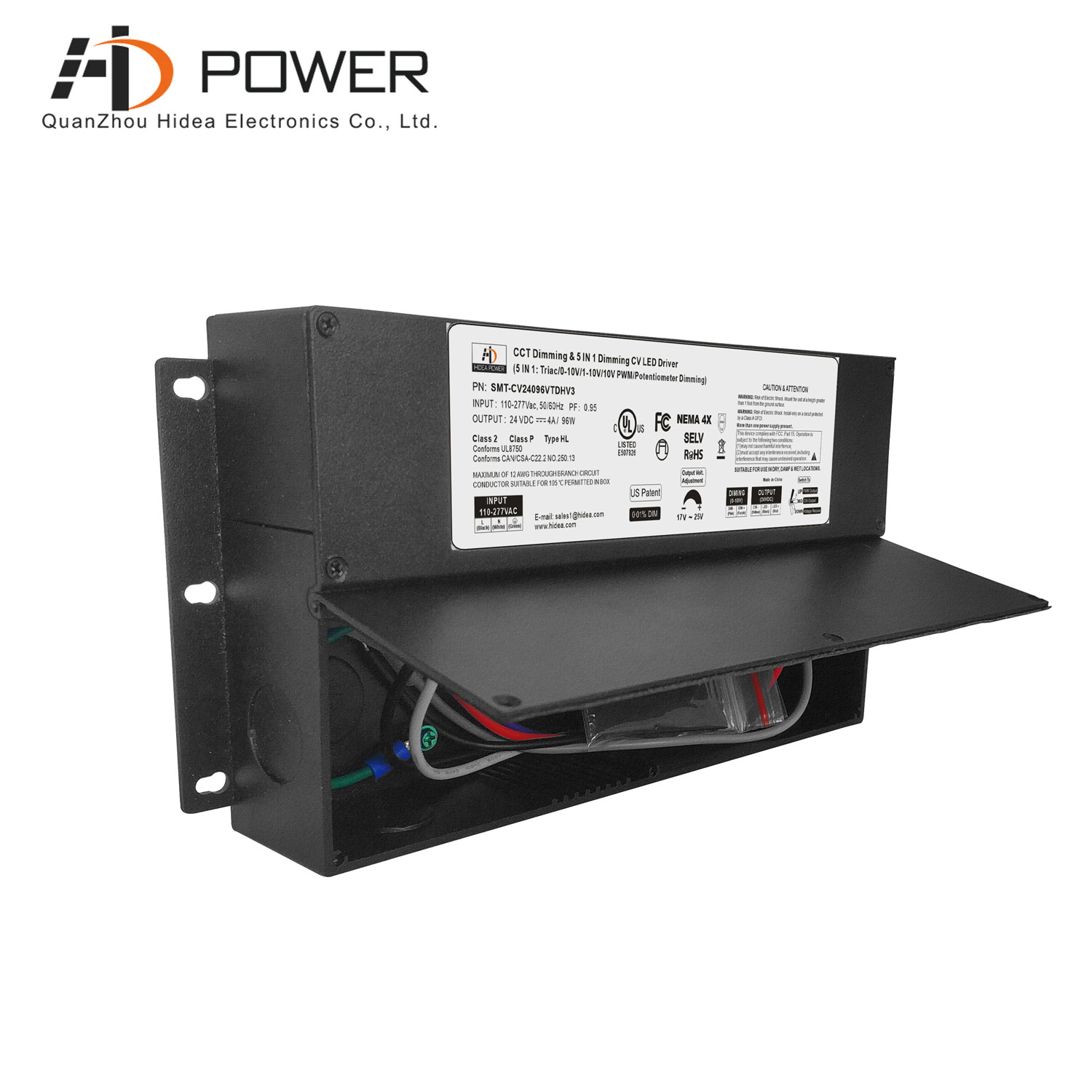

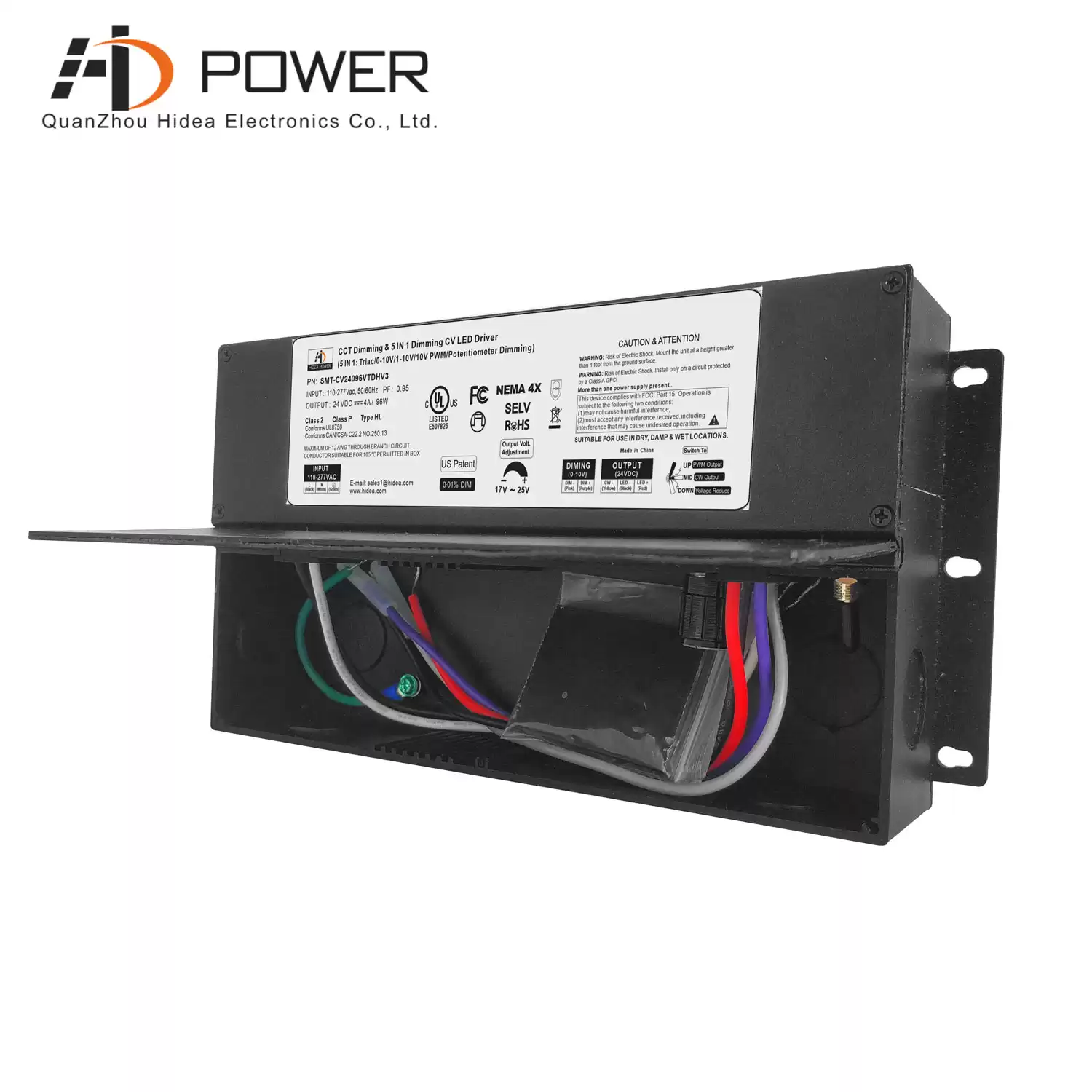

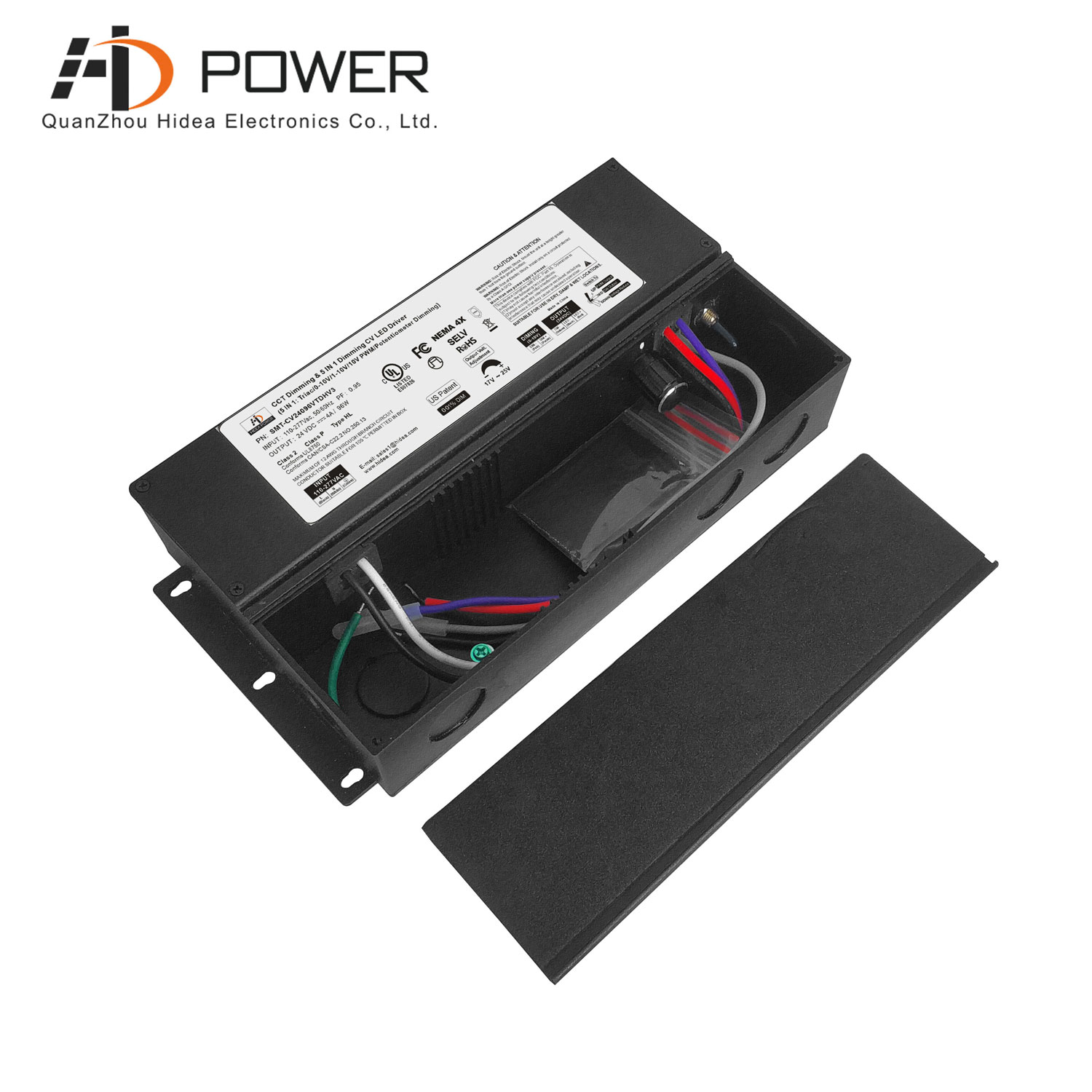

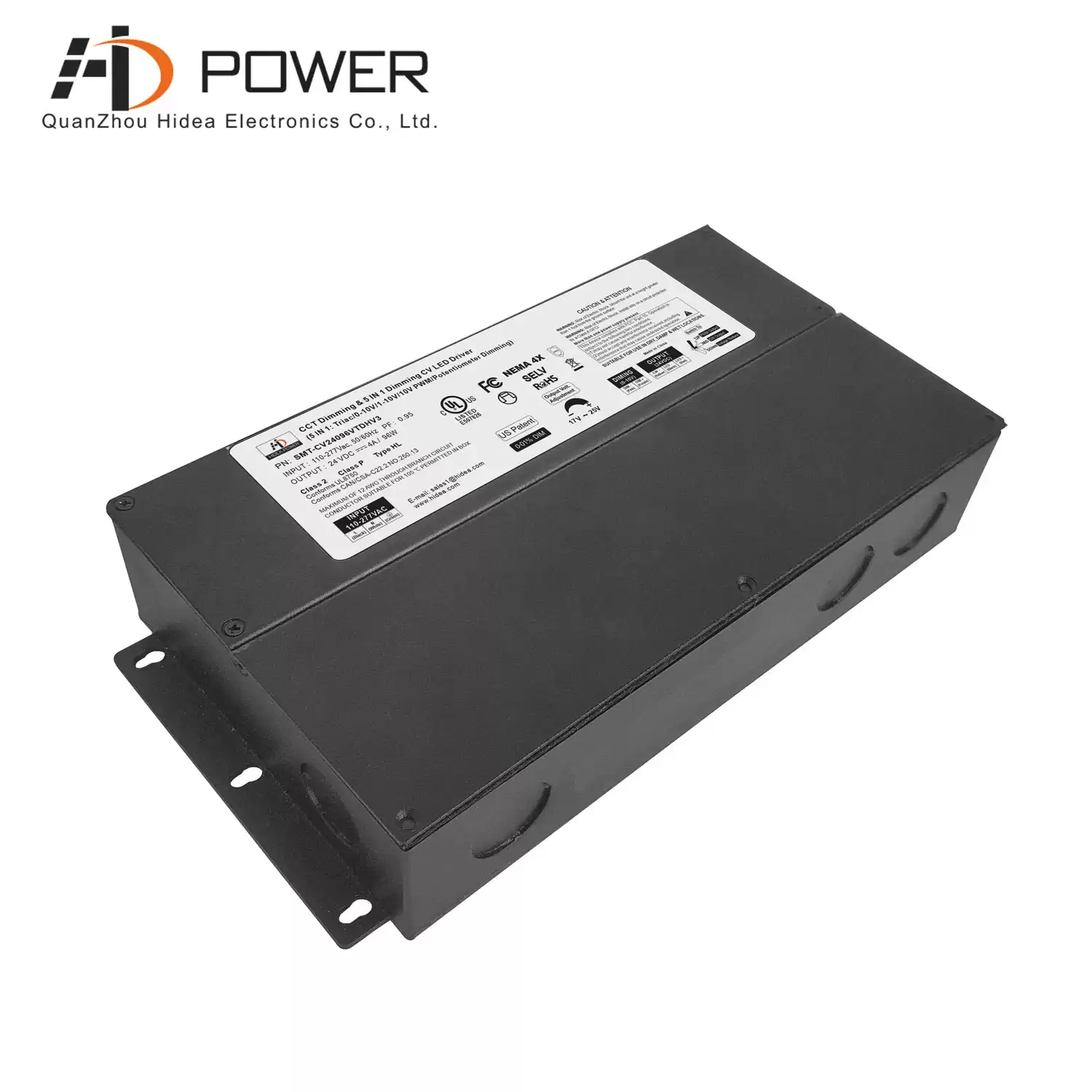

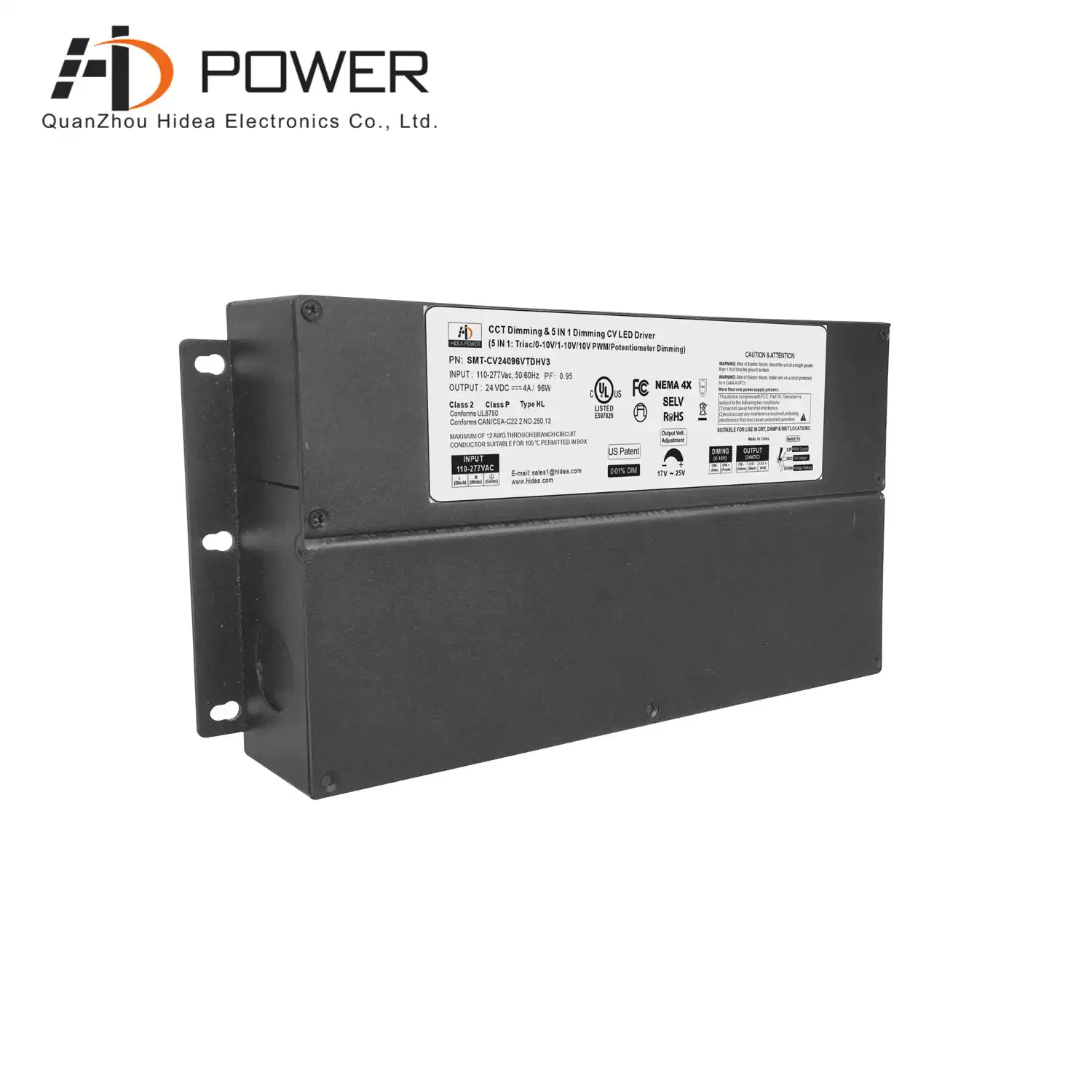

Hidea power's new dimming led power supply can achieve
100%-0.01% dimming, no flicker, can switch to two-color
temperature LED strips, and can be well matched and
compatible with most dimmers on the market
|
|
Specification
|
Model Number
|
SMT-CV24096-VTDHV3
|
|
OUTPUT
|
|
Rated Power
|
96W
|
|
Rated Voltage
|
24V
|
|
Rated Current
|
4.0A
|
|
Voltage Tolerance
|
±0.5V
|
|
Voltage Regulation
|
±0.5%
|
|
Load Regulation
|
±1%
|
|
INPUT
|
|
Voltage Range
|
100-277VAC
|
|
Frequency Range
|
47-63Hz
|
|
Power Factor(typ.)
|
0.95 @120VAC 0.93 @277VAC Full load
|
|
Total Harmonic Distortion
|
THD< 20%@120VC/277VAC;
|
|
Efficiency(Typ.)
|
83%@120Vac 86%@277Vac
|
|
AC Current(Typ.)
|
1.3A
|
|
Inrush Current(Typ.)
|
27A, 50%, 700us @120VAC; 15A, 50% , 550us @277VAC
|
|
Leakage Current
|
<0.5mA/ 120VAC
|
|
PROTECTION
|
|
Short Circuit
|
Shut down o/p voltage, re-power on to recovery
|
|
Over Load
|
≤120% shut down o/p voltage, re-power on to recover after fault condition removed
|
|
Over Temperate
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling
|
|
ENVIRONMENT
|
|
Working Temp.
|
Tcase=-40 ~ +60 ℃
|
|
Max. Case Temp.
|
Tcase=+90℃
|
|
Working humidity
|
20 ~ 95% RH non-condensing
|
|
Storage temp., Humidity
|
-40 ~ +90, 10 ~ 95% RH
|
|
Temp .coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
|
|
SAFETY & EMC
|
|
Safety standards
|
UL8750, CSAC22.2 No. 250.0-08
|
|
Withstand voltage
|
I/P-O/P:1.88KVAC
|
|
Isolation resistance
|
I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
|
|
EMC Emission
|
Compliance to FCC part 15 Subpart B
|
|
OTHERS
|
|
Dimension
|
226.5*117.5*42.5mm (L*W*H)
|
|
Packing
|
10pcs/CTN G.W:11.2KG SIZE:275*255*250mm
|
Compatible Light Type
This 96W dimming led power supply has short circuit, over temperature, overload protection, can well protect the life of the power supply, suitable for installation in wet, wet and dry locations, with a 7 year warranty
Related Products
|

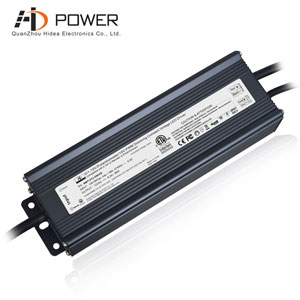

 12V 96W 0-10V dimming led driver waterproof grade ip67, aluminum shell, can effectively prevent water and insects
