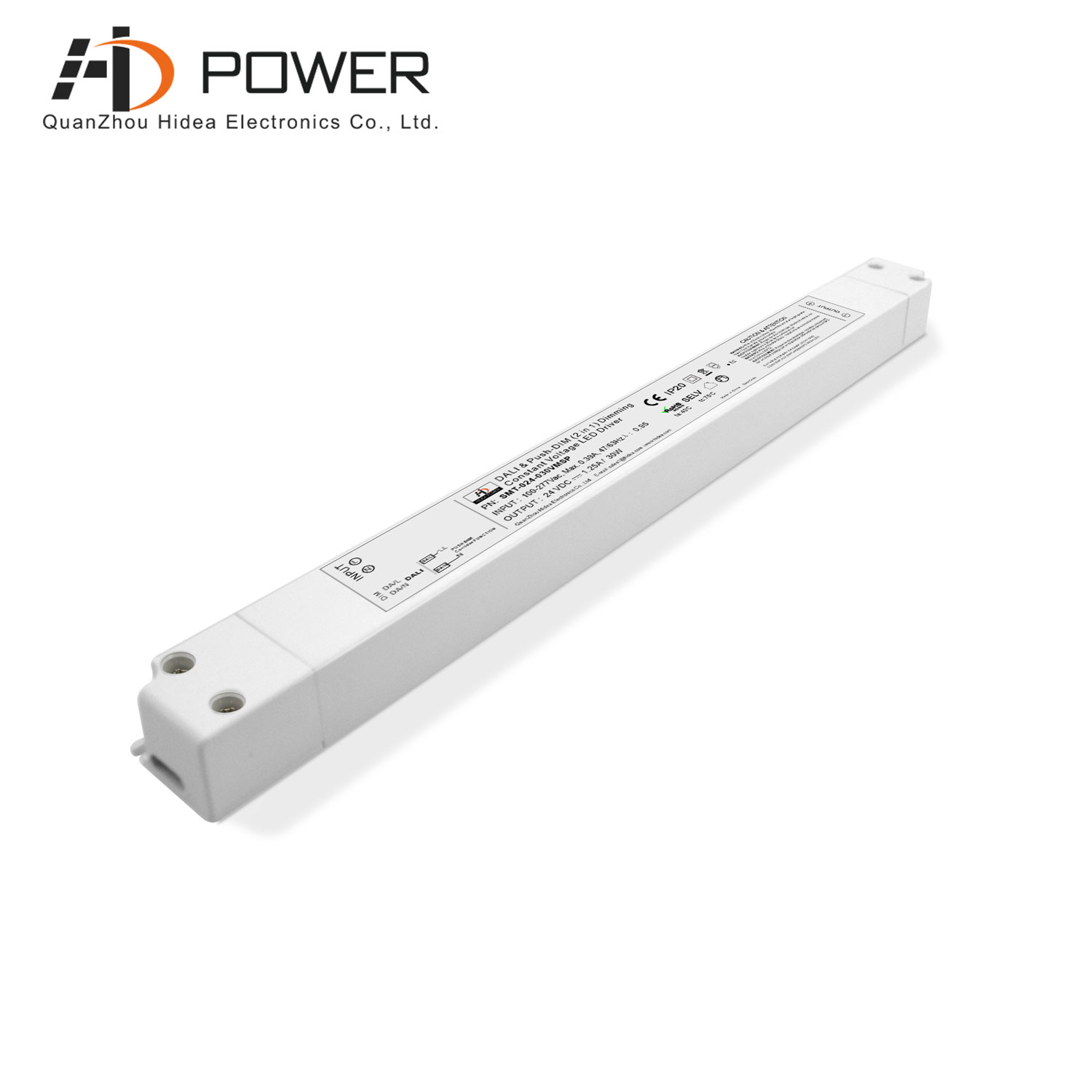

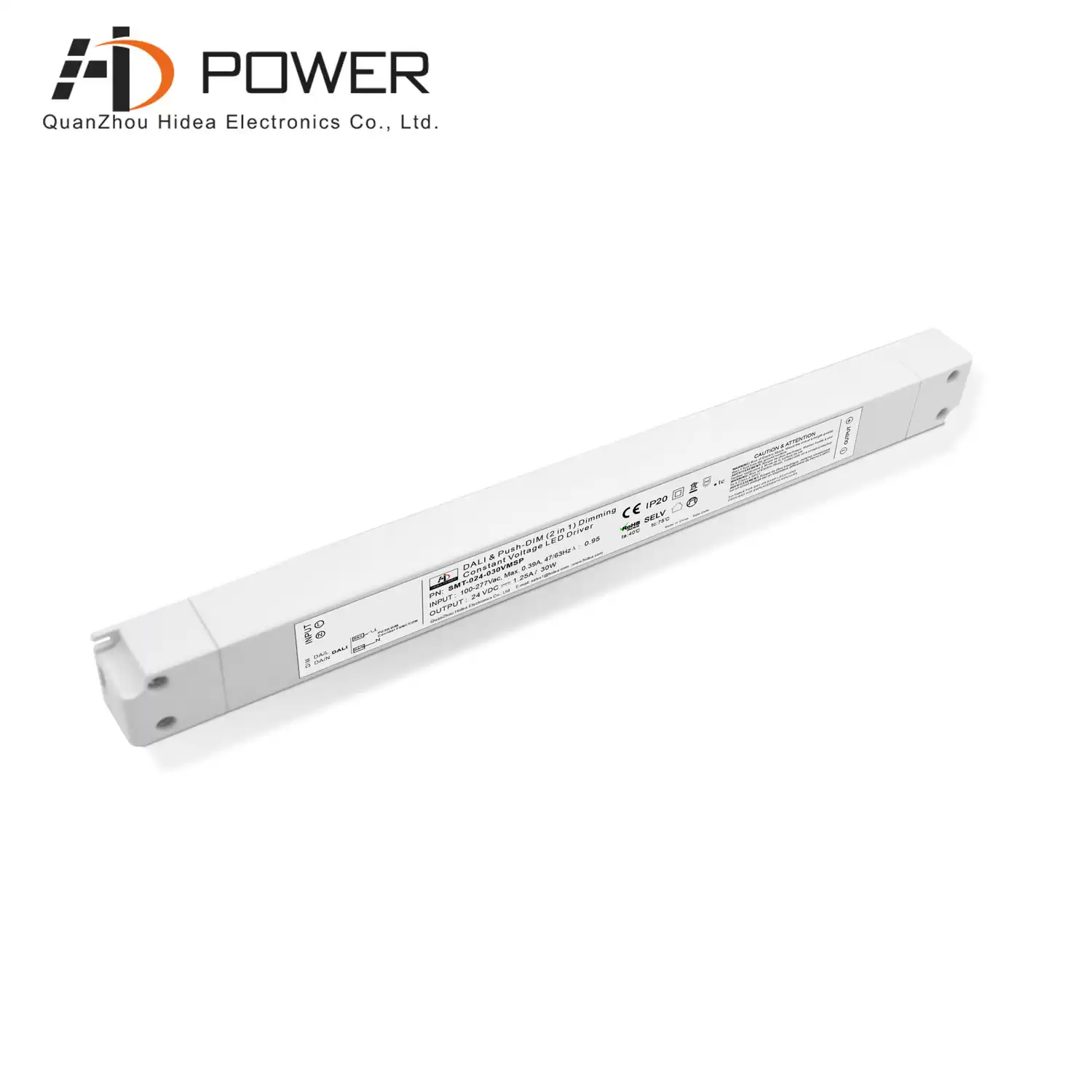

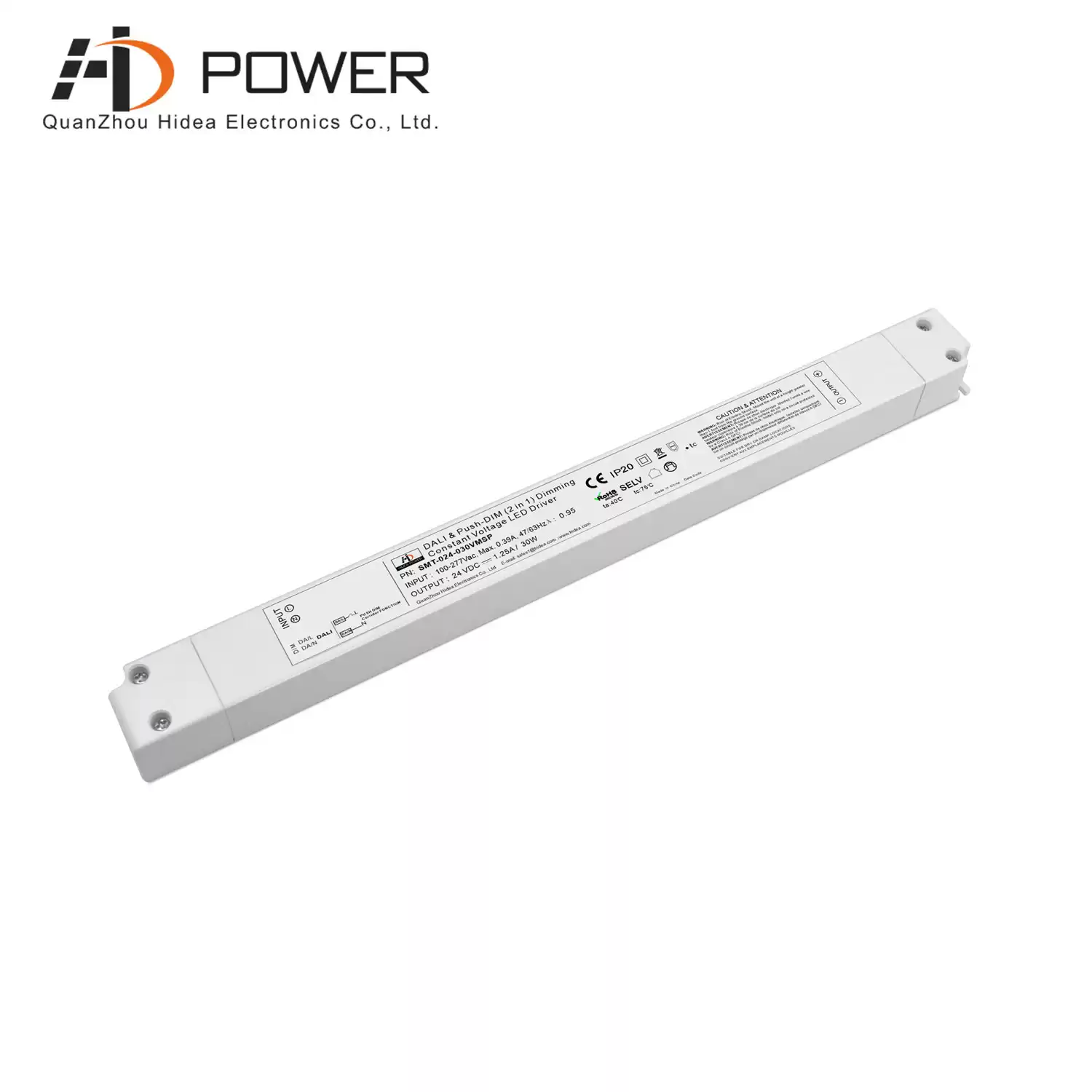

277Vac DALI Dimming dimmable led driver 24v 30w selv ip20 for led lighting
UL DALI Push Dimming constant voltage 24v 30w led driver is designed for easy installation Can reduce labor costs by 15%.
Specification
|
model
|
SMT-012-030VMSP
|
SMT-024-030VMSP
|
|
Output
|
DC Voltage
|
12VDC
|
24VDC
|
|
Voltage Tolerance
|
±0.5V
|
±0.5V
|
|
Rated current
|
2.5Amp
|
1.25Amp
|
|
Rated power
|
30W
|
30W
|
|
Voltage Regulation
|
±0.5%
|
|
Load Regulation
|
±2%
|
|
Input
|
Voltage Range
|
100-277VAC
|
|
Frequency Range
|
47~63HZ
|
|
Power Factor(Typ.)@ full load
|
0.98@120VAC
|
0.98@120VAC
|
|
Efficiency(Typ.)@ full load(Typ.)
|
>81%
|
>81%
|
|
AC Current(Max.)
|
0.38A@100VAC
|
|
THD(Typ. ) @ full load
|
10%@120VAC
|
10%@120VAC
|
|
Inrush Current(Typ.)
|
4.64A (twidth=460us) @120VAC ; 33.2A (twidth=116us) @230VAC ;12.4A (twidth=430us) @277VAC ;
|
|
Leakage current
|
<0.5mA
|
|
Protection
|
Short Circuit
|
shut down o/p voltage, re-power on to recover after fault condition removed
|
|
Over Load
|
≤120% Hiccup mode ,recovers automatically after fault condition is removed
|
|
Protection Class
|
II
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling
|
|
Environment
|
Working TEMP.
|
-40~+60℃ (see below derating curve)
|
|
Working Humidity
|
20~95%RH,non-condensing
|
|
Storage TEM.,Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP.coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
EN61347-1 EN61347-2-13 (EU) and UL8750 (US)
|
|
Withstand voltage
|
I/P-O/P:3.75KVAC (EU) and I/P-O/P:1.88KVAC (US)
|
|
Isolation resistance
|
I/P-O/P:100M Ohms/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
Compliance to EN55015, EN61000-3-2 (≥60%load) (EU) and FCC Part 15 (US)
|
|
EMC IMMUNITY
|
Compliance to EN61000-4-2,3,4,5,6,11, EN61547, light industry
|
|
Others
|
Net Weight
|
0.20Kg
|
|
Dimension
|
260*30*18.5mm(L*W*H)
|
|
packing
|
330*275*130mm/50PCS/CTN G.W.:11KG/CTN
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25℃of ambient temperature.
|
|
2. Tolerance: includes set up tolerance, line regulation and load regulation .
|
|
3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.
|
