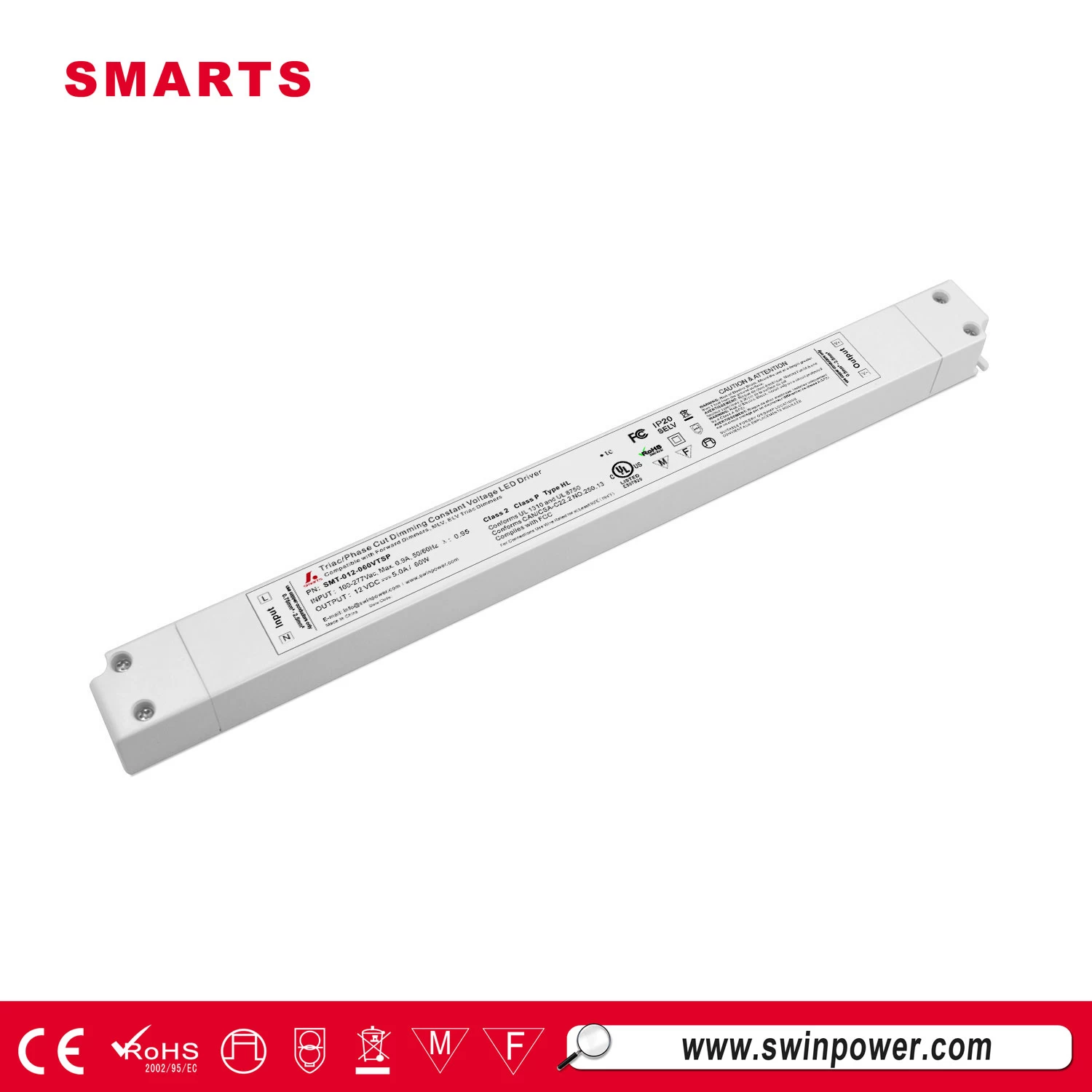

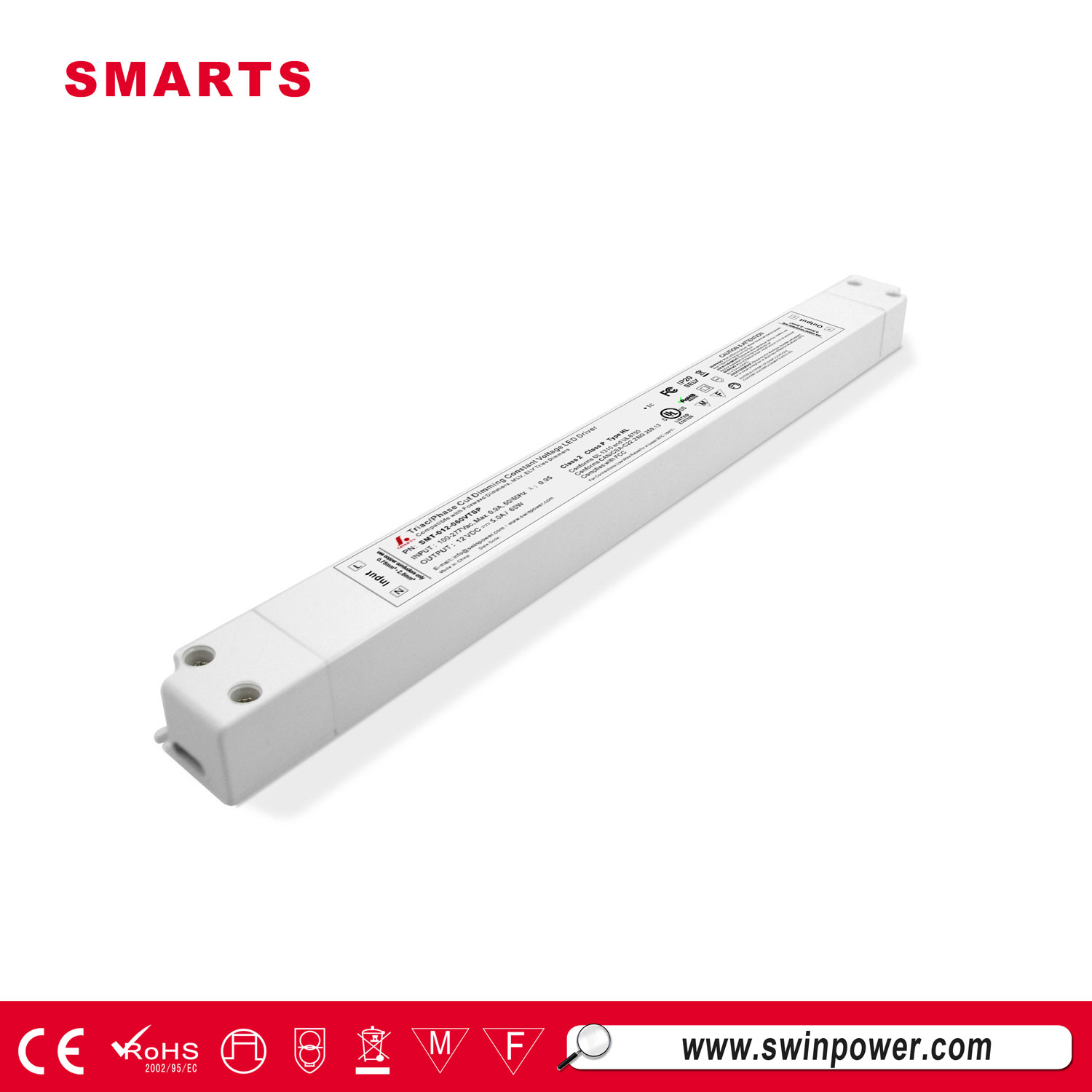

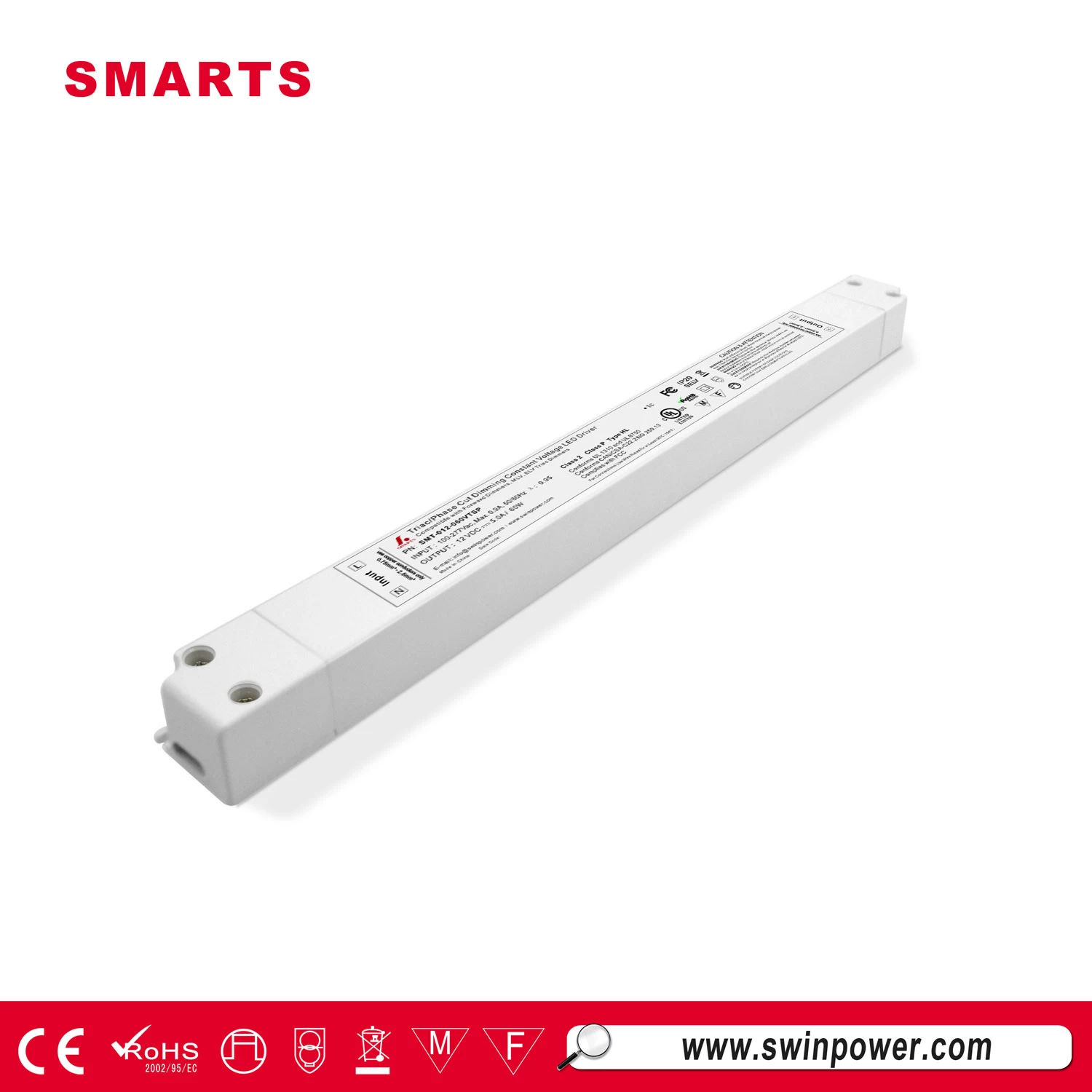

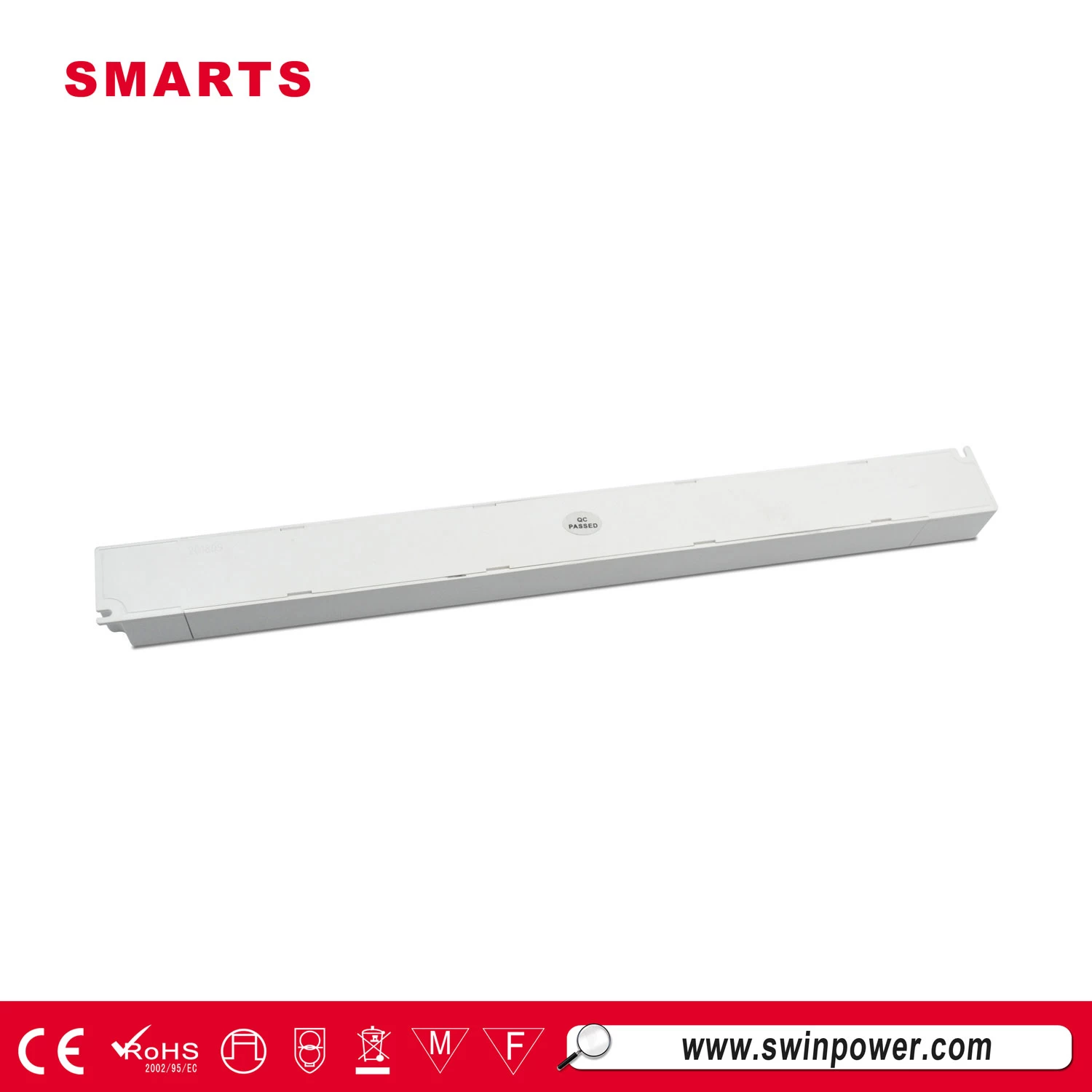

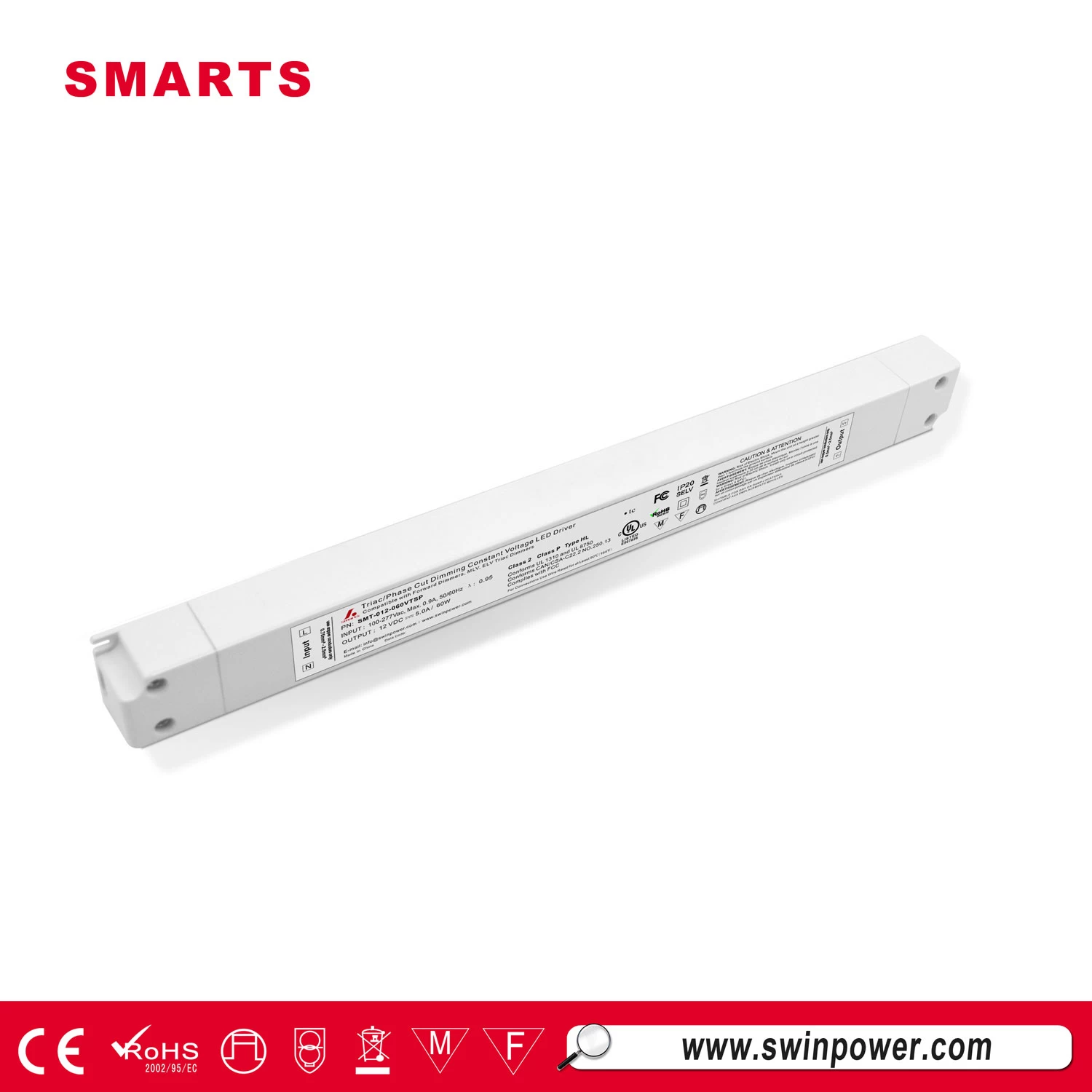

277vac to 12v dc 60 watt triac dimmable constant voltage slim led driver
The size of SMT-012-060VTSP is 300*32*20mm (L*W*H) which is ultra slim type. It's triac dimmable led driver, Dimming range is 0~100% and load is 10~100%. Work with Forward phase, Reverse phase, Triac, MLV, ELV Dimmers. Compliance to worldwide safety regulations for lighting.
Specicfication
|
model
|
SMT-012-060VTSP
|
SMT-024-060VTSP
|
|
Output
|
DC Voltage
|
12VDC
|
24VDC
|
|
|
Voltage Accuracy
|
±5%
|
±5%
|
|
|
Rated current
|
5.0Amp
|
2.5Amp
|
|
|
Rated power
|
60W
|
60W
|
|
|
Voltage Regulation
|
±0.5%
|
|
|
Load Regulation
|
±1%
±1%
|
|
Input
|
Voltage Range
|
100-277 VAC
|
|
|
Frequency Range
|
47～63HZ
|
|
|
Power Factor ( Typ.）
|
PF≧0.99/110V ; PF≧0.98/277V
|
|
|
Full Load Efficiency（Typ.）
|
>83%
|
>84%
|
|
|
AC Current（Typ.）
|
0.5A/100VAC / 0.13A/277VAC
|
|
|
Inrush Current（Typ.）
|
6.85A, 50%, 640us & 16.8A, 50%, 640us@2770VAC
|
|
|
Leakage current
|
<0.74mA/110VAC; ﹤0.25mA/277VAC
|
|
Protection
|
Short Circuit
|
Hiccup mode, recovers automatically after fault condition
is removed.
|
|
|
Over Loading
|
≤120% shut down o/p voltage, re-power on to recover
|
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
Others
|
Weight
|
0.45Kg
|
|
|
Size
|
300*32*20mm (L*W*H)
|
|
|
packing
|
50PCS/CTN
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 110VAC, 277VAC input ,
Rated load and 25℃of ambient temperature.
2. Tolerance:includes set us tolerance,line regulation and load regulation .
|

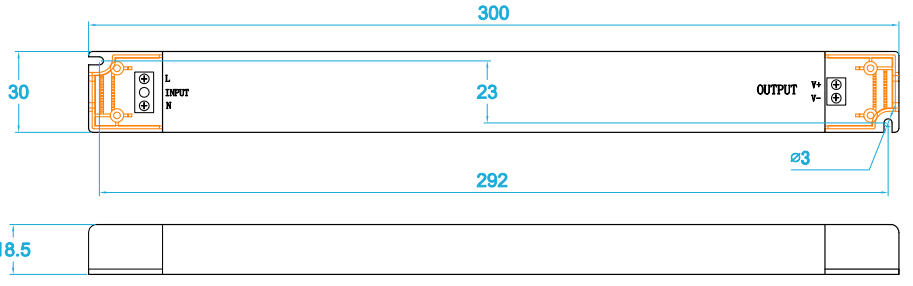

Mechanical Specification
What is the different of UL and RU certification?
The SMT-012-060VTSP triac dimmable led driver has got UL, CE, ROHS, FCC, Class2, Class P, Type HL. But you will ask are there any different between UL approval and RU approval?
1. The RU certifiation refers to the semi-finished product certification, and UL listed refers to the finished product certification. Different test standards have different requirements forled driver, so the corresponding certification costs are also different.
2. RU is not particularly useful, it's much more limited than UL listed. RU listed power supply can only be sold to the factory, which cannot be sold to consumers, because it is a semi-finished product and can only be sold after it is installed in led lighting. As for UL listed power supply, they can be sold to the factory or to the consumer, with an unlimited range.
