277vac UL led driver 26w 30w 60w dimmable power supply
An LED fixture is only as good as its driver. You can depend on Smarts 7 years warranty triac dimmable led power supply lighting. We factory test 100% of every production run before shipment, so when you install a UL listed LED driver, you can trust it to perform.
Specification:
|
model
|
SMT-012-030VTH
|
SMT-024-030VTH
|
|
Output
|
DC Voltage
|
12VDC
|
24VDC
|
|
Voltage Accuracy
|
±5%
|
±5%
|
|
Rated current
|
2.5Amp
|
1.25Amp
|
|
Rated power
|
30W
|
30W
|
|
Voltage Regulation
|
±0.5%
|
|
Load Regulation
|
±1%
±1%
|
|
Input
|
Voltage Range
|
100-277 VAC
|
|
Frequency Range
|
47～63HZ
|
|
Power Factor ( Typ.）
|
PF≧0.99/110V ; PF≧0.97/277V
|
|
Full Load Efficiency（Typ.）
|
>82%
|
>84%
|
|
AC Current（Typ.）
|
0.33A/110VAC / 0.13A/277VAC
|
|
Leakage current
|
<0.27mA/110VAC; ﹤0.25mA/277VAC
|
|
Protection
|
Short Circuit
|
Hiccup mode, recovers automatically after fault condition
is removed.
|
|
Over Loading
|
≤120% shut down o/p voltage, re-power on to recover
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
Environment
|
Working TEMP.
|
-40～+60℃
|
|
Working Humidity
|
20～90%RH,non-condensing
|
|
Storage TEM.,Humidity
|
-40～+80℃，10～95%RH
|
|
TEMP.coefficient
|
±0.03%/℃（0～50℃）
|
|
Vibration
|
10～500Hz，2G 10min./1 cycle，period for 60min.
each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
UL8750+UL1310
|
|
Withstand voltage
|
I/P-O/P:3.75KVAC
|
|
Isolation resistance
|
I/P-O/P：100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
FCC Part 15 B
|
|
EMC IMMUNITY
|
Compliance to EN61000-4-2,3,4,5,6,,11, ,
Alight industry level
|
|
Others
|
Weight
|
0.95Kg
|
|
Size
|
165*92*26mm (L*W*H)
|
|
packing
|
355*215*215mm / 10PCS/CTN
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 110VAC, 277VAC input ,
Rated load and 25℃of ambient temperature.
2. Tolerance:includes set us tolerance,line regulation and load regulation .
|

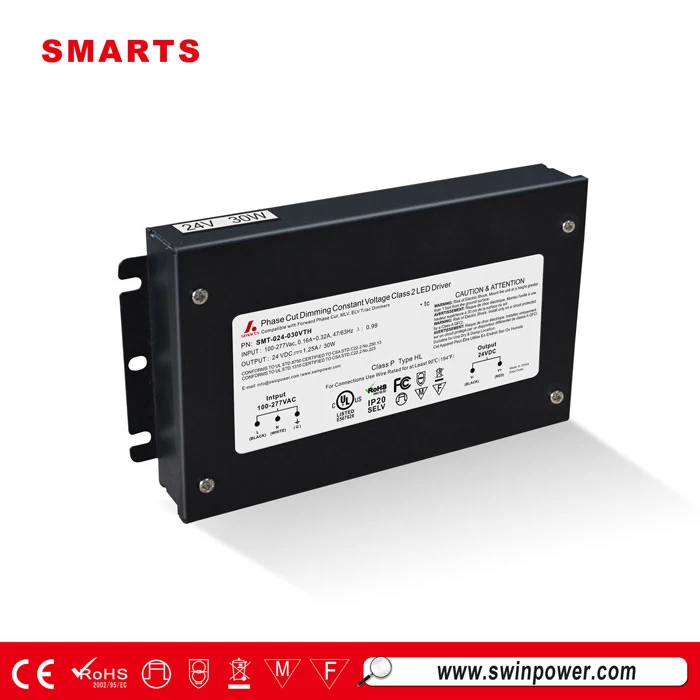

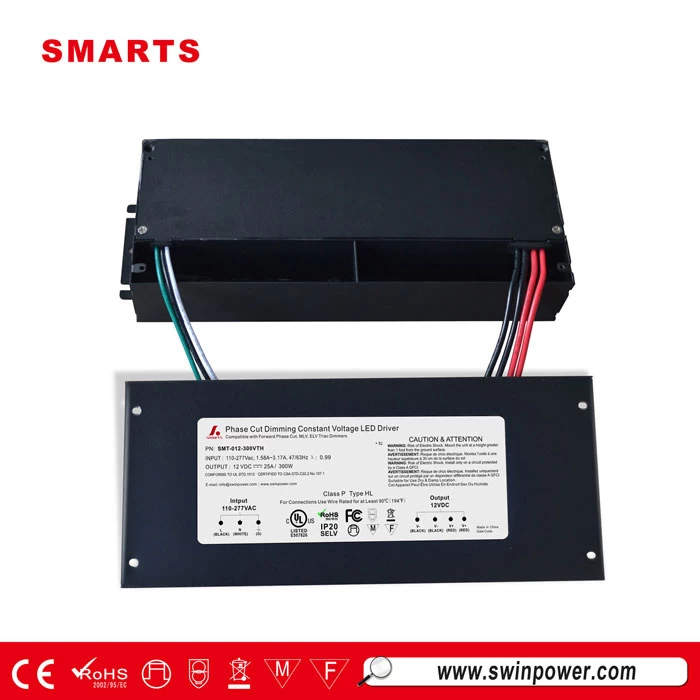

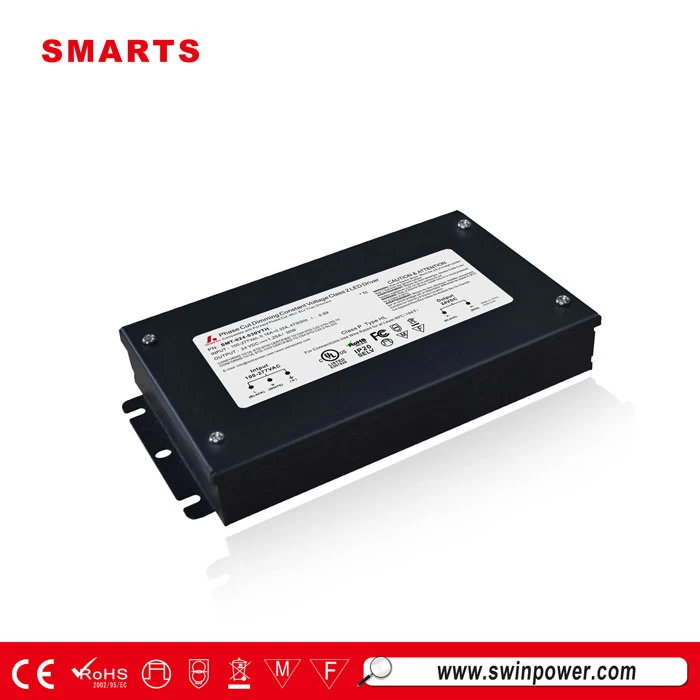

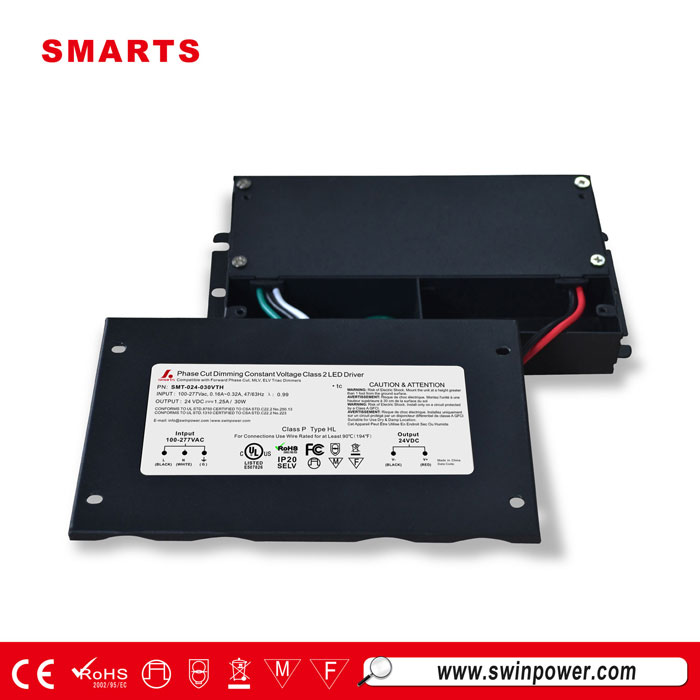

Product picture:

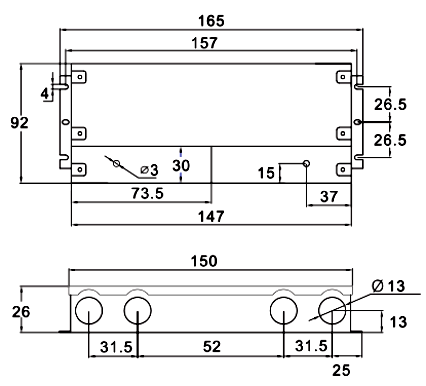

Product size:
Input:18AWG Black and White to be connected to AC L and N ,Green wire go ground,
Output: Red is（DIM+）,Black is（DIM-）
Note: Any other requests we can customized.
Connecting diagram:
Simple diagram:
FAQ:
1. Is there a Tc point on the driver? And do you have a lifetime derating curve for case temperature? At 60 Watt load we are seeing a case temperature of 60°C.
Answer: The TC point is right above on the led transformer when you test it. So far, we didn't show it on the lables. If it is necessary for you, we will show TC point on the next orders, ok？Enclosed please find the picture of derating curve for your reference.
2. What is the wire gauge that fits into the ETL Triac Dimmable LED Driver?
Answer: 14-26 AWG
3. What is the difference between the 20w/45w UL and 24w/48w ETL model?
Answer:
-- when you install a 20w/45w UL led driver in your led light you should consider abbot min. 55% load limtation. If it less than 55%, the led light will have flick problem. But the 20w/45w ETL model is no load limitation. You can load it in the led light 1-48w.
-- the height of 24w(20mm)/48w(24mm) is lower than 20w(28mm)/45w(34mm).
More information if you would like to know Smarts Electronics’ triac dimmable led driver, you can login http://www.smarts-electronics.com/ Or contact with Mr. Steven(skype: steven821228 mail:steven@smartselectronic.com.cn)
