60 Cell
|
270-285W
|
17.4%
|
0~+5W
|
|

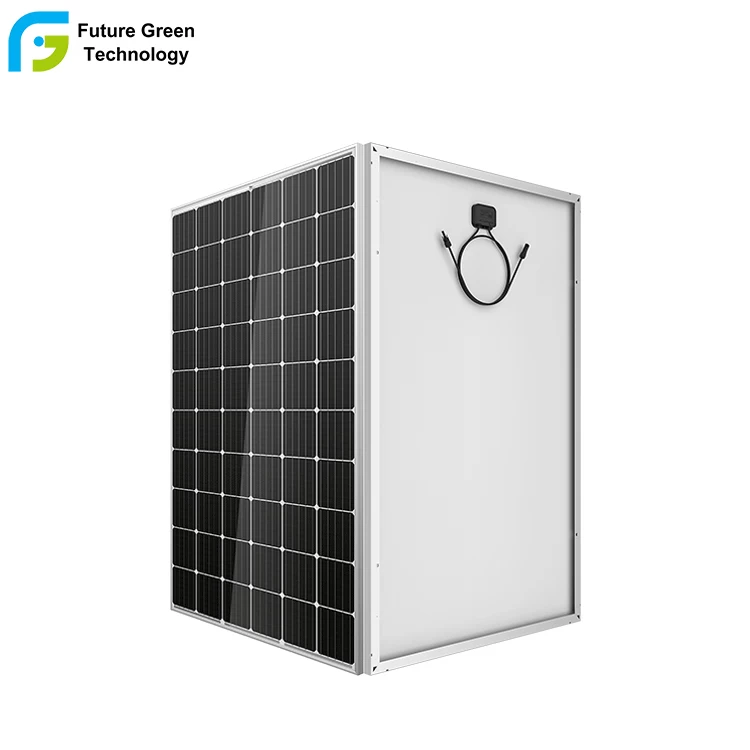

Monocrystalline Module
|
Power output range
|
Maximum Efficiency
|
Power output tolerance
|
Maximize limited space with higher power
FGET high efficieny series is our most versatile product. The panel packs even more power in a 60 cell module by using more efficient monocrystalline cells which have a darker, more uniform, aesthetically pleasing look. The series has the same great reliability, and is compatible with all major balance of system components and most module-level power electronics.
Exceptional warranty
In a recent study of PV modules made by leading manufacturers, FGET Solar modules ranked highest in reliable performance under real-world climate conditions.

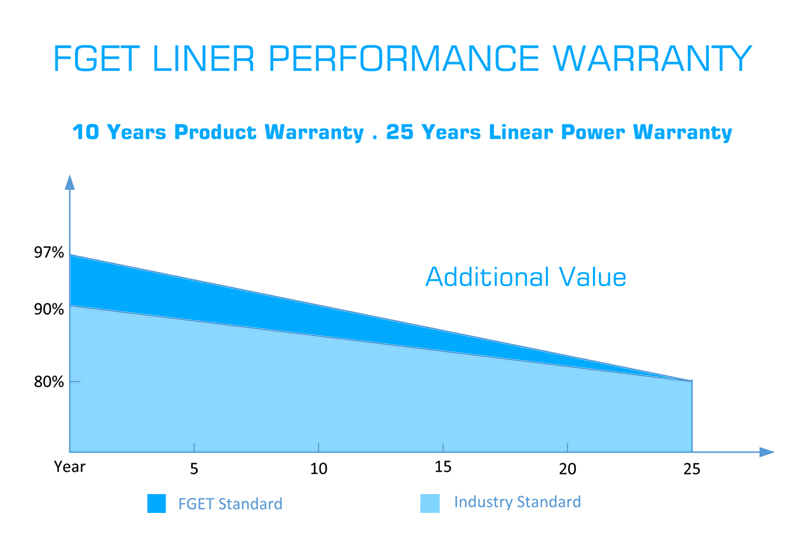

FGET is confident and proud of the exceptional quality of our products. We guarantee our module output to be at or above its nameplate wattage, and we back every module with a 10-year product and 25-linear power output warranty.
|
ELECTRICAL
DATA @ FGET
|
FGET-270 PD05
|
FGET-275 PD05
|
FGET-280 PD05
|
FGET-285 PD05
|
|
Peak Power Watts-PMAX (Wp)*
|
270
|
275
|
280
|
285
|
|
Power Output Tolerance-PMAX (W)
|
0/+5
|
0/+5
|
0/+5
|
0/+5
|
|
Maximum Power Voltage-VMPP (V)
|
30.9
|
31.1
|
31.4
|
31.6
|
|
Maximum Power Current-IMPP (A)
|
8.73
|
8.84
|
8.92
|
9.02
|
|
Open Circuit Voltage-VOC (V)
|
37.9
|
38.1
|
38.2
|
38.3
|
|
Short Circuit Current-ISC (A)
|
9.22
|
9.32
|
9.40
|
9.49
|
|
Module Efficiency ηm (%)
|
16.5
|
16.8
|
17.1
|
17.4
|
|
MECHANICAL
DATA
|
|
|
|
|
|
Solar Cells
|
Multicrystalline 156.75 × 156.75
mm
|
|
Cell Orientation
|
60
cells (6 x 10)
|
|
Module Dimensions
|
1650 × 992 × 35 mm
|
|
Weight
|
18.6
kg
|
|
Glass
|
3.2 mm, high transparency, AR
coated and heat tempered solar glass
|
|
Backsheet
|
White
|
|
Frame
|
Silver Anodized Aluminium Alloy
|
|
J-Box
|
IP
67 or IP 68 rated
|
|
Cables
|
Photovoltaic Technology Cable
4.0mm², 1000 mm
|
|
Connector
|
EU
Countries: 28 MC4 / UTX / TS4, Non-EU Countries: 28 QC4 / TS4
|
|
