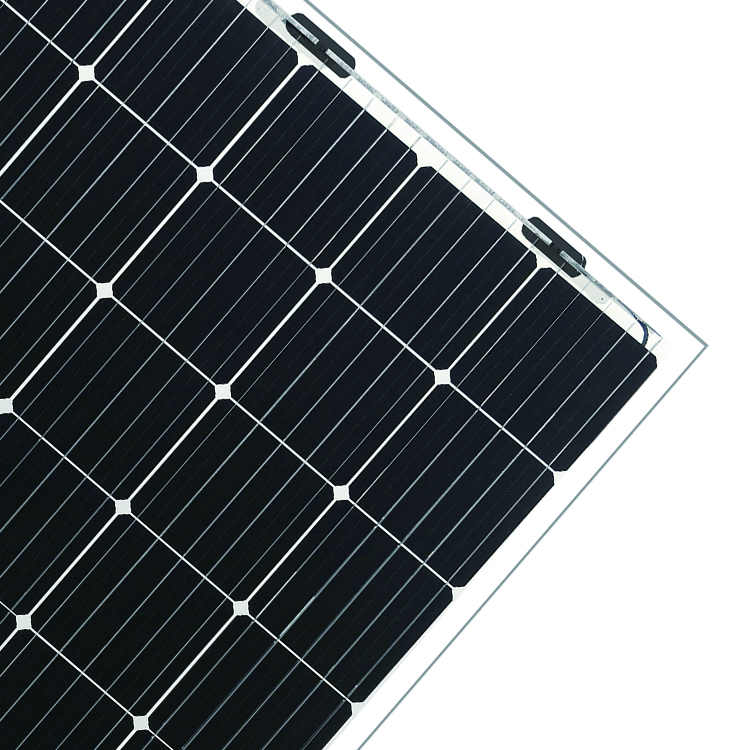

280W Mono solar panels
Spcifications of Mono solar panel from 270W-300W
|
Electrical Characteristics of Mono solar panels
|
|
Module No.
|
UOM
|
SW60-270
|
SW60-280
|
SW60-290
|
SW60-300
|
|
Rated Maxmum Power-Pmax
|
WP
|
270W
|
280W
|
290W
|
300W
|
|
Maxmum Power Voltage-Vmp
|
V
|
30.81
|
31.02
|
31.56
|
31.96
|
|
Maxmum Power Current -Imp
|
A
|
8.78
|
9.03
|
9.18
|
9.39
|
|
Open Circuit Voltage-Voc
|
V
|
38.12
|
38.32
|
39.31
|
39.72
|
|
Short Circuit Current-lsc
|
A
|
9.45
|
9.65
|
9.83
|
9.93
|
|
Power Tolerance
|
%
|
+/-3
|
|
Module Efficiency
|
%
|
16.64
|
17.25
|
17.86
|
18.5
|
|
Current Temperature coefficient
|
%/k
|
0.06±0.01
|
|
Voltage Temperature Coefficient
|
mv/k
|
-(155±10)
|
|
Power Temperature Coefficient
|
%/k
|
-(0.5±0.05)
|
|
Nominal Operating Cell Temperature(NOCT)
|
℃
|
45±2℃
|
|
Standard Test Conditions STC:1000W/Wm2, spectrum
AM1.5 and cell temperature 25ºC.
|
|
Mechanical & Packaging Characteristics
|
|
Type of Solar Cell
|
|
Mono Crystalline 156*156mm
|
|
Solar cell and Configuration
|
|
60cells(6*10)
|
|
Dimension of Module
|
mm
|
1640*992*35
|
|
Weight
|
kg
|
17.5
|
|
Junction
Box
|
|
IP67 Rated
|
|
Type
of Glass and Thickness
|
|
Low-ron Tempered Glass
|
|
Frame
|
|
Clear anodized aluminium alloy, color: silver
|
|
packing Configuration and Quantity per Pallet
|
|
30 pcs per carton and one carton per pallet
|
|
Container Loading Capacity for 20GP
|
|
364
|
|
Container Loading Capacity for 40GP
|
|
840
|
|
Container Loading Capacity for 40HQ
|
|
910
|
|
Warranty: 15 years product warranty and 25 years performance
warranty ensure reliability of modules.
|
|
Note: All specifications & characteristics we can provide
depend the customer's requirement.
|

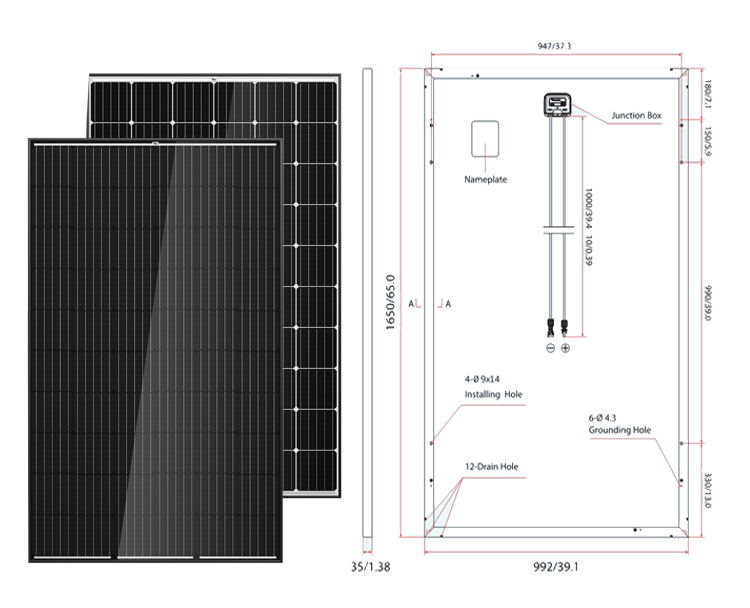

Dimensions of 60Cells solar panels
Curve of 60Cells solar panels
Details of Mono solar panels
Assemly of 60Cells solar panels
Package of Mono solar panels
Payment of Mono solar panels
|
|
|
EXW
|
30% T/T in advance, paid the balance before shipment
|
|
FOB
|
|
CFR(C&F)
|
30% T/T in advance, paid the balance against copy of B/L
|
|
CIF
|
|
|
L/C amount above 50,000 usd, we can accept L/C at sight
|
|
|
Amount lower than 5000usd
|
|
|
|
|
7~10days after receiving payment for one container
|
