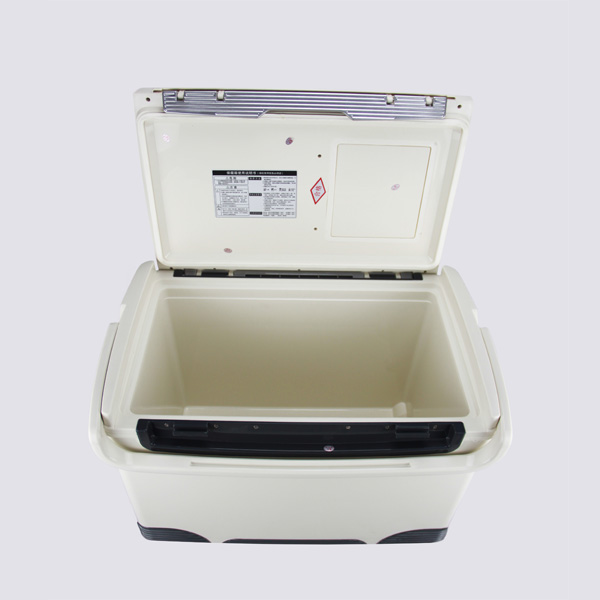

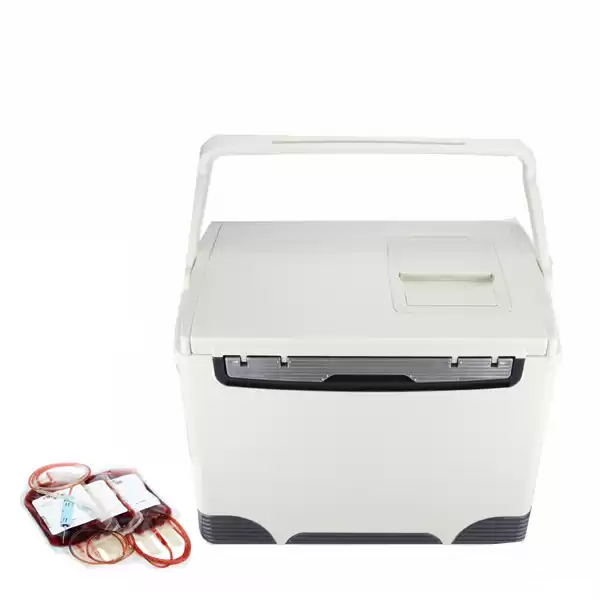

28L portable plastic Insulated vaccine carrier box
The 28L vaccine transport box medical cooler box used for keeping and distributing vaccines in potent condition is called the cold chain. Vaccines are always sent directly from the supplier to the country of intended use by plane as refrigerated cargo. On arrival, vaccines are moved to cold and freezer rooms and from there, distributed to Sub-national stores by refrigerated vehicle.
|
Category
|
Medical cooler box
|
|
Main Material
|
PP,Insulation: PU foam &PP
|
|
Application
|
Medical, vaccine, blood storage and transport
|
|
Dimension
|
Outer Dimension:52*32*34.5cm
Inner Dimension: 43.5*24.5*27cm
|
|
Capacity
|
Payload capacity:28L
|
|
Cold source
|

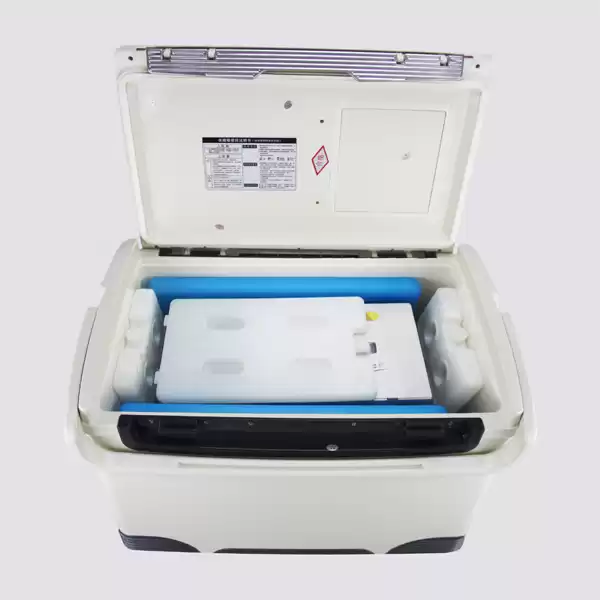

Ice Pack:14pcs of 28*8cm ice pack
Or 12pcs of 16.5*9.5*3cm ice brick
Or as your requirement
|
|
Cold life
|
>30 hours at 2°C to 8°C in an ambient temperature of 43°C
|
1.1 Constrution of Cold Chain Box for Blood Sample Transportion and Carriers
1.2 Test data of 28L Cold Chain Box
1.3 How to Use the Cold Chain Box
1.4 More Series of Cold Chain Box
|
Model No.
|
Container Capacity
|
Usable
Cold Space Capacity
|
Internal Size
|
External Size
|
|
HTLL-1080
|
8L
|
3.5L
|
28.7*15.7*16.2cm
|
34*21*24cm
|
|
HTLL-0611
|
11L
|
8L
|
34.5* 20.5*24cm
|
42*28*32cm
|
|
HTLL-1012
|
12L
|
7.2L
|
34*19*20cm
|
40*25*26cm
|
|
HTLL-0914
|
14L
|
7.4L
|
33.5*17*25cm
|
42*25.50*32cm
|
|
HTLL-1018
|
18L
|
9.4L
|
36*21*24cm
|
43*28*32cm
|
|
HTLL-1228
|
28L
|
16L
|
43.5*24.5*27cm
|
52*32*34.5cm
|
|
HTLL-1636
|
36L
|
24L
|
46.50*25*32.8 cm
|
57*33.50*40.5cm
|
|
HTLL-2038
|
38L
|
24L
|
45*28.5*21cm
|
53*35*35cm
|
|
HTLL-3048
|
48L
|
31.5L
|
59.5*25*31cm
|
68*34*37.5cm
|
|
HTLL-3268
|
68L
|
33.7L
|
68*23*32cm
|
73*38*42cm
|
