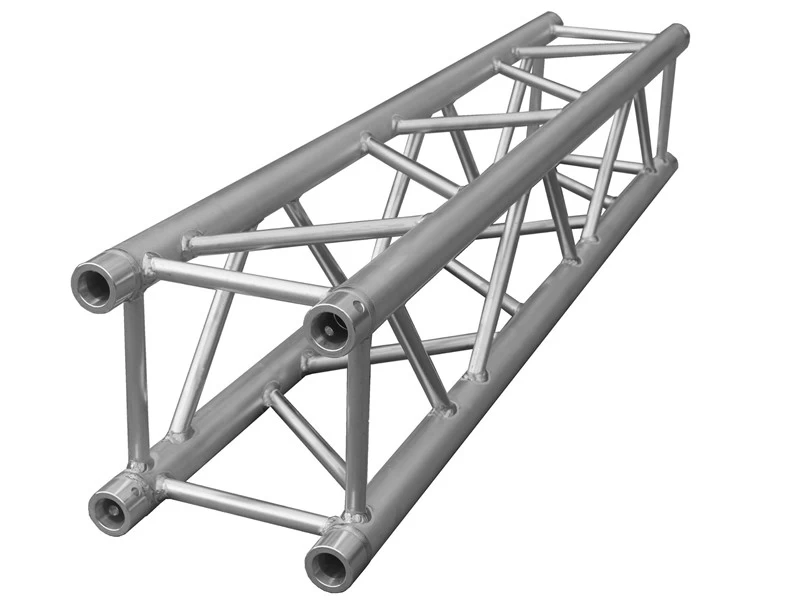

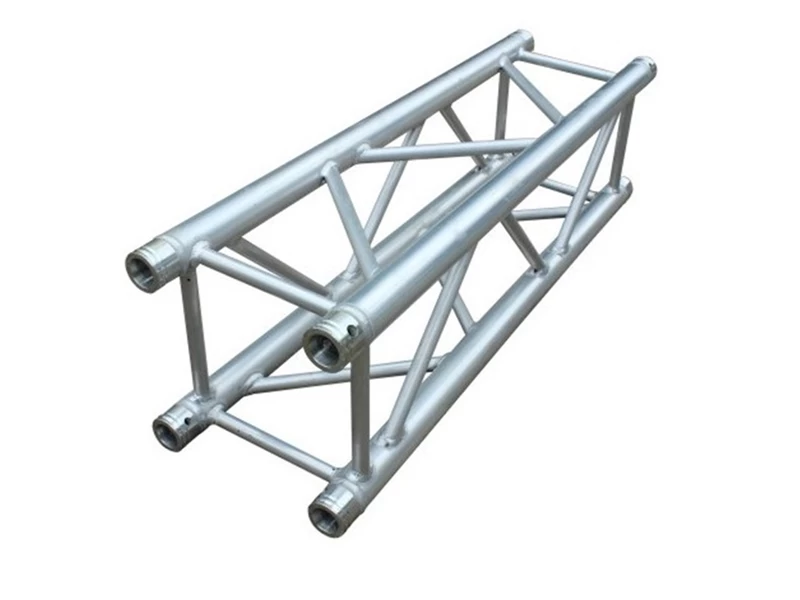

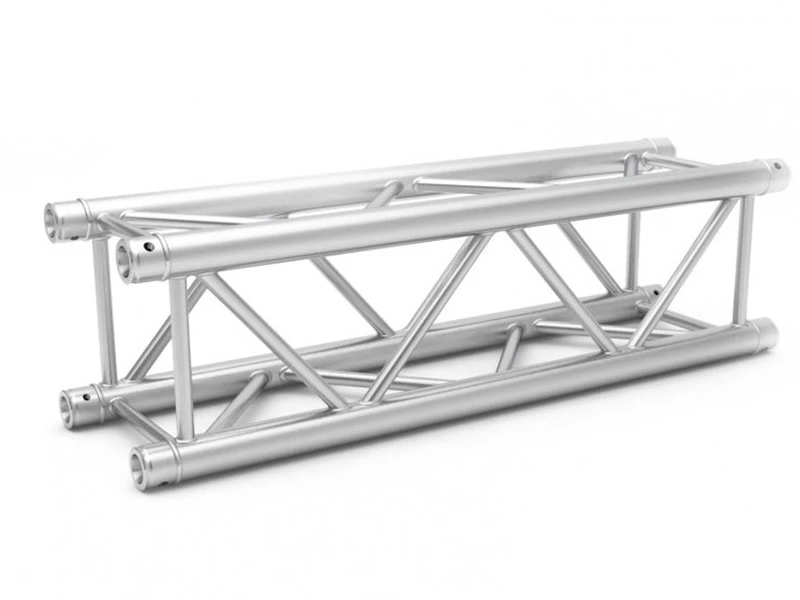

290 Aluminum Square Lighting truss

290 mm Aluminum Square Lighting Truss is DIY installation with Spigot connection. It is a lightweight Modular Truss with UPL 390kg and UDL 75kg at10 m span. Square Aluminum Truss is widely used in roof system, stage lighting hangers, dj, round truss, line array speakers, concerts, entertainments, events, performance, exhibit booths, LED screen, music, theatre, circus, studio, disco, tv, wedding party, hotel,ect.




290 Aluminum Square Lighting truss

ITSC-CS29 Square Aluminum Truss offers an optimum lifting capacity and indicates the practical versatile in all kinds Ground Support Truss Systems for concerts stages, exhibitions, tents, events, and other complex structures like displays or booths.

Features:

  1. 4- point nodding
  2. TUV and SGS approved
  3. Free design and technology support
  4. OEM and ODM acceptable
  5. Powder coating and anodizing to any color without any peeling

Specification:

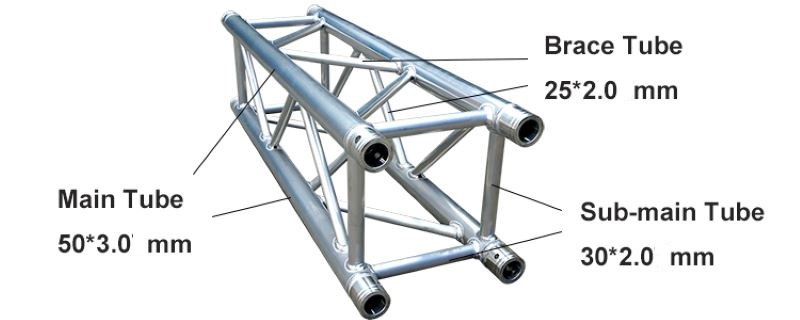

Material Aluminum Alloy 6061-T 6/ 6082-T 6
Types Square
Main tubes 50 x 3 mm
Sub-Main tube 30 x 2 mm
Braces 25 x 2 mm
Connection type Conical couple system

Trusses for sale UK

Length and Weight:

Length Weight
50 cm 5.25 kg
100 cm 8.25 kg
150 cm 11.25 kg
200 cm 14.25 kg
250 cm 17.25 kg
300 cm 20.6 kg

Other length can be custom on request.

Application:

The Quad Truss is equivalent to Global Truss and it is widely used forconcert stagehire, decorations, car shows, exhibitions booths, churches, world cup events, ect.
