29er Carbon Frame Suspension New XC Carbon Frame FS902

- Carbon 29er full suspension trial frame

- 190*51mm rear shock

- rear 120mm travel, front 100mm travel

- 12*142mm thru axle

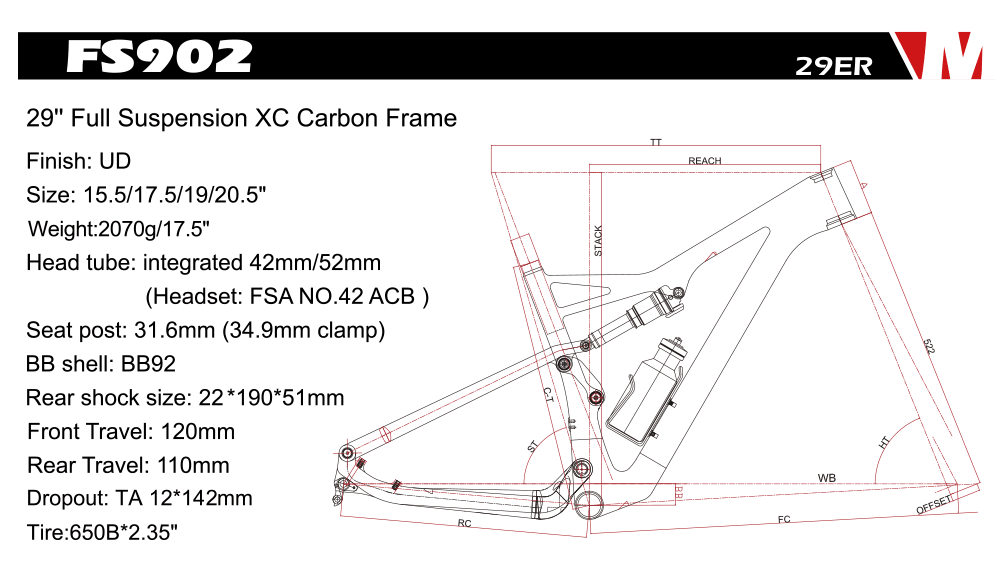

FS902

29" Full Suspension XC Carbon Frame




FS902
SIZE
C-T A Offset TT HT ST BB RC WB FC RD RB POST STACK PEACH H/T INSERT BB INSERT Wheel Travel
15.5"
395 95 51 560.5 68 73.6 38 440 1105.5 668.1 Inner
Inside
31.6
589.2 386.9

FSA

NO:42

ACB

BB92
29er*2.35"
Dropout:
∅12*142mm

F 120MM
R 110MM

17.5"
445 100 51 587.5 68 73.6 38 440 1129.5 692.1 595.1 412.7
19" 483 115 51 602 68 73.6 38 440 1149 711.4 608.5 422.4
20.5" 520 125 51 632 68 73.6 38 440 1180 742.6 618.3 449.6

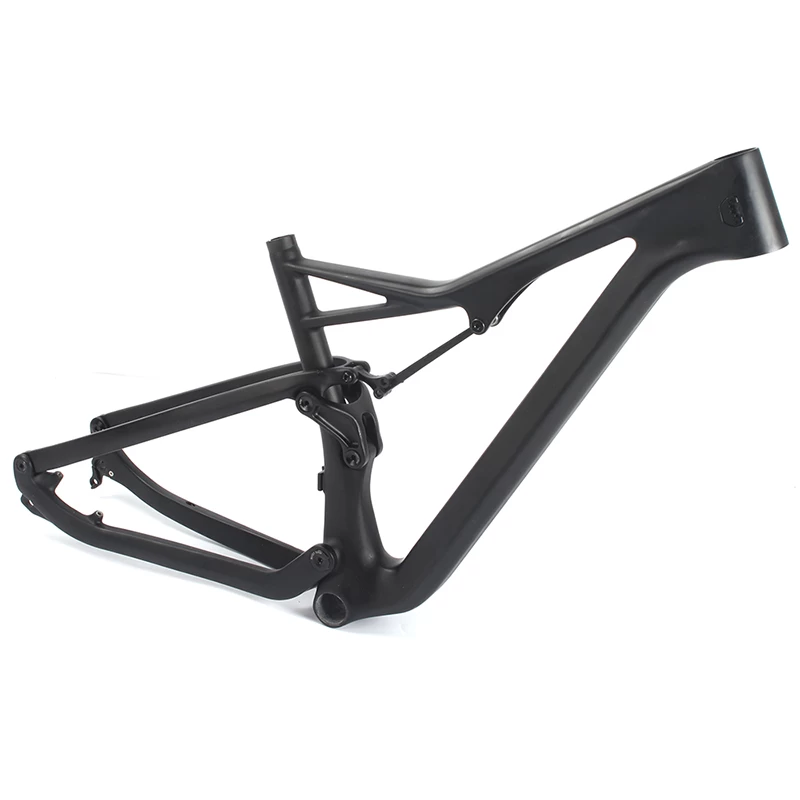

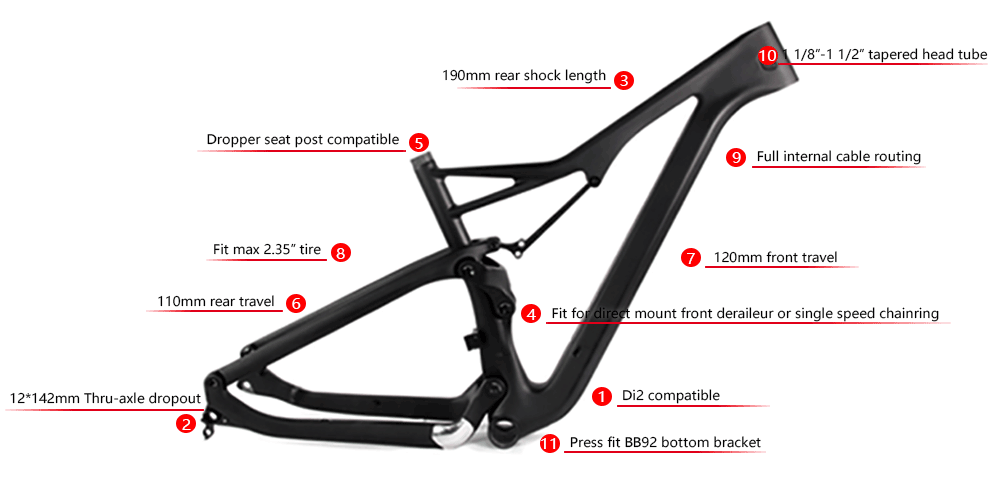

29er Full Suspension XC MTB Mountain Bike Carbon Frame FS902


Frame full carbon trial mountain bike frameset
Material High modulus Toray T700  carbon fiber
Size
15.5'', 17.5'', 19'', 20.5'' (Small, Medium, Large, X-Large)
FrontTravel 120mm
Rear Travel 110mm
Headtube Tapered 1 1/8 "- 1 1/2"head tube, upper 42mm lower 52mm (Headset standard FSA No.42ACB)
Weight 2070g/Medium
Seatpost Diameter 31.6mm(34.9 clamp)
Bottom Bracket Press Fit BB92
Max Tire Clearance 29er*2.35''
Max Compatible Chainring                34T
Brake Type Post Mount Disc brake 160mm
Front Derailleur Braze on
Rear Shock 190*51mm Or 7.5*2 inch (eyelet to eyelet width 22mm)
Dropout Thru Axle 12*142mm
Test Standard ISO4210
Warranty  2 years
