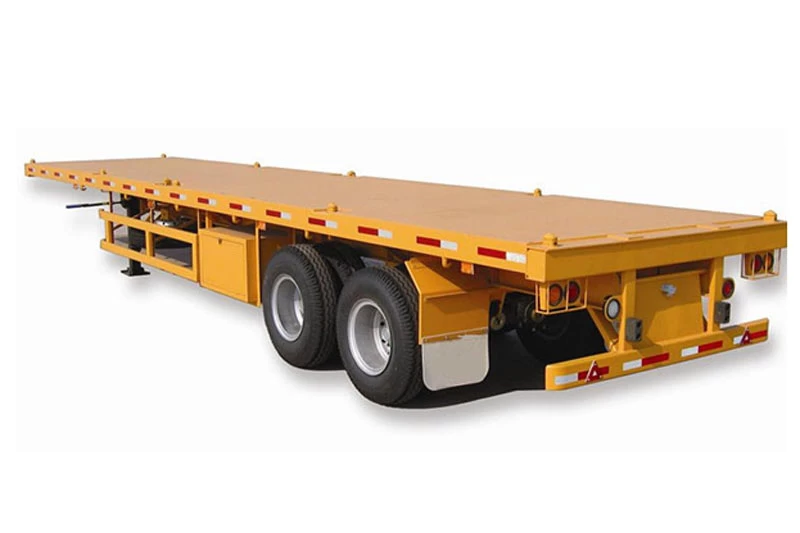

2axle 40ft flatbed semitrailer

Type

40ft flatbed semi trailer

Function

Transport 2x 20ft or 1x40ft container or other stuff

Overall dimension

12400x2500x1480mm

Tare weight

5000kg

Loading weight

35000kg

Chassis

Main beam

The height of the beam is 500 mm, upper plate is14mm,down plate is 16mm,middle plate is 8mm.

Wheel base

8350mm+1300mm

Side beam

16U shaped steel or I shaped steel

Platform thickness

3mm

Axle

2axle FUWA

Suspension type

Normal suspension

Leaf spring

8/8, 10/10/

Traction pin

50# or 90#

Land gear

Standard 28ton

Tire

12R22.5   8units

Accessories

Brake

4 big chamber

Tool box

1 unit

Spare wheel carrier

2 units

Side marker lamp

LED type
