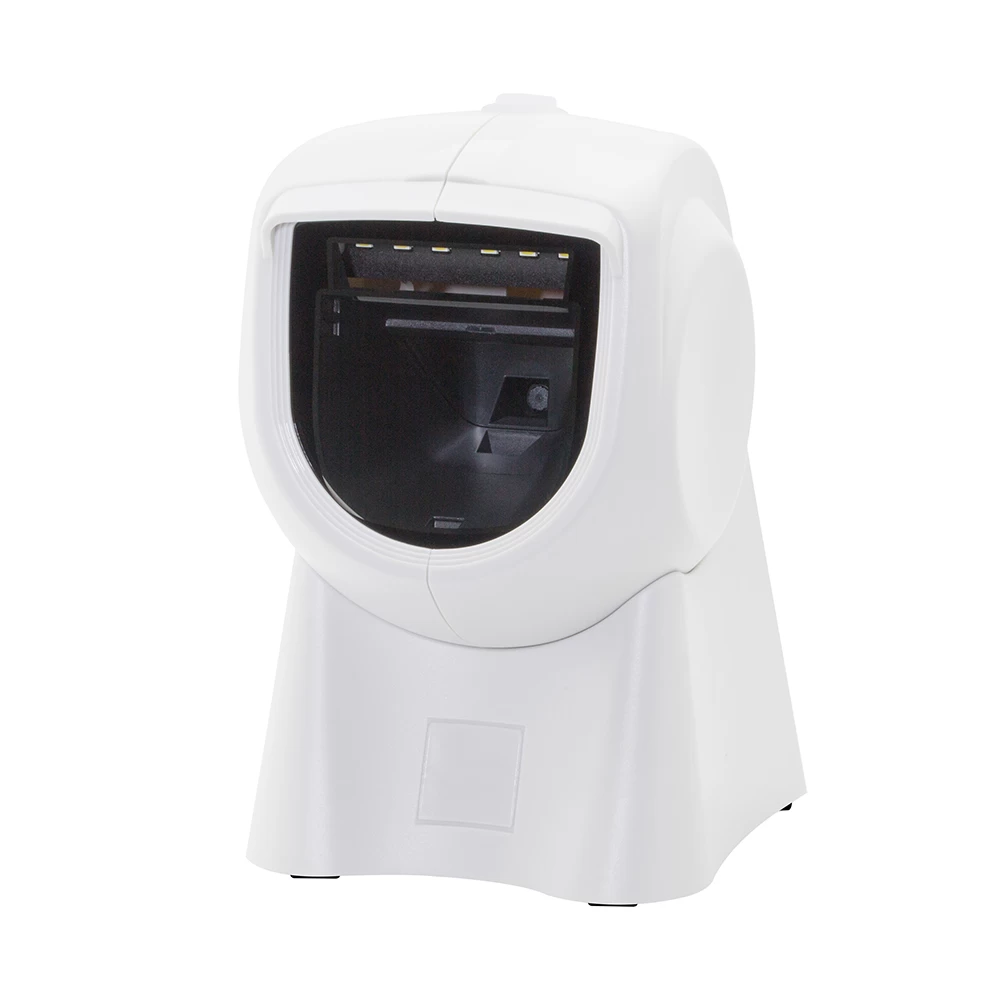

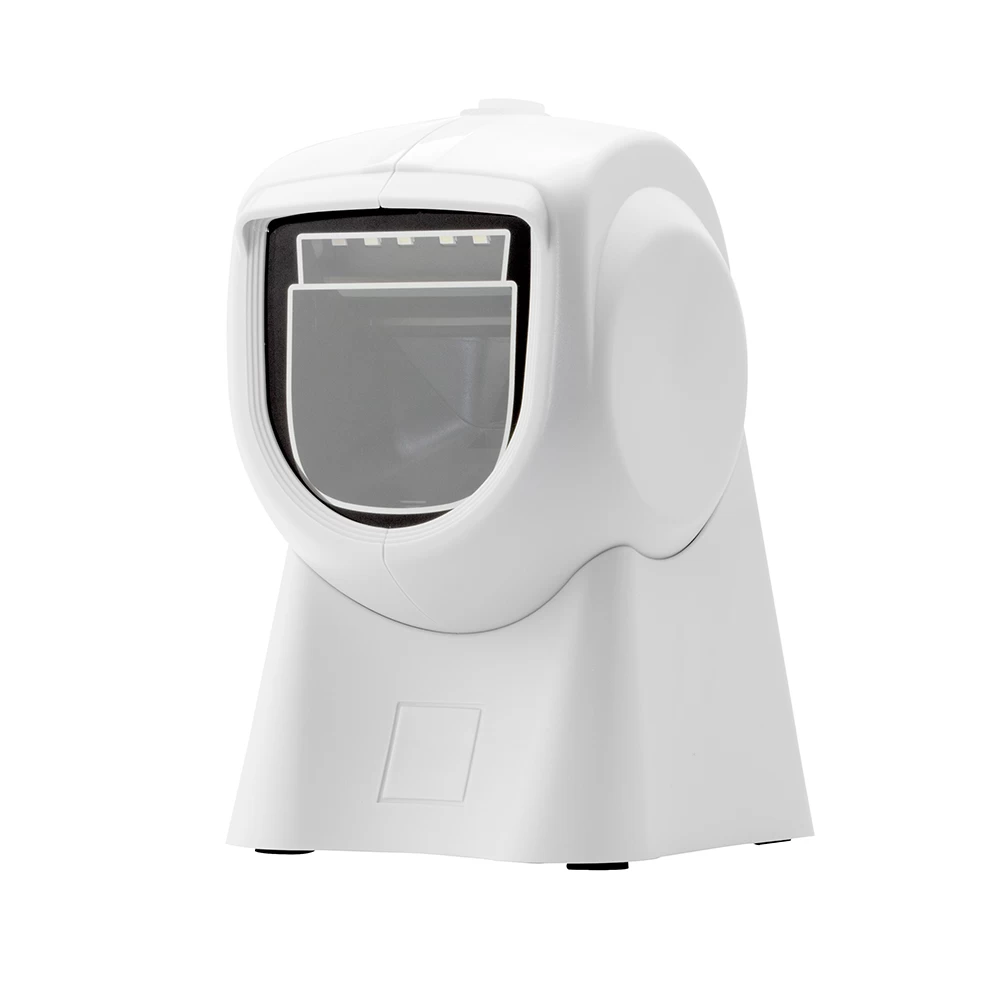

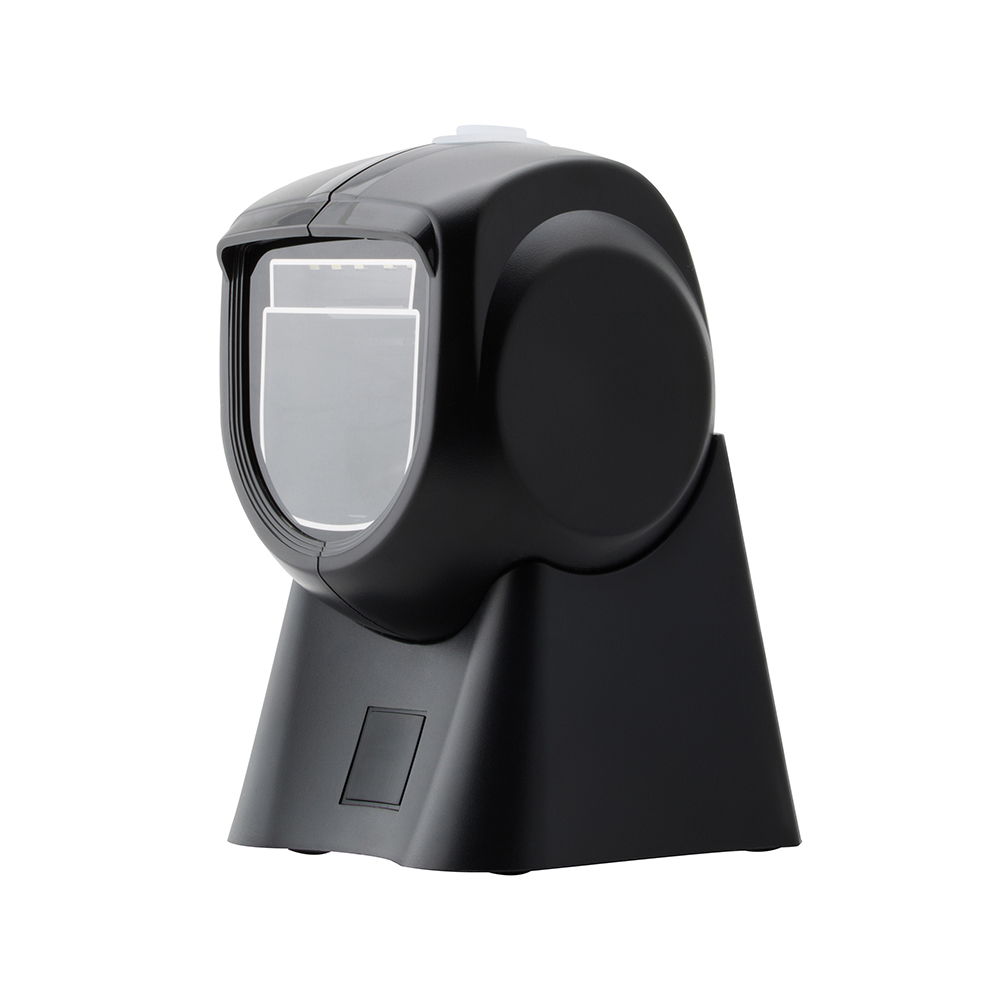

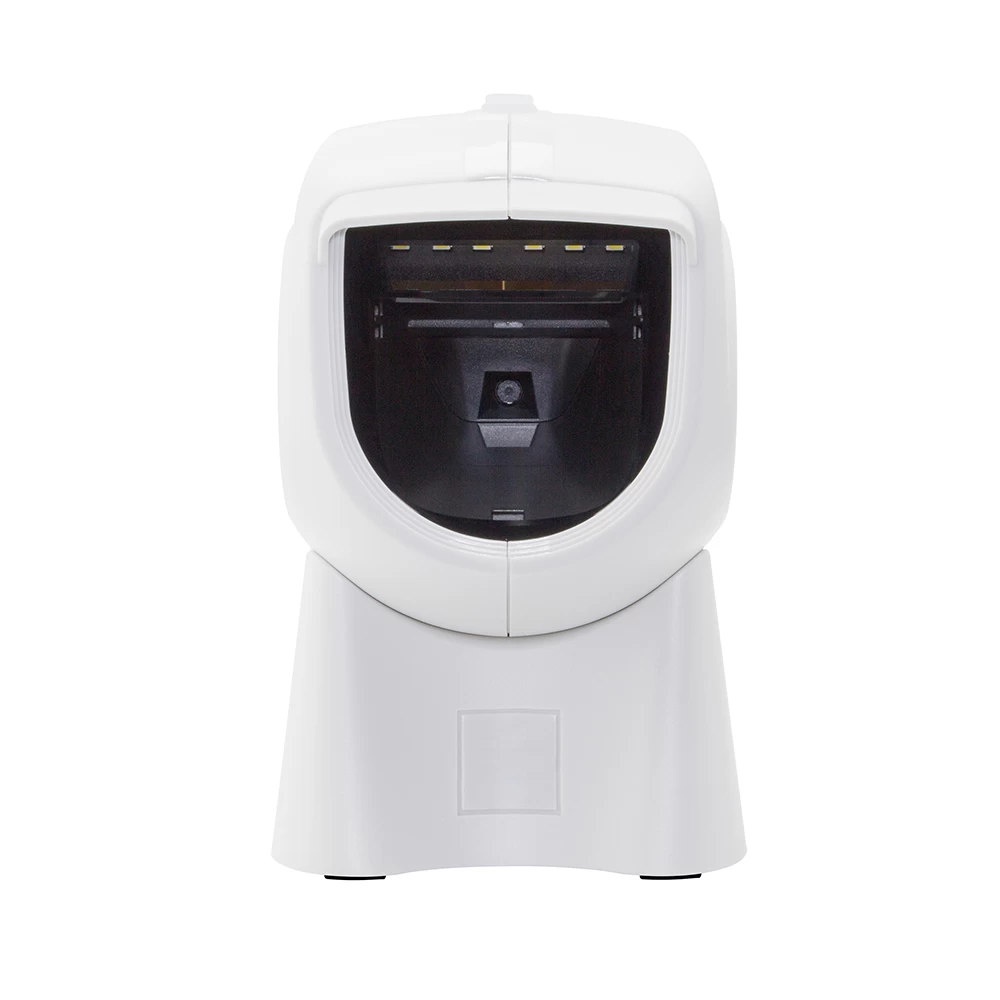

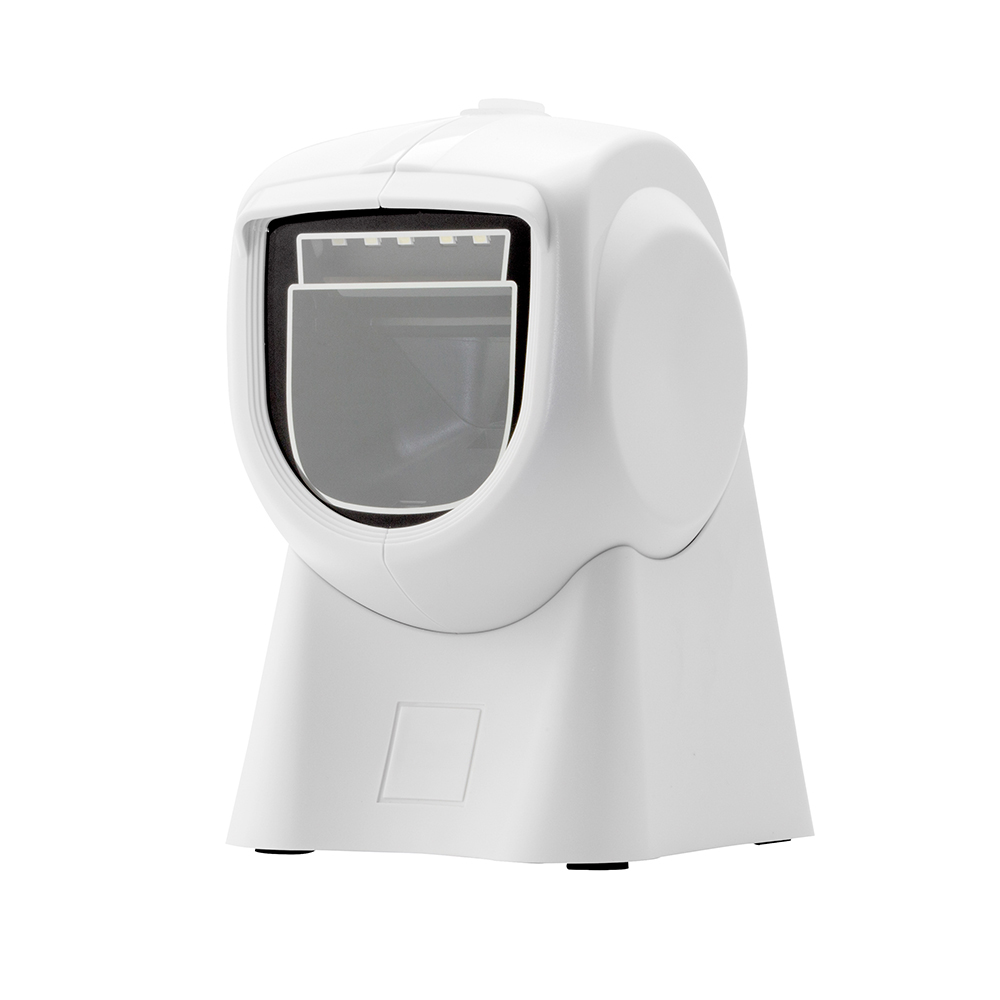

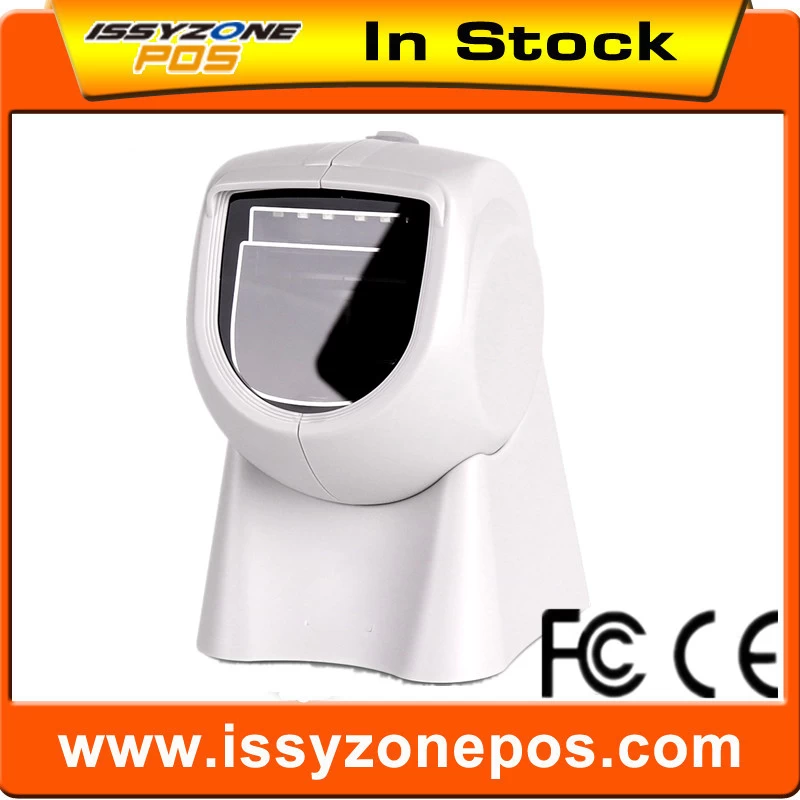

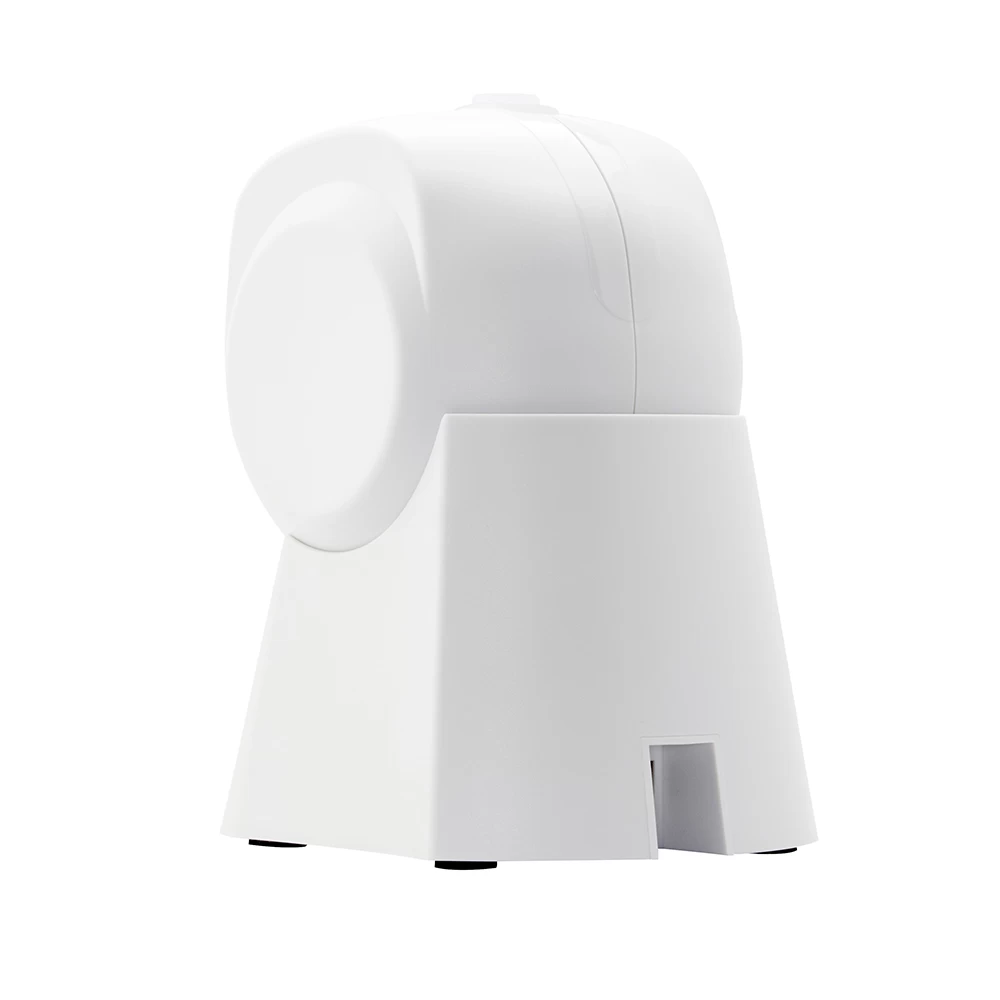

2D barcode qr code scanner 1500times/s high speed desk handsfree omnidirectional IOBC036

qr reader
1.Trial order acceptable
2.High quality, reasonable
3.Reasonable Price

Facebook Twitter Pinterest LinkedIn 分享
Physical Parameters
Material ABS+PC
Size L*W*H: 153mm*109mm*97mm
Power Supply DC 5V/420mA
Weight 310±5g (without cable)
Performance Parameters
Support Interface USB
Sensor Planar CMOS sensor
Light Source white LED (lighting)
Processor 32-bit ARM MCU
Decoding Capability

1D version: Codabar,Code39,

Code32,InterLeaved 2 of 5(24bit)

,Industrial 2 of 5( Industrial25),Matrix 2 of 5,

Code93,Code128,Gs1-128,UPC-A,UPC-E,EAN/JAN-8,EAN/JAN-13,GS1 DATABAR(RSS14),GS1 DATABAR Limited,

 Gs1databar Expanded

2D version: QR, MicroQR, PDF417, Data Matrix, AZTEC.
Resolution  1D 4MIL, 2D QR8 3MIL, PCS45%
Depth of Field 4MIL  CODE39:       0--4   CM
13MIL  UPC-A :       0--16  CM
15MIL  QR    :       0--14  CM
1D code from Alipay 0--24 CM
2D code from Alipay 0--47 CM
Available for Stationery small barcode & wide barcode
Scanning Speed 300scans/sec
Scanning Method Auto-sensing
Scanning Area 5 * 5 cm² -- 20 * 20 cm²
Prompting Mode Buzzer, indicator light (LED)
Printing Contrast No lower than 35%
Scanning Angle Roll 0-360°, pitch ±65°, yaw ±60°
Environment Parameters
IP Grade  IP 54
Operating Temperature 0 to 50 ºC / 32 to 122 ºF
Storage Temperature 0 to 50 ºC / 32 to 122 ºF
Operating Humidity 5 - 95% (non-condensing )
ESD Protection 15kv air discharge
Shock Resistance 1m free fall on concrete surface
