Performance Parameters
|
|
Type
|

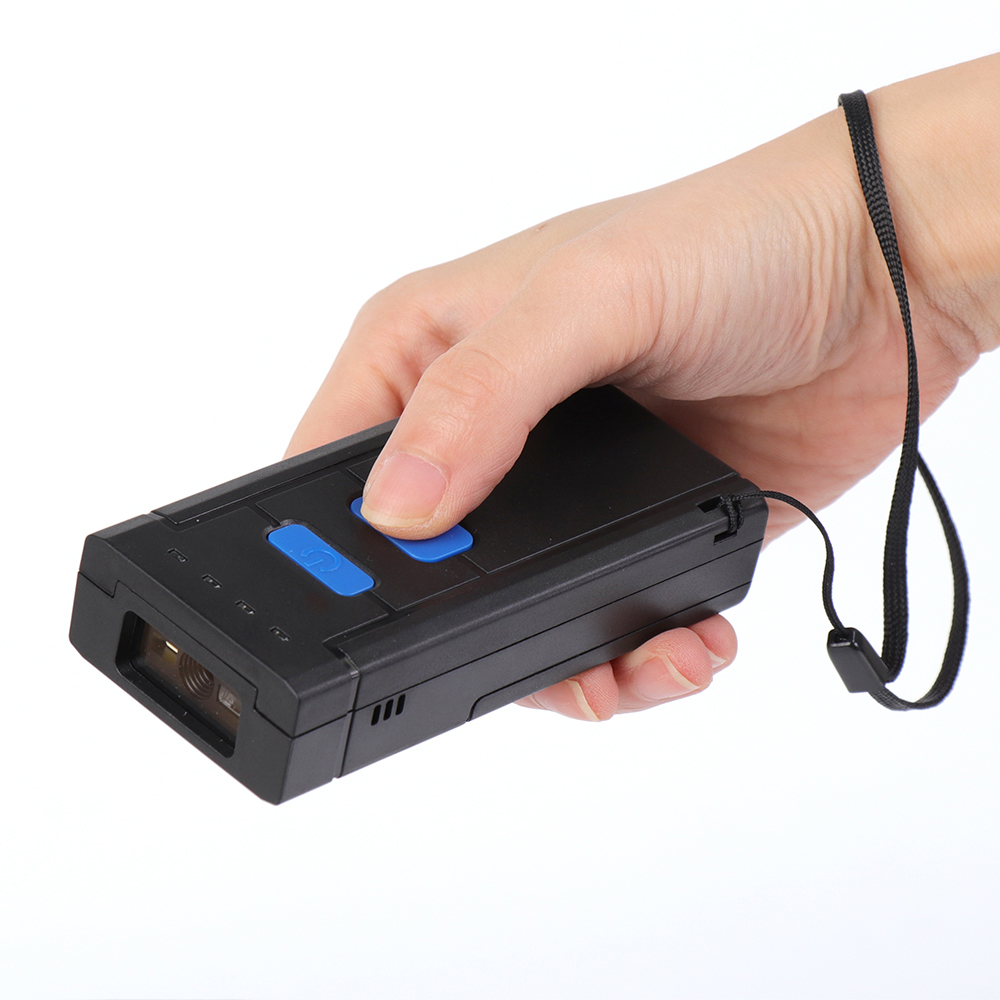

2D Bluetooth image barcode scanner
|
|
CPU
|
32-bit
|
|
Operating indicators
|
2 LED (blue/green)
|
|
Operating keys
|
2 key total, 1 scan & 1 power key
|
|

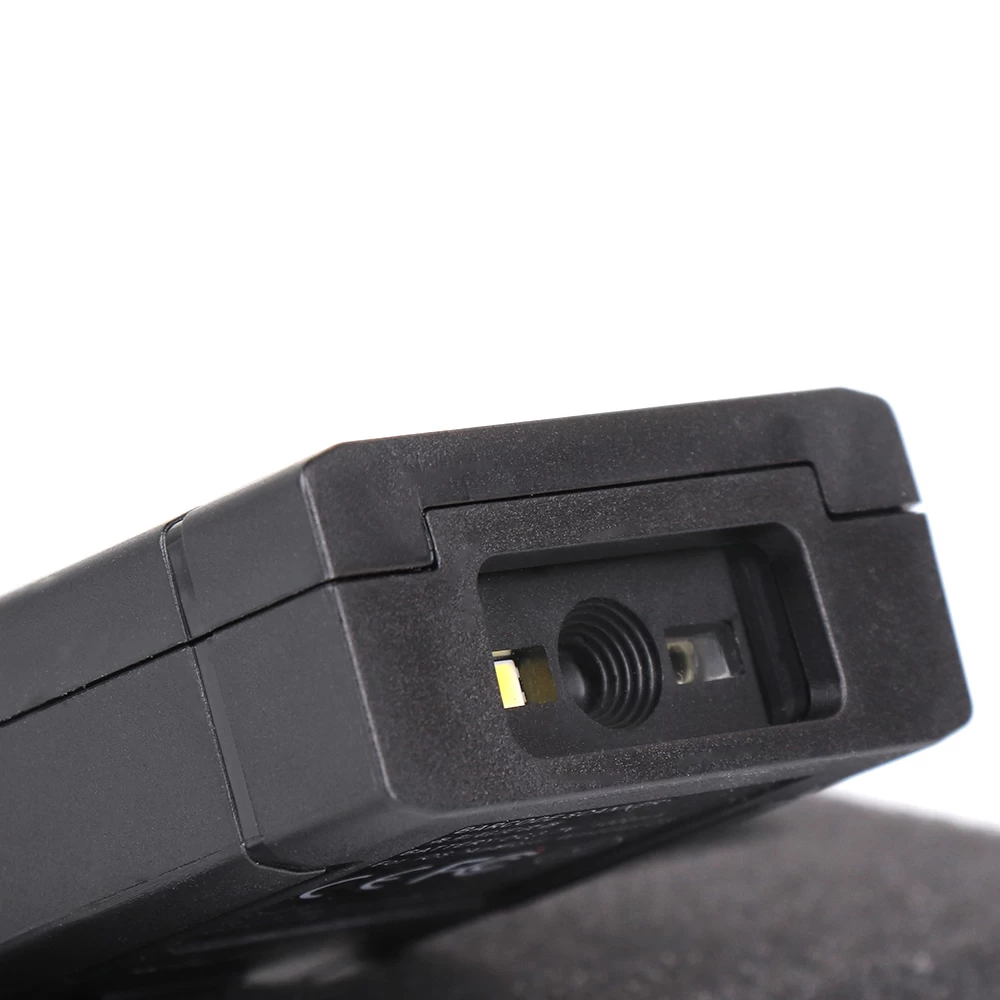

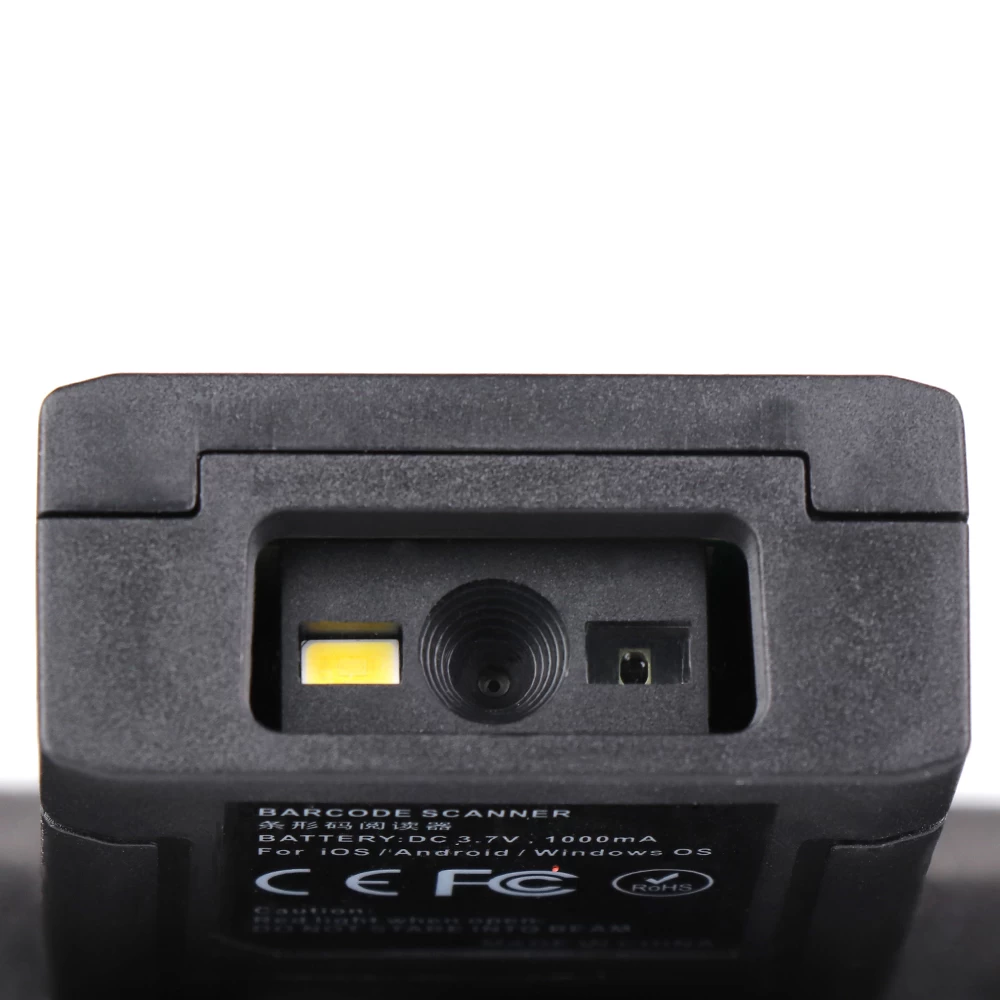

Barcode scanner Optical
|
Sensor: 752*480
Resolution: 5 mil
Print Contrast Ratio: 30%
Depth of Field: 6-30cm
Supported Symbologies:
1D:Code128, EAN-13, EAN-8, Code39, UPC-A, UPC-E, Codabar, China post 25, Interleaved 2 of 5, \ISBN/ISSN, Code 93, UCC/EAN-128, GS1 Databar, etc.
2D:PDF417 / QR code / DM
|
|
Operation System
|
Support iOS / Android and Windows OS
|
|
Communication
|
Bluetooth module 4.0
Communication Mode: SPP, HID
Distance:10 meters (visual)
|
|
Power
|
Battery: 3.7V 1000mA Li-ion
Current Consumption: 30mA
Operating Current :100mA
|
|
Memory
|
16Mb
|
|
Durability
|
Temperature in operation: 0 to 50 oC / 32 to 122 oF
Temperature in storage: -10 to 50 oC / -4 to 140 oF
Humidity in operation: 20 - 85% (non-condensing)
Humidity in storage: 20 - 85% (non-condensing)
|
|
Physical
|
Dimensions (w x h x d): 100mm x 46mm x 21mm
Weight: 190g (include battery)
|
|
