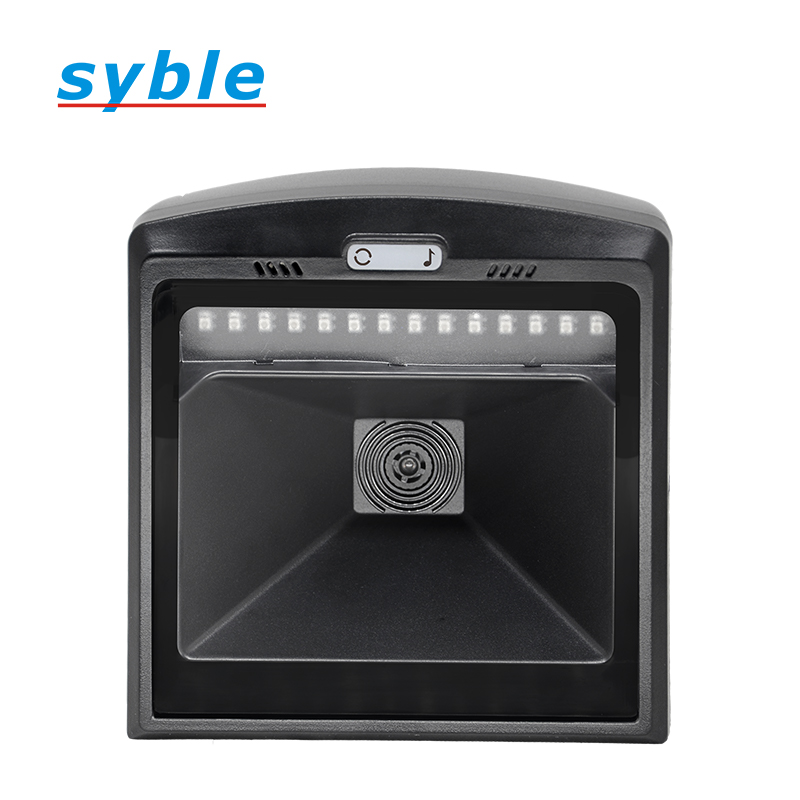

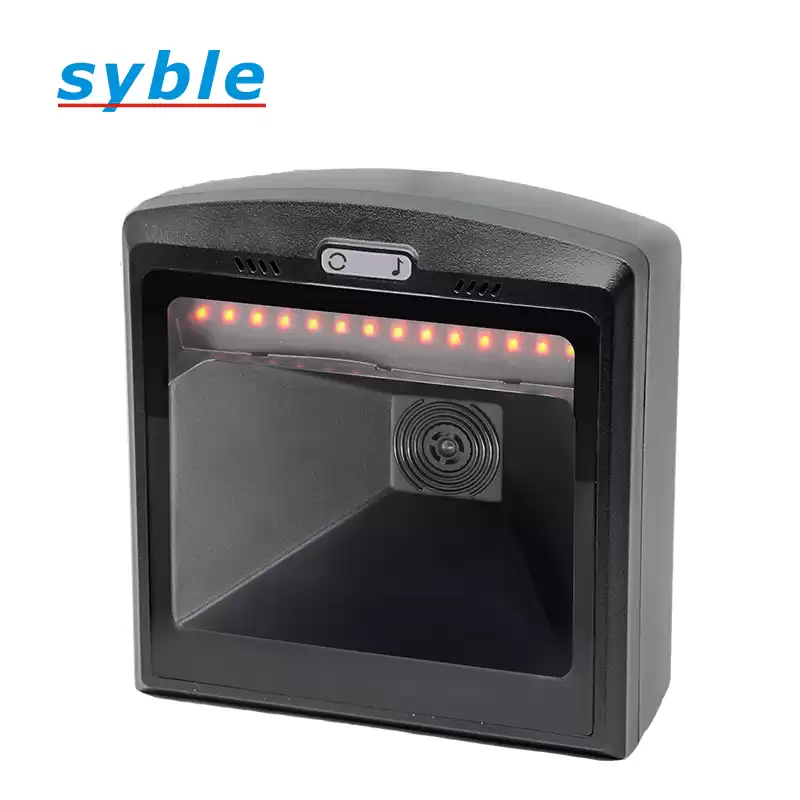

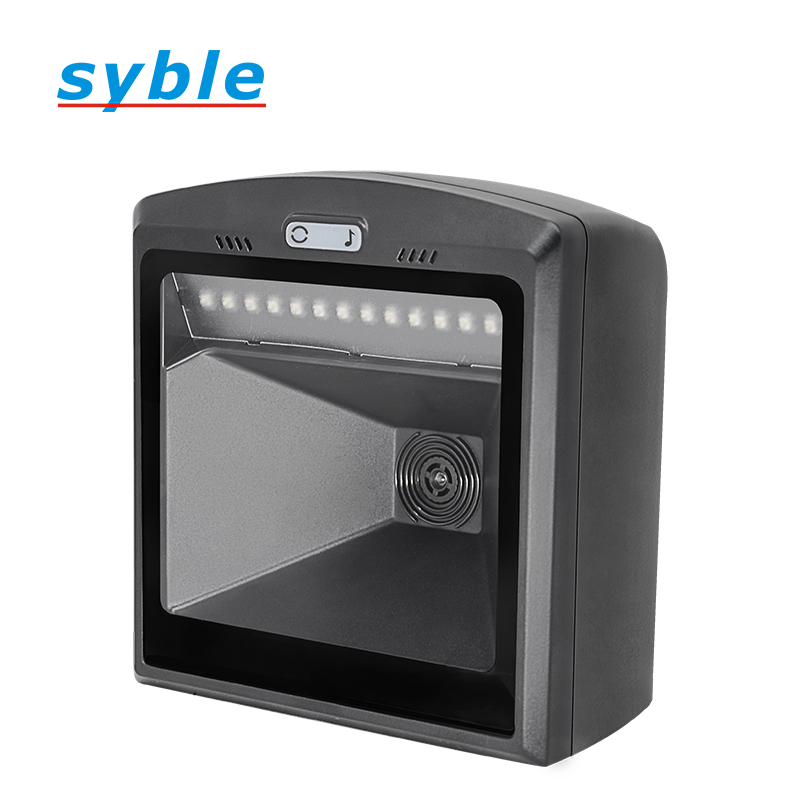

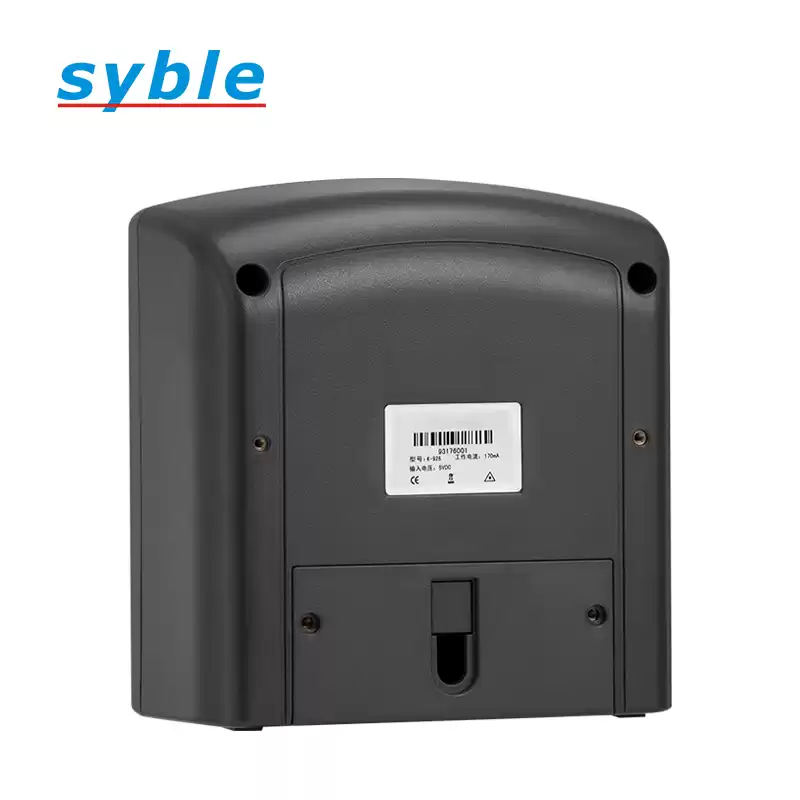

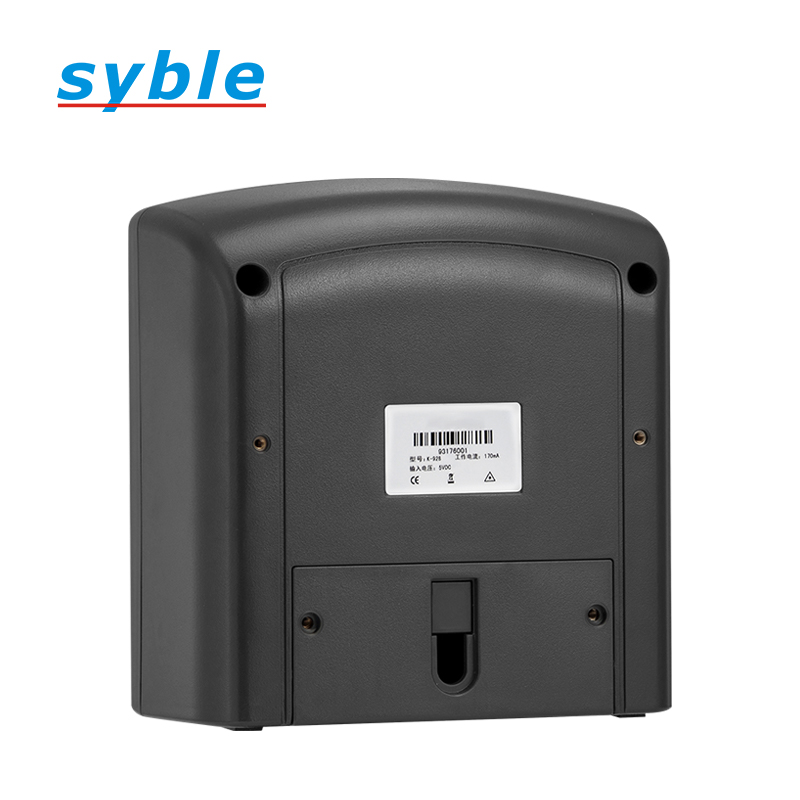

2D Desktop Barcode Scanners A Image Barcode Scanner QR Bar Code Reader
Products Features
Compatible with Linux,Android,Windows XP,7,8,10,MAC OS
High motion tolerance and rastering scan pattern ensure rapid scanning
Reflective,fuzzy,crinkle,colour easy barcode scanning
Quick and accurate reading of universal 1D & 2D code
Its durable characteristic with IP54 rating
Soft color fills the light,does not hurt the eye
Model Number:XB-802D
It is 2d image desktop barcode scanner with big scan window angle and easy to scan 1d ,2d barcode ,fast speed and accurate scan 1d & 2d barcode and qr Barcode.this qr barcode scanners can reduce your market cost and save money . Its especial use alipay ,self-service checkout,supermarket etc.,
Specification
|
Performance Parameters
|
|
Light Sources
|
SXGA-W(Width1280*high1024) Ratio(5:4)
|
|
Supported Symbologies
|
1D:EAN-8,EAN-13,EAN-13 2 add-on,EAN-13 5 add-on,ISSN,ISBN,UPC-A,UPC-E,Code11,Code 32,Code 39,Code 93,Code 128,Codabar,Industrial 2 of 5,Interleaved 2 of 5,Matrix 2 of 5,ISBT-128,GS1-128,GS1 DataBar(RSS14),GS1 DataBar Limited,GS1 DataBar Expanded.
2D:PDF417,QR-code,MicroQR, Data Matrix,Hanxin,.
|
|
Scan Range
|
5mil(Code39) 1cm~15cm; UPC-13mil 1cm~33cm; 20mil(code39) 1cm~40cm; 20mil(QR Code) 1cm~28cm
|
|
System compatibility
|
Linux,Android,Windows XP,7,8,10,MAC
|
|
Minimum recognition accuracy
|
Code 39 4mil
|
|
Motion tolerance
|
3.8meters/second
|
|
Scan Mode
|
Automaticinductive scanning
|
|
Print contrast
|
20%
|
|
Recognition angle range
|
Turn angle ±360°, elevation angle ±60°, declination angle ±70°
|
|
Physical Parameters
|
|
Dimensions
|
150mm*75mm*155mm
|
|
Weight
|
456.3g
|
|
Material
|
ABS+PC
|
|
Cable Length
|
1.8M
|
|
Ambient Ligh
|
0-70000LUX
|
|
Environmental Parameters
|
|
Operating Temperature
|
-20℃~55℃
|
|
Storage Temperature
|
-20℃~60℃
|
|
Relative Humidity
|
0%~95% RH(non-condensing/non-freezing)
|
|
Shock Resistance
|
Withstands multipe times 1.5 meters drops to concrete
|
|
Electrical Parameters
|
|
Working Voltage
|
DC5V
|
|
Current
|
Standby current 180mA;Working current 210mA
|
FAQ
1.Can I use my phone as a barcode scanner?
Yes, Android device can scan any barcode or QR code by using a free app from the Play Store. Once you've installed the barcode scanning app, your device's camera can be used as a scanner. You can take different actions depending on the content contained in the barcode.
2.Can you scan a barcode on a computer screen?
Laser barcode scanners are incapable of scanning barcodes displayed on screen simply because the screens/displays give off light themselves. This leads to light not being reflected back for the scanners to read.
3. Do you have strict quality control procedures?
Yes, each step of production and finished products will be carried out inspection by QC department before shipping
4. Is sample order of barcode scanners accepted?
Yes, welcome sample order to test the quality and check our service, which is also helpful for promotion.
