Description:
One of the main benefits of Morlink linear high bay lighting control system is to reduce energy consumption. Dimming and turning off the lamp when not in use can also achieve a longer lamp life. Indoor or outdoor wireless control can be realized through mobile phone APP or computer software. And in the process of use, it has quick response, easy to specify, convenient maintenance and other functions. Therefore, whether it is for home use or engineering projects, it can be very suitable and matched.

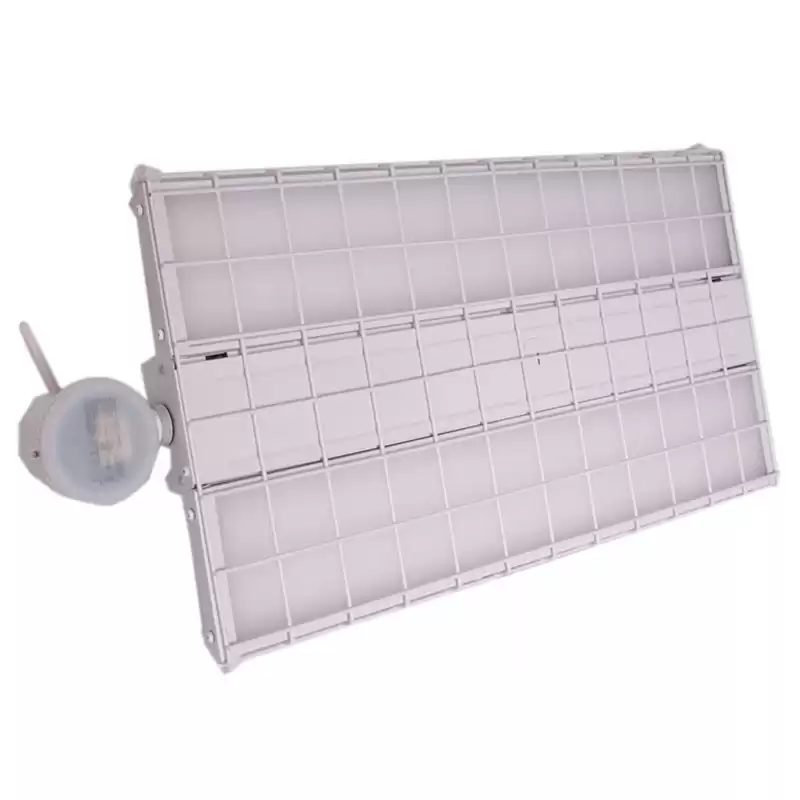

110W LED linear high bay lights are an ideal choice for high-performance, long-life replacement HID and linear fluorescent high bay lights. Various color temperatures and light uniformity will ensure comfortable and safe conditions, thereby maximizing the productivity of warehouses, large stores, stadiums, and other industrial and commercial venues. The use of special structure and thermoelectric separation technology can increase the lamp efficiency by 135lm/W, which helps to extend the service life. Bluetooth microwave motion sensor can be installed, combined with Morlink wireless lighting control system, to realize intelligent linear high bay lighting control.
Morstar is a trusted,global company with a keen insight into the market. We konw lighting and provide products with excellent quality, reliability and functionality.
Features:
|
1.ULus & FCC listed With LM79 & LM80;
|
|
2.2ft:110W MAX & 220W MAX available
|
|
3.High luminous efficacy 130Lm/W
|
|
4.High quality isolated driver；1-10V dimming；Flicker free；
|
|
5.PF＞0.90， driver efficiency＞87%;THD<20%;
|
|
6.Installation: chain mounting;
|
|
7.Suitable for dry/damp location;
|
|
8.Designed for warehouses, gymnasiums, and industrial spaces;
|
Main order:
|
FAMILY
|
WATTAGE
|
LIGHT EFFECT
|
CCT
|
OPTIONS
|
|
MA-LHB=LED LINEAR High Bay Light
|
110W
|
H
|
4000K
5000K
5700K
|
Blank
MS=motion Sersor
EM=Battery Backup
PS=PIRSensor
|
Dimension Drawing：
|
|
Part No
|
A
|
B
|
C
|
D
|
E
|
|
110W
|
9.6"
|
23.83"
|
0.79"
|
1.97"
|
2.89"
|
|
Specification:
|
ITEM
|
SPECIFICATION
|
DETAILS
|
|
GENERAL
PERFORMANCE
|
Power Consumption
|
110W
|
|
Equivalent Wattage
|
250W HID
|
|
Lumens Delivered
|
14850lm
|
|
Efficacy
|
135lm/W
|
|
CRI
|
＞80
|
|
Color Temperature
|
4000K / 5000K / 5700K
|
|
L70 Lumen maintenance
|
70,000 hours
|
|
ELECTRICAL
|
Power Factor
|
>0.9
|
|
Input Voltage
|
120-277V,120-347V
|
|
Dimming
|
1-10v Dimming Range:10%-100%
|
|
Surge Protection
|
Surge protection: 4KV line-line, 6KV line-earth
|
|
PHYSICAL
|
Mounting
|
Suspending,Pole Pandent,Surface mounted
|
|
Operating Temperature
|
-4°F~122°F
|
|
Humidity
|
20% to 80% RH non-condensing
|
|
QUALIFICATION
|
Qualifications
|
UL Listed, DLC Premium
|
|
Material Usage
|
RoHS compliant; no mercury
|
|
Environment
|
Indoor / Wet
|
|
Warranty
|
7 Years warranty
|
Installation：

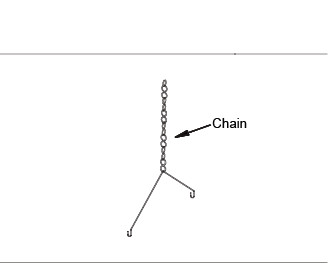

1.Hook the chain as below pic.
|

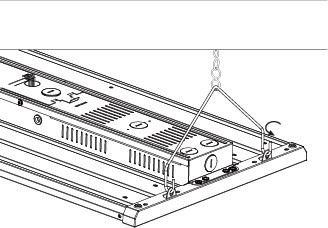

2.Insert the hook into the slotted holes, as shown below.
|
|
|
|

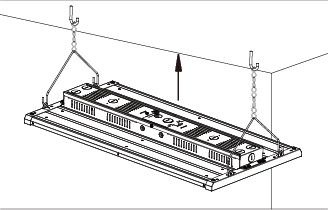

3.Hook up the chain on the ceiling anchor.
|

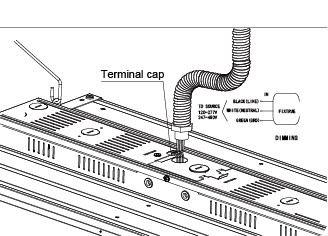

4.Turn off power,and make wiring connections with terminal cap(see wiring instrucion below).
|
|
|

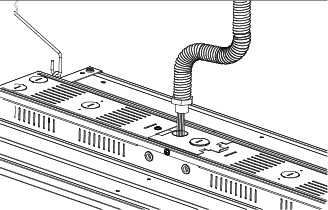

5.Insert the terminal cap and wires into the driver box.
|

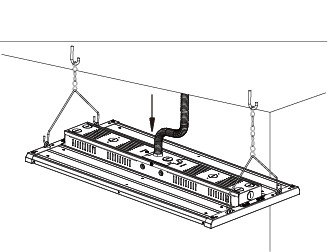

6.Insert the wire terminal joint to the wire entry.Installation completed.
|
|
|
Warranty:
7-year standard warranty with labor allowance* (further detailsavailable at www.morstar.com/warranties)
*Warranty Limitations: Product must be rated for the applicationper the Product Data Sheet (PDS); operated <16 hrs; in ambient of-4°F to 122°F.

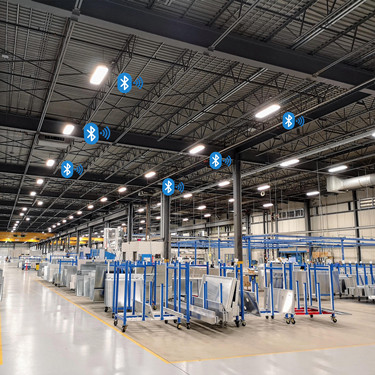

Lighting solution：
Energy Management
• Create actions and scenes that can be automatically
executed to implement energy-saving strategies.
• Link single devices or group actions with sensors,
schedules, sunrise and sunset times, weather condi
tions, etc.
• View, compare and analyze the power consumption
of devices and groups by day, month or year.
Device Control
• View and control devices from a map of the lighting
layout.
• Monitor device conditions including, status, operation
time, energy consumption and life expectancy.
• Automatic alarms when devices change to “abnormal
status” and notification to maintenance team.
|
|
FAQ：
1. What`s the warranty of the lamp?
- For UL/DLC items we provide 5 years warrantly, others have a 2 years warrantly.
2.Can I have a sample order for led light?
-Yes, we welcome sample order for led light to test and check quality. Mixed samples are acceptable.
3. What about the lead time?
--Samples can be delivered in about 1 week, and bulk orders will take about 2 to 3 weeks.
4. What about the quality?
- Select high quality materials.
- 48 hours aging test to end defective products.
- Quality control testing before shipping.
- Good package to insure safety.
5. Where are your main markets?
- North American and Latin American.And we have LED lighting distribution warehouses in California，Texas and Michigan
6. Can you design new model?
- Yes, we can open new mould according to your drawings and produce.
7.Any suggestion? Please contact us.
