2ft Linear High Bay Luminaire

As an an ideal replacement of HID and linear fluorescent high bay lights, dimmable led linear high bay light provides outstanding value in high-performance, long-life span. The use of special structure and thermoelectric separation technology can increase the lamp efficiency to 140lm/W, which helps to extend the service life.




Linear High Bay for Commercial Lighting

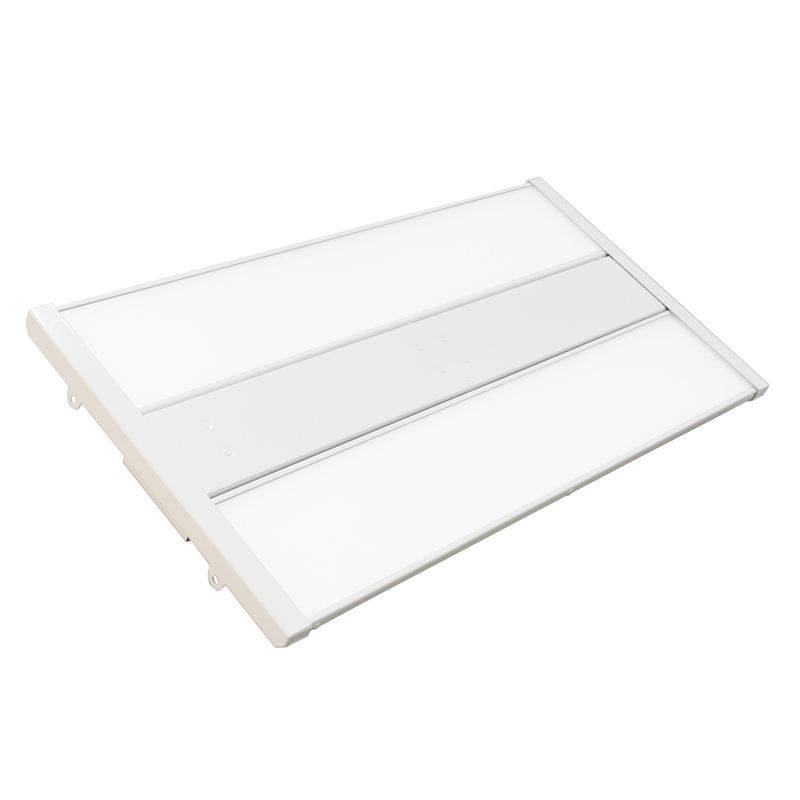

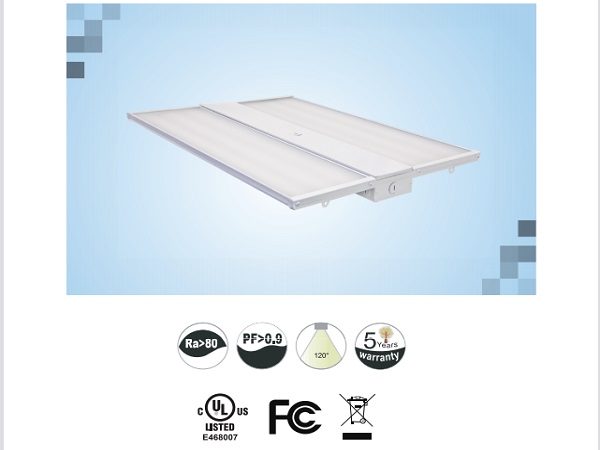

the appearance of linear high bay


   Linear high bay light with chain mounting offers outstanding value, exceptional energy efficiency, easy installation and high reliability, backed by a 5-year limited warranty and Morstar smart control system support. With high quality non-isolated driver and 1-10V dimming, Morstar Linear High-bays are ideal for quickly and easily illuminating warehouses, storage facilities, retail and light industrial locations with chain ceiling mounting, while dramatically reducing energy consumption over traditional light sources.

    Intelligent linear high bay provides the Bluetooth controller based on Tuya technology, which can be used in conjunction with MORSTAR wireless lighting control system to control fixtures. In addition, it delivers up to 42000 lumens of exceptional 82 CRI light while achieving up to 140 lumens per watt.


Morstar is a trusted,global company with a keen insight into the market. We konw lighting and provide products with excellent quality, reliability and functionality.


Features of 4ft led linear high bay

  • UL, cUL & FCC listed; With LM79 &LM80;
  • 2ft:110WMAX&220WMAX available;4ft:225WMAX&300W MAX available;
  • High luminous efficacy130lm/w;
  • High quality non-isolated driver; 1-10V dimming;Flicker free;
  • PF>0.90,driver efficiency>87%;THD<20%;
  • Installation: chain mounting;
  • Suitable for dry/damp location;
  • Designed for warehouses, gymnasiums and industrial spaces;
  • CCT:4000K&. 5000K;
  • Five years warranty


PRODUCT  SPECIFICATION


Efficacy: 140 lm/W
CRI: >82
Color Temperature: 4000K / 5000K

Input Voltage: 120-277V, 100-347V, 347-480V

SPECIFICATION

LHB1D-80W

LHB1D-110W

LHB2D-165W

LHB3D-220W

LHB5D-225W

LHB5D-300W

Power Consumption

80W

110W

165W

220W

225W

300W

Equivalent Wattage

175W HID

250W HID

400W HID

750W HID

750W HID

1000W HID

Lumens Delivered

11,200 lm

15,400 lm

22,100 lm

30,800 lm

31,500 lm

42,000 lm

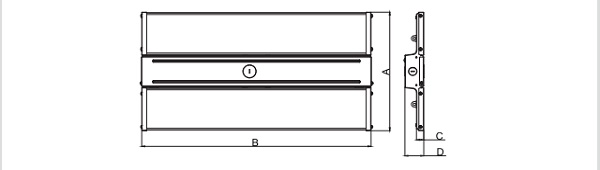

PRODUCT DIMENSION




the dimension of linear high bay

A

B

C

D

80W

9.60"

23.83"

0.79"

1.97"

110W

9.60"

23.83"

0.79"

1.97"

165W

12.60"

23.83"

0.79"

1.97"

220W

17.32"

23.83"

0.79"

1.97"

225W

12.60"

45.98"

0.79"

1.97"

300W

12.60"

45.98"

0.79"

1.97"

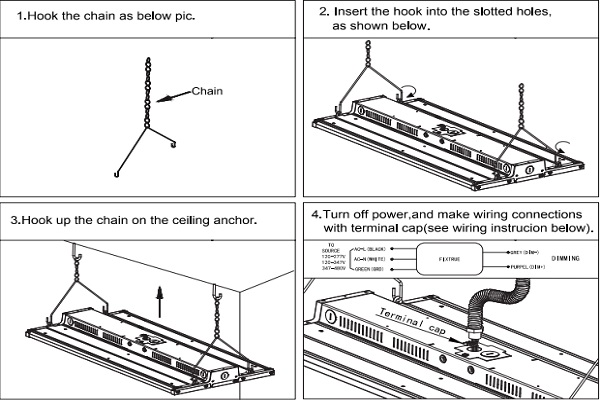

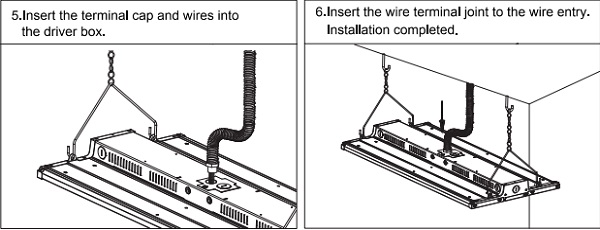

CHAIN INSTALLATION




high bay light chain installation

high bay light chain installation


PACKAGE INFORMATION


Outer Carton Size (LxWxH)

Qty/Carton (pcs)

Net weight (lbs)

Gross weight (lbs)

80W

(25.98"* 14.2"*12.99*) (660*360*330mm)

4

31.4

36.26

110W

(25.98**14.2*12.99") (660* 360* 330mm)

4

31.4

36.26

165W

(25.78**14.2*20.47") (655* 360*520mm

4

33.5

33.5

220W

(47.83* 7.36*15.75") "(1215187400m)

4

45.9

51.44

225W

(47.83"* 7.36"*20.47") (1215*187*520mm)

2

30.4

35.93

300W

(47.83"* 7.36* 20.47") (1215*187* 520mm)

2

32.5

38.03

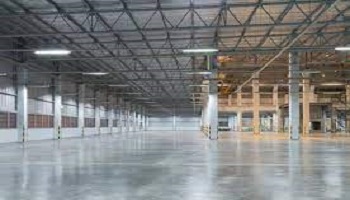

PRODUCT APPLICATION


the application of high bay lightthe application of linear high bay light


FAQ


1. What`s the warranty of the lamp?

- For UL/DLC items we provide 5 years warrantly, others have a 2 years warrantly.
2.Can I have a sample order for led light?
-Yes, we welcome sample order for led light to test and check quality. Mixed samples are acceptable.
3. What about the lead time?
--Samples can be delivered in about 1 week, and bulk orders will take about 2 to 3 weeks.
4. What about the quality?
- Select high quality materials.
- 48 hours aging test to end defective products.
- Quality control testing before shipping.
- Good package to insure safety.
5. Where are your main markets?
- North American and Latin American.And we have LED lighting distribution warehouses in  California,Texas and Michigan
6. Can you design new model?
- Yes, we can open new mould according to your drawings and produce.
