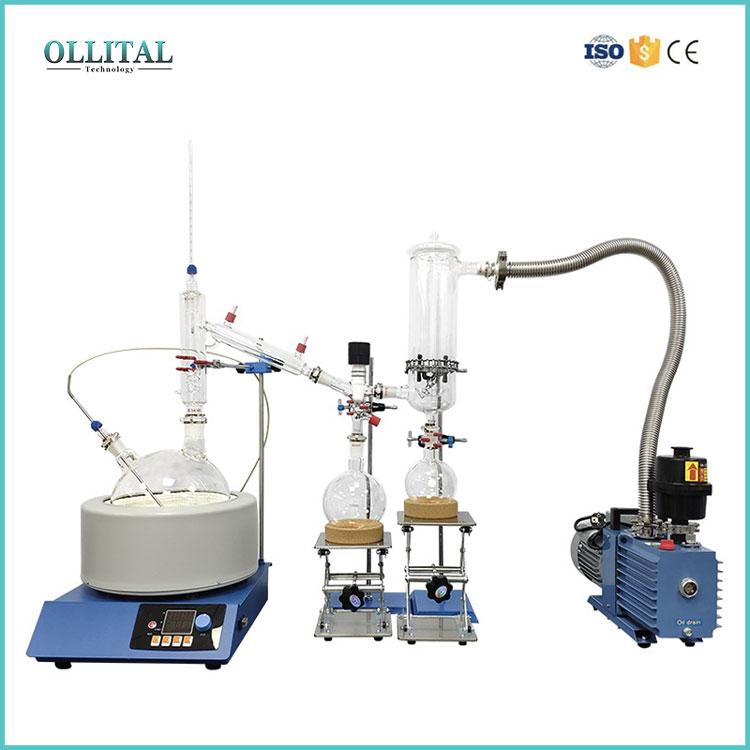

2L 5L 10L 20L Complete Set Short Path Distillation For Plant Oil
|
Short-Path Distillation
|
|
Model
|
OLT-SP-2L
|
OLT-SP-5L
|
OLT-SP-10L
|
OLT-SP-20L
|
|
Material
|
G3.3
|
|
Heating Capacity(ml)
|
2000
|
5000
|
1000
|
2000
|
|
Heating temperature(℃)
|
Room temperature -250
|
|
Accuracy(℃)
|
±1
|
|
Vaccuum Degree(Mpa)
|
0.098
|
|
Working temperature(℃)
|
5-40
|
|
Voltage
|
220V/50Hz 110V/60Hz
|
380V/50Hz
|
|
Package Size
|
450*450*600
|
580*580*735
|
850*850*600
|
|
|
Weight
|
18
|
24
|
30
|
|
Molecular Distillation/Short Path Distillation is a comparatively new separation technology. It can separate liquid-liquid mixture under temperature that is far lower than boiling point by the difference of mean free path of molecules under high vacuum condition. Such separation is difficult or unable to achieve on normal distillation equipments. Molecular Distillation is especially suitable to separate substances of high boiling point, heat sensitive and easy oxidized.
Application of Molecular Distillation/Short Path Distillation
Main application field: Separation process in trades like Food, Pharmaceutical, Fine chemical, Electronic materials, Polymers (Polyols, fatty acids, polyphenols-compounds, polyurethane, epoxy resin, lactate, glycerol monostearate, flavors and fragrances, fuel oil and paraffin oil), essential oil extraction, etc.

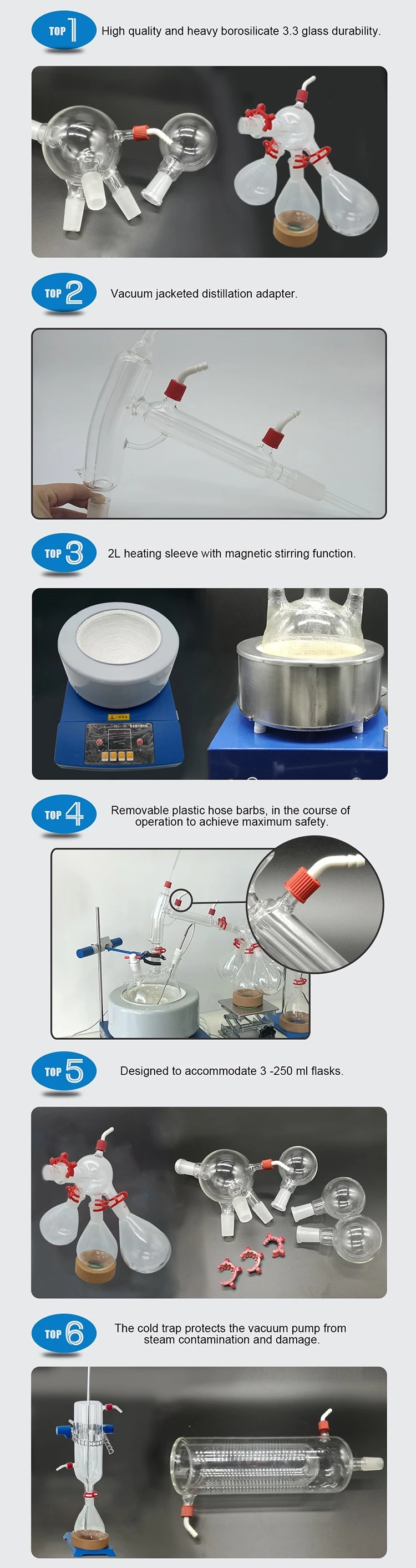

-Detachable plastic 3/8"(10mm) hose barbs for maximized safety during operation
-Carefully designed 3-way cow adapter accommodates up to 3 pcs of 500mL flasks.
-GCT-01 cold trap protects the vacuum pump from contamination and damage of vapors.

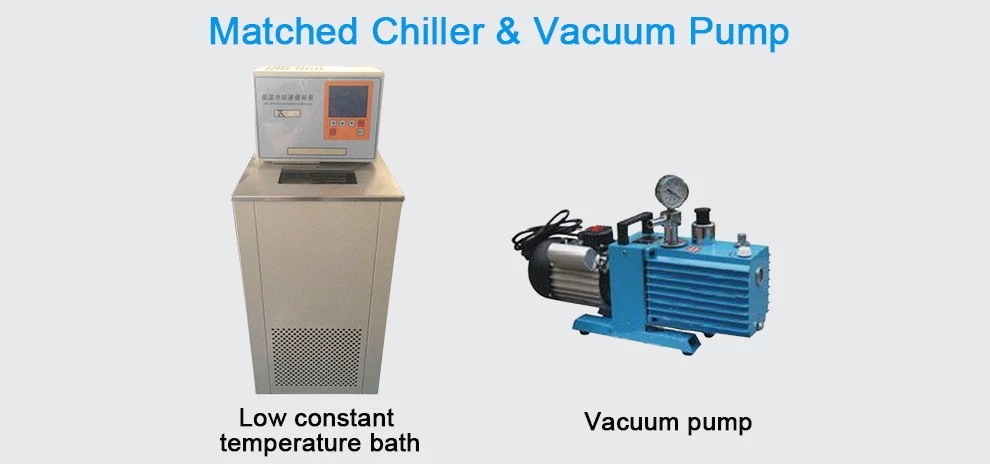

-Flexible choice of vacuum pumps and heaterillers.
-High quality and heavy duty Borosilicate 3.3 glass for durability
-Vacuum-jacketed distillation adapter, with 4 Vigreux stages
-2L heating mantle with magnetic stirring function, available in 110V or 220V
