2L 5L 10L 30L Vacuum Planetary Mixer with Vacuum Pump and Water Chiller for Lithium Battery Making

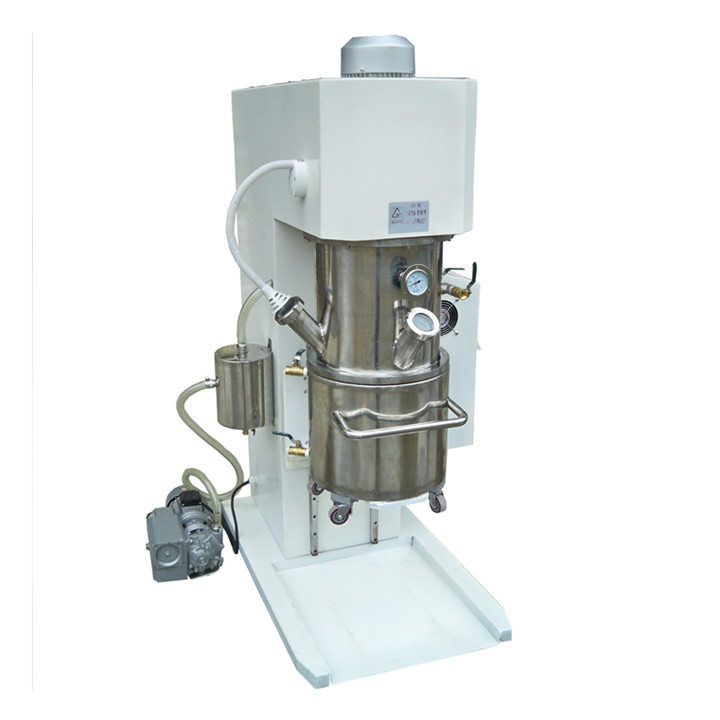

It is a Vacuum Planetary Mixer with 5 liter containers and complete accessories for immediate use. The Slurry vacuum mixer produces multi-movements during stirring, including, revolution and rotation, double stirring shafts, single scattered shaft & scraping the walls to make slurry gas-bubble free and with extreme uniformity under vacuum.
A temperature-controlled water circulator is included to make container working at temperature range from 50ºC to 35ºC directly and water cold stainless steel tank can promise high efficiency in mixing. GN-SFM-9 is excellent for preparing LiCoO3, LiFePO4, phosphors and ceramic slurry with excellent results in dispersion and uniformity.
|
Power Supply
|
· Single phase, AC 208 - 240V 50/60Hz, single phase
· Total power: 4kW
· 220V AC Power plug is not included. Please click here to order the plug)
|
|
Revolution Speed
|
· Mian shaft speed: 0 - 70 rpm
· Stirring speed: 0 - 112 rpm, motor: 2.2kW
· Dispersing speed: 0 - 6100 rpm, motor: 1.5kW
|
|
Vacuum
|
· The vacuum pump: 0.37kW built in
· The vacuum degree: <= -0.098MPa
|
|
Lift Motor
|
Lifting Motor is built in ( 370W)
|
|
Bucket
|
· Dimensions: Dia.240mm * H.180mm
· Capacity: 5 Liter
· Water cooling jacket
· Temperatured monitor and over-temperature alarm
|
|
Beater
|
· Tolerance of beater and bottom: 2-4 mm
· Tolerance of beater and bucker wall: 2-5mm
· Tolerance of two beaters: 3-8mm
· Made of SS 304
|
|
Shipping Dimension & Weight
|
Two Pallets:
53" x 43" x 93" 800 lbs
40" x 26" x 27" 100 lbs
|
|
Overall Dimension
|
1000mm(L) x 800mm(W) x 1930mm(H)
|
|
Control Panel
|
Digital Touch Screen for efficient adjustments
|
|
Net Weight
|
400kg
|
|
Warranty
|
· One year limited warranty with lifetime technical support
· Rust and damage due to improper storage conditions or lack of maintenance is not covered by warranty
|
