1. Unique air duct design, the air is more uniform and the noise is lower;
2. Rotary drying tray structure, drying more evenly;
3. Excellent heat insulation, heat preservation and energy saving;
4. The use of calcium silicate board increases the insulation effect;
5. Intelligent temperature control system, easy to operate and precise control;
6. Double temperature control design, protection is more in place.
Tea leaf drying machine can process almost all tea: such as black tea, green tea, oolong tea, and herbal tea.
This 6CHZ-2 mini tea dryer can use for home and small factory, it just need a small area, power 3KW, voltage 220V, drying area 2m², it can process about 25kg tea per time, It's the best choice for families and small factories.

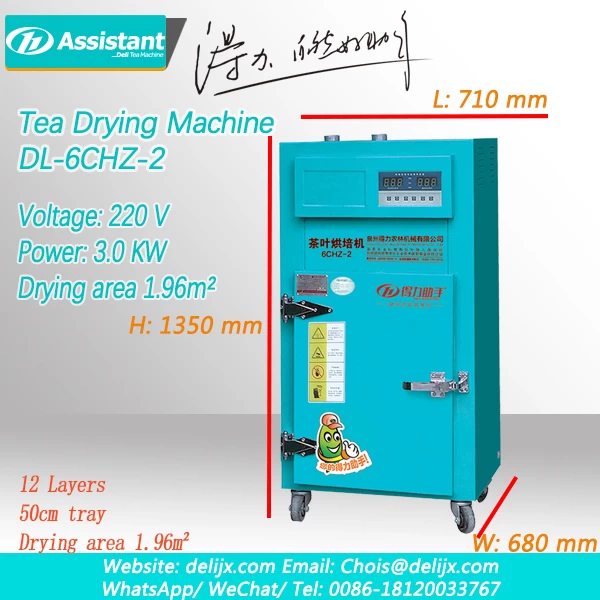

DL-6CHZ-2 tea leaf drying machine specification:
|
Model
|
DL-6CHZ-2
|
|
Dimension
|
710×680×1350 mm
|
|
Voltage
|
220/50 V/Hz
|
|
Heating element
|
Electric heating wire
|
|
Total heating power
|
3.0 kw
|
|
Heating element group
|
1 Group
|
|
Fan motor
|
Power
|
0.18 KW
|
|
Speed
|
1400 rpm
|
|
Rated voltage
|
220 V
|
|
Pallet rotary motor
|
Power
|
15 W
|
|
Speed
|
1250 rpm
|
|
Rated voltage
|
220 V
|
|
Pallet rotary speed
|
6 rpm
|
|
Pallet type
|
Round
|
|
Drying pallet diameter
|
500 cm
|
|
Effective drying area
|
1.96 m2
|
|
Number of drying pallet
|
10
|
|
Efficiency
|
25 kg/h
|
The above data is based on fresh tea leaf water content of 75-80%.

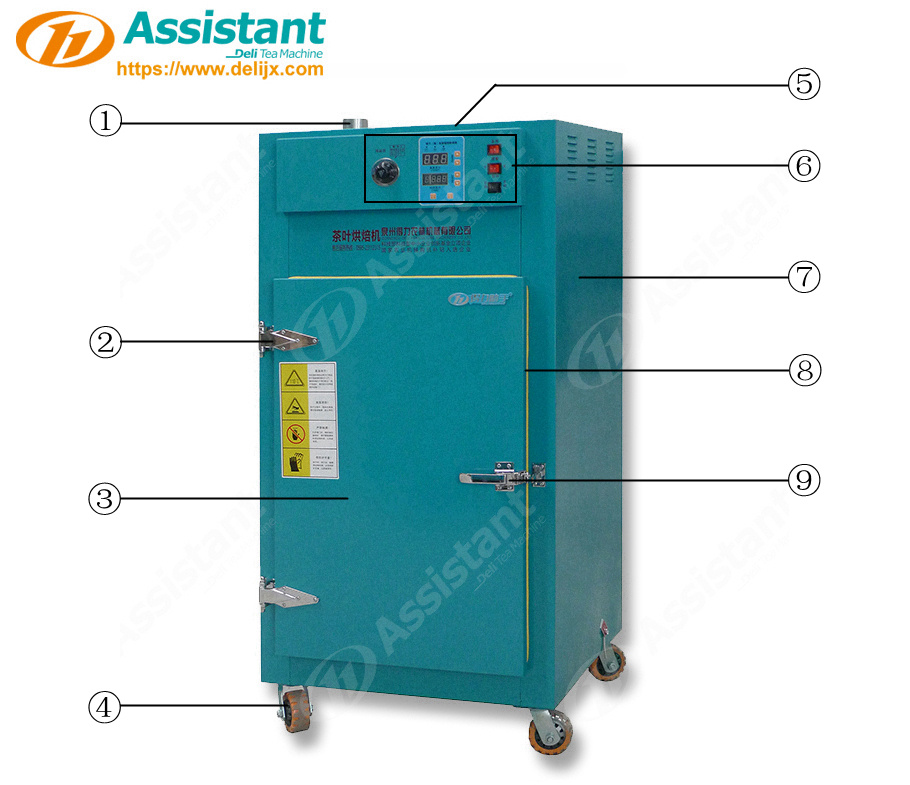

DL-6CHZ-2 mini green/black tea drying machine decomposition diagram:
|
①
|
Exhaust vent
|
②
|
Hinge
|
③
|
Door
|
④
|
Nylon wheel
|
⑤
|
Drive motor
|
⑥
|
Electric control panel
|
⑦
|
Tank body
|
⑧
|
Sealing strip
|
⑨
|
Handle
|

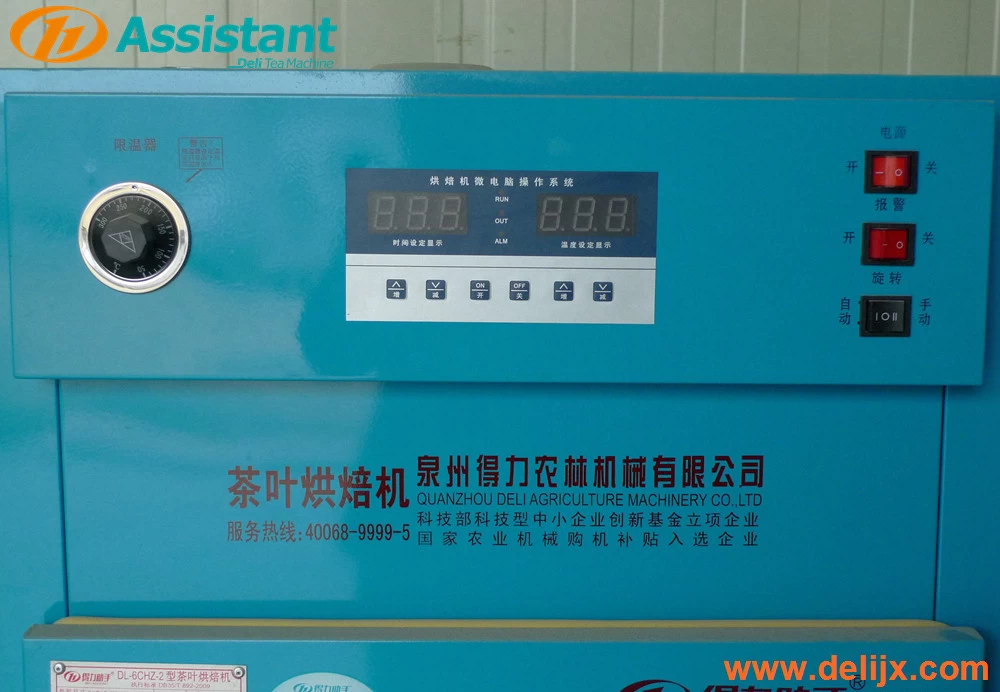

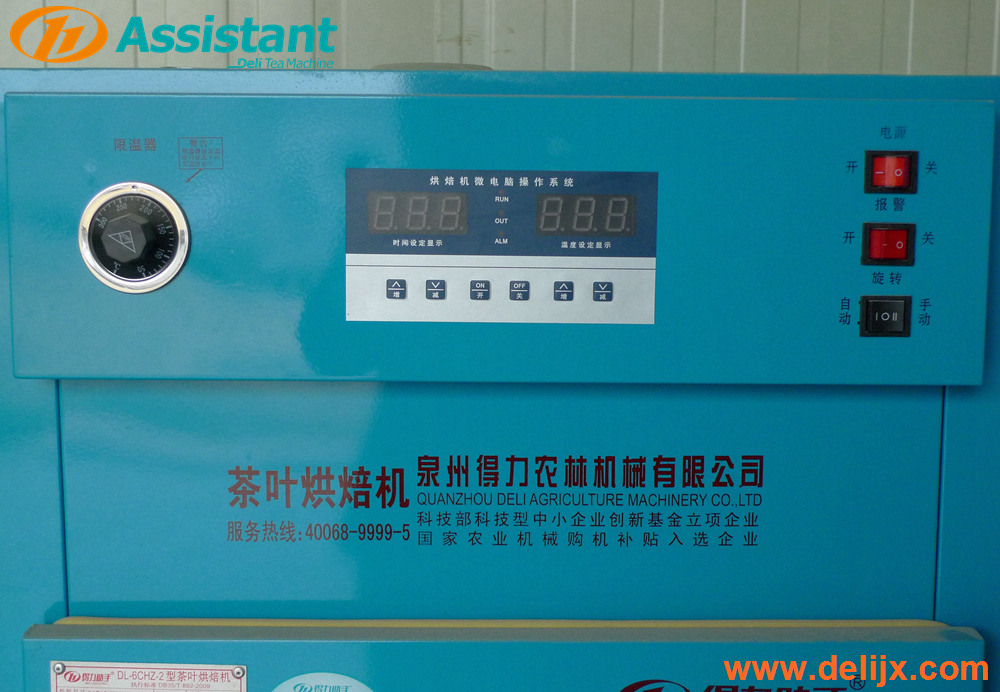

Intelligent temperature and time control system
Add mechanical temperature limiting module to ensure precise temperature control.
|
|
|
|
|
Patented hot air duct design
|
Copper core driving motor on the top
|
Galvanized sheet and calcium silicate board insulation system
|
|
|
Tea drying machine modular design
|

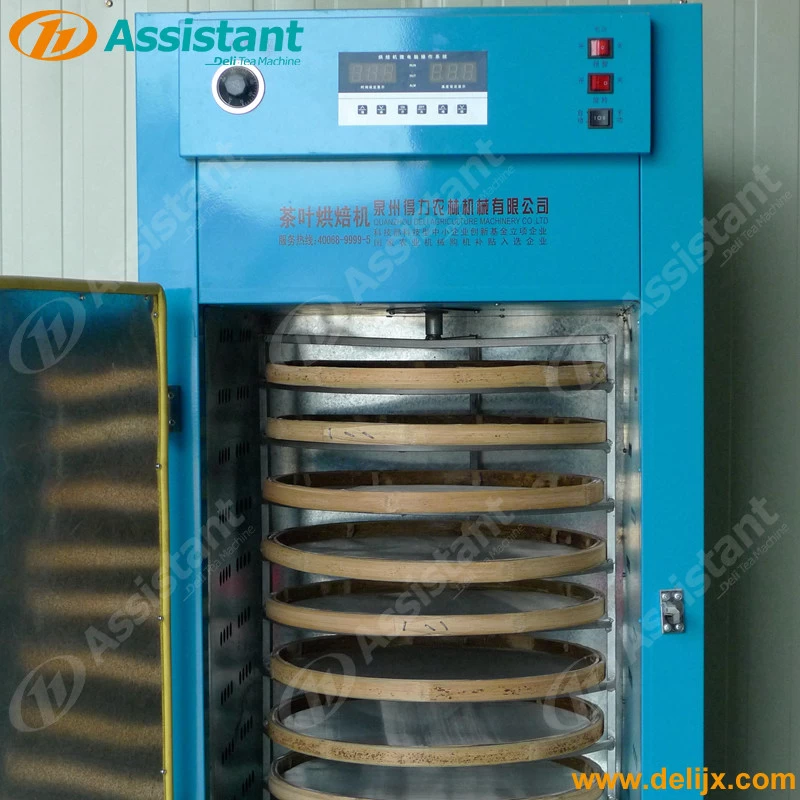

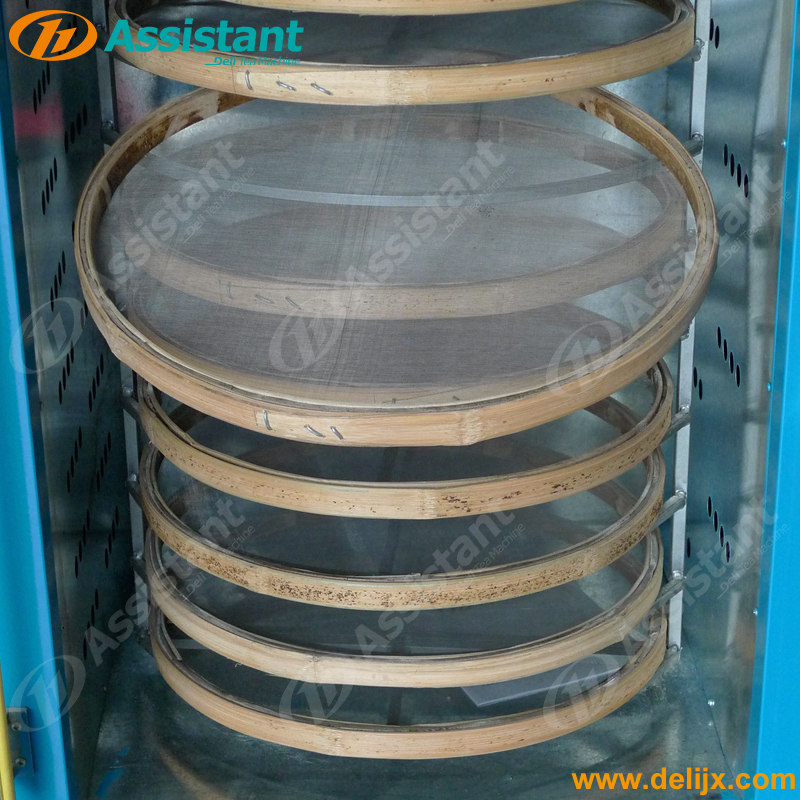

Rotary drying method for tea
|
|

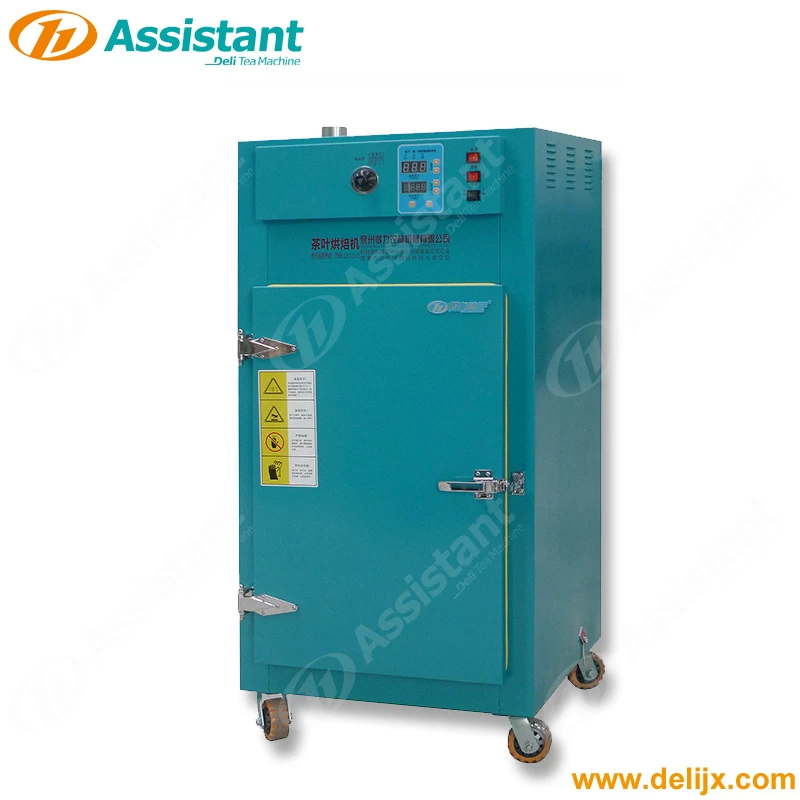

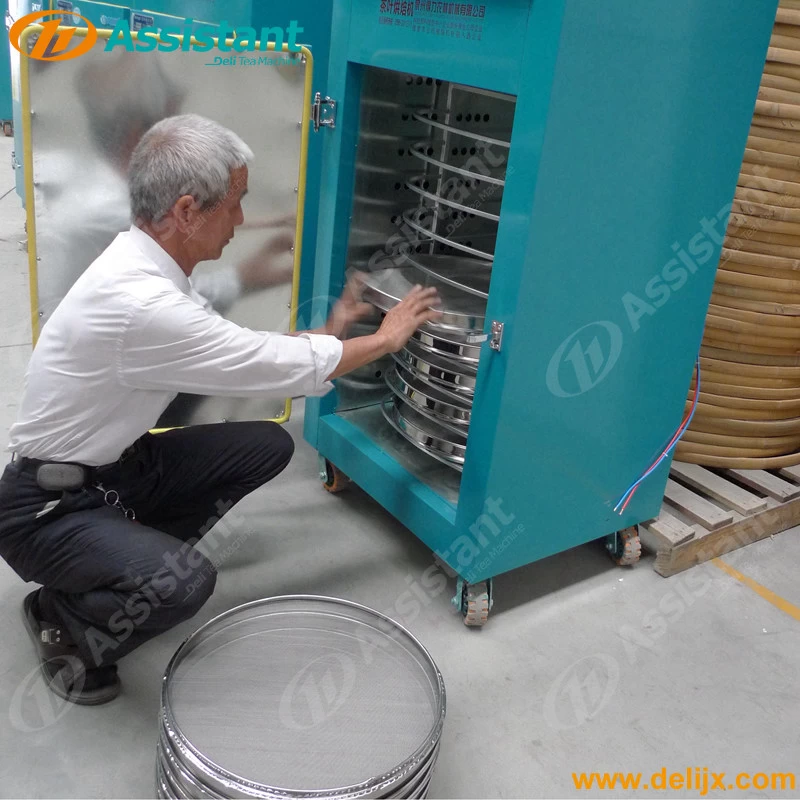

DL-6CHZ-2 mini small green/black tea drying machine photos:
|
