Introduction
S1200
Data Transmission Analyzer, the latest tester developed by Seiko Fire, is the
necessary tools for daily maintenance, troubleshooting and equipment
installation and maintenance. It can be for2Mon-line monitoring as well as test from 50b/s to
2048kb/s with supported interfaces like G.703, V.24/RS232, V.35, V.36/RS449,
X.21, EIA－530/530A and RS485/RS422. It also
supports 2M jitter TX/RX test, 2M synchronous clock test
and frame relay test.

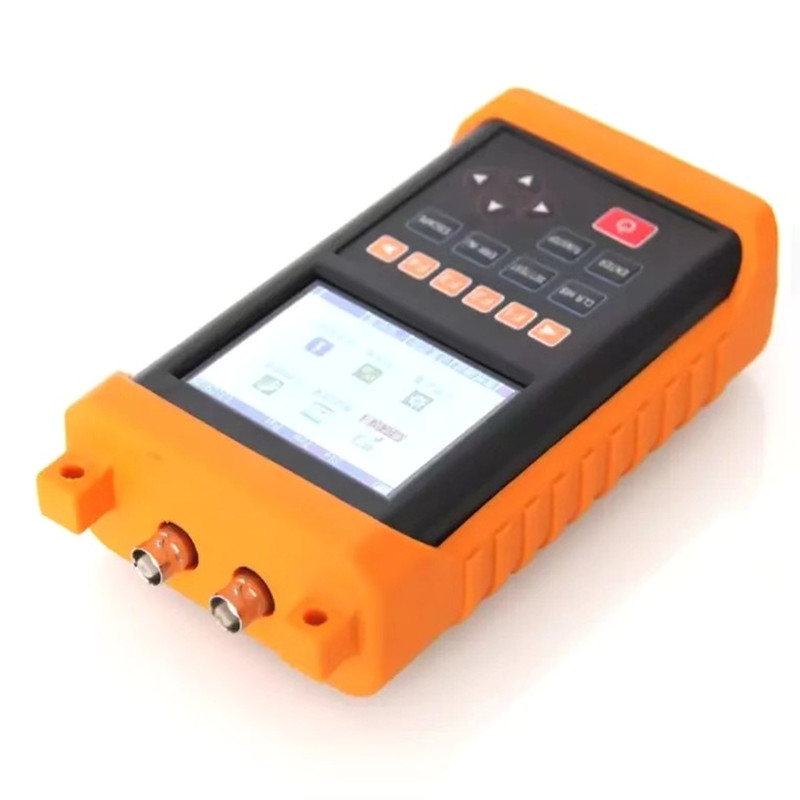

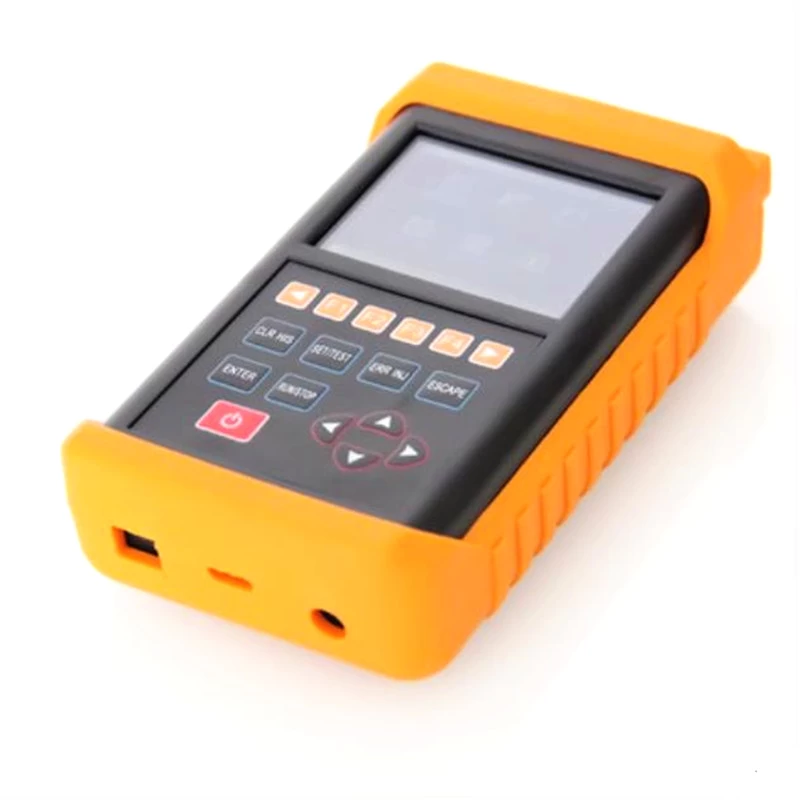

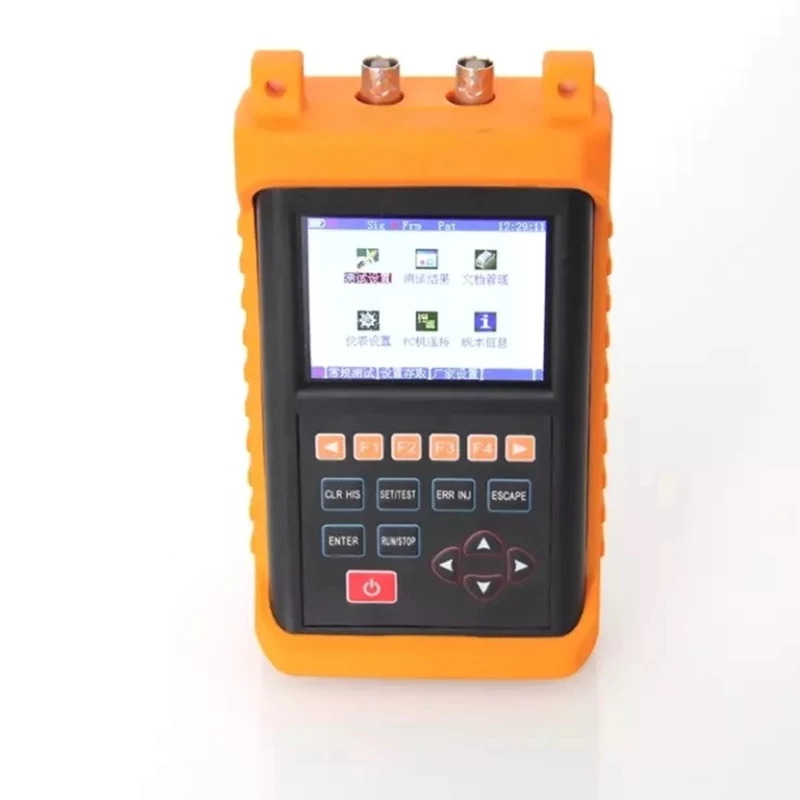

The S1200
is configured with large screen TFT color LCD with backlighting and built-in
rechargeable Li battery for more than 8 hours’ working without external power
supply. S1200 also supports RJ45 network interface and complete TCP/IP protocol
with on-line upgrading.
This
product is suitable for high-end applications like operators’ 2M equipment
maintenance and overhaul and frame relay test of telecom VIP.
Functions
-
G.703 E1
in-service / out of service Test
-
Dual E1 ports
monitoring
-
Various alarming
types and BER types insert
-
Balance interface
(75Ohm) / unbalanced interfaces(120Ohm)
-
ITU-T
G.821/G.826/M2100/2101 BER Analysis
-
Slips
analysis
-
Clock slip
-
Clock frequency
offset test
-
NX64K
Test
-
Frame
Setting/ Analysis
-
PCM /
time slot detection
-
Time slot
data display
-
Histogram
display
-
Voice monitoring
-
Auto test
-
Loopback delay
test
-
Switching
time test
-
Audio
Test (Optional)
-
Pulse
mask measurement (optional)
-
E1 jitter
Rx/Tx test (Optional)
-
E1
synchronous clock test (Optional)
-
V
interface test (optional)
-
V.24/RS232,
V.35, V.36/RS449, EIA-530/530A, X.21 interface BER tests
-
Various working
mode setting
-
ITU BER
index analysis
-
PING test
-
IP
address setting
-
Ethernet
connectivity test
-
Frame
Relay Test (Optional)
-
Support
E1, V.35 Port
-
Support
PPP/HDLC Protocol
Features
-
Color TFT
LCD with touch screen
-
Dual E1
Test
-
2M
synchronous clock input/output
-
2M clock
jitter Rx/Tx test
-
2M PING
test
-
Frame
relay test
-
PC can
perform remote control for tester through Ethernet
-
Large
capacity Li battery guarantees more than 8 hours’ working without external
-
Power
supply
-
Large
capacity digital storage
Applications
Out of
service loopback Test

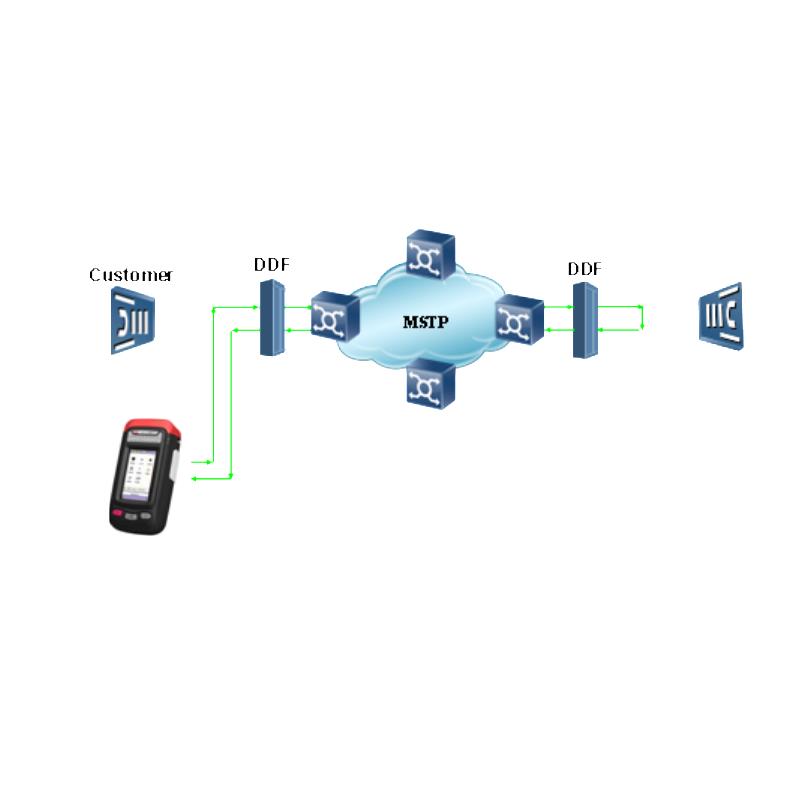

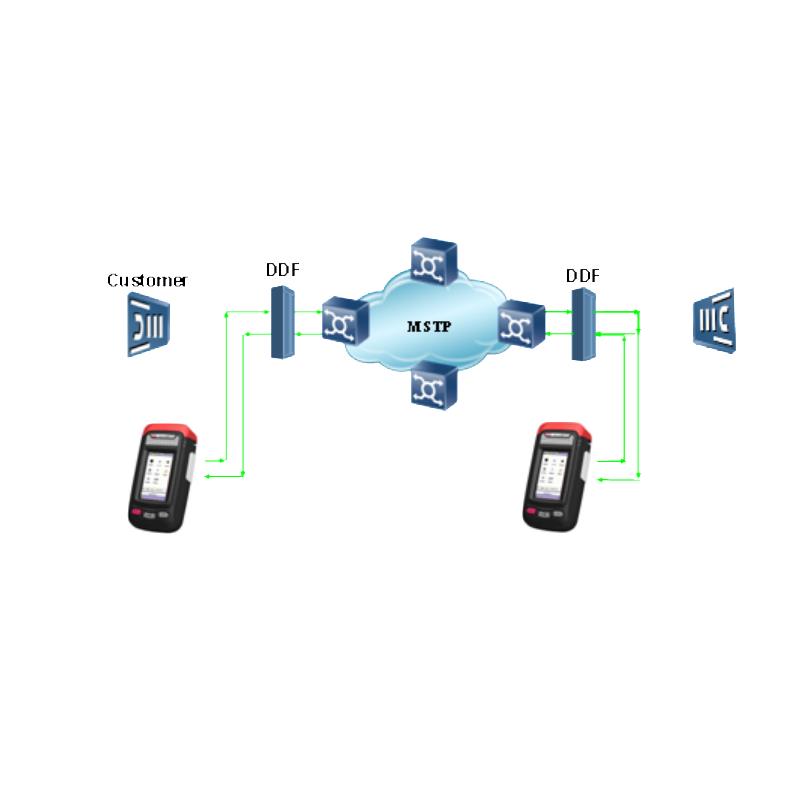

Out of
service end-to-end Test

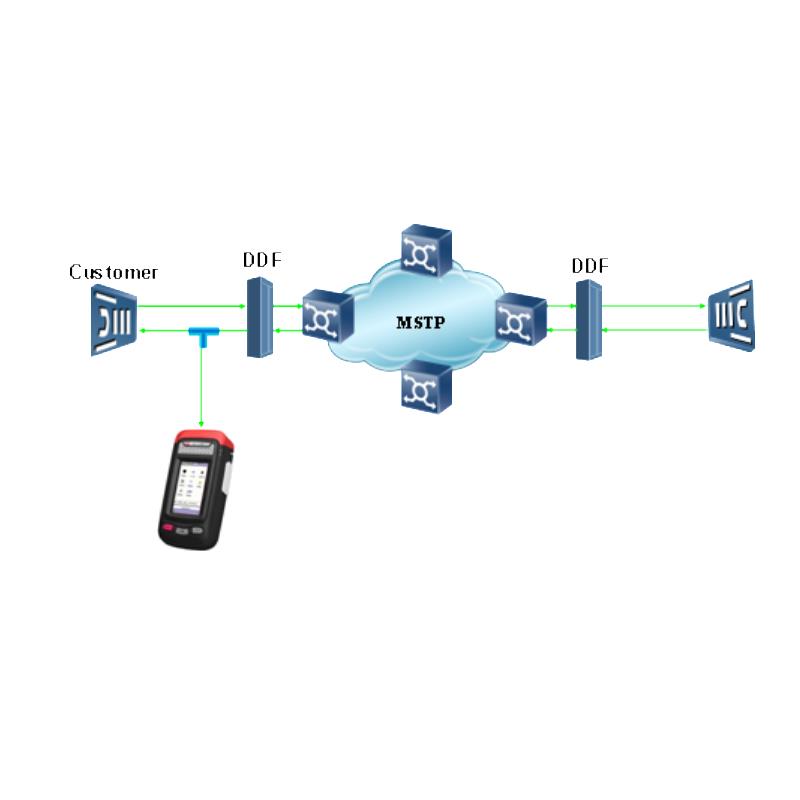

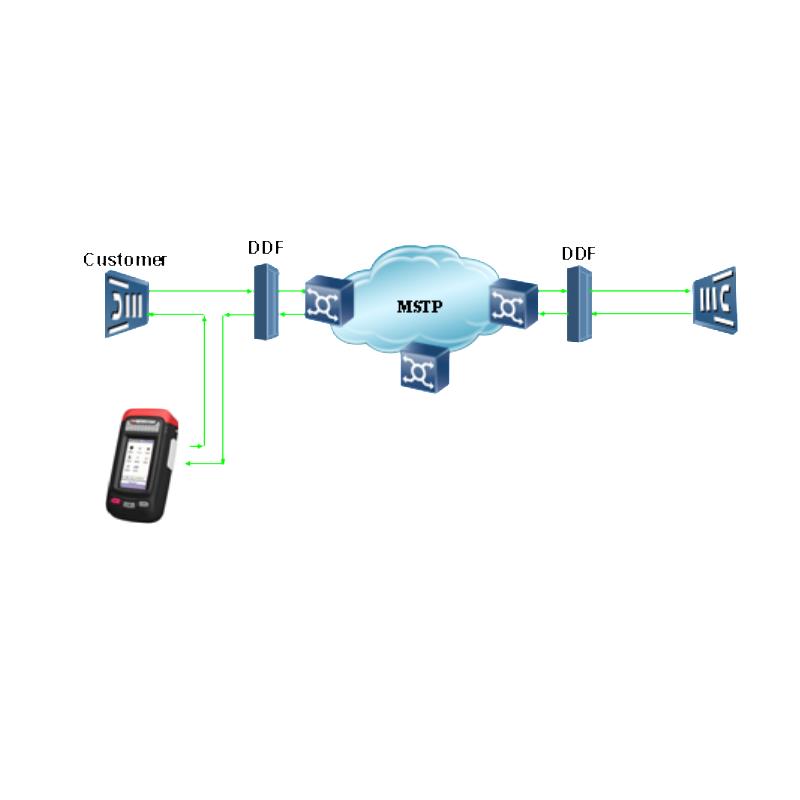

In-service
Test
Throughput
Test

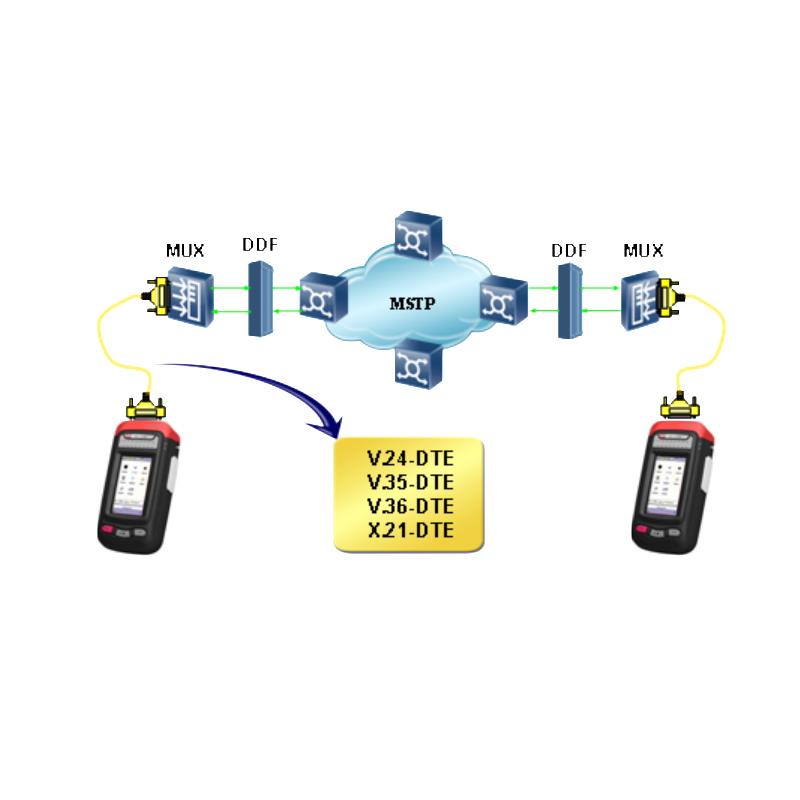

V
Interface Test (Optional)

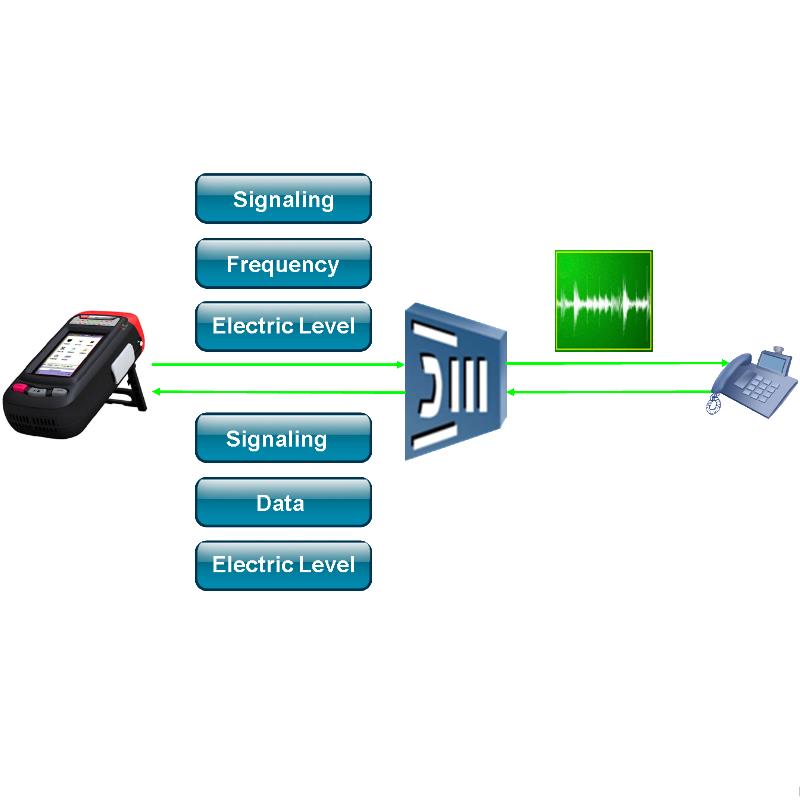

Audio
Test (Optional)

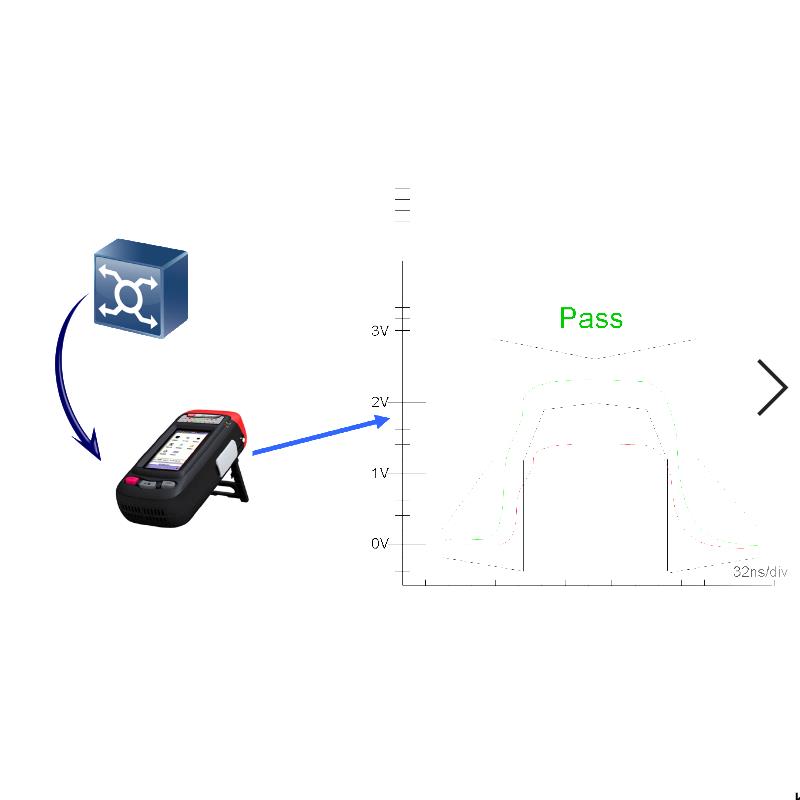

E1 Signal
Template (Optional)

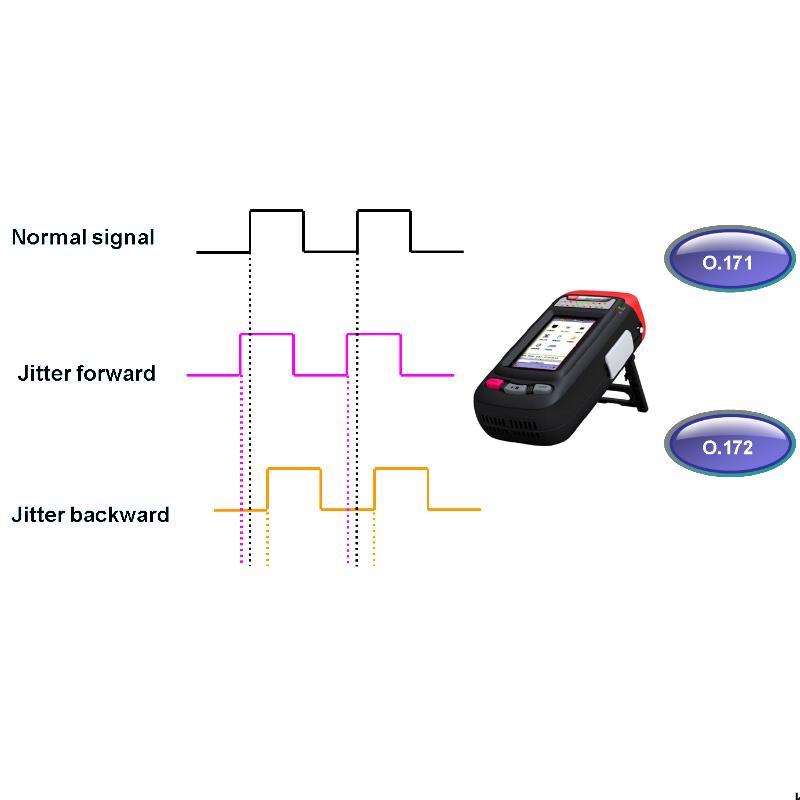

Jitter
Test (Optional)

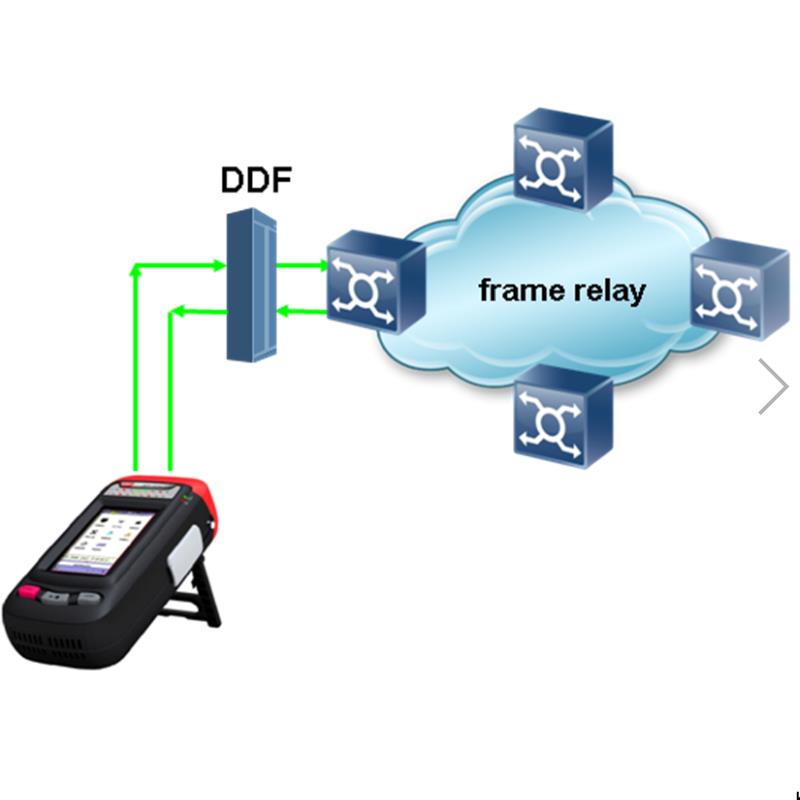

Frame
Relay Test (Optional)
Specifications
|
General Specifications
|
|
Size
|
210×110×60（mm）
|
|
Weight
|
1.2kg
|
|
Display screen
|
Color4.3”LED，480×272，LED BL
|
|
Operation mode
|
Touch screen
|
|
Management interface
|
RJ45(10M/100M)、
|
|
Power supply
|
AC adapter:100V/240V，50/60H/z
|
|
Battery
|
Rechargeable 4400mAh
Li battery
|
|
Endurance time
|
8 hours
|
|
Operation environment
|
Operation Temperature
|
0℃~+50℃
|
|
Storage Temperature
|
-20℃~+70℃
|
|
Operation Humidity
|
10% ~ 90%
|
|
Storage Humidity
|
5% ~ 95%
|
|

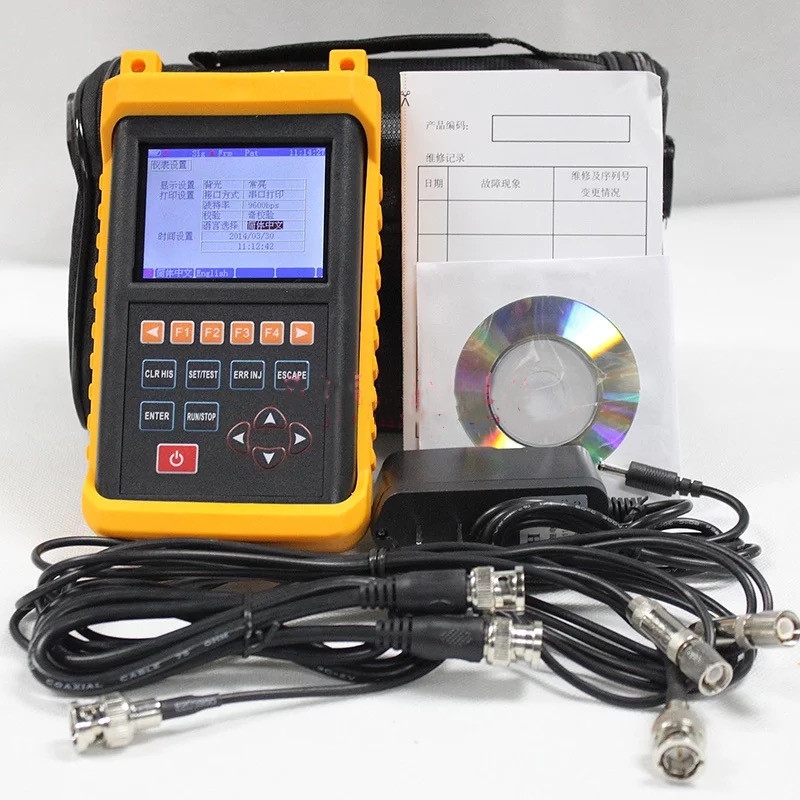

Host
|
Accessories
|
Quantity
|
|
S1200 Data Transmission Analyzer
|
Li Battery
|
1
|
|
User manual
|
1
|
|
0.5m BNC self-test Cable
|
1
|
|
2.5m BNC test Cable
|
1
|
|
2.0m Ethernet crossed Cable
|
1
|
|
2.5m Test line of alligator clip
|
1
|
|
Power adapter (2.0A)
|
1
|
|

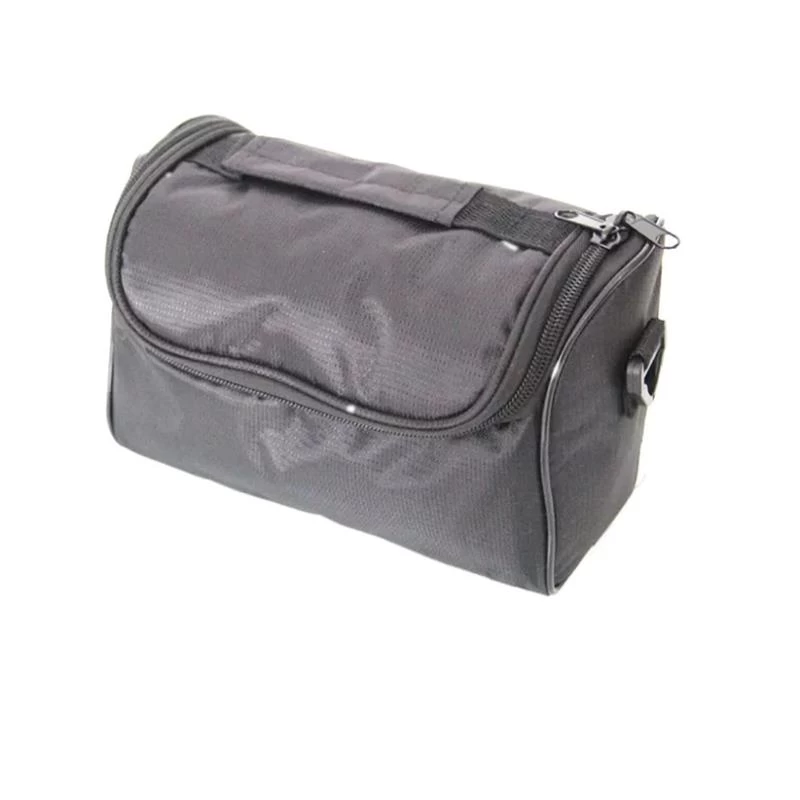

Instrument bag (including braces)
|
|
|
Management platform CD
|
1
|
|
L9-J Plug (75-1-1)
|
1
|
|
BNC-J Plug (75-1-1)
|
1
|
Optional Configurations
|
Serial No.
|
Function
|
|
1200-01
|
E1Audio Test
|
|
1200-02
|
E1 Eye Diagram
|
|
1200-03
|
T1 Interface anomaly and defect test
|
|
1200-04
|
T1 Eye Mask
|
|
1200-05
|
V Interface anomaly and defect test
|
|
1200-06
|
E1 Clock synchronization test
|
|
1200-07
|
E1Jitter Rx/Tx Test
|
|
1200-08
|
Frame Relay Test
|
