2m/s Tester & Dynamic Strength Tester GT-M19

Dynamic Strength Tester is mainly used to test the dynamic strength of wheeled ride-on toys.

  • standardEN71-1, ASTM F963, ISO 8124-1, GB 6675
  • certificate ISO 9001, UKAS, CE
Facebook Twitter Pinterest LinkedIn 分享

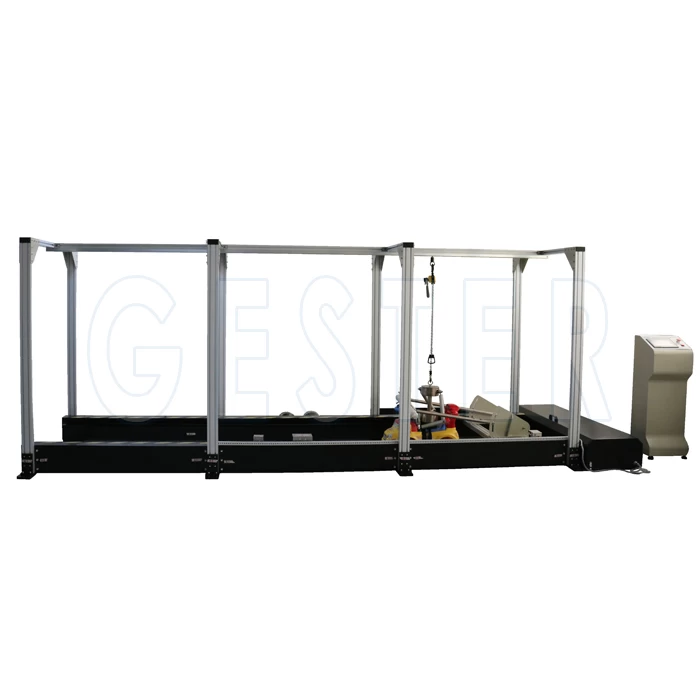

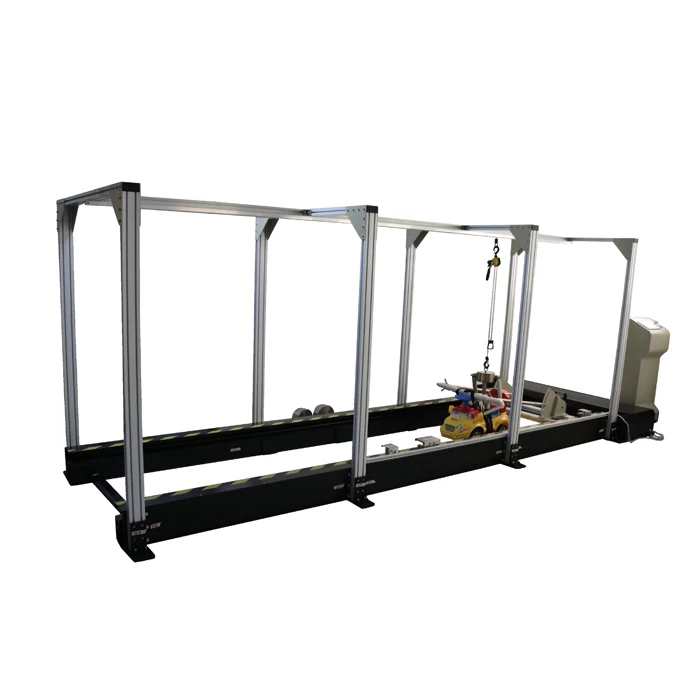

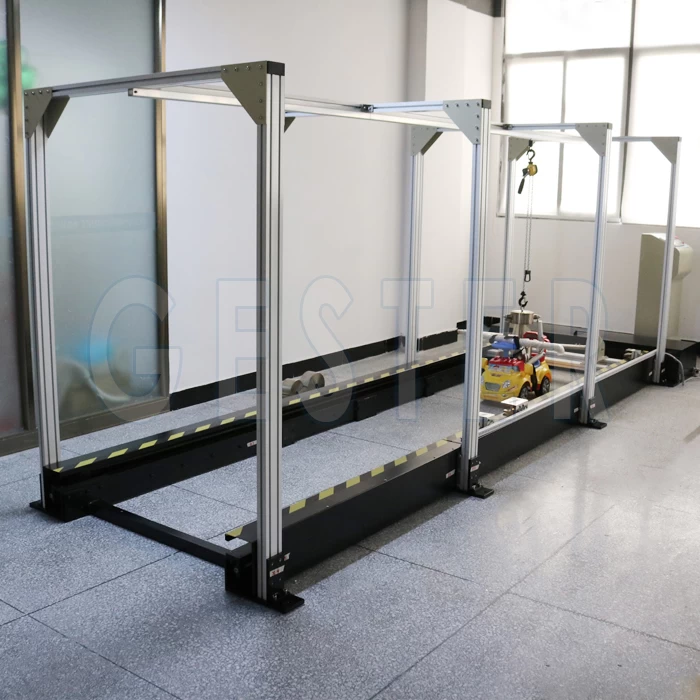

Toy Dynamic Strength Tester

Applications:

This Toy Dynamic Strength (2m/s) Tester is mainly used to test the dynamic strength of wheeled ride-on toys.

Can simulate driven toys vertically hit the inelastic step in a steady speed of 2m /S ± 0.2 /S, then observe the damaged condition. Applied to toy bicycles, scooters, roller-skate and etc.



Standards:

EN71-1 section 8.22 ; ASTM F963 section 8.20
ISO 8124-1 section 5.24.4 and 5.27 ; GB 6675 section 5.24.4

2m/s Tester Test principle:

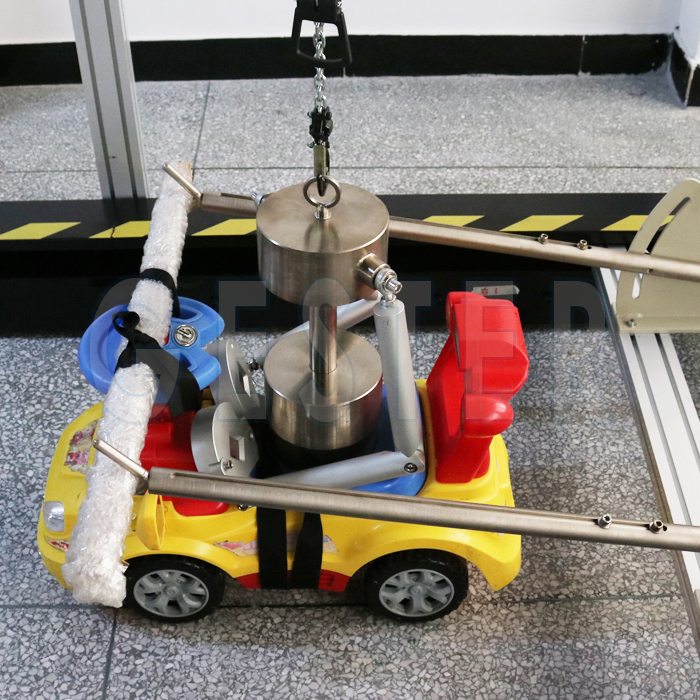

1.Load the toy for 5 min in the most onerous position with the appropriate mass on its standing or sitting surface.
2.Secure the load to the toy in a position corresponding to the normal use of the toy.
3.Drive the toy three times at a speed of 2 m/s ±0.2 m/s into a non-resilient step with a height of 50mm.
4.Check the structure and performance of the sample is intact or not.
5.If the toy is intended to bear the mass of more than one child at a time, test each sitting or standing area simultaneously.

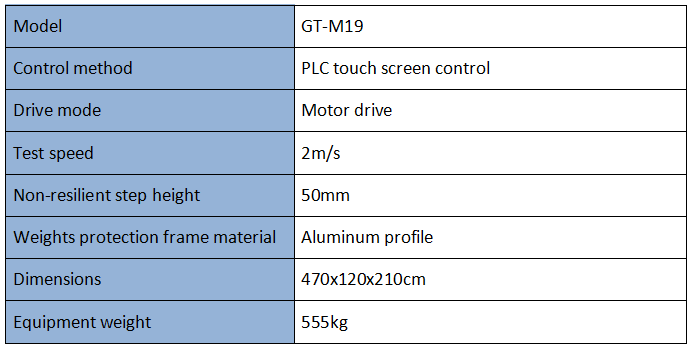

Key Specifications

Dynamic Strength Tester

Accessories

Standards accessories

1set

GT-MA19 Dynamic Strength TestLoad A and Load B

Optional accessories

Optional

GT-MA16 Loads for stability test: for ISO 8142-1 section 5.24.4 and GB 6675 section 5.24.4



Optional

GT-MA21 Static strength test load for ASTM F963 section 8.20

Optional

GT-MA20 Test platform block for EN71-1 section 8.22.3.3 and ISO 8124-1 section 5.27.3



Optional

GT-MB01 Sharp Edge Tester

Optional

GT-MB04 Sharp Point Tester

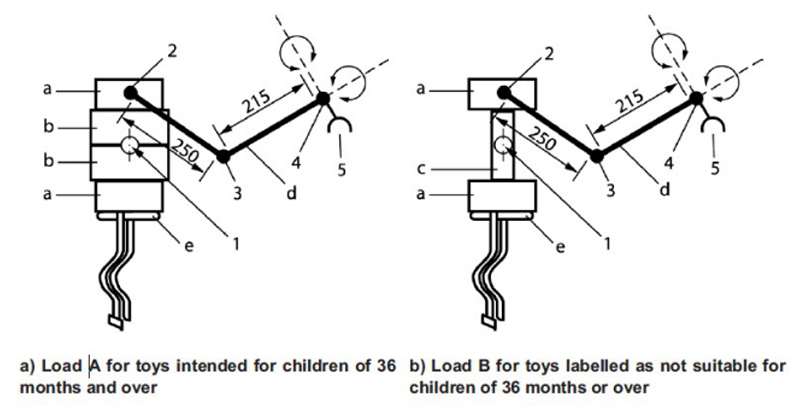

Specification (for Dynamic Strength Test Loads)

Part

Mass kg (lbs)

Diameter mm (in)

Height mm (in)

a

10.42 (23.0)

150±2 (5.9±0.1)

75±2 (3.0±0.1)

b

14.58 (32.1)

178±2 (7.0±0.1)

75±2 (3.0±0.1)

c

4.16 (9.2)





d

2.00±0.02 (4.4±0.04)





e

0.50±0.01 (1.1±0.02)








Applications Industry
All kinds of children products can be tested on the Toys Testing Equipment Dynamic Strength & 2m/s. Tester

ASTM F963 Toy Dynamic Strength Tester
