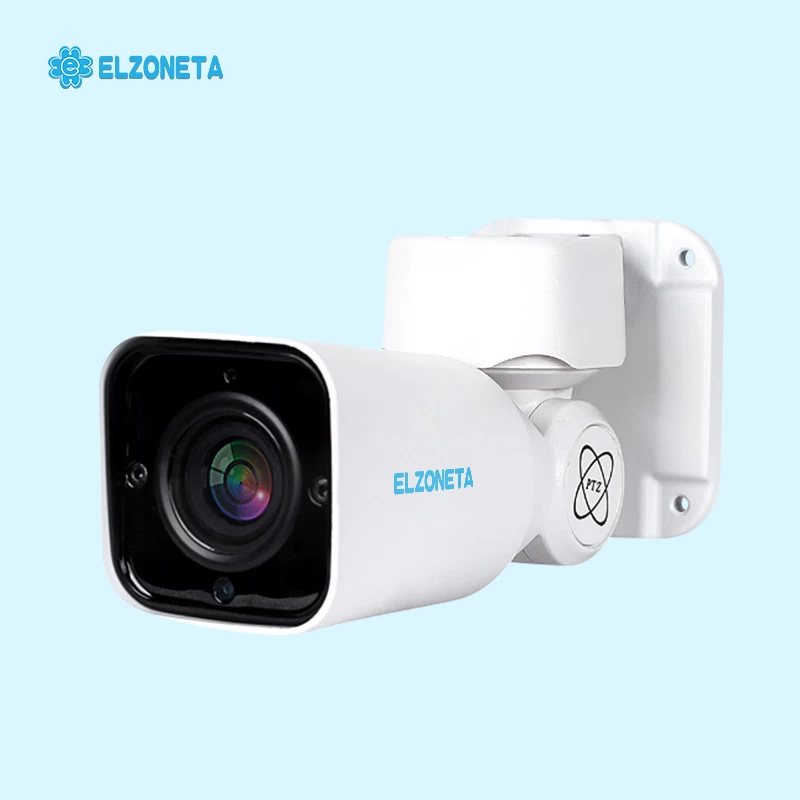

EC-G28S-4 4X IP Mini PTZ Bullet Camera
Features:
*4X 2MP HD IP Mini PTZ Bullet Camera
*6 pcs array 30Mil LED, IR distance up to 50M
*Waterproof IP66
*ONVIF 2.4;Support P2P function
*Support H.264 (H.265)compression
*Pan/Tilt/Zoom, A-B scan, tour available
* Compatible with HIKVISION ,DAHUA, XM NVR
*Compatible with Milestone, NUUO and AXXON platform
* Support audio (optional), POE (optional)
Specification:
|
Camera
|
|
Sensor
|
1/3" CMOS 2MP Sony323
|
|
Output pixel
|
1920x1080/30fps
1920x1080/25fps
|
|
Lens
|
4X f=2.8~12MM
|
|
BLC
|
Support
|
|
AGC
|
Auto/manual
|
|
WB
|
Auto/manual/indoor/outdoor
|
|
S/N Ratio
|
>50dB
|
|
Dome
|
|
Communications Protocol
|
TCP/IP,HTTP,NTP,IGMP,DHCP,UDP,SMTP,RTP,RTSP,ARP,DDNS,DNS,HTTPS,P2P
|
|
Software Control
|
IE, CMS, Management Platform
|
|
Video compression
|
H.264/H.265/M-JPEG
|
|
Audio compression
|
G711, PCM
|
|
Mobile View(optional)
|
Android iPhone
|
|
Rotation Range
|
Pan: 0°~160º , Tilt: 0°~55º
|
|
Rotation Speed
|
Pan: 0~25°/s , Tilt: 0~20°/s
|
|
Auto Flip
|
Support
|
|
Preset Points
|
220pcs presets（dwell time 01-60s interval available）
|
|
Guard Tours
|
3 groups ( each group 16 preset、dwell time and speed selectable)
|
|
AB scan range
|
Support, 0-160º
|
|
AB scan speed
|
1-9 grades
|
|
Operating temperature
|
-30℃~+60℃
|
|
Operation menu
|
English
|
|
Auto Control IR LED
|
PWM
|
|
Consumption
|
≤10W
|
|
Weight
|
N: 0.55KG/ G: 0.67KG
|
|
IR parameters
|
|
Auto Control IR LED
|
PWM
|
|
IR distance
|
up to 50 meters
|
|
LEDs
|
6 PCS Array 30Mil LED
|
More Information:
