2T Lab Mini Manual Hydraulic Press for KBR Potassium Bromide Tablet Production

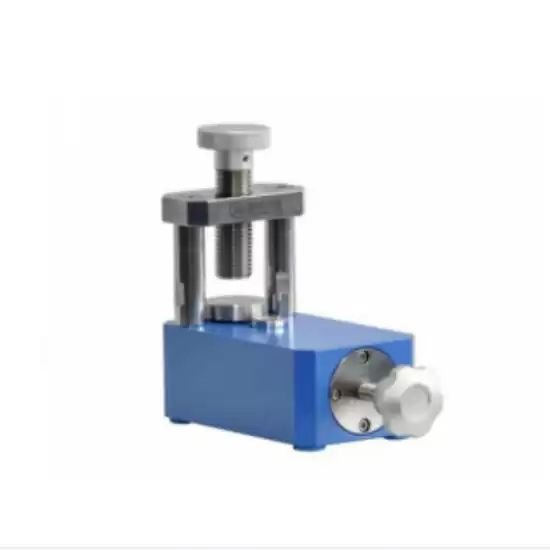

SYP-2T Infrared Mini Tablet Press: Specially used for KBr potassium bromide tablet production. It is an extremely easy-to-use, portable experimental hydraulic press, which can easily complete the pressing of infrared spectrometer Φ7mm (KBr) potassium bromide The sample preparation of the tablet has excellent test results. After thousands of comparison tests, the Φ7mm, Φ13mm and larger KBr samples produced by this type of mini tablet press have consistent test results and can replace imported similar products.
Specification
|
Model
|
SYP-2T
|
|
Pressure range
|
0-2T(0-30MPa)
|
|
Piston diameter
|
Chrome plated cylinder φ28mm
|
|
Piston stroke
|
5mm
|
|
Pressure gauge type
|
XNNETS pointer type
|
|
Pressurization mode
|
Manual pressurization
|
|
Pressure stability
|
≤1MPA/10Min
|
|
Workstation diameter
|
Φ455mm
|
|
Number of columns
|
2 pillars
|
|
Column space
|
54×55mm (W/H)
|
|
over dimension
|
100×220×220mm(L×W×H)
|
|
Weight
|
4.8kg
|
|
NOTE
|
Specially used for Φ7mm (KBr) potassium bromide sample preparation
|
|
Standard configuration
|
1 tablet press host, without mold (mold can be purchased, other configurations can be purchased)
|
Remarks: Some of the indicators are unique to TMAX, which can be customized or improved according to customer needs.
