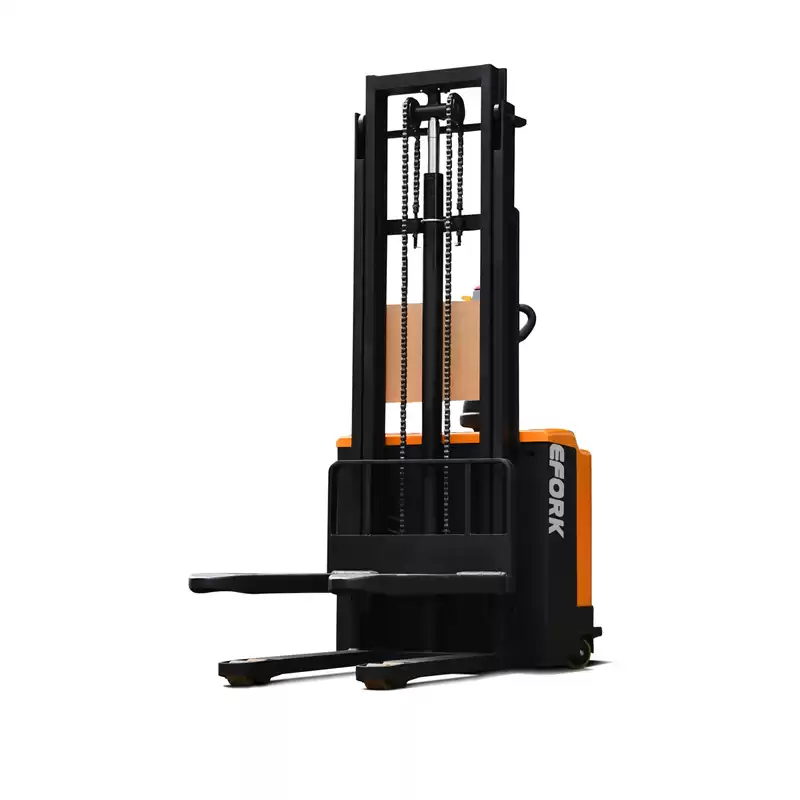

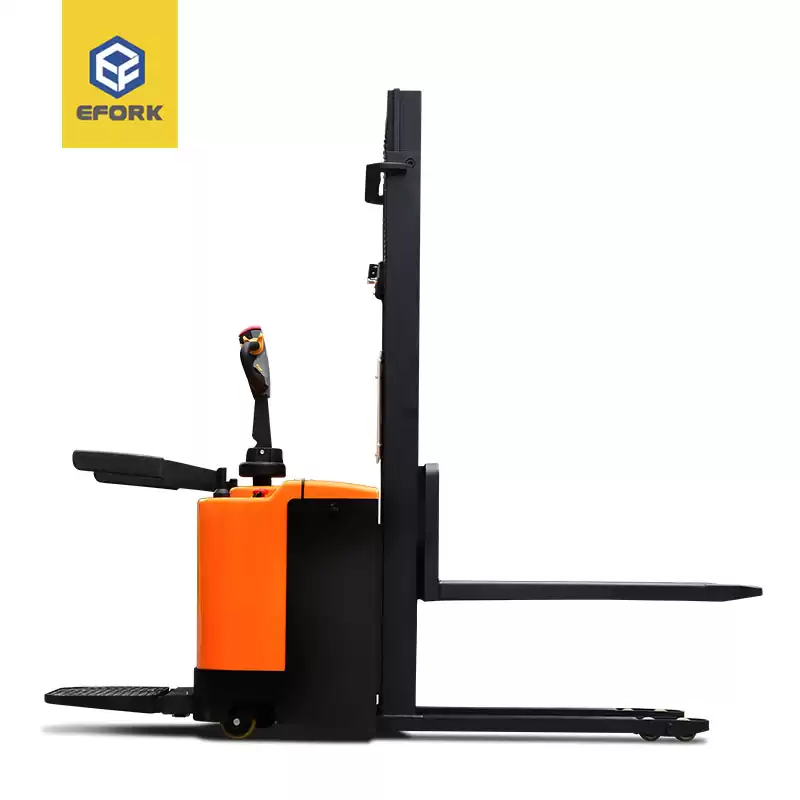

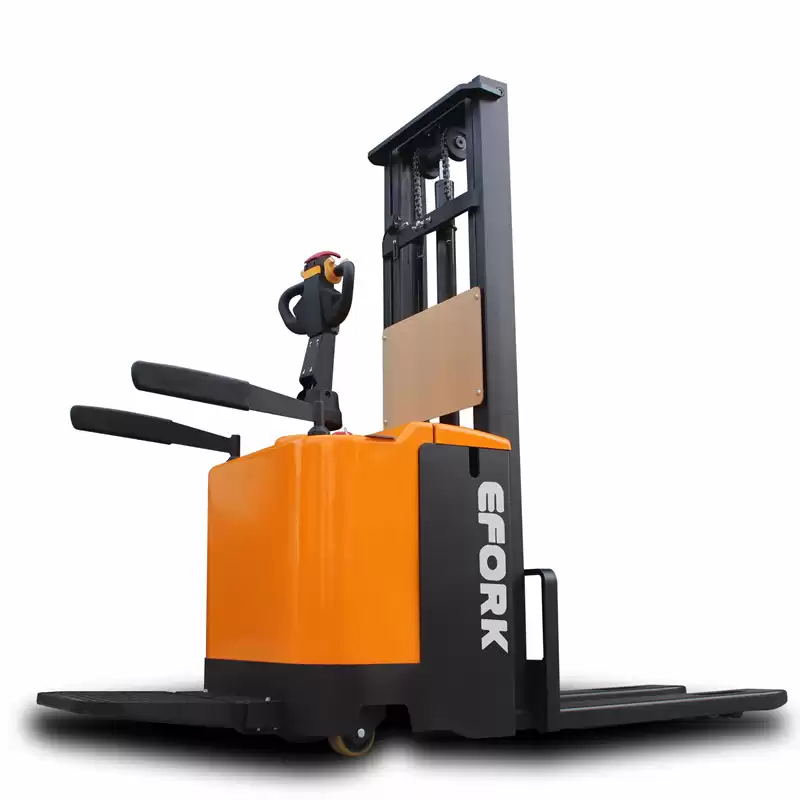

Product Name:2ton New Standing type full Electric Pallet Stacker
Loading capacity 1000~2000 Kg
Lift height 1600~5500 mm
EFORK Ergonomic Electric Lift Trucks is a versatile electric stacker .
Ergonomics:Intuitive controls contribute to enhanced operator productivity.
Maintainability:Onboard diagnostics help to pinpoint issues, reducing downtime for service.
Product Advantage:
●Horizontal handling and stacking of medium cargo;
●Middle and long distance handling and stacking;
●Applicable to loading, unloading and handling palletized goods in warehouses, supermarkets and workshops.
Specification:
|
Name
|
Full Electric Pallet Stacker（24V）
|
|
Model No.
|
Unit
|
CDD10-25
|
CDD10-30
|
CDD15-16
|
CDD15-25
|
CDD15-30
|
CDD20-25
|
CDD 20-30
|
|
Load Capacity
|
Kg
|
1000
|
1000
|
1500
|
1500
|
1500
|
2000
|
2000
|
|
Lift height
|
H(mm)
|
2500
|
3000
|
1600
|
2500
|
3000
|
2500
|
3000
|
|
Load center
|
C(mm)
|
500
|
500
|
500
|
500
|
500
|
500
|
500
|
|
Wheel type
|
|
Polyurethane solid tire
|
|
Pedal length
|
mm
|
470
|
470
|
470
|
470
|
470
|
470
|
470
|
|
Fork dimension
|
mm
|
1150*190*60
|
|
Free lift height
|
mm
|
0
|
|
Ground clearance
|
mm
|
85
|
85
|
85
|
85
|
85
|
85
|
85
|
|
Width between fork arms
|
mm
|
560/680
|
560/680
|
560/680
|
560/680
|
560/680
|
560/680
|
560/680
|
|
Overall length (pedal closed)
|
L(mm)
|
2120
|
2120
|
2120
|
2120
|
2120
|
2120
|
2120
|
|
Overall width
|
S(mm)
|
850
|
850
|
850
|
850
|
850
|
850
|
850
|
|
Lowered mast height
|
H1(mm)
|
1830
|
2080
|
2080
|
1830
|
2080
|
1830
|
2080
|
|
Extended mast height
|
H2(mm)
|
3038
|
3537
|
2080
|
3037
|
3537
|
3038
|
3537
|
|
Turning radius (pedal fold)
|
Wa(mm)
|
1790
|
1790
|
1790
|
1790
|
1790
|
1790
|
1790
|
|
The distance from front wheel to fork end
|
mm
|
343
|
343
|
343
|
343
|
343
|
343
|
343
|
|
Min. stacking aisle width 1000*1000 pallet
|
mm
|
2550
|
2550
|
2550
|
2550
|
2550
|
2550
|
2550
|
|
Max.Walking Speed
|
Km/h
|
4.0/5.8
|
4.0/5.8
|
|
Grade ability
|
%
|
6
|
6
|
6
|
6
|
6
|
6
|
6
|
|
Total weight
|
Kg
|
1075
|
1095
|
995
|
1095
|
1115
|
1115
|
1135
|
|
Driving wheel
|
mm
|
Ø230*75
|
|
Front wheel
|
mm
|
Ø80*70
|
|
Balance wheel
|
mm
|
Ø125*50
|
|
wheelbase
|
mm
|
1472
|
|
Battery capacity
|
V/Ah
|
24/210
|
|
Charger-Intelligent
|
V/A
|
24/30
|
|
Driving motor
|
Kw
|
1.5
|
1.5
|
1.5
|
1.5
|
1.5
|
1.5
|
1.5
|
|
Lifting motor
|
Kw
|
2.2
|
2.2
|
2.2
|
2.2
|
2.2
|
2.2
|
2.2
|
|
Walking Adjustable Type
|
|
Holzer type accelerator
|
We sell high quality electric stacker china at the best price. We
feature high-quality products made in China with first-class quality
assurance, suitable for long-distance heavy-duty operations such as
factory warehouses and docks.
