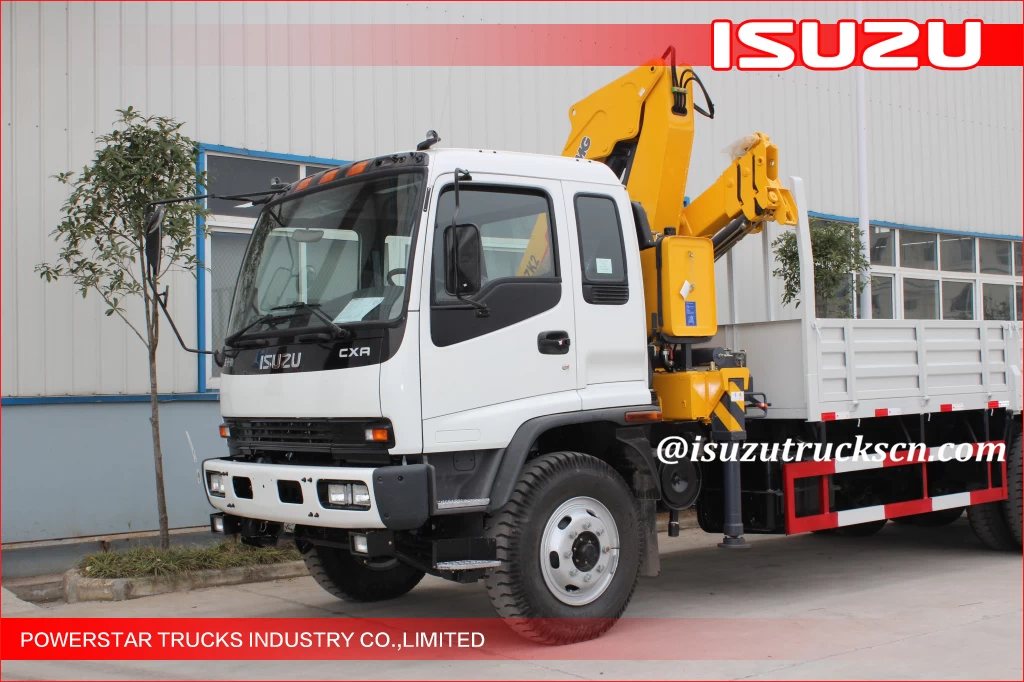

2tons Isuzu Structure Knuckle Boom Truck Mounted Crane
Structure Knuckle Boom Truck Mounted Crane, 5.5m Max Reach Height
- Name: Knuckled boom crane, Lorry mounted crane, Cargo crane truck, Truck loader crane, Hydraulic truck crane
- Max Lifting Capacity: 1400 kg
- Max Lifting Moment: 2 t.m
- Max Oil Flow of Hydraulic System: 16 L/min
- Max. Lifting height:5.5meters
- Brand: XCMG
- Crane Weight: 450 kg
- Oil Tank Capacity:20 L
- Feature: Safety transportion, driven by hydraulic, move fast. The raise and down are driven by wire rope.
- Application: used in Commercial, transportation, oil, balance check, telecommunications, electricity, municipal services and other occasions.
Description:
Knuckle boom crane, help you loading goods on your truck. The crane will fold to compact size after working and will not affect the space of the carriage. The arms are driven by hydraulic, move fast, more effective. The arms can easy to reach narrow spaces like inside the workshop. More accessories like fork, grab bucket, can be attached for different goods loading.
Truck Loader Crane is a type of machine can carry heavy weights and transport them. The truck with crane mounted can load and unload the freight itself and don't need to employ another crane. The loader crane can freely route in 360 degrees, raise and extend, make the loading simple and economic. Compare to the mobile crane, truck loader cranes are more convenient and effective.
Knuckle boom crane SQ1ZK2 is used for lifting 1.4tons, moment is 2T.M.
Applications:
It can be applied on most common Commercial Truck-mounted Cranes. Range covers light to medium crane. With small mounting size and weight to save your payload, minimizing loading and unloading time, is the best choice of truck mounted crane facilities.
Specifications:
Model
|
SQ1ZK2
|
Unit
|
Max Lifting Moment
|
2
|
t.m
|
Max Lifting Capacity
|
1400
|
kg
|
Recommend Power Needed At Recommend Oil Flow
|
7
|
kw
|
Max Oil Flow of Hydraulic System
|
16
|
L/min
|
Rated Pressure Of Hydraulic System
|
20
|
MPa
|
Oil Tank Capacity
|
20
|
L
|
Rotation Angle
|
(360°) All Rotation
|
°
|
Crane Weight
|
450
|
kg
|
Installation Space
|
550
|
mm
|
Choice of Chassis
|
HFC1065KRT; NKR77PLLWCJAY
|
SQ1ZK2 Lifting capability diagram
|
Working radius (m)
|
1.33
|
2.25
|
3.2
|
Lifting capacity (kg)
|
1500
|
850
|
550
|
Optional parts:
1, Moment limited device
2, Remote control equipment
3, Anti-overwind magnet valve
4, High seat on column
5, Work light
6, Assistant stabilizer leg
Stabilizer leg
|
Spread
|
Fixed
|
2179mm
|
Single extension
|
2256-3556mm
|
Double extension
|
2212-4752mm
|
