2u Rack Mount Computer On Shelf Server E5-2600 Series V3 V4 Xeon CPU
Product Introduction
Yanyue SVR-2UC612 is a high-performance 2U rack-mounted storage server, with its efficient design, while ensuring excellent computing performance, it supports large-capacity local storage, easily copes with rapid data growth, and provides flexible and powerful resource expansion capabilities.
| Specifications |
Optional Configurations |
| Chassis |
All steel structure, Colour metallic with black front |
Optional other color |

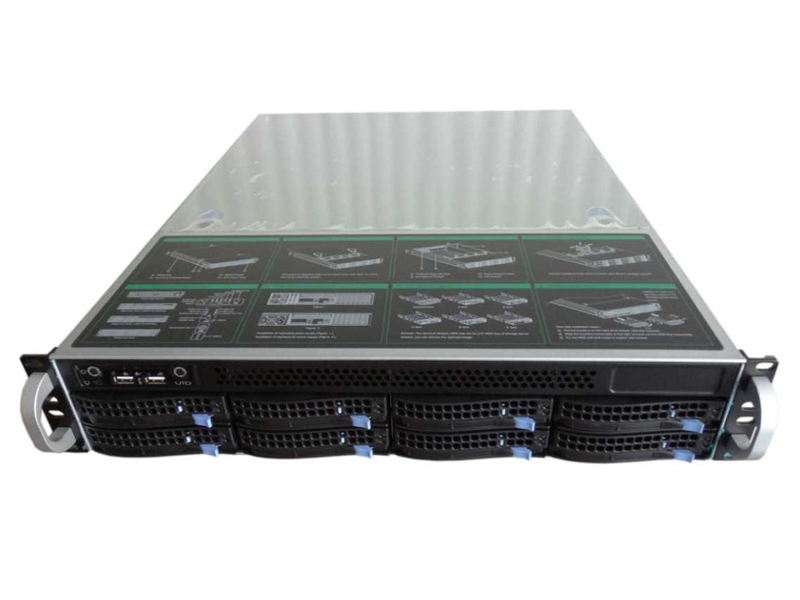

| Front |
8 hot-swappable 3.5" hard drive bays (SATA interface);power switch,rest switch, Power/HDD indicator, 1USB2.0,1USB3.0 |
|

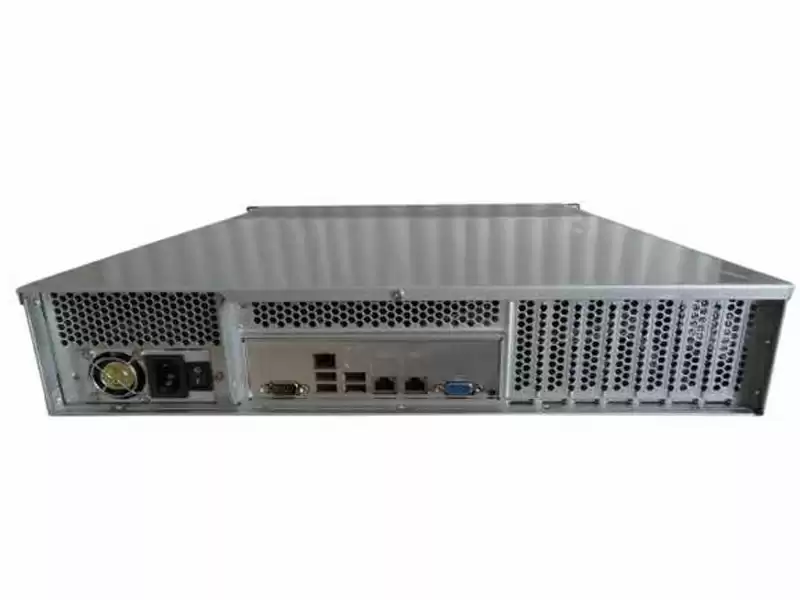

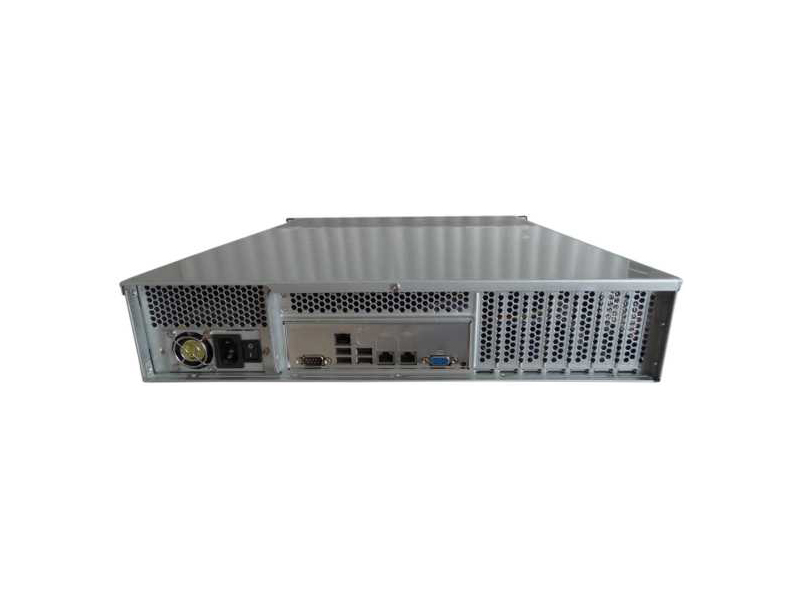

| Back |
1U/2U power supply;Large square hole in the motherboard; 7-slot expansion;DB9 COM; |
Supports 2.5" solid state drives via adapter bracket |
| Hard disk rack |
8 hot-swappable 3.5" hard drive cages |
|
| Adaptive Motherboard |
C612 Server motherboards in Yanyue |
|
| CPU/GPU |
E5 2630 V3 |
Optional all E5 2600 series V3/V4 CPU; optional dual CPU |
| Memory |
8G DDR4 |
Optional 16G/32G/64G/128G memory |
| Hard Disk |
1T 3.5" HDD |
Optional up to 8*2T/4T/6T/8T/10Thard drive |
| Interfaces |
AC input;4USB;IPMI(RJ45);2RJ45(Gigabite);VGA;DB9 COM;7-slot expansion |
Optional leads to all interfaces on the chassis |
| Expand |
6 or 7PCIE |
|
| Size |
Handle not included:482*650*89 |
Net/Gross Weight |
8/9KG |
| Power Supply |
350W 1U server Powern Supply |
550W 2U server power supply or redundant power supply |
| Installation mode |
19" Standard Rackmount |
Product Features
■ C612 chip, supports E5-2600 series V3/V4 CPU
■ Supports 8 hot-swappable 3.5" hard drive
■ 2LAN Intel Gigabit , 6USB
■ IPMI management port (RJ45 form factor)
■ Flexible configuration with 1/2 CPU, memory, hard drives according to customer requirements
| Work and Environment |
| Working temperature |
（-20～60）℃ |
Storage temperature |
-40～75℃ |
Environmental humidity |
0~90% air humidity, no condensation |
| |
|
Vibration |
5-17Hz/1.0mm amplitude, 17-200Hz/1.0g acceleration |
| EMC |
GB9254-2008 class A |
Shock |
10g acceleration, 11ms duration |

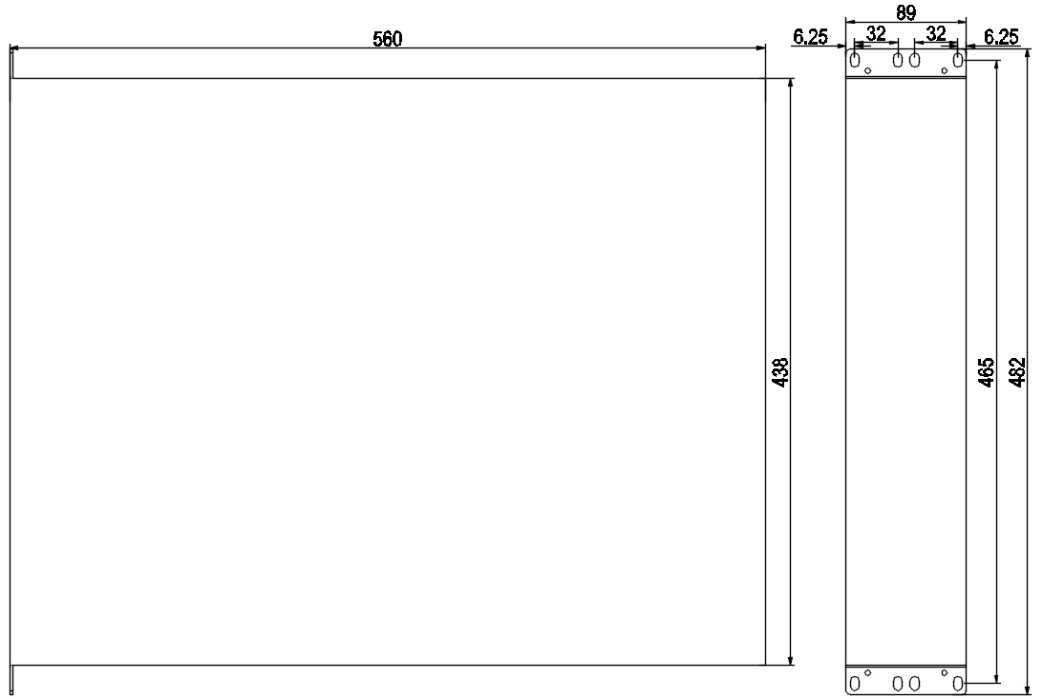

Product Installation Dimension Diagram
Our Advantages
1. As a professional manufacturer/ OEM Factory and supplier of Mini PC/ motherboard,firewall appliance over 15 years,Affinicate member of intel League.gain greatly supports from intel.And we win our customers with good quality,best service and factory price.
2.Our products are 100% original and have strict QC inspection before shipment.
3.Professional and efficient sales team to serve for you diligently.
4.Sample order is welcomed and will be delivered within 1-3 days.
6.We support Trade Assurance to ensure On-time shipment and product quality.
7.We provide OEM/ODM service according to your requirements.
8.We provide 2 years maintenance warranty for our products.
FAQ
1.Q: What's the Minimum Order Quantity(MOQ)?
A: Just 1 piece is OK.
2.Q: Are you a factory or a trading company?
A: We are one of the professional computer manufacturers located in Shenzhen, China.
3.Q: What about the after-service?
A: Two-year warranty except human error. As for the following 2 years, we can repair it for free, but charge for parts is needed. please contact us at any time when necessary. We besides our professional technicians are at your service.
4.Q: Can you provide DIY/OEM/ODM service?
A: Yes, please advise the CPU, memory, SSD or HDD, WIFI, interface ports and OS, the package box and housing(outer shell)as you wish, prices will be varied according to the quantity and specification.
