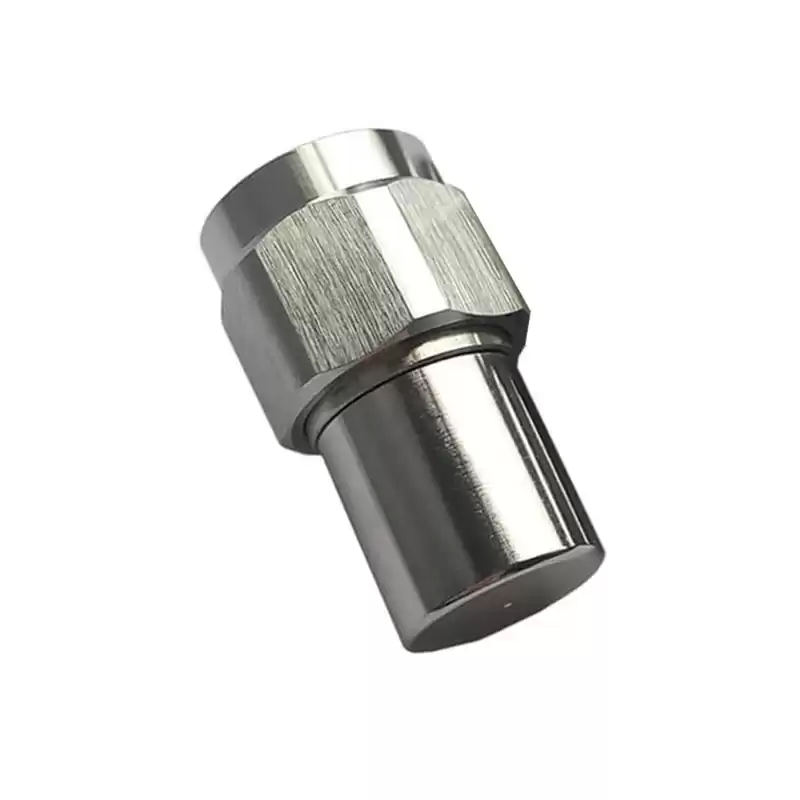

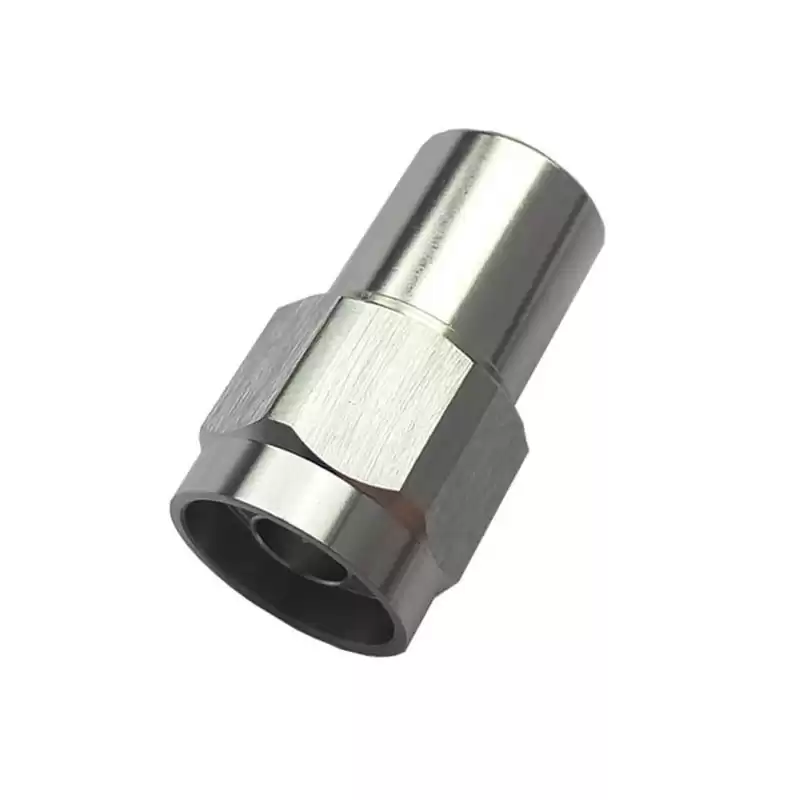

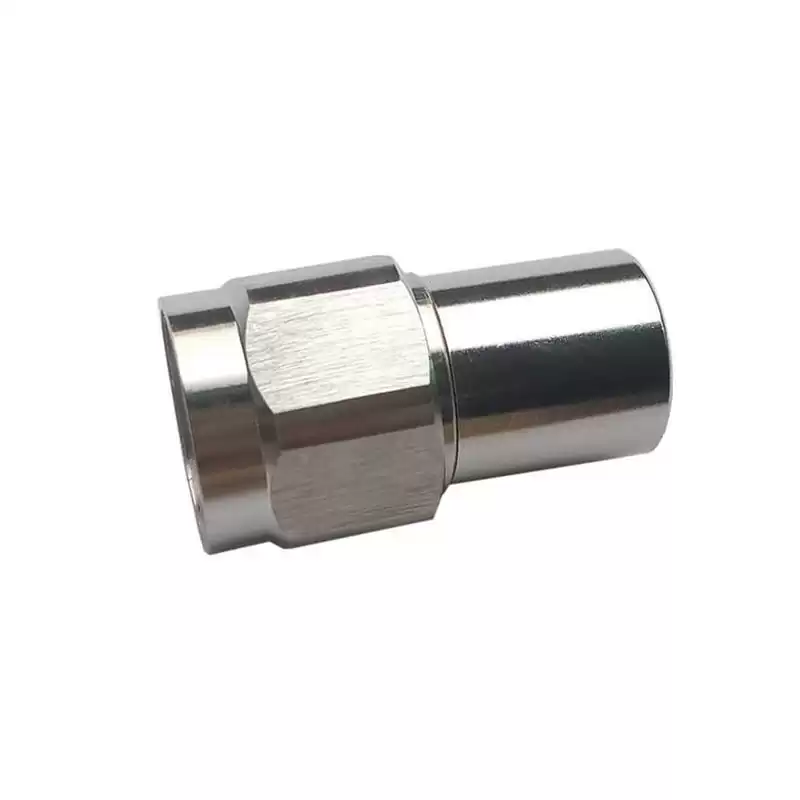

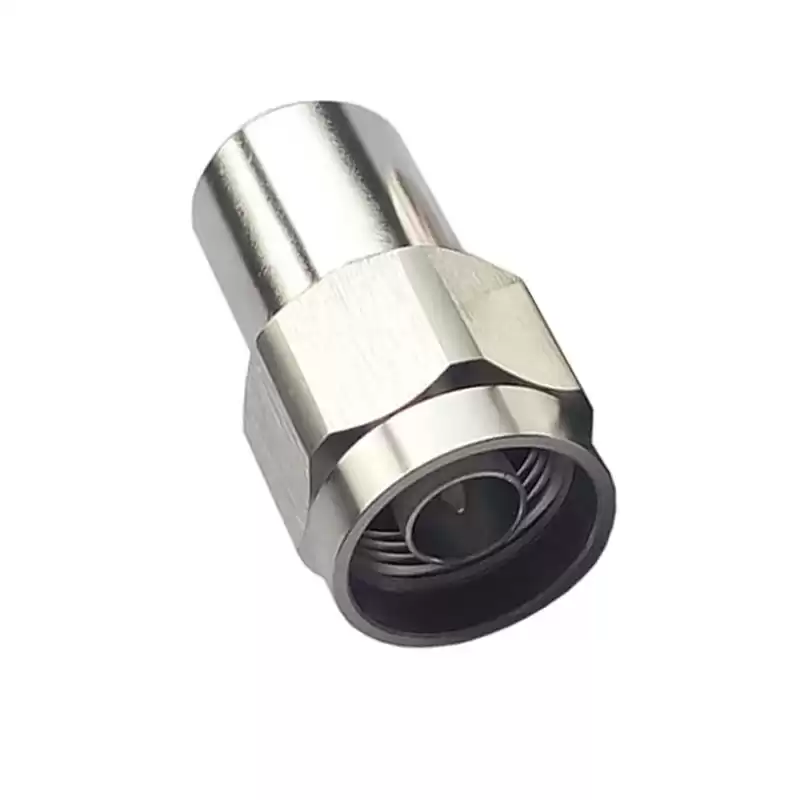

2W N Type Male Connector Termination DC-3GHz/6GHz 50ohm RF Coaxial Fixed Terminator Dummy Load
The 2W N dummy load (also known as 2W N termination or 2W N RF load) has a type N connector that is male. This 2W type N male load / termination is rated for a maximum frequency of 6GHz. ROHO's N type male termination load is a rf load termination with a 50ohm impedance; This type N load / coax terminator has an average maximum VSWR of 1.2:1. The 2W N type male load termination is one of RF, microwave and millimeter wave components, ROHO also could do SMA,DIN,4.3-10,N or other Connector for this product,All specification we can be customized.
Specifications
| ELECTRICAL DATA |
|
| Frequency |
DC~3GHz/6GHz |
| Connector |
N Male |
| VSWR |
≤1.2 |
| Power |
2W |
| Impedance |
50Ω |
| Temperature Range |
-55℃～+125℃ |
| MATERIAL DATA |
|
| Connector body |
Stainless Steel,Passivate or Brass,Plating Ni |
| Insulator |
PTFE |
| Inner Conductor |
Phosphor Bronze ,Plating Au |
Applications
- Measurement systems
- Multi-port microwave device
- Directional couplers
- Isolators
