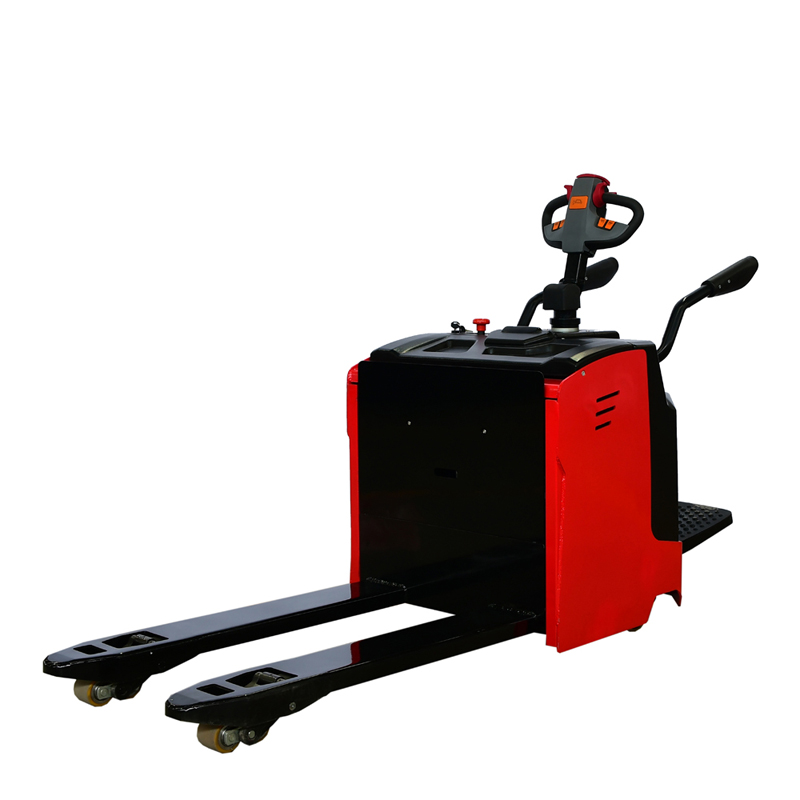

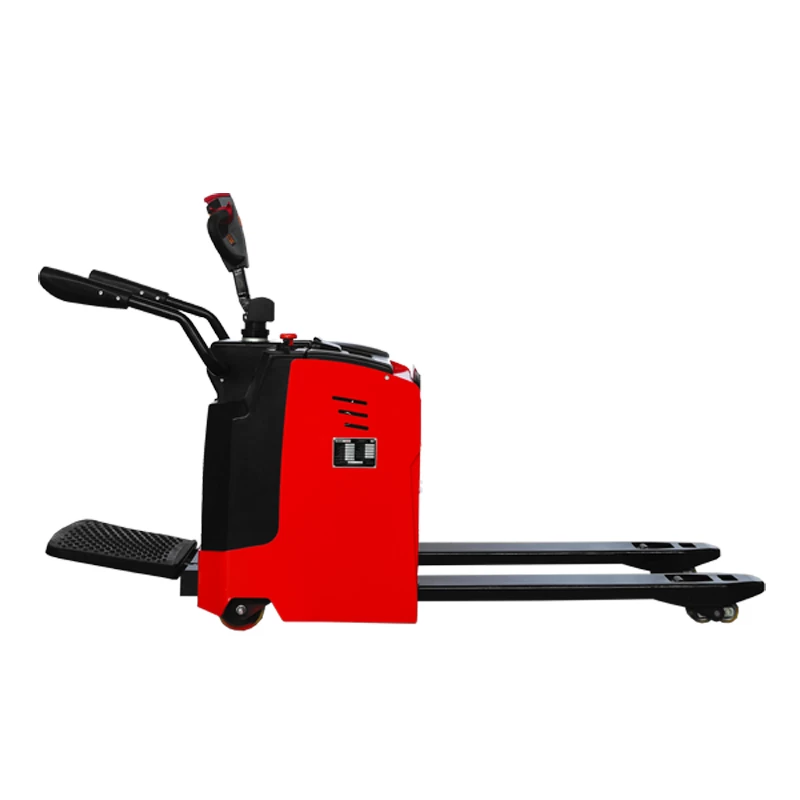

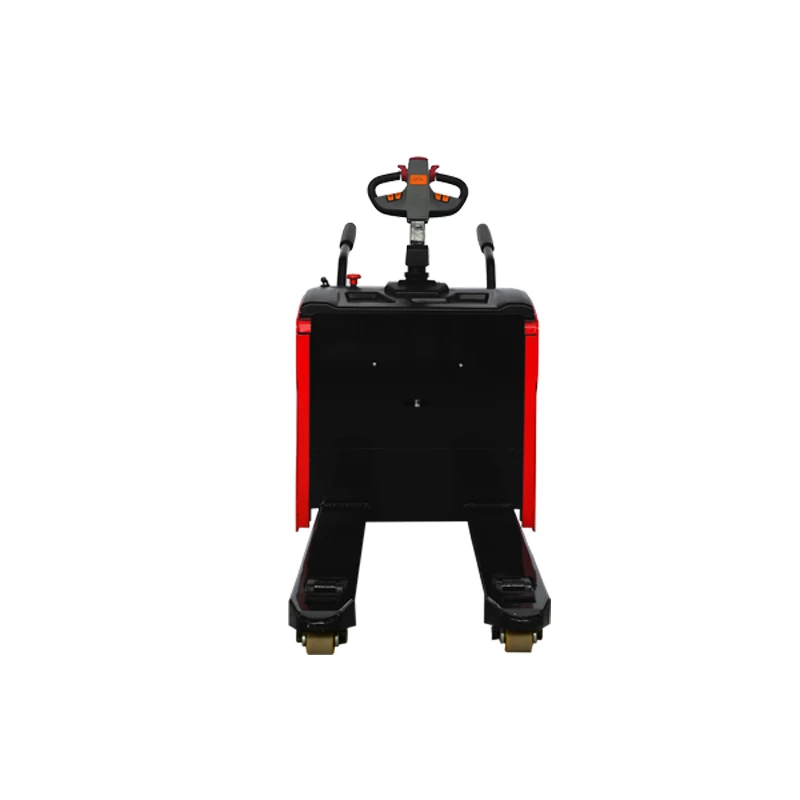

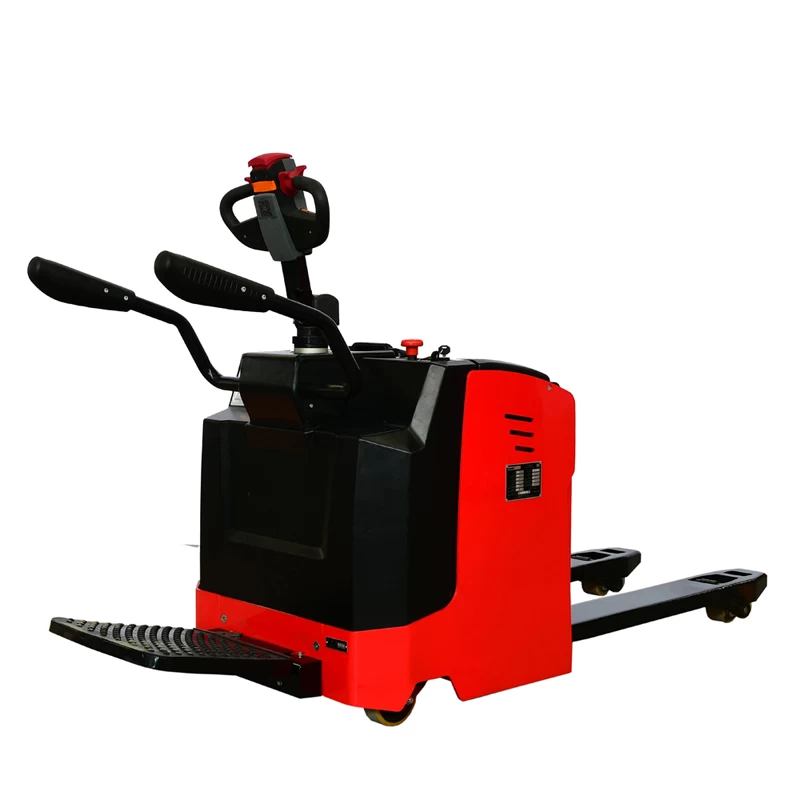

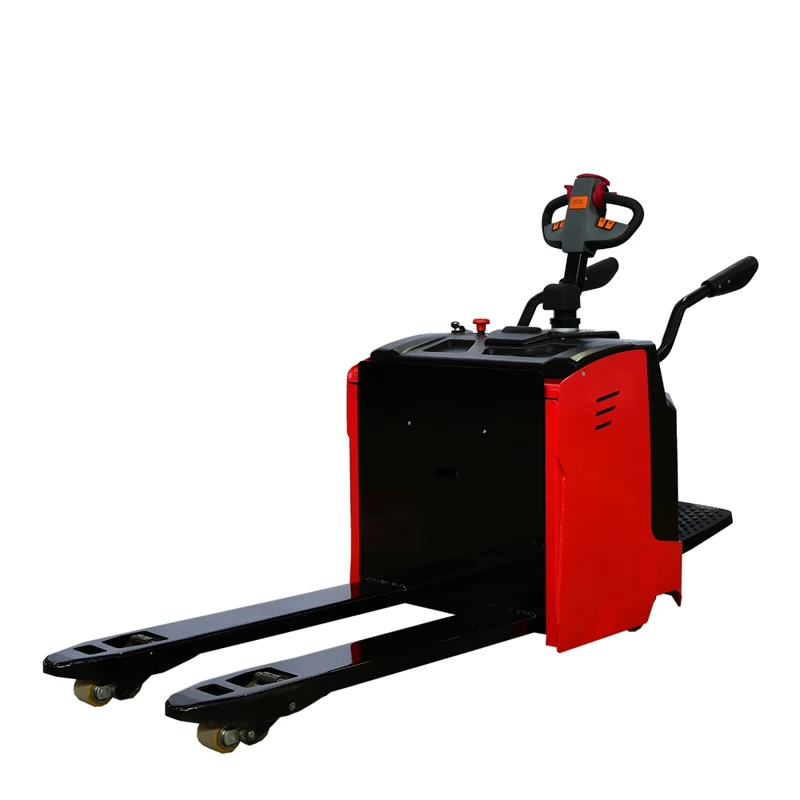

3.0-4.0T ME Series Electric Pallet Truck
Main Features:
1.Maintenance-free high-power AC drive system to provide reliable driving power;
2.Standard CURTIS series controller, reliable and durable; AMP waterproof and dust proof plug-in, which provides reliable protection for the line and greatly reduces electrical faults;
3.Station board type, pure electric steering, integrated joystick, safe, labor-saving, flexible operation;
4.The mechanical structure is solid and the key parts are made of high-strength steel plate, which is sturdy and durable.
Specification:
|
Brand
|
|
MiMA
|
MiMA
|
|
Model
|
|
ME30
|
ME40
|
|
Power Type
|
|
Battery
|
Battery
|
|
Operation Type
|
|
Stand-on
|
Stand-on
|
|
Service weight(incl. battery)
|
kg
|
860
|
900
|
|
Rated Capacity
|
Q(kg)
|
3000
|
4000
|
|
Load Center
|
C(mm)
|
600
|
600
|
|
Lifting height
|
h3(mm)
|
110
|
110
|
|
Forks size
|
l/e/s(mm)
|
1150/175/75
|
1150/205/75
|
|
Front Overhang
|
x(mm)
|
985
|
930
|
|
Turning radius
|
Wa(mm)
|
1800
|
1750
|
|
Max. climbing ability
|
%(tanθ )
|
5/8
|
5/8
|
|
Driving speed(load/unload)
|
km/h
|
5/6
|
5/6
|
|
Lifting speed(load/unload)
|
mm/s
|
29/33
|
23/33
|
|
Lowering speed(load/unload)
|
mm/s
|
23/18
|
25/18
|
Product Highlights：
Performance
● Station-driving standard power distribution steering makes the control lighter and more flexible;
● The latest CURTIS AC control system, precise and stable control, and higher efficiency.
Comfort
●The platform is equipped with a shock absorption design, which greatly improves the ride comfort and reduces the fatigue of long driving.
●With integrated joystick, it is simple and beautiful, and all operation functions can be easily completed with one hand;
Safety
●It has three kinds of braking functions: release brake, reverse brake and emergency brake to ensure the safety of driving;
●The speed of the station-drive standard is automatically reduced with the increase of the steering angle.
Company Exhibition:
MiMA can offer you electric pallet truck, pallet stacker, counterbalance stacker,reach truck, stand-on reach truck, seated reach truck, reach stacker, electric counterbalance forklift truck, counter balance forklift, tow tractor, order picker, narrow aisle forklift, 4-direction reach truck, 3-way pallet stacker(VNA), multi-direction forklift, special forklift, AGV and other customized types for options, which can provide our customers with logistics handling solutions from 500kg to 100,000kg. Due to product serialization and standardization, all MiMA products are widely used in medicine, food, chemical, household electrical appliances, wool cotton textile, tobacco, electronics, machinery, furniture and many other industries.
Safety and
efficiency are built into the design of every stacker. Our full line of
operator-friendly electric pallet jack stackers offer extraordinary
maneuverability and application flexibility to suit a variety of
environments.
Certification:
FAQ:
Q1: Are you electric pallet truck factory?
A1: Yes, we are the professional manufacturer of electric pallet truck for more than 20 years.
Q2: How about the delivery time?
A2: About 20-30 days based on different model. For some standard products, we may have stock and could delivery immediately.
Q3: Is customized solution available?
A3: Yes, we can provide different customized solution.
Q4: Can you provide OEM service?
A4: Yes.
