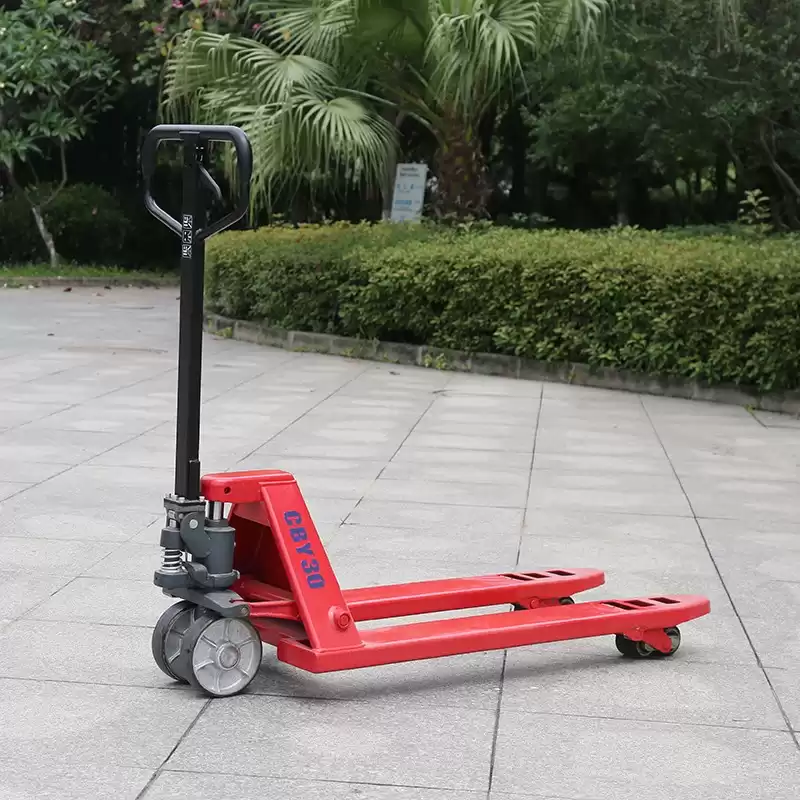

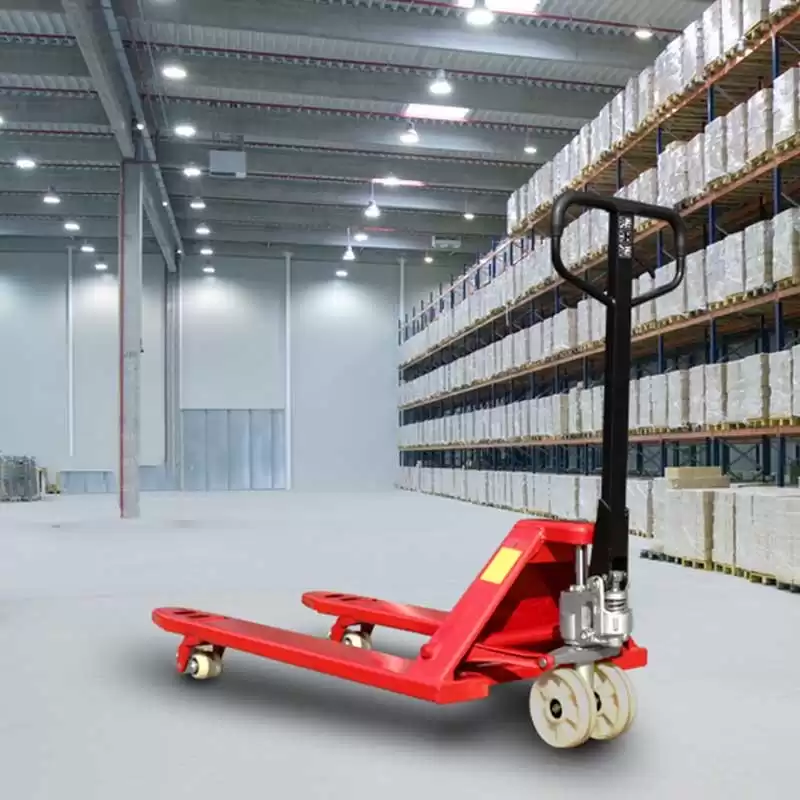

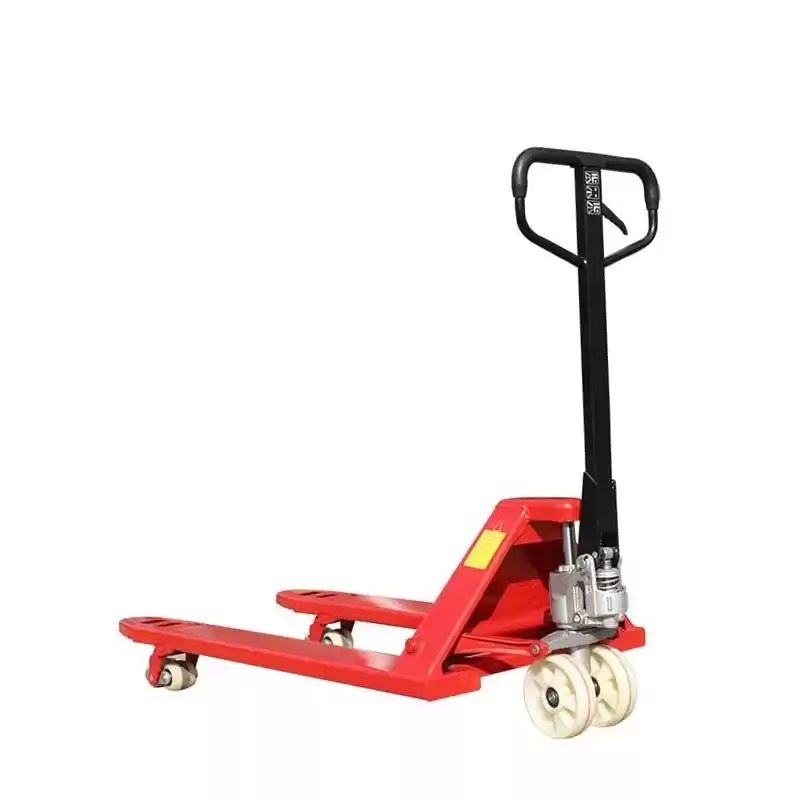

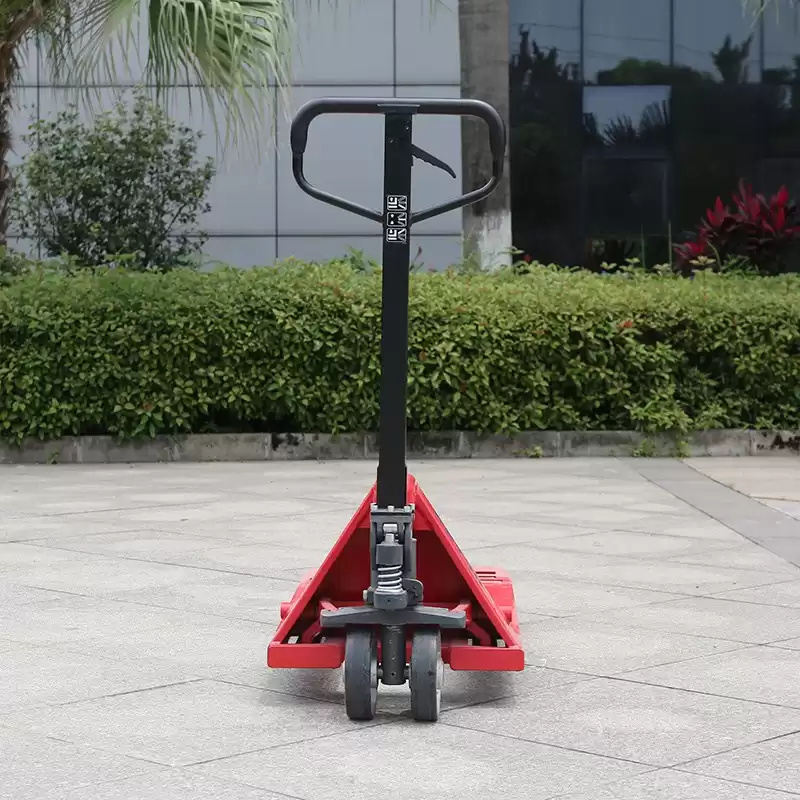

3.0 ton Manual Pallet Truck Hand Pallet Truck CBY30

Small body and light weight

High quality Pump

With overload automatic unloading device,

and full-load descending speed limit device

Molded production, moderate price, stable quality;

high-strength polyurethane wheels is stable,

flexible, light, and free of magnetic fields and sparks;

CBY(NA)/25 Manual pallet truck technical parameters（Okukun Pump，Hopper Pump）
				CBY30	CBY25
1	load capacity/rated load		Q	3000	2500	kg
2	Fork overall width		B	520/685	520/685	mm
3	Fork length		L	1070/1220	1070/1220	mm
4	Fork width		e	150	150	mm
5	Lift Height(Min)		h	80	80	mm
6	Lift Height(Max)		h1	200	200	mm
7	Tyre size (steering wheel)			φ180×65	φ180×65	mm
8	Tyre size (Bearing wheel)	Single Wheel		φ78×100	φ78×100	mm
9	Tyre size (Bearing wheel)	Double Wheel		φ78×70	φ78×70	mm
10	Weight			75	68	kg
CBY(NA)/25 manual pallet truck technical parameters（Okukun Low chassis of Pump，Hopper Pump）
				CBY30	CBY25
1	load capacity/rated load		Q	3000	2500	kg
2	Fork overall width		B	520/685	520/685	mm
3	Fork length		L	1070/1220	1070/1220	mm
4	Fork width		e	150	150	mm
5	Lift Height(Min)		h	80	80	mm
6	Lift Height(Max)		h1	200	200	mm
7	Tyre size (steering wheel)			φ180×65	φ180×65	mm
8	Tyre size (Bearing wheel)	Single Wheel		φ78×100	φ78×100	mm
9	Tyre size (Bearing wheel)	Double Wheel		φ78×70	φ78×70	mm
10	Weight			75	68	kg
