3-1 Tape Wrapping Machine for Polymer Battery

Sales Manager: Andrea

Email: Andrea@tmaxlaboratory.com

Wechat: 18250801164



  • Warranty Two years limited warranty with lifetime technical support
  • Certificate CE, IOS, ROHS, SGS, UL Certificate

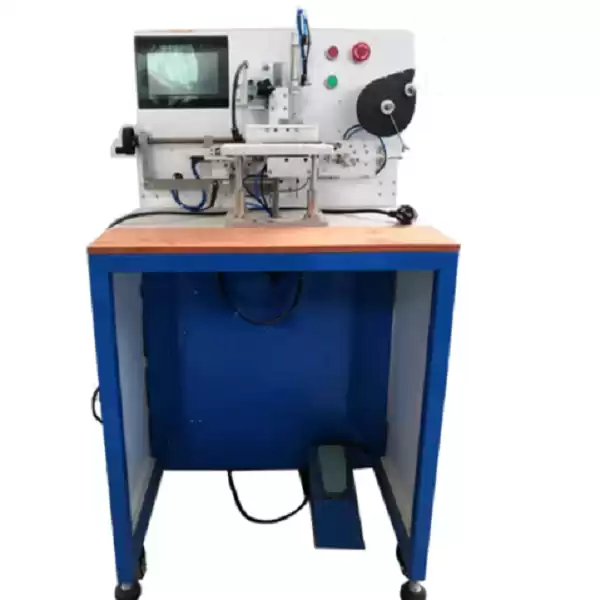

3-1 Tape Wrapping Machine for Polymer Battery


Introduction

1. The equipment is simple and easy to learn, easy to operate, with ultra-low failure rate. It is equipped with vacuum pump, which is very energy-saving.

2. The machine solves the insulation package of both sides, bottom, head and tab of polymer built-in battery

3. The adhesive tape has high consistency, improves efficiency and saves labor cost.

It is used for the insulation of both sides, bottom, head and tab of polymer built-in battery (including mobile phone electricity, mobile power supply, power battery, etc.).



Technical parameters:

Power Supply

220V 50Hz 30W

Air Pressure

0.4-0.8MPa

Applicable Battery Range

Polymer Cell

Gluing Length

30-140mm

Gluing Width

6-16mm

Cell Thickness

3-8mm

Capacity

1200-1500 times/h

Overall Dimension

600*700*1280mm

Weight

60KG





 Tmax CE

 TMAX Partner

CVD furnace


tube furnace


muffle furnace



1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
