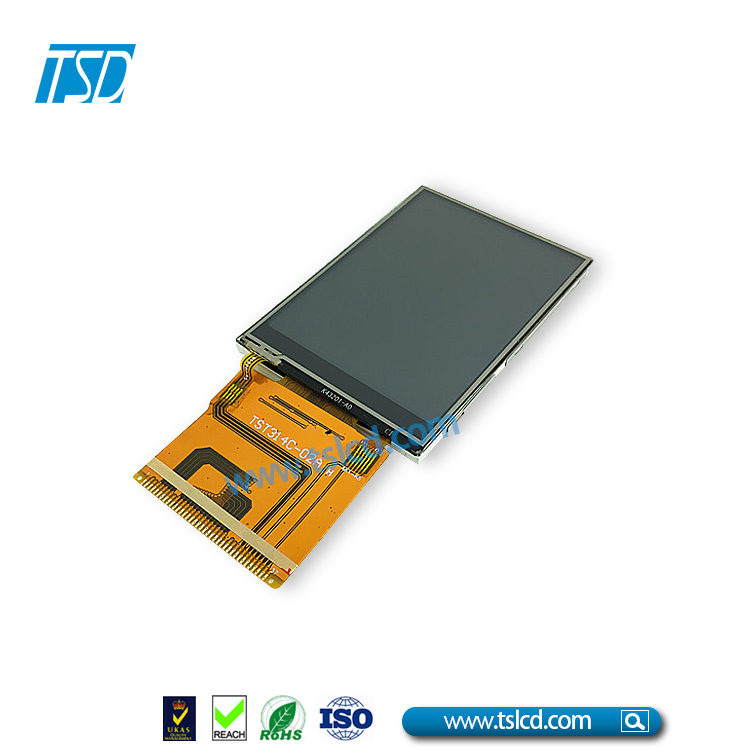

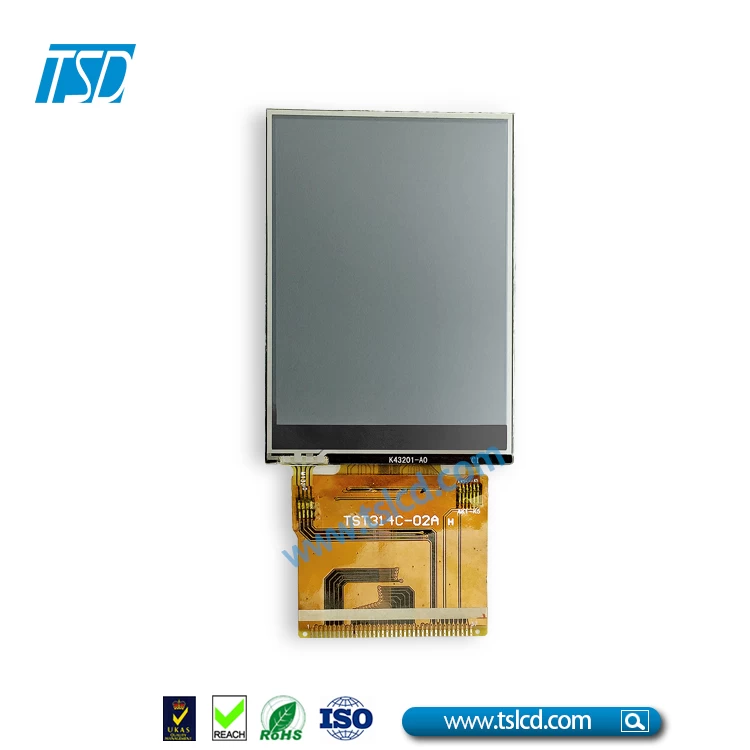

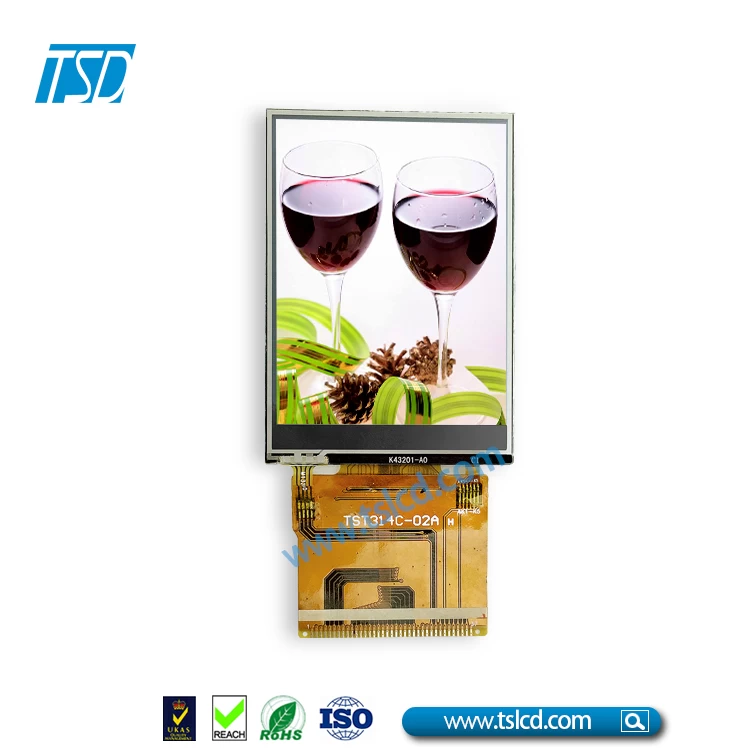

3.2" inch TFT display module with 37 pins solder

3.2" inch TFT display module with 37 pins solder


Facebook Twitter Pinterest LinkedIn 分享
Specification
LCD type 3.2 inch TFT,Transmissive
Display type 3.2 inch TFT, 262k color, normal white
Description 3.2 inch tft lcd
Driver element a-si TFT Active matrix
Outline Dimension(mm) 55.04x77.7x3.65
A.A.(mm) 47.87*63.84
Driver IC ST7789V
Resolution QVGA 240*RGB*320
Viewing Direction 6H
Operating temperature(°C) -20-70
Storage temperature(°C) -30-80
Operating Voltage 2.8v
Pixel arrangement RGB Vertical Stripe
Display mode Normally white
Surface treatment Antiglare, Hard-Coating(3H)
Weight(g) TBD
Backlight 6 LEDs, White
Weight(g) TBD
Interface  MCU 16 bits
Touch panel without
Module lifetime(Hours) 50,000-100,000
