3.2 Inch 240X320 Resolution IPS Touchscreen TFT LCD China Manufacturer
It is a 3.2" 240x320 high resolution IPS touchsceen TFT products. Here is the differences of between the capacitive touch and resistive touch. Resistive touchscreen displays are commonly found in industrial controls, composing of many layers and have a plastic front surface. When the moment the screen is pressed, it's activated by the conductive material on the inner side. Once contacted, the layers of the resistive screen inform the system of the touch position and its coordinates. However, capacitive screens are shaped by an electrically charged layer that corresponds to commands by the exchange of electrons. It calculates coordinates without the demand to apply pressure, transforming them into commands.
Small Size Touchscreen TFT LCD
Product Parameters
| Display Type |
TFT Display |
| Display Size |
3.2 Inch |
| View Angle |
IPS/TN |
| Resolution |
240x240 |
| AA |
64.8x48.6mm |
| Backlight Color |
White LED |
| Brightness |
450cd/m2 |
| Interface |
I2C/SPI/MIPI/LVDS/RGB/MCU/UART |
| Control IC |
ST7789V2 |
| Connector |
FPC |
| Operating Temperature |
-20-70°C |
| Operating Voltage |
2.8V |
| Touch Panel |
Capacitive/Resistive |
| Requirements On Environmental Protection |
ROHS HSF |

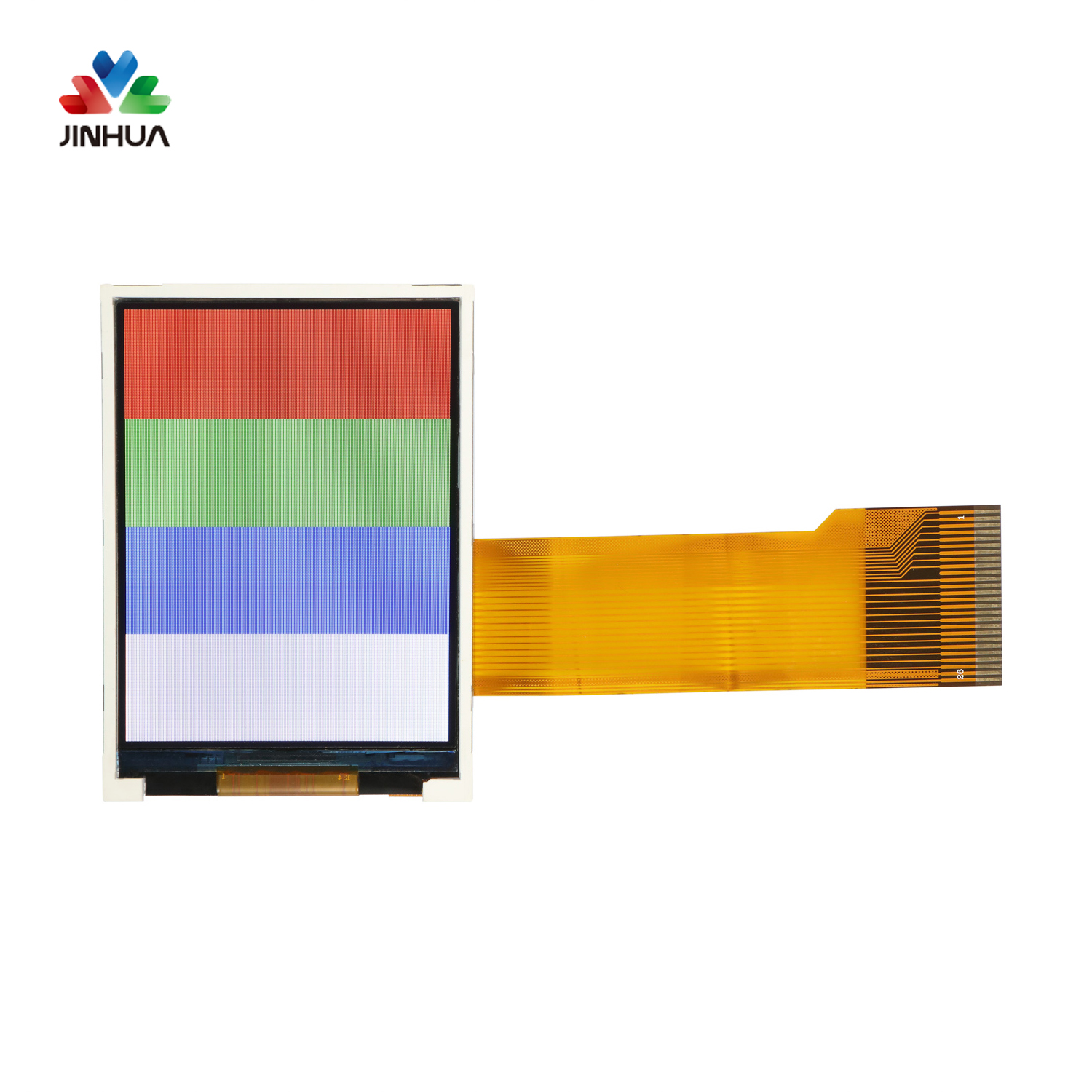

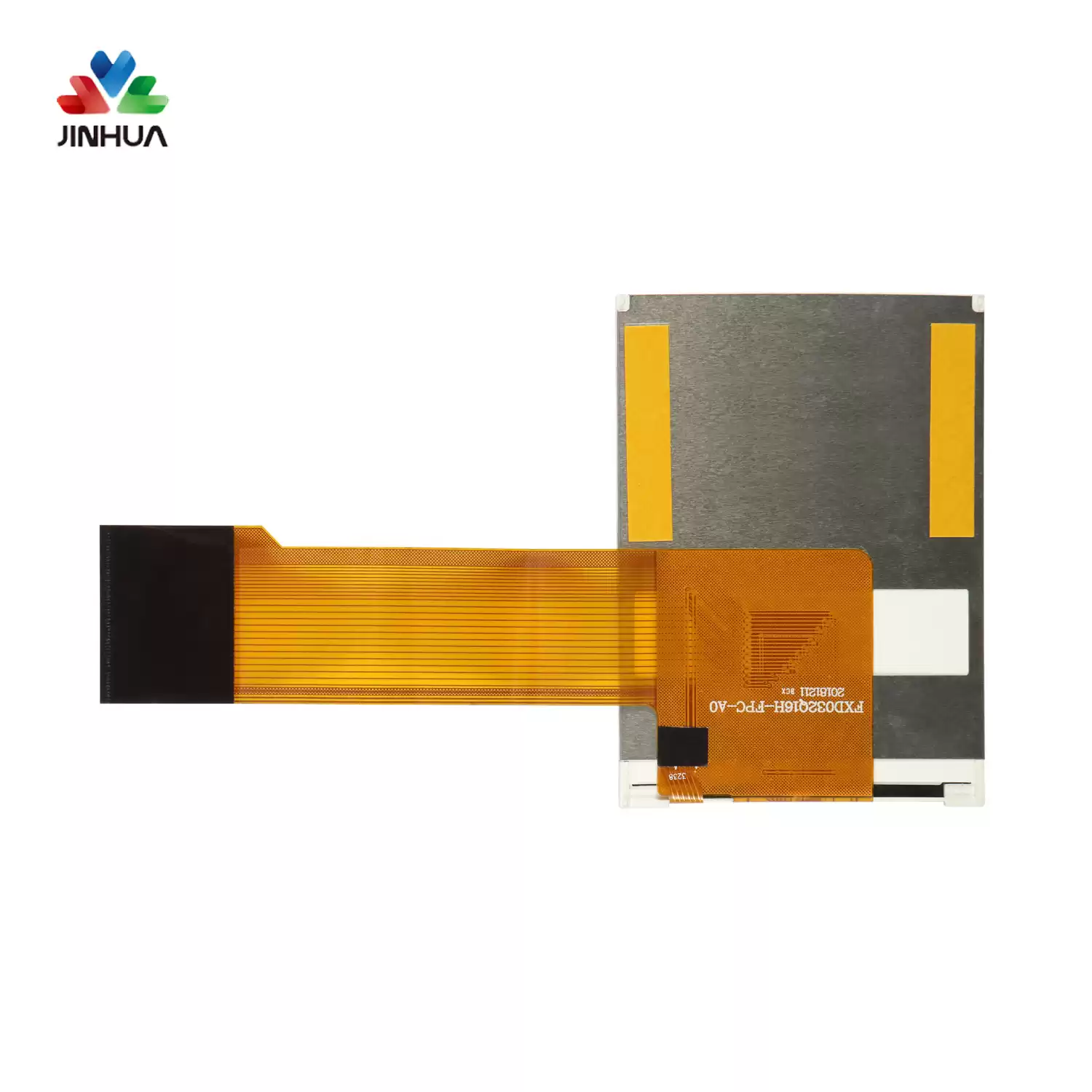

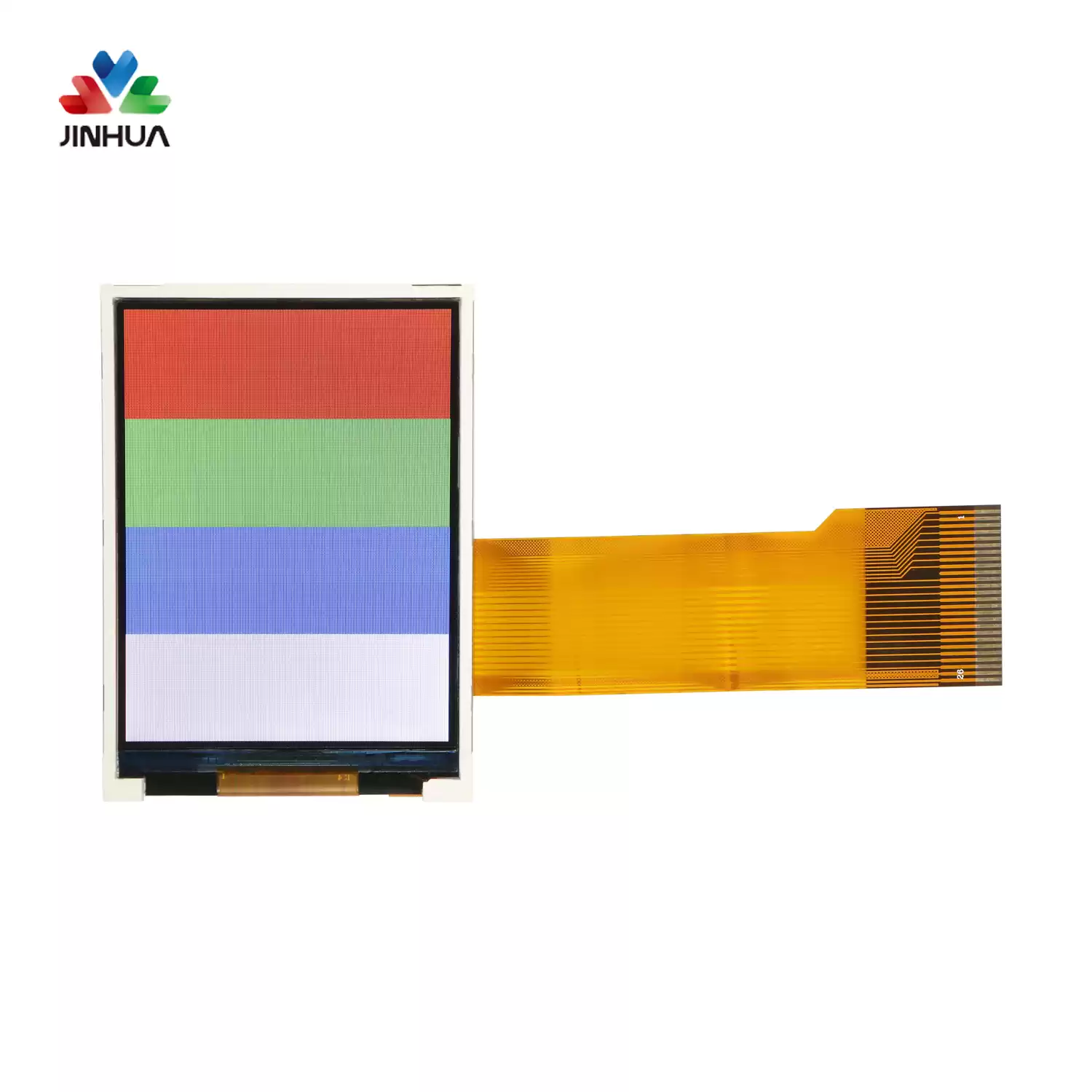

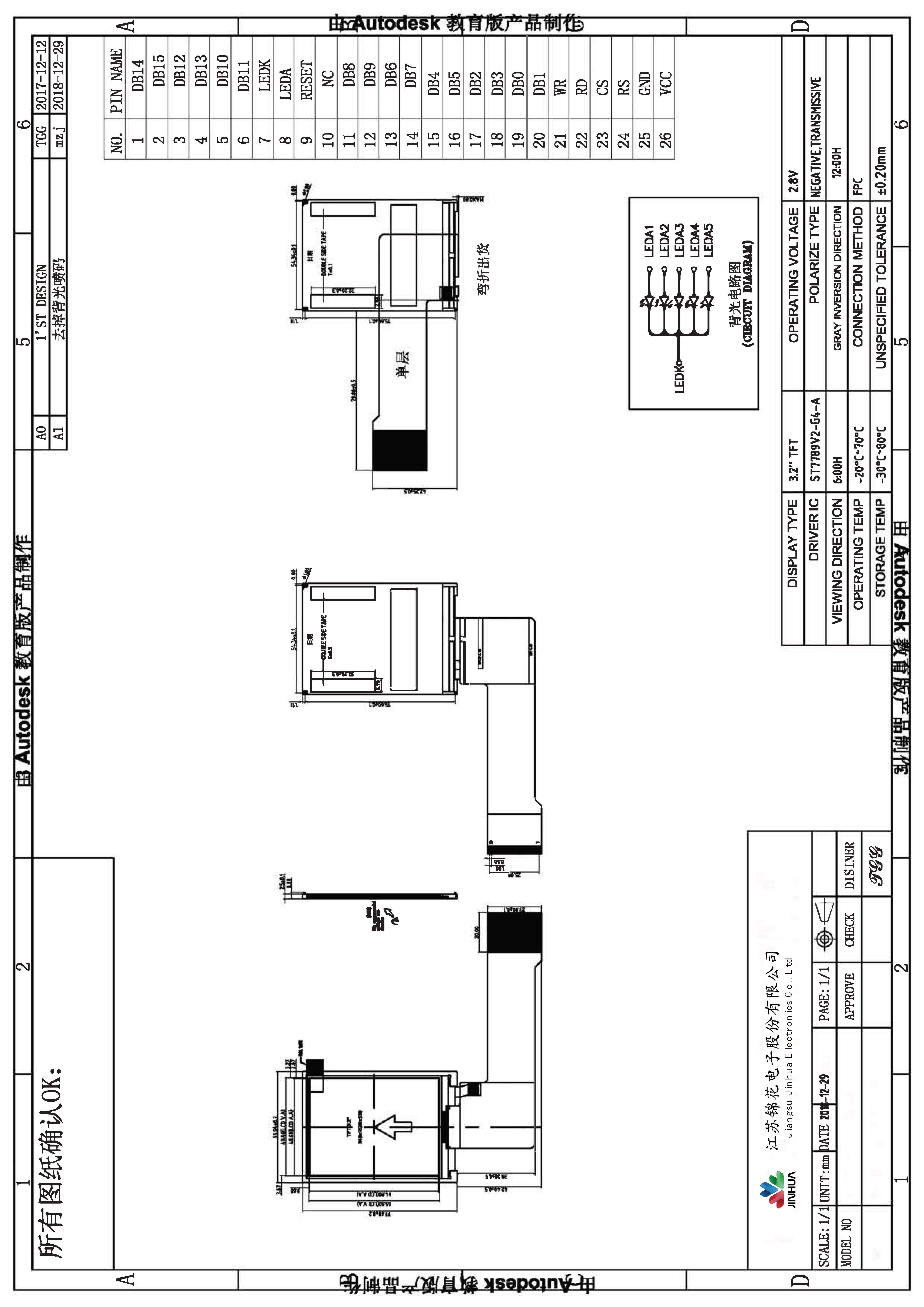

Detailed Picture
Features
Δ Wide Viewing Angle
Δ All Kinds Of Emitted Colors And Size
Δ I.C. Compatible
Δ Low Power Consumption
Δ Long Lifespan
Δ RoHS Compliant
Δ High Luminance
Δ Wide Range Working Temperature
Application
Small Size Touchscreen TFT are found in many applications nowadays, from medical devices, instrumentation, mobile devices, appliance, aircraft and TV's as well as certainly computer display devices . The addition of the TFT in LCD design vastly incresed the use of LCD's in all market areas.
