3.2 inch touch color lcd screen with 16bit MCU interface ST7789V IC 37 PIN

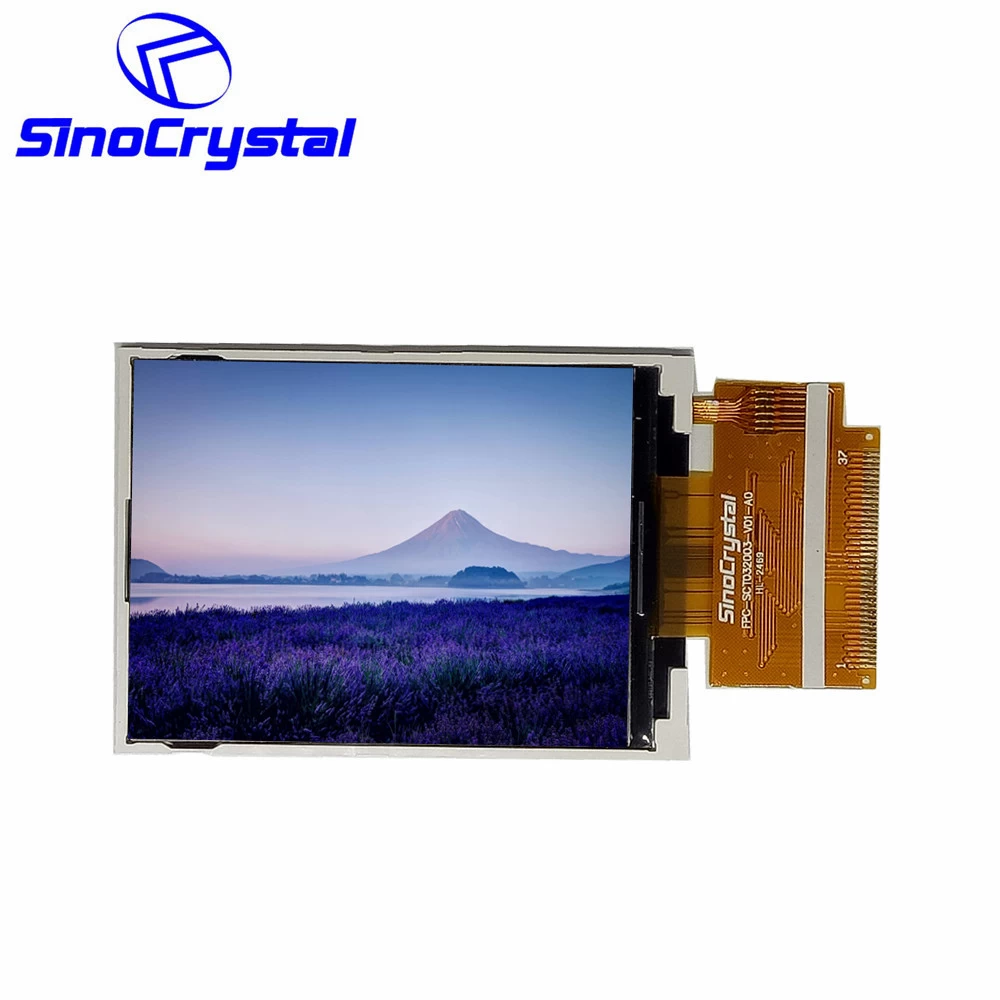

SCT028008-V19 is a 3.2 inch touch screen TFT LCD Display with 240RGB*320 resolution, it built in with ST7789V IC, and it supports 16bit MCU interface, 37 PIN, 12 o'clock view direction

  • Brightness (cd/m²)300
  • IC Part No.ST7789V
  • Interface16bit MCU
  • View Direction12
  • Viewing Area (mm)49.4*65.60
  • Active Area (mm)48.6*64.8
  • Outline Dimension (mm)55.04*77.70*2.40
  • Resolution240*320
  • Touch ScreenRTP
  • Temperature (℃)-20°C~70°C
Facebook Twitter Pinterest LinkedIn 分享

Basic Information


Resolution:                    240RGB*320

Outline Dimension:       55.04*77.70*2.40

Active Area:                  48.60*64.80

View area:                     49.4*65.60

Interface:                      16bit MCU

Driver IC:                       ST7789V

View Direction:              12 o'clock

PIN:                                37

Backlight:                      White LED

Touch Screen:               Can add a Resistive Touch Screen

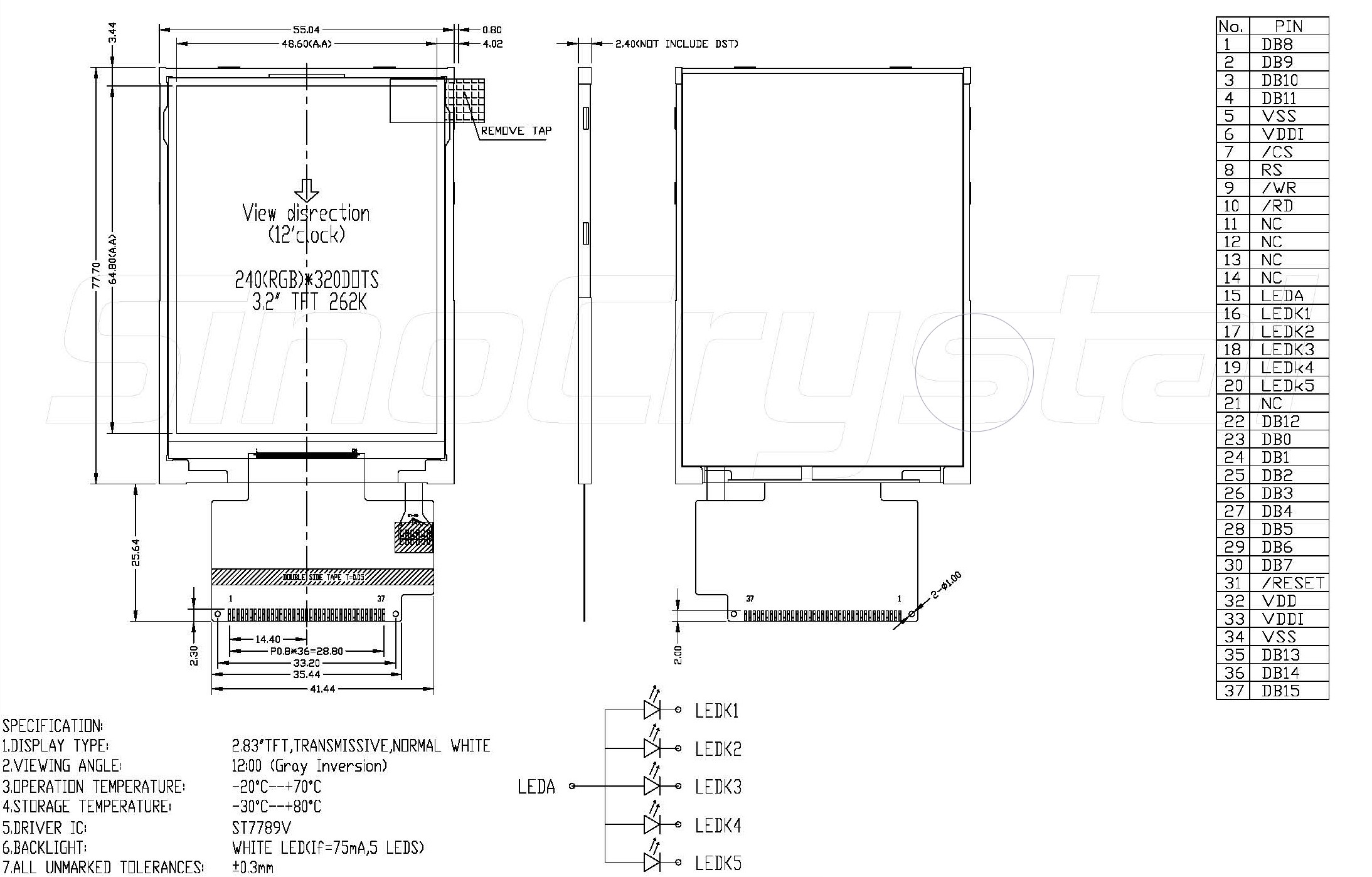

Drawing






General Specification


Item Nominal Dimension Unit
Dot Matrix 240 x RGB x 320 Dots
Module Size ( W×H×T ) 55.04 x77.70 x 2.40 mm.
Active Area ( W×H ) 48.60 x 64.80 mm.
Pixel arrangement RGB Stripe mm.
Dot Pitch ( W×H ) 0.2025 x 0.2025 mm.
Color depth 262K(MAX) colors
Interface 16bit MCU -
Driving IC Package COG -
Operating temperature -20 ~70 ºC
Storage temperature -30~80 ºC
LCD Type a-Si TFT -
LCD Mode TN/Normal White -
Backlight Type LED x 5 PCS




Interface Definition


Pin No Pin Symbol Level Description
1--4 DB8-DB11 H/L Data bus
5 GND 0V Ground
6 VDDI 1.65-3.3V Power supply for Interface Operation
7 /CS H/L Chip Select signal
8 RS H/L Register select signal. 0:index register; 1: data register
9 /WR H/L Write signal
10 /RD H/L Read signal
11--14 NC - No connect
15 LEDA - LED light, anode
16 LEDK1 - LED light, cathode.
17 LEDK2 - LED light, cathode.
18 LEDK3 - LED light, cathode.
19 LEDK4 - LED light, cathode.
20 LEDK5 - LED light, cathode.
21 NC - No connect
22 DB12 H/L Data bus
23-30 DB0-DB7 H/L Data bus
31 /RESET H/L
 Chip reset signal
32 VDD 2.4-3.3V Power supply for System
33 VDDI 1.65-3.3V Power supply for Interface Operation
34 GND 0V Ground
35-37 DB13-DB15 H/L Data bus
