3-3.5Ton Electric AGV Forklift

Anhui Yufeng Intelligent Technology Co., Ltd. specializes in manufacturing all kinds of AGV car bodies, including stackable AGV car body, balance weight AGV car body, forward AGV car body, three-way forklift AGV car body, 3-3.5ton AGV Electric Forklift AGV etc., with one-to-one technical support, rapid drawing and stable delivery.

  • BrandEFORK
  • Warrantyone year
Facebook Twitter Pinterest LinkedIn 分享

Product Name:3-3.5Ton Electric AGV Forklift


Product Advantage

The 3.5 ton heavy load balanced forklift AGV is a structure of a front wheel and two directional wheels driven / turned. It is suitable for transporting various pallets, boxes or paper rolls and other materials, and can meet different size load units.

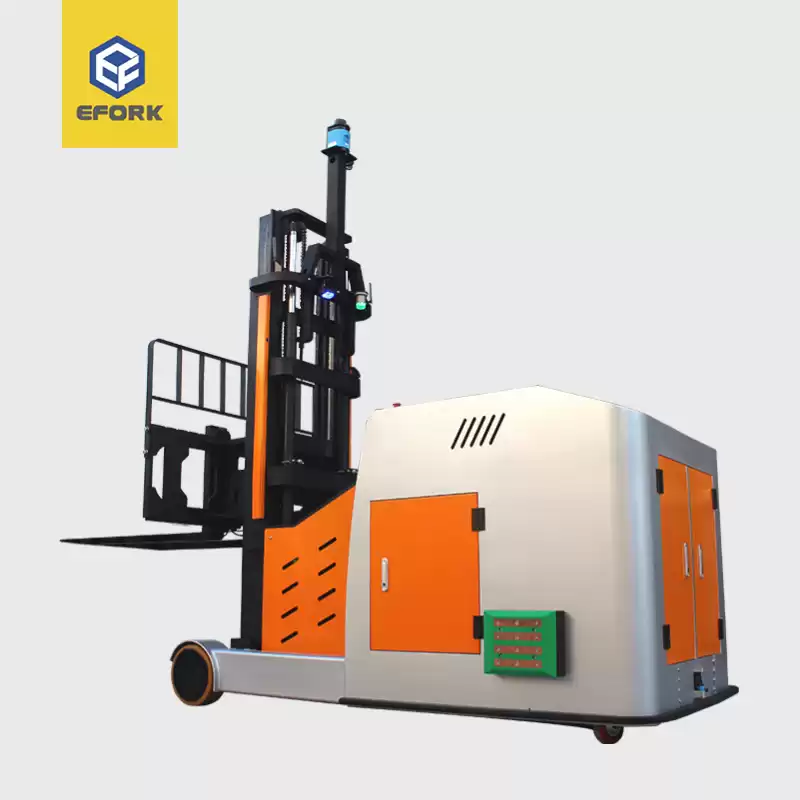

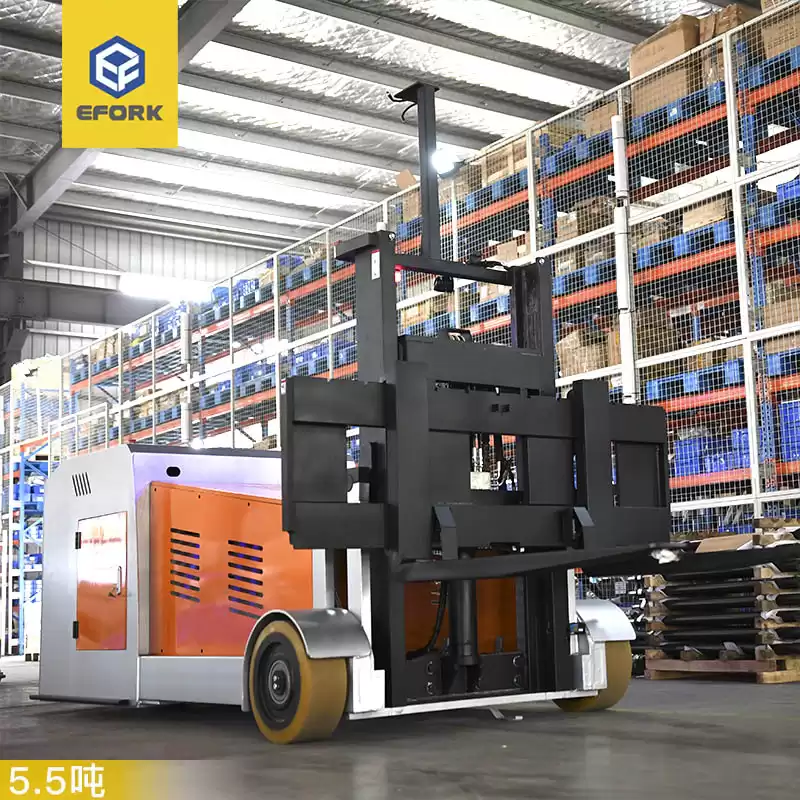

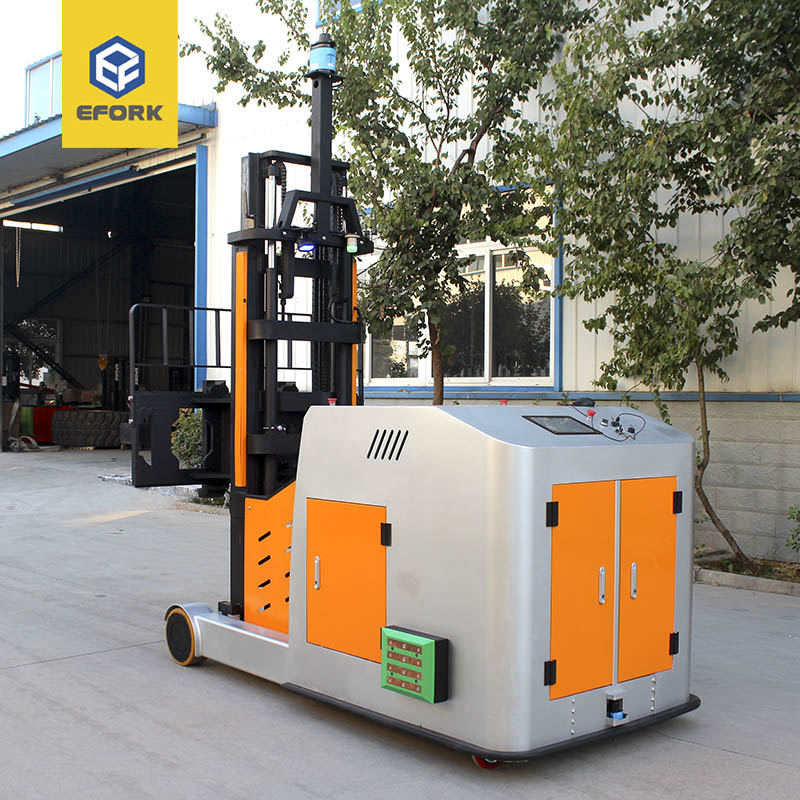

Product Display


3-3.5Ton Electric Forklift AGVElectric Forklift AGV


Product Data

CDD*BJ01-30




Navigation mode Laser navigation
control mode）  intelligent motion control system
Lift height mm 3000
Rated load kg 1000~3000
Load center mm 500

Sports performance 		Running speed m/min 50
Operating temperature ℃ -10℃-40℃
Orientation accuracy mm ±10mm
Accuracy of stop mm ±20mm

(Secondary positioning is needed for higher accuracy)
Direction of travel duoble way

Lifting speed (loaded / unloaded) 		mm/s -

（Descent speed (loaded / unloaded)） 		mm/s -
（Minimum turning radius (excluding AST)） mm 2100
（Stacking channel (1200 fork * 1000)） mm 3850(Contain Ast)

（Performance of lithium battery） 		Rated voltage V 48
electric capacity Ah 300(可定制) (Customizable)

（Number of charge discharge cycles） 		PC 1500
Endurance time h It runs for about 8 hours
Charging time h 1-2
safety protection Laser obstacle avoidance （YES）
Pallet in place inspection （YES）
Inspection of fork tooth infrared sensor （YES）
Emergency stop button （YES）
Sound and light alarm （YES）
Mechanical collision avoidance （YES）
