3.5" EPIC Embedded Motherboard 2LAN6COM10USB Single Board Computer
Product Introduction
The EP3-S6DL26A is a 3.5” EPIC Embedded motherboard for low power consumption, small footprint, silent and dust-proof embedded industrial PC.
3.5” embedded boards measure 146 x 102mm and feature fanless and low profile compact designs, ultra low or low power consumption, coastline connectors along the PCB edge, rich I/O and expansion ability, high shock and vibration resistance, and extended temperature options. 3.5” embedded boards are the best choice for high performance or space limited applications.
Product Features
■ Soldered on-back Intel®Skylake Useries i3/i5/i7 CPU
■ 2LAN(gigabit Intel network)
■ VGA, HDMI, LVDS display interface
■ 6COM
■ 8USB2.0, 2USB3.0
■ 8 bit GPIO
■ 1 MSATA, 1 Mini PCIE expansion
|
Specification
|
|
CPU/GPU
|
Soldered on-back Intel® Skylake/Kabylake 6th/7th generationUseriesi3/i5/i7 CPU
|
|
Memory
|
1 x DDR4 SO-DIMM notenook memory slot,up to 16GB SDRAM
|
|
Storage
|
1×SATA，1个M-SATA
|
|
Audio
|
Realtek HD Audio
|
|
Ethernet
|
2 LAN Intel gigabit network
|
|
Graphics Board
|
CPU integrated graphics card
|
|
Display
|
1×VGA, 1×HDMI；1× LVDS
|
|
USB2.0
|
8
|
|
USB3.0
|
2
|
|
GPIO
|
8bits（4 in 4 out)
|
|
COM
|
6COM
|
|

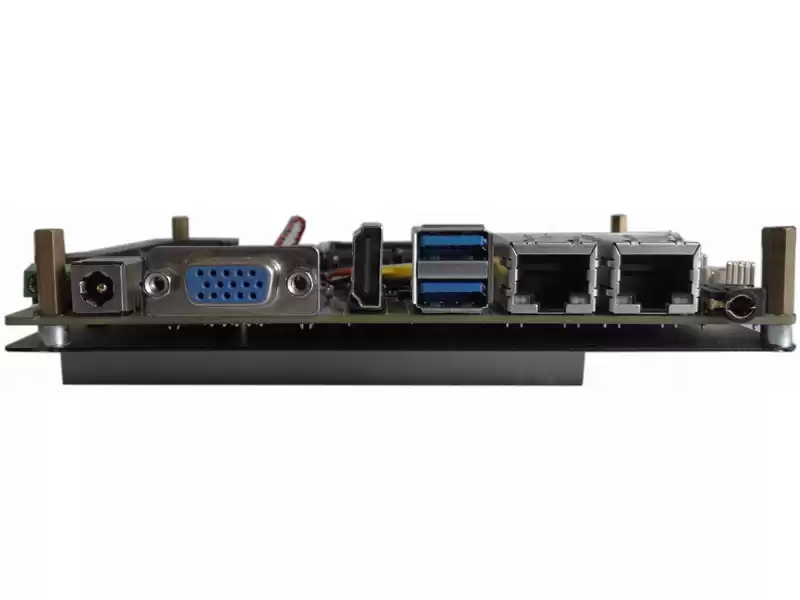

BackplanI / O
|
DC in, VGA, HDMI, 2USB3.0, 2 RJ45LAN, Line-out
|
|

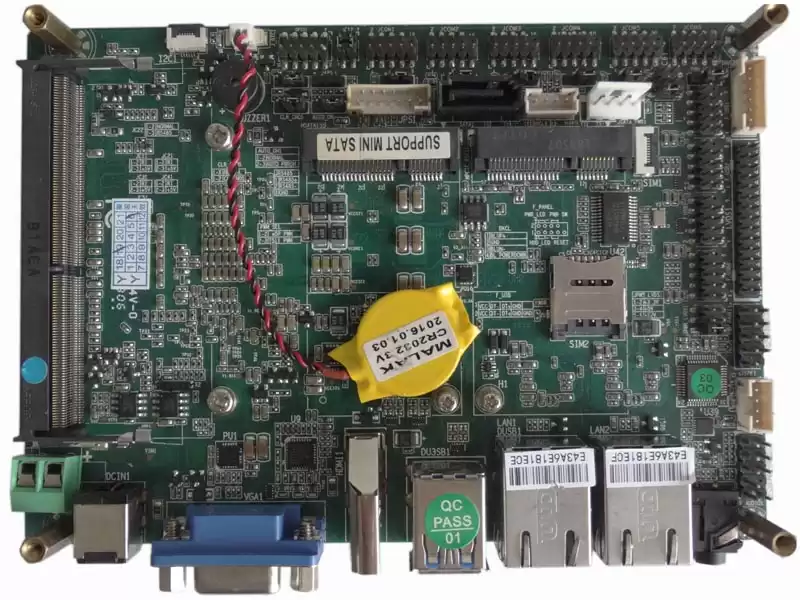

BoardI / O
|
8USB2.0 , 6 COM , front audio , CLR_CMOS , CPU fan power , System fan power ,GPIO, Front panel , Speaker, SIM Socket, DC in, LVDS, inver
|
|
Expansion
|
1 MSATA, 1 MINI PCIE
|
|
System
|
Support Windows(WIN 7, WIN 10...), Linux
|
|
Mechanical & Environmental
|
|
Power Supply
|
DC 12V
|

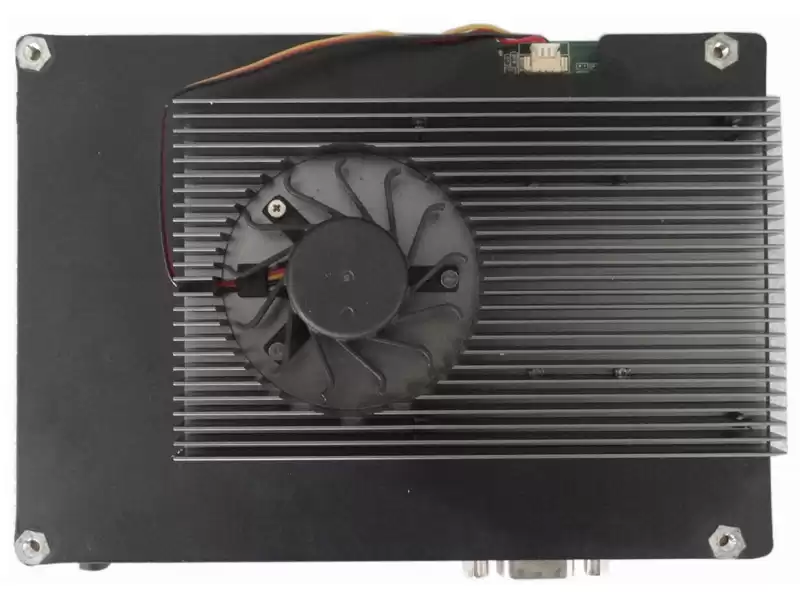

Heat dissipation
|
Fan
|
Size(L×W)
|
146mm×102mm
|
|
Working temperature
|
-15~55℃
|
Storage temperature
|
-40~75℃
|
Environmental humidity
|
0~90%air humidity,no condensation
|
|
Packing list
|
EP3-S6DL26Amotherboard×1, SATA data cable×1, SATApower cable×1, COMcanle x1
|
|
Order Information
|
|
EP3-S6I3DL26A
|
Soldered on-board I3 U CPU
|
|
EP3-S6I5DL26A
|
Soldered on-board I5 U CPU
|
|
EP3-S6I7DL26A
|
Soldered on-board I7 U CPU
|
Our Advantages
1. As a professional manufacturer/ OEM Factory and supplier of Mini PC/ motherboard,firewall appliance over 15 years,Affinicate member of intel League.gain greatly supports from intel.And we win our customers with good quality,best service and factory price.
2.Our products are 100% original and have strict QC inspection before shipment.
3.Professional and efficient sales team to serve for you diligently.
4.Sample order is welcomed and will be delivered within 1-3 days.
6.We support Trade Assurance to ensure On-time shipment and product quality.
7.We provide OEM/ODM service according to your requirements.
8.We provide 2 years maintenance warranty for our products.
FAQ
1.Q: What's the Minimum Order Quantity(MOQ)?
A: Just 1 piece is OK.
2.Q: Are you a factory or a trading company?
A: We are one of the professional computer manufacturers located in Shenzhen, China.
3.Q: What about the after-service?
A: Two-year warranty except human error. As for the following 2 years, we can repair it for free, but charge for parts is needed. please contact us at any time when necessary. We besides our professional technicians are at your service.
4.Q: Can you provide DIY/OEM/ODM service?
A: Yes, please advise the CPU, memory, SSD or HDD, WIFI, interface ports and OS, the package box and housing(outer shell)as you wish, prices will be varied according to the quantity and specification.
