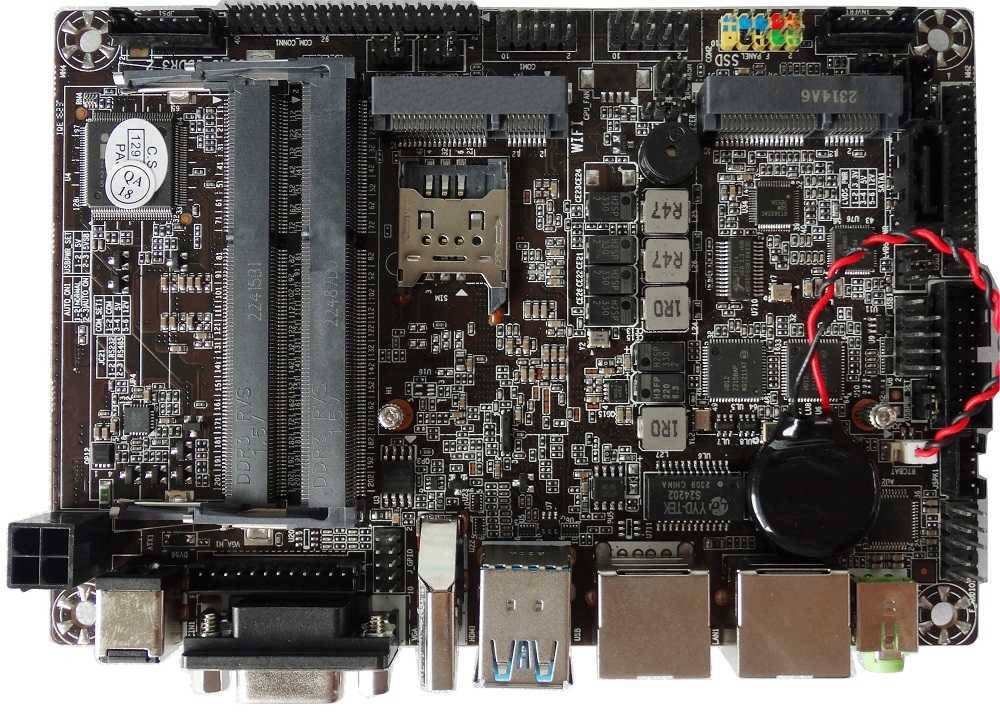

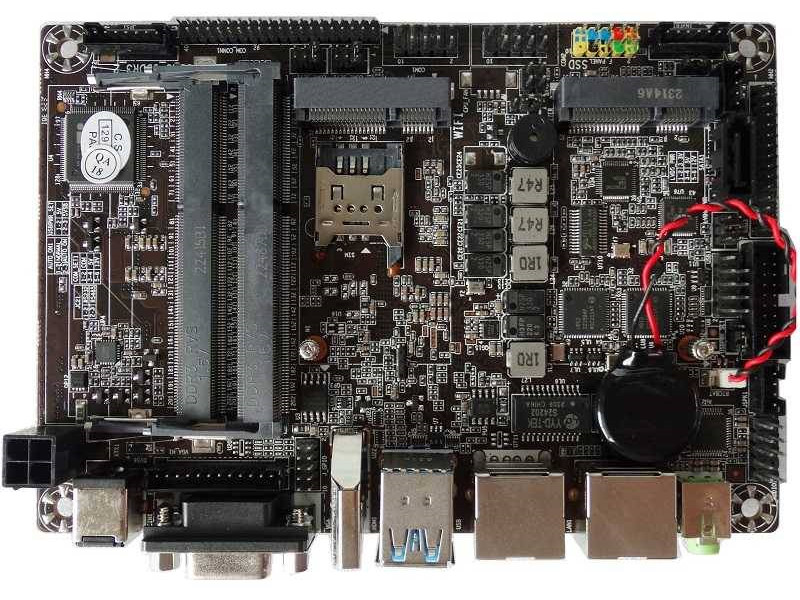

3.5" EPIC Embedded Motherboard i5 6200U CPU 2LAN 6COM 6USB

EP3-6200DL266/168

3.5" EPIC Embedded Motherboard, Solder on Backplane Intel® I5 6200U CPU,2LAN 6COM 6USB or 1LAN 6COM 8USB, intel i211/i210 net chip



3.5 EPIC Embedded Motherboard Intel® I5 6200U CPU, 2LAN 6COM 6USB, intel i211/i210 net chip

Product Introduction

The 3.5" EPIC Embedded Motherboard is a powerful and compact solution designed to meet your computing needs with exceptional performance and reliability. Equipped with a high-performing Intel® i5 6200U CPU soldered onto the backplane, this motherboard ensures seamless processing and enhanced efficiency for your embedded applications.

Versatility is at the core of our design, providing you with the flexibility to choose between two configurations. You can opt for the dual LAN, six COM, and six USB ports option, or select the single LAN, six COM, and eight USB ports variant, catering to your specific connectivity requirements.

Whether you're developing industrial automation systems, digital signage, kiosks, or any other embedded applications, our 3.5" EPIC Embedded Motherboard is engineered to deliver superior performance, unmatched stability, and extended product life cycles, making it the perfect choice for your next project. Stay ahead of the technological curve with this advanced motherboard, where innovation meets reliability.



Product Features

■ Solder on backplane Intel® Skylake i5 6200U CPU

■ 2 or 1×LAN Intel gigabit network, i211/i210 chip

■ VGA, HDMI, LVDS interface

■ 6×COM RS232

■ 2USB2.0, 4USB3.0(4 each for 1LAN)

■ 8 bit GPIO

■ 1 MSATA, 1 Mini PCIE expansion

EPIC Embedded Motherboards

Intel® i5 6200U CPU EPIC Embedded Motherboards



Specification

CPU/GPU

Solder on backplane Intel® Skylake i5 6200U CPU

Memory

2 x DDR4 SO-DIMM notebook slot,up to 32GB SDRAM

Storage

1×SATA,1个M-SATA

Sound Card

Realtek HD Audio

LAN

2 LAN Intel gigabit network,optional 1LAN, intel i211 chip

Graphic Card

CPU integrated graphic

Display interface

1×VGA, 1×HDMI;1× LVDS

USB2.0

2(4 for 1LAN)

USB3.0

4

GPIO

8 bits(4 in  4 out)

COM

6×COM RS232

Backplane  I / O

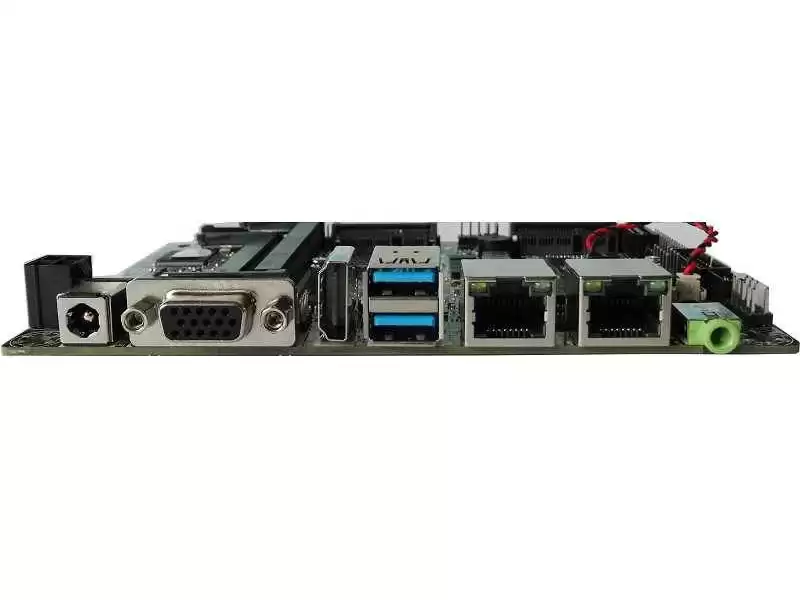

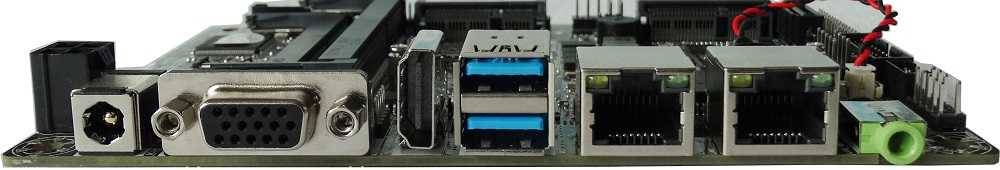

DC in,  VGA,  HDMI,  2USB3.0,  2 RJ45LAN,  Line-out

BoardI / O

2USB2.0 , 2USB3.0 , 6COM,  front audio , CLR_CMOS , CPU fan power , System fan power ,GPIO,  Front panel,  Speaker, SIM Socket, DC in,  LVDS,  invter

Expansion

1 MSATA,  1 MINI PCIE

System

Support Windows(WIN 7,  WIN 10...),  Linux

Mechanical & Environmental

Power supply

DC 12V

Heat dissipation

Heat sink

Size(L×W)

146mm×102mm

Working temperature

-15~55℃

Storage temperature

-40~75℃

Environmental humidity

0~90%air humidity,non-condensing

Packing List

EP3-6200DL266 motherboard×1,   SATA data cable×1,   SATA power cable×1,  COM cable×1

Order Information

EP3-6200DL266

2LAN 6COM 6USB

EP3-6200DL168

1LAN 6COM 8USB



Our Advantages

1. As a professional manufacturer/ OEM Factory and supplier of Mini PC/ motherboard,firewall appliance over 15 years,Affinicate member of intel League.gain greatly supports from intel.And we win our customers with good quality,best service and factory price.

2.Our products are 100% original and have strict QC inspection before shipment.

3.Professional and efficient sales team to serve for you diligently.

4.Sample order is welcomed and will be delivered within 1-3 days.

6.We support Trade Assurance to ensure On-time shipment and product quality.

7.We provide OEM/ODM service according to your requirements.

8.We provide 2 years maintenance warranty for our products.



FAQ

1.Q: What's the Minimum Order Quantity(MOQ)?

A: Just 1 piece is OK.

2.Q: Are you a factory or a trading company?

A: We are one of the professional computer manufacturers located in Shenzhen, China.

3.Q: What about the after-service?

A: Two-year warranty except human error. As for the following 2 years, we can repair it for free, but charge for parts is needed. please contact us at any time when necessary. We besides our professional technicians are at your service.

4.Q: Can you provide DIY/OEM/ODM service?

A: Yes, please advise the CPU, memory, SSD or HDD, WIFI, interface ports and OS, the package box and housing(outer shell)as you wish, prices will be varied according to the quantity and specification.
