3.5 inch CTP touch screen display with 320RGB*240 24bit RGB with Serial Interface HX8238 IC 54 PIN

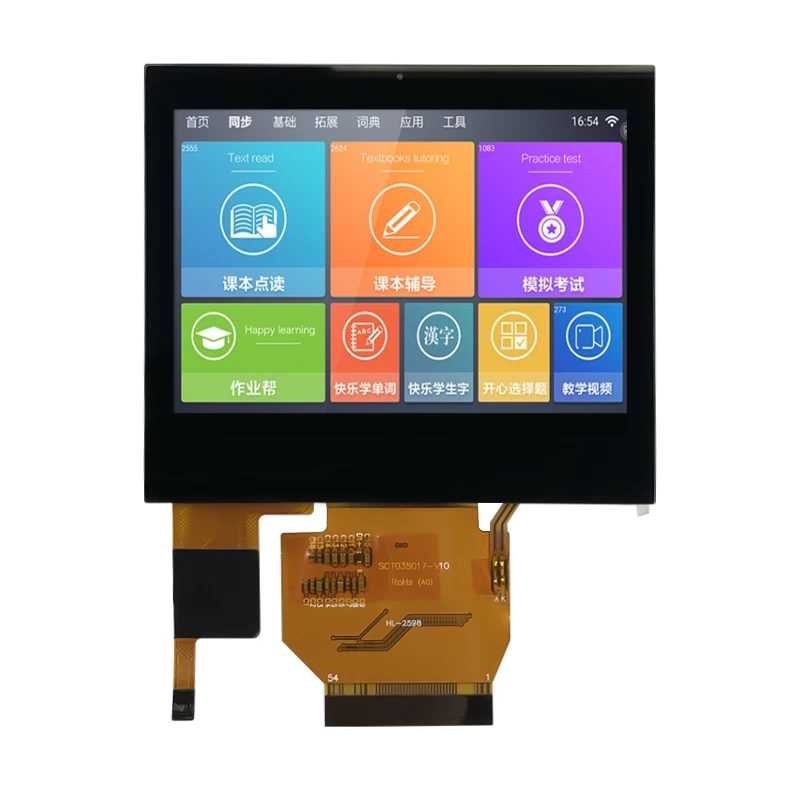

SCT035017-V01 is a 3.5 inch CTP TFT LCD Display with 320RGB*240 resolution, it built in with HX8238-D IC, and it supports 24bit RGB with Serial Interface, 54 PIN, 6 o'clock view direction

  • Brightness (cd/m²)300
  • IC Part No.HX8238-D
  • InterfaceSPI
  • View Direction6
  • Active Area (mm)70.08*52.56
  • Viewing Area (mm)-
  • Outline Dimension (mm)76.90*63.90*6.05
  • Resolution320*240
  • Touch ScreenCTP
  • Temperature (℃)-20°C~70°C
Facebook Twitter Pinterest LinkedIn 分享

Basic Information


Resolution:                    320RGB*240

Outline Dimension:       76.90*63.90*6.05

Active Area:                  70.08*52.56

Interface:                      24bit RGB with Serial Interface

Driver IC:                       HX8238

View Direction:             6 o'clock

PIN:                                54

Backlight:                      White LED

Touch Screen:              Capacitive Touch Panel






Drawing




General Specification

Item Nominal Dimension Unit
  Dot Matrix 320 x RGB x 240 Dots
  Module Size ( W×H×T ) 76.90*63.90*3.27 mm.
  Active Area ( W×H ) 70.08*52.56 mm.
  Color depth 262K(MAX) colors
  Interface 24bit RGB with Serial Interface
 -
  Driving IC HX8238-D -
  Operating temperature -20 ~70 ºC
  Storage temperature -30~80 ºC
  LCD Type Active maritx TFT, Transmissive type  -
  LCD Mode TN / Normal White -
  Backlight Type LED x 6 PCS




Interface Definition


Pin No Pin Symbol Level Description
1 LED- - LED light, cathode
2 LED- - LED light, cathode
3 LED+ - LED light, anode
4 LED+ - LED light, anode
5 GND 0V Ground
6 RESET H/L Reset signal
7 NC - Not use
8 NC - Not use
9 NC - Not use
10 NC - Not use
11 NC - Not use
12 B0 H/L Blue Data
13 B1 H/L Blue Data
14 B2 H/L Blue Data
15 B3 H/L Blue Data
16 B4 H/L Blue Data
17 B5 H/L Blue Data
18 B6 H/L Blue Data
19 B7 H/L Blue Data
20 G0 H/L Green Data
21 G1 H/L Green Data
22 G2 H/L Green Data
23 G3 H/L Green Data
24 G4 H/L Green Data
25 G5 H/L Green Data
26 G6 H/L Green Data
27 G7 H/L Green Data
28 R0 H/L Red Data
29 R1 H/L Red Data
30 R2 H/L Red Data
31 R3 H/L Red Data
32 R4 H/L Red Data
33 R5 H/L Red Data
34 R6 H/L Red Data
35 R7 H/L Red Data
36 HSYNC H/L Horizontal Sync Input
37 VSYNC H/L Vertical Sync Input
38 PCLK H/L Pixel Dot Data Clock
39 NC - Not use
40 NC - Not use
41 VCI P Power supply
42 VCI P Power supply
43 SPENA H/L SPI Interface Chip Select
44 GND 0V Ground
45 NC - Not use
46 GND 0V
 Ground
47 NC - Not use
48 NC - Not use
49 SPCLK H/L SPI Interface Data Clock
50 SPDAT H/L SPI Interface Data
51 NC - Not use
52 DE H/L Data Enable Input
53 GND 0V Ground
54 GND 0V Ground
