LCD type
|
3.5" tft lcd , Transmissive
|
|
Display type
|
3.5" TFT 262k color, normal white
|
|
Item description
|
3.5 inch IPS TFT
|
|
Driver element
|
a-si TFT Active matrix
|
|

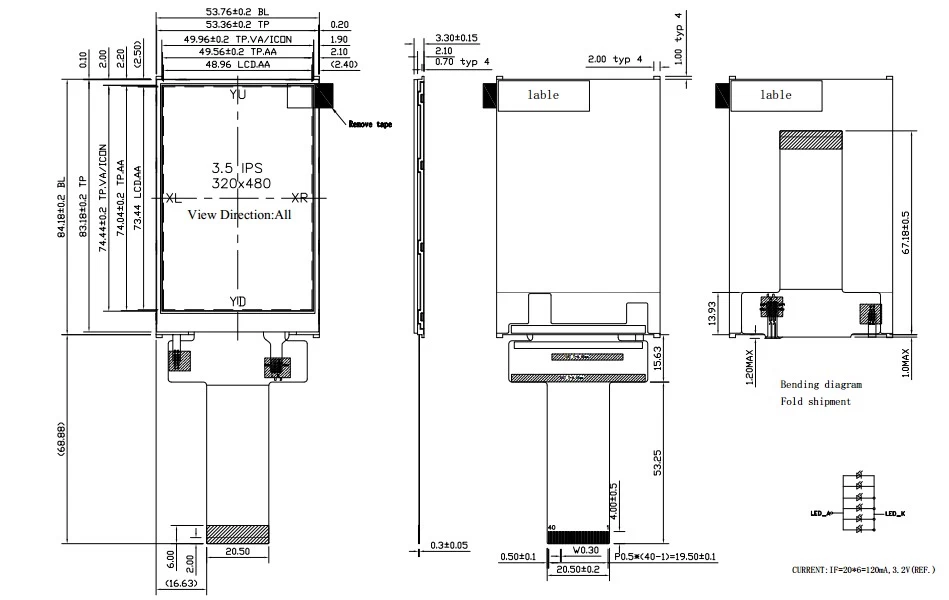

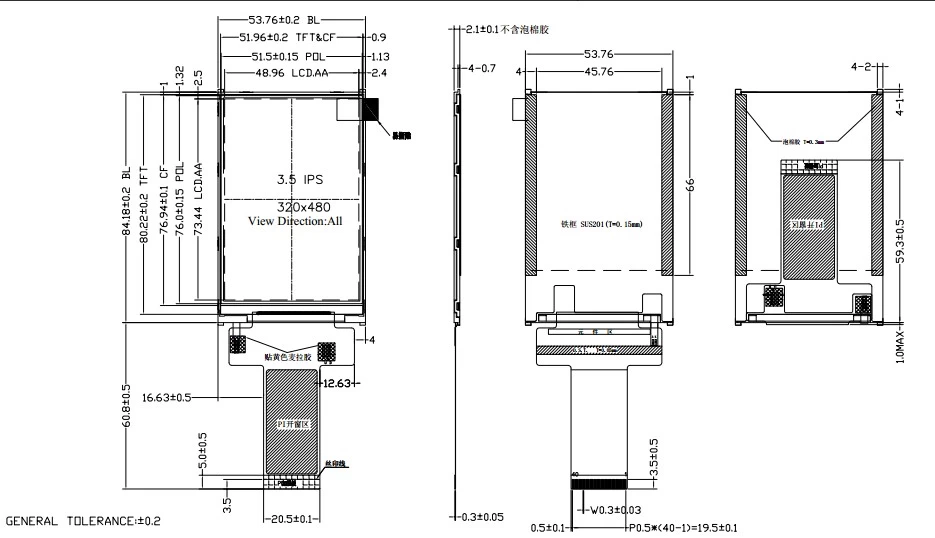

Outline Dimension(mm)
|
51.96mm*80.22mm*2.1m
|
|
A.A.(mm)
|
48.96mm*73.44mm
|
|
Driver IC
|
ILI9488
|
|
Resolution(dots)
|
320x480 resolution
|
|
Viewing Direction
|
80/80/80/80
|
|
Operating temperature(°C)
|
-20-70
|
|
Storage temperature(°C)
|
-30-80
|
|
Number of Pixel(pixels)
|
320(H)x 3RGB x 480(V)
|
|
Luminance
|
300 cd/m2
|
Number of pins
|
40
|
|
Pixel arrangement
|
W-stripe
|
|
Display mode
|
Normally white
|
|
Interface
|
RGB
|
|
Backlight
|
White
|
|
Weight(g)
|
TBD
|
Color depth
|
65K
|
|
Module lifetime(Hours)
|
50,000-100,000
|
3.5 inch IPS lcd display HVGA 320x480 resolutiond with RGB interface
