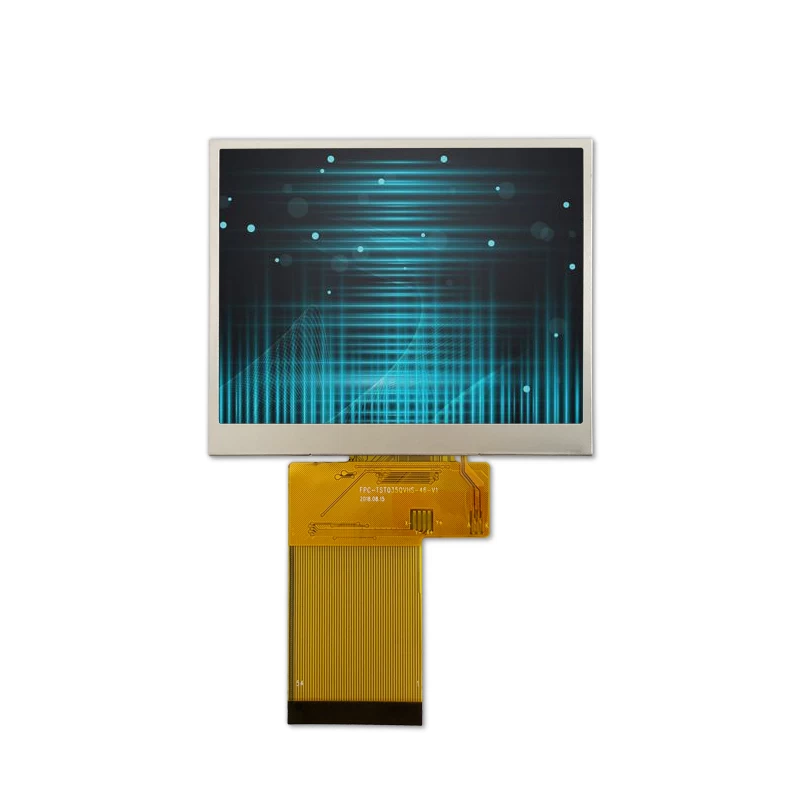

3.5 inch QVGA ips tft lcd display with high brightness

3.5 inch QVGA ips tft lcd display with high brightness

Facebook Twitter Pinterest LinkedIn 分享
Main parameters
Item 3.5 inch IPS TFT LCD display
Model name TST035QVHS-46B
Display Mode Normally Black,Transmissive
Resolution 320*240
Technology Type a-Si TFT active matrix
Driver IC ST7272A
Pixel Configuration R.G.B. Vertical Stripe
Outline Dimension
77x64x3.2mm

Active Area(mm) 70.08x52.56mm
Interface RGB
Viewing Direction ALL  O'clock
Surface Luminance 700~750 nits
Backlight Type 6 LED white color
Operating Temperature -20~70°C
Storage Temperature -30~+80°C
