3.5 Inch TFT 320(RGB)*240 lcd module with sunreadable

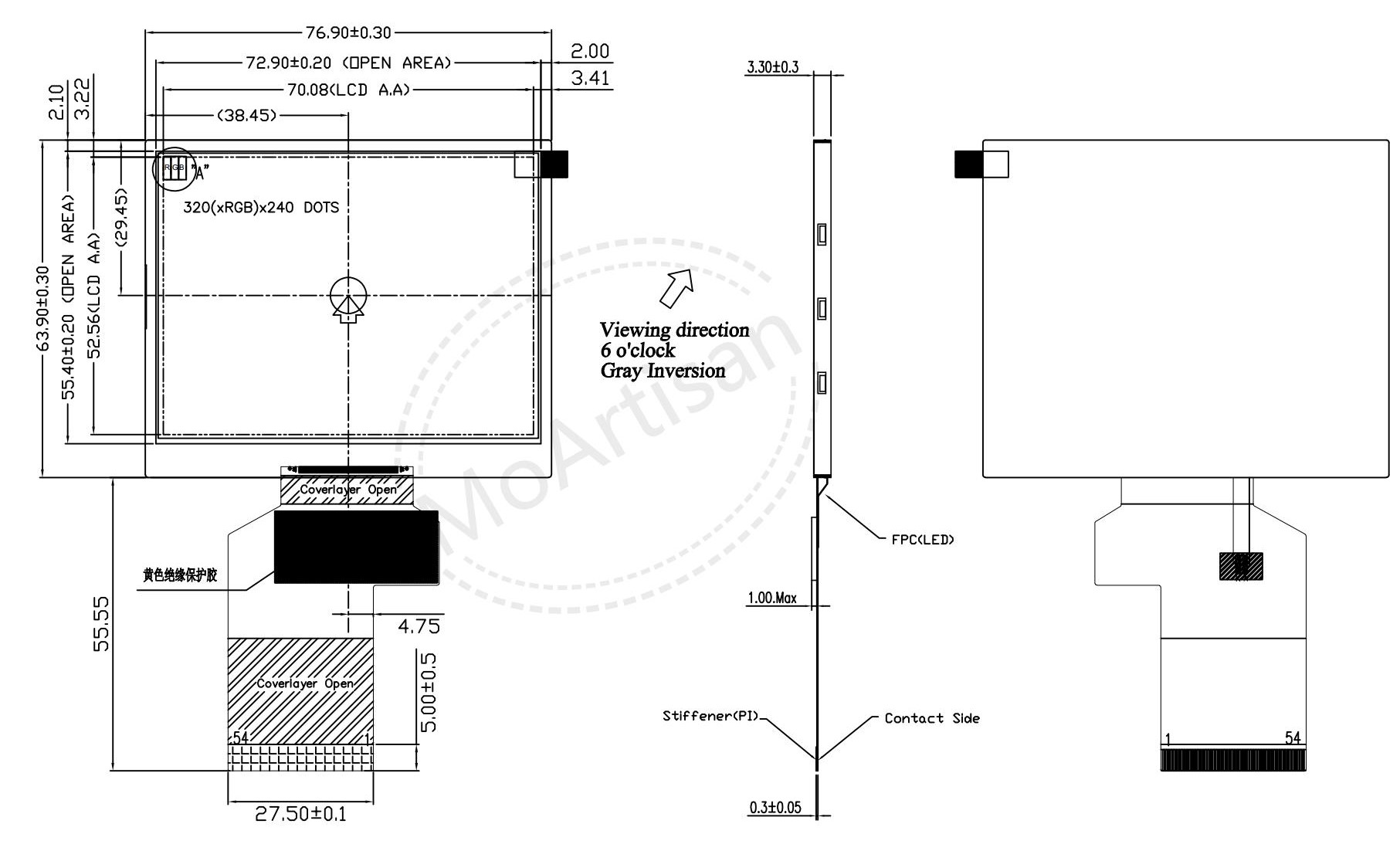

Production drawings
WM035MO004QV-A Introduction
-
3.5 inch diagonally measured active display area.
-
QVGA (320 horizontal by 240 vertical pixel) resolution.
-
3.5 Inch wide operating temprature module.
-
lcm image can be read in the sunlight, sunreadable.
-
lcm surface brightness 850 nits.
-
54 PIN FPC, 24-bit RGB or CPU interface.
|
|
About Part Number
WM020MO001QV-A: WM---Brand Abbreviation; 020---Display Inch; MO---Module;
MR---Module+RTP; MC---Module+PCAP; MP---Module+PCB; CP---Moudule+PCAP+PCB…;
001---Serial Number; QV/WV/WX/XG…---Format Solution; A/B/C...---Versions
|
|
|
Size
|
Description
|
LCM Outline
mm
|
LED L/T
(Hrs)
|
Interface
|
Brightness/CR
|
Temperature
Range (°C)
|
Viewing Angle
U/D/L/R
|
LCM P/N
|
|
3.5
|
QVGA, 320*RGB*240, TN, 6 O'CLOCK, landscape view lcd screen, sunreadable
|
76.9*63.9*3.3
|
1*6 LED (50K)
|
54 PIN FPC, 24-Bit, RGB/CPU
|
850 nits/500
|
Topa: -20~+70 Tstg: -30~+80
|
50/60/60/60
|
WM035MO004QV-A
|
Production Applications
Personal Navigation Device, Multimedia applications and Others AV system.
Production Customized
This kind of production can be customized.
Lead time for samples: 3~4 weeks.
FAQ:
What kind of LCD screen is visible under the sunlight?
ANSWER:
When the normal LCD screen is under the sunlight, its images or characters are not very clear.
The improvement method basically has the following points:
1, Reducing reflection on the liquid crystal screen surface;
2, Reducing polarizer scattering by the combination materials with polarizer;
3, Liquid crystal screen bottom adapting semi-transparent and semi-reflective;
4, Increasing backlight brightness.
The most simple way is to add a layer of film to the top of the polarizer to reduce reflection.
