3.5 Inch TFT 320(RGB)*240 module with a PCAP

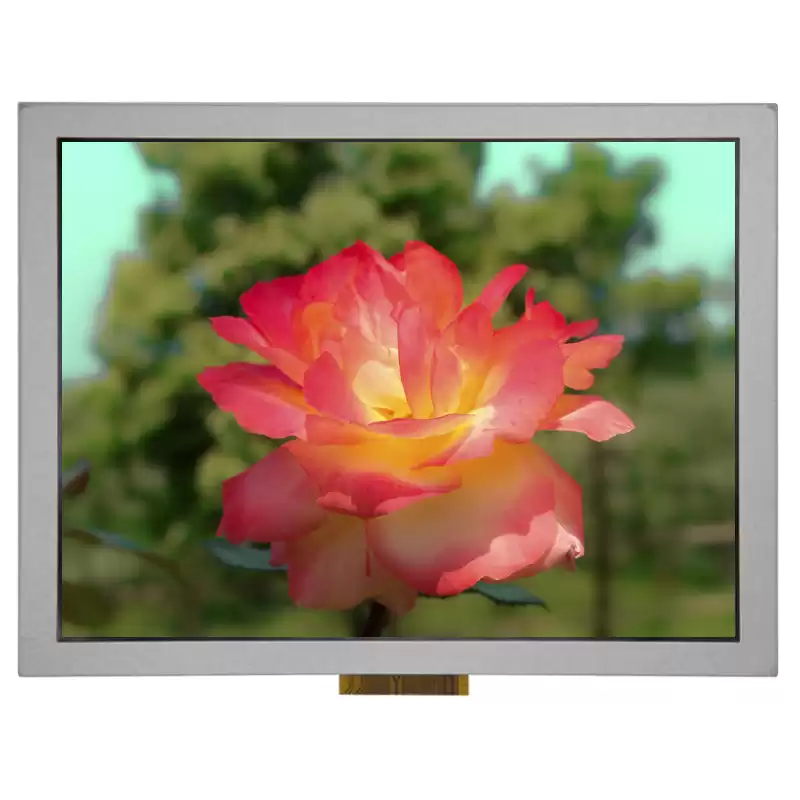

WM035MC002QV-A is a 3.5 inch QVGA TN lcd module with a I2C PCAP and 680 nits brightness.



3.5 Inch TFT 320(RGB)*240 module with a PCAP


Production drawings

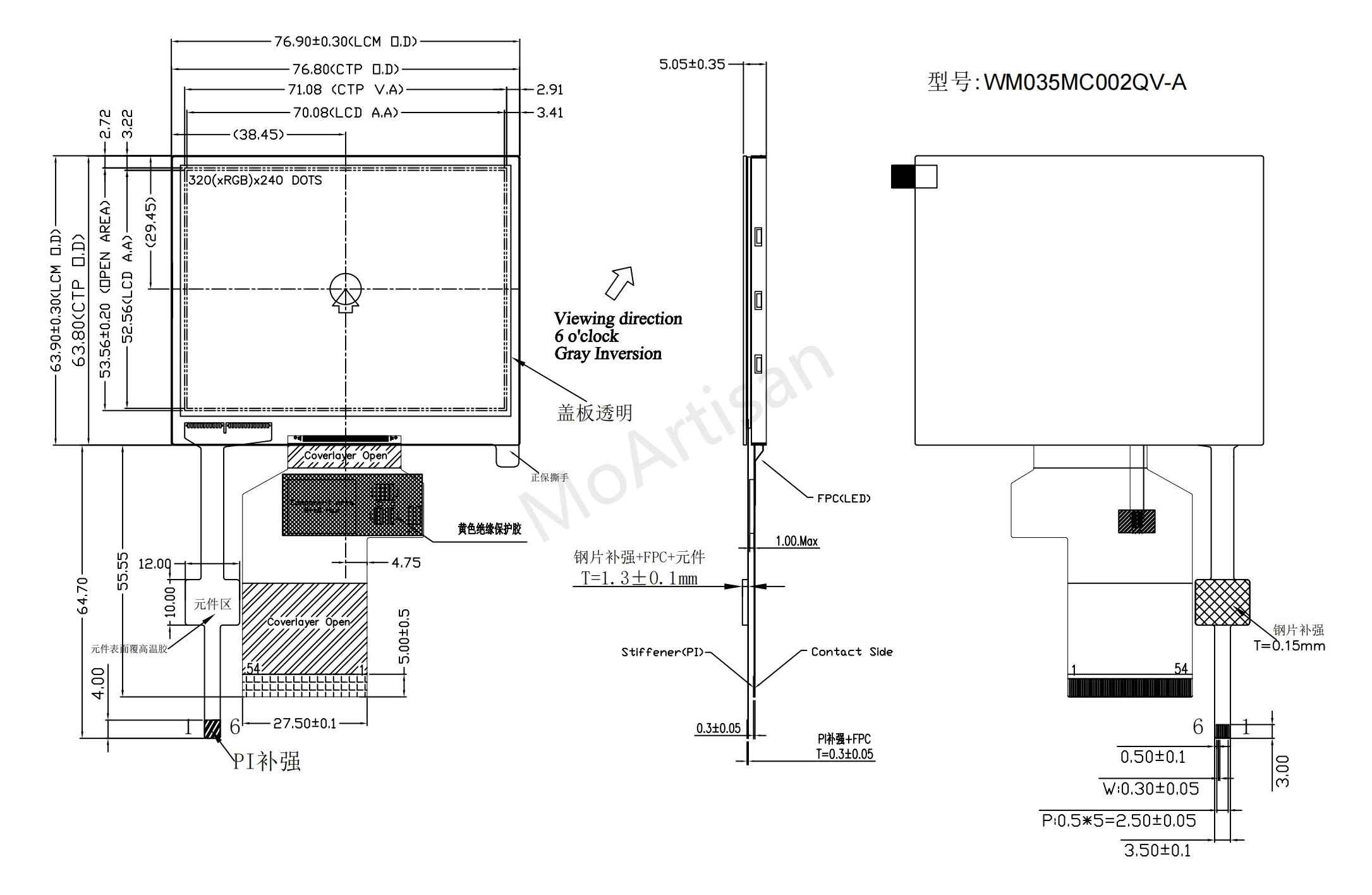

3.5 Inch TFT 320(RGB)*240 module with a PCAP Drawings


WM035MC002QV-A Introduction


  • 3.5 (4:3) inch diagonally measured active display area.
  • QVGA (320 horizontal by 240 vertical pixel) resolution.
  • TN lcd module.
  • PCAP with I2C interface.
  • lcm surface brightness 680 nits.
  • 54 PIN FPC, 24-bit RGB interface.



About Part Number WM020MO001QV-A: WM---Brand Abbreviation; 020---Display Inch; MO---Module; MR---Module+RTP; MC---Module+PCAP; MP---Module+PCB; CP---Moudule+PCAP+PCB…; 001---Serial Number; QV/WV/WX/XG…---Format Solution; A/B/C...---Versions


 Size

Description

LCM Outline

mm

LED L/T

(Hrs)

Interface

Brightness/CR

Temperature Range (°C)

Viewing Angle U/D/L/R

LCM P/N

3.5

QVGA, 320RGB*240, TN, 6-O'clock, landscape view screen, With I2C PCAP

76.9*63.9*4.5

1X6 LED (50K)

54PIN FPC,24bit RGB

680 nits/400

Topa:   -20~+70 Tstg:   -30~+80

50/60/60/60

WM035MC002QV-A


Production Applications

GPS, Personal Navigation Device, Multimedia applications and Others AV system.

Production Customized

This kind of production can be customized.

Lead time for sample: 3~4 weeks.


FQA:

What is the basic principle of the projection capacitive touch panel?

ANSWER:

Capacitive touch panels take advantage of the basic principle that capacitors can be charged or discharged and detected.
Capacitors preset under the surface glass, each equal to or smaller than a finger head size.

When in the working state, the system automatically charges the capacitor.
When a human finger or other conductor approaches the capacitors, the finger generates induced charge which changes the charging state of the original capacitor at the contact point.
This change can be recorded by the system and the touch point displayed by the screen.
