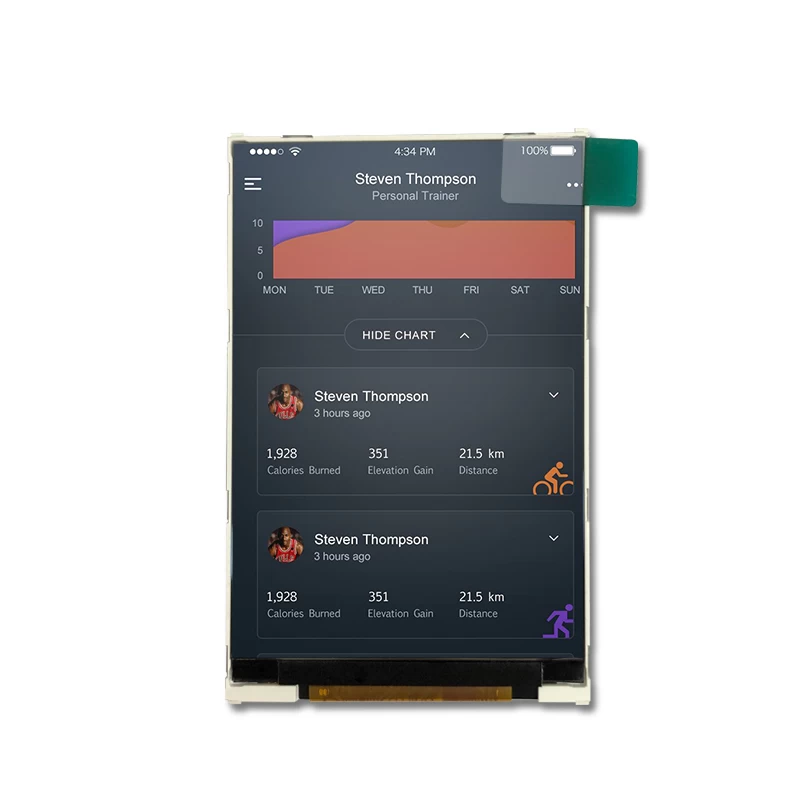

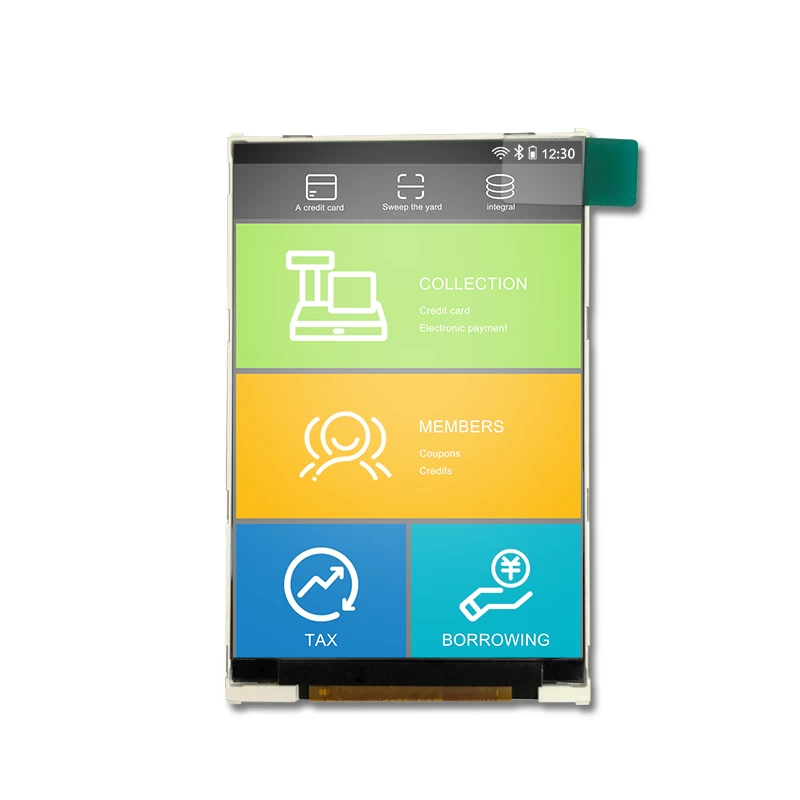

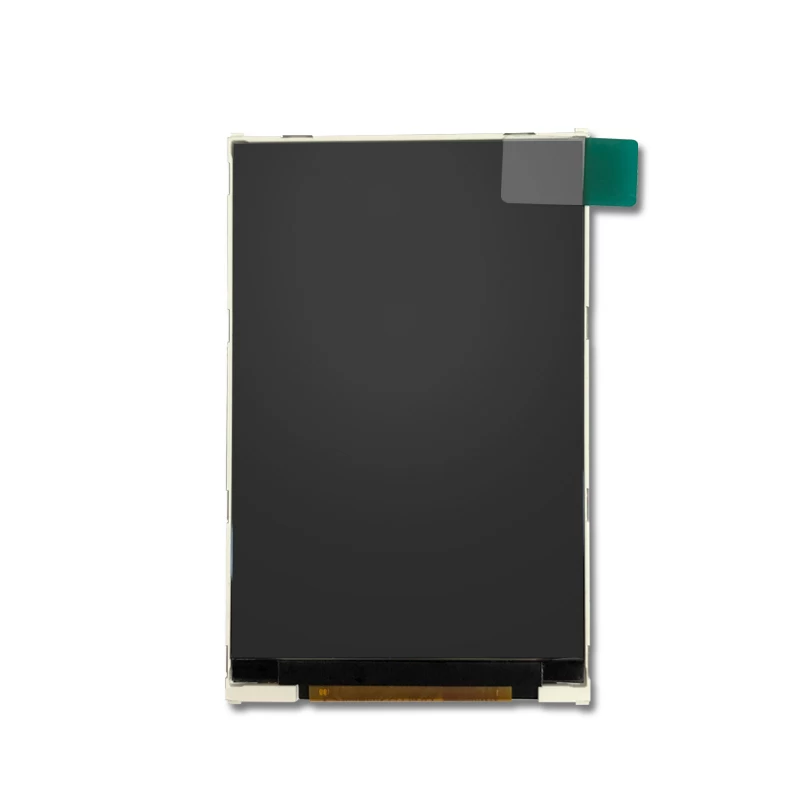

3.5 inch tft lcd display ips 320x480 resolution with MCU interface

3.5 inch tft lcd display ips 320x480 resolution with MCU interface

Facebook Twitter Pinterest LinkedIn 分享
Main parameters
Item 3.5 inch IPS TFT LCD display
Model name TST035HVQI-45

Display Mode Normally Black,Transmissive
Resolution 320*480
Technology Type a-Si TFT active matrix
Driver IC ILI9488
Pixel Configuration R.G.B. Vertical Stripe
Outline Dimension
53.76(W)*84.18(H)*3.30(T)(Exclude FPC)

Active Area(mm) 48.96mm*73.44mm
Interface MCU
Viewing Direction ALL  O'clock
Surface Luminance 300 nits
Backlight Type 6 LED white color
Operating Temperature -20~70°C
Storage Temperature -30~+80°C
